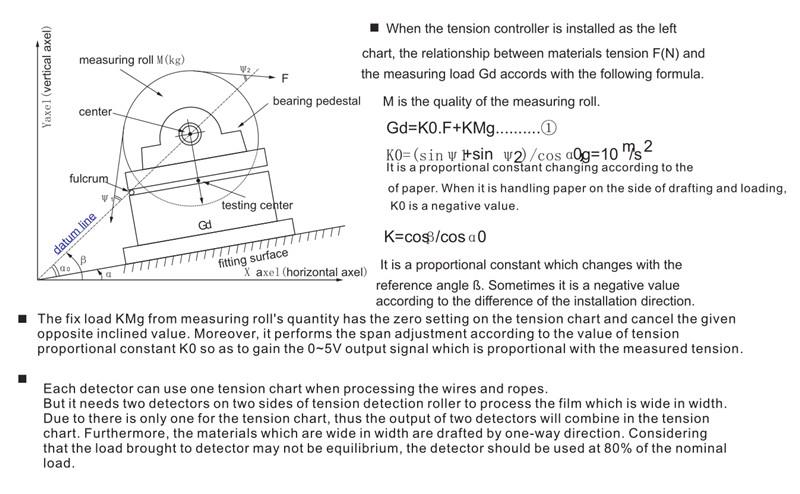

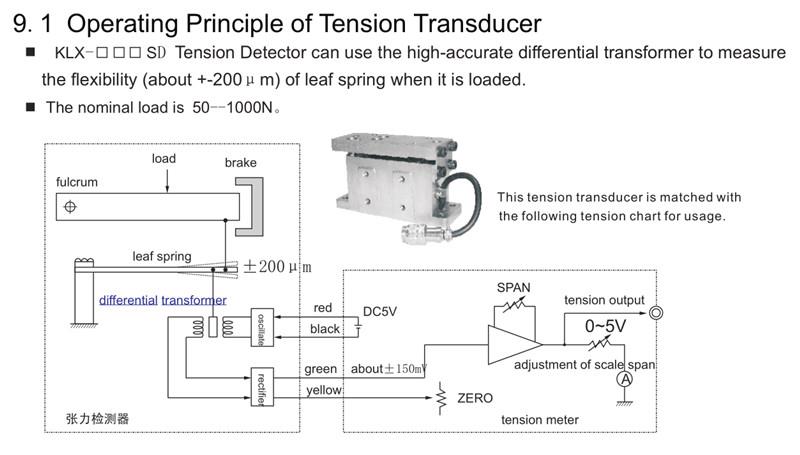

The tension sensor applies a load through the guide roller and the bearing housing to change the leaf spring as follows, and then detects the tension through the differential transformer. Since the displacement of the leaf spring is extremely small, about ±200 um, it is also called a micro-displacement tension sensor. . The sensor adopts a differential transformer structure with good temperature stability and high linearity.

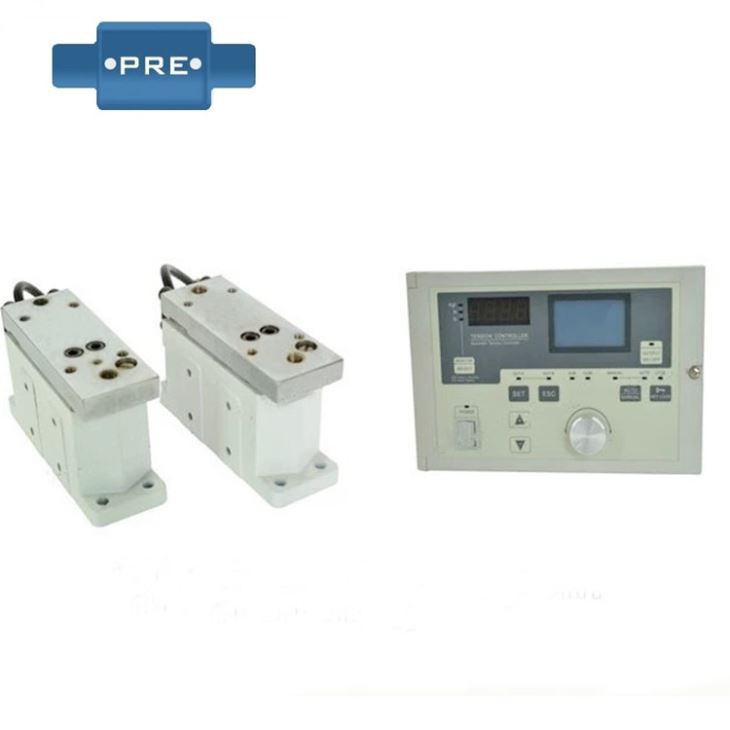

Foot Mounted Tension Sensor

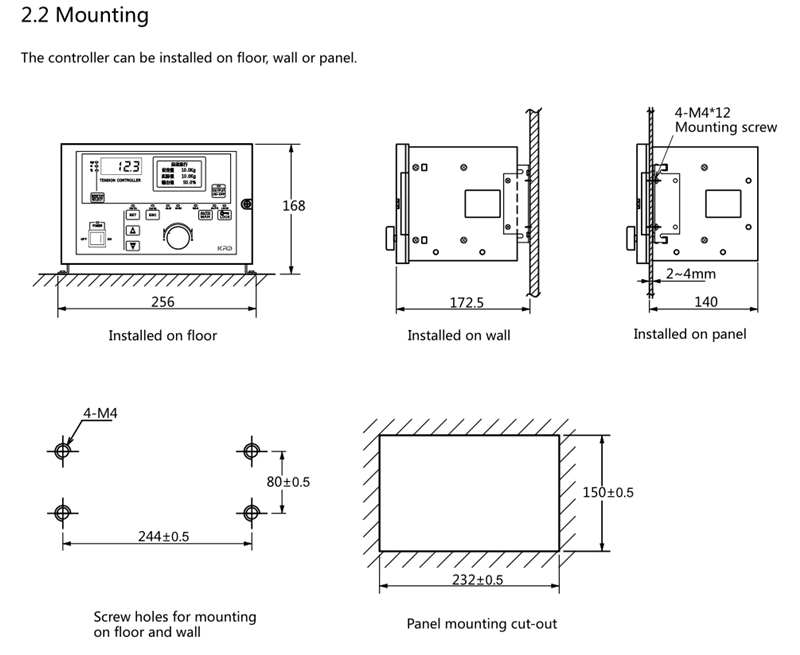

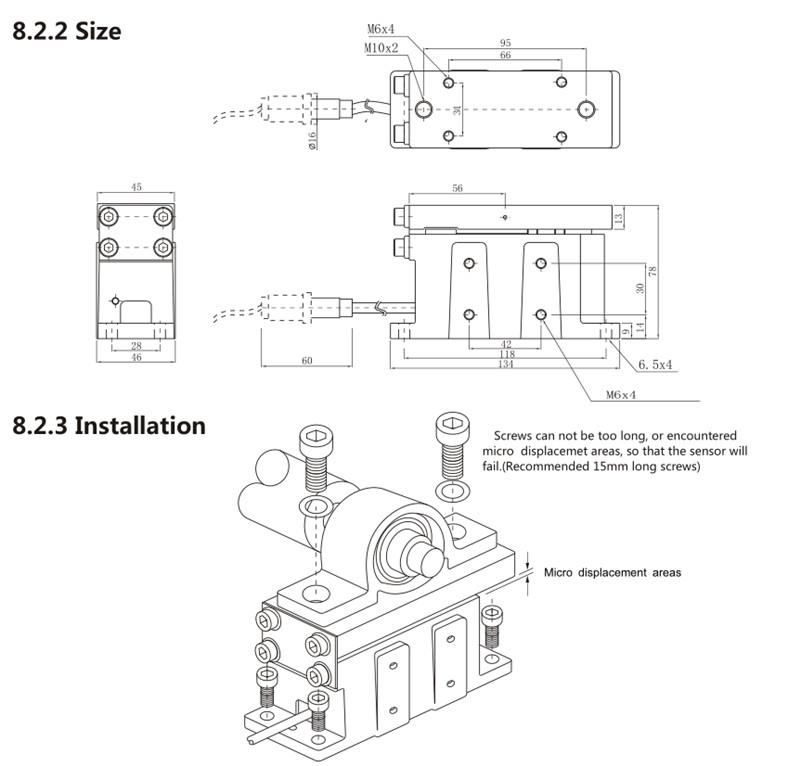

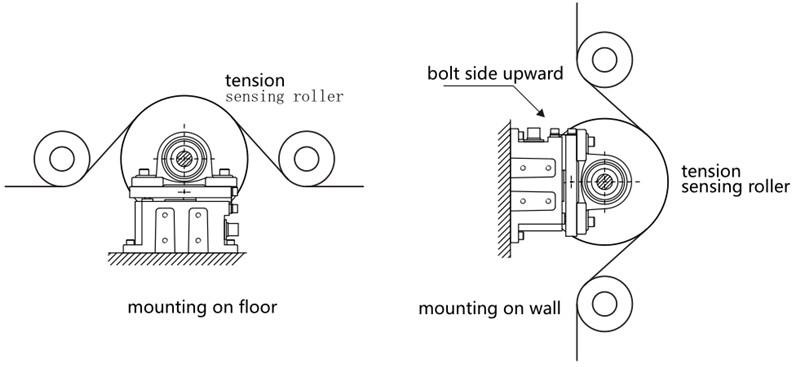

Mounting of Tension Sensors:

Pay attention to these matters when installing the tension sensor
1. When installing the tension sensor, pay attention to the tension sensor. The screw should not be too long. The bearing seat is also the same. The screw can not be selected too long. Otherwise, the spring piece of the tension sensor can not work normally, so the tension can not be detected. performance.
2. When installing the tension sensor, you need to use the side to fix it. You can't use the long screw when fixing. If you use the long screw, the measuring device inside the tension sensor will be damaged easily.
3. When installing the tension sensor, it is necessary to pay attention to the behavior that the tension sensor cannot be subjected to severe impact, otherwise the tension sensor may be easily damaged.
4. After the tension sensor is installed, it is necessary to pay attention to check it once, so as to avoid missing parts, or during the installation process, there is no notice that some places are damaged. Only after detailed inspection can the tension sensor be effectively protected. Operation.

Automatic Tension Controller KTC-828A

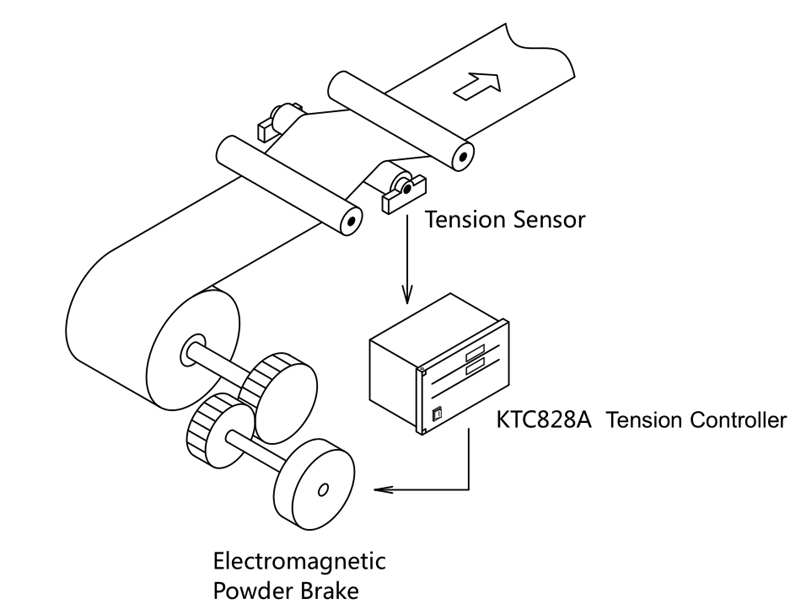

Working Principle:

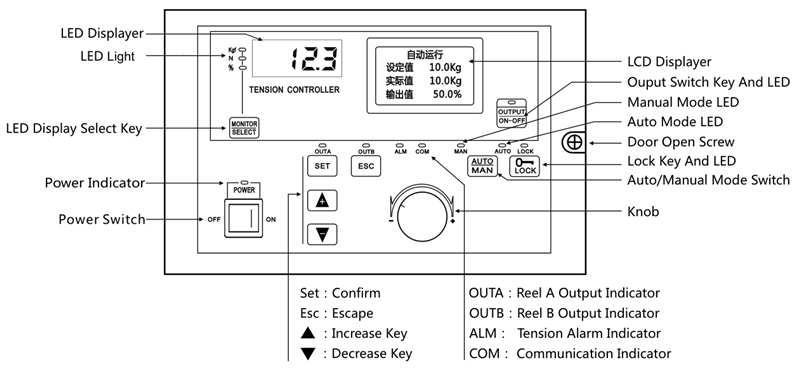

Operating Panel:

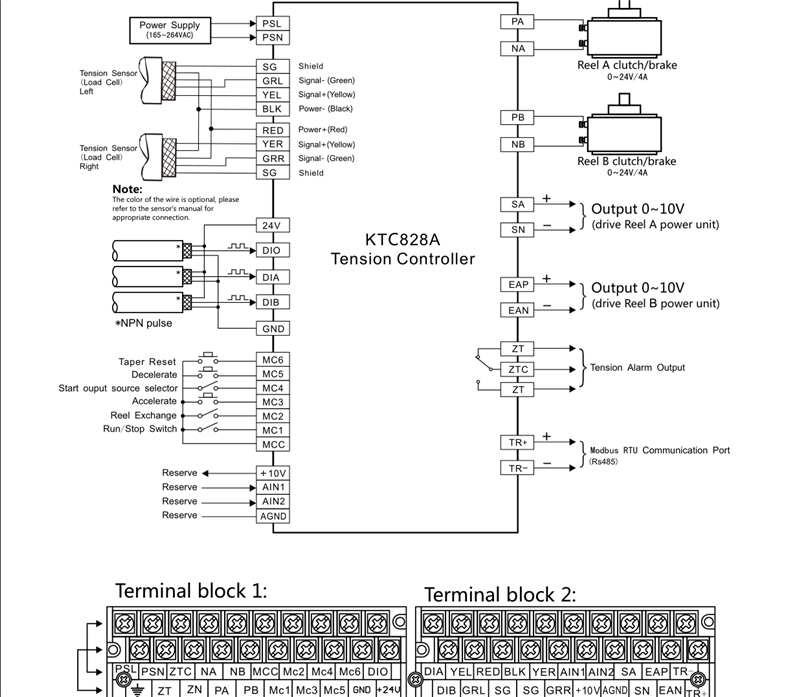

Wiring Diagram:

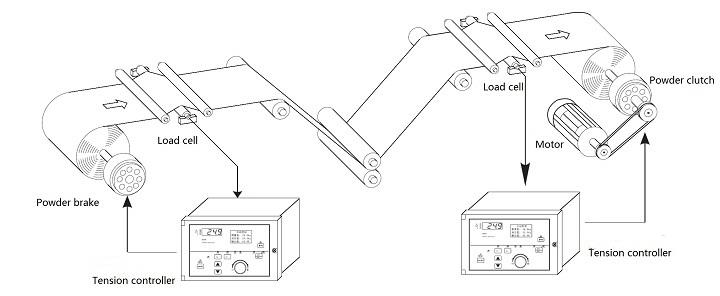

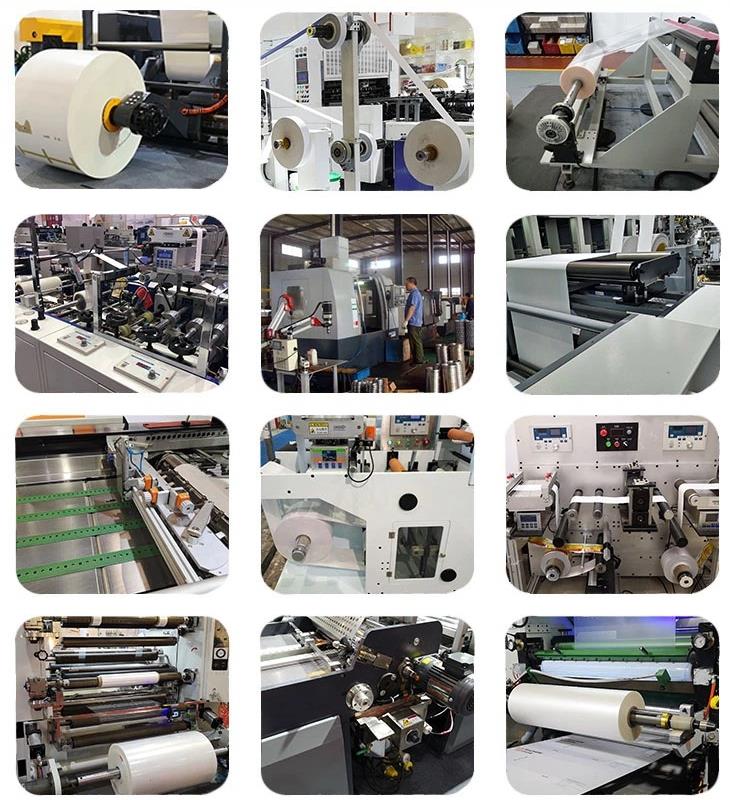

Application

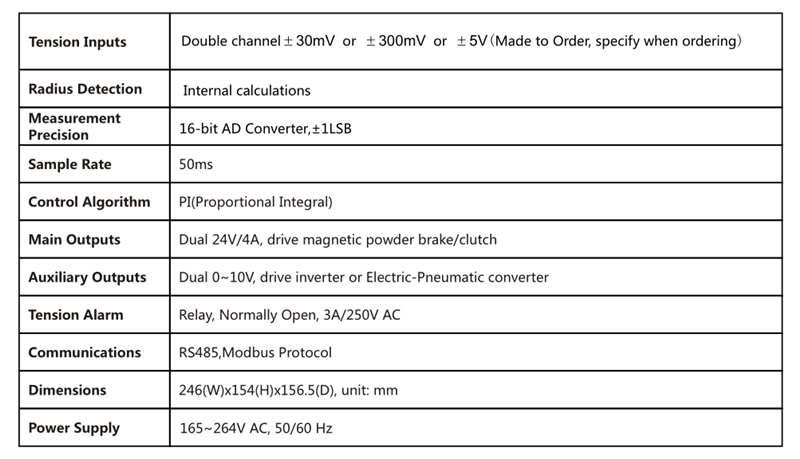

Order Details
