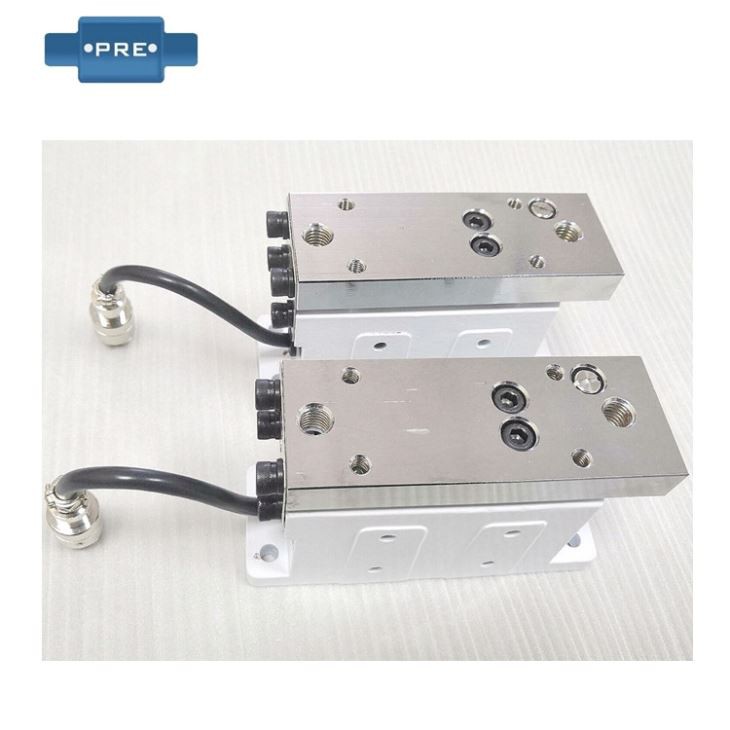

Load Cell Sensor

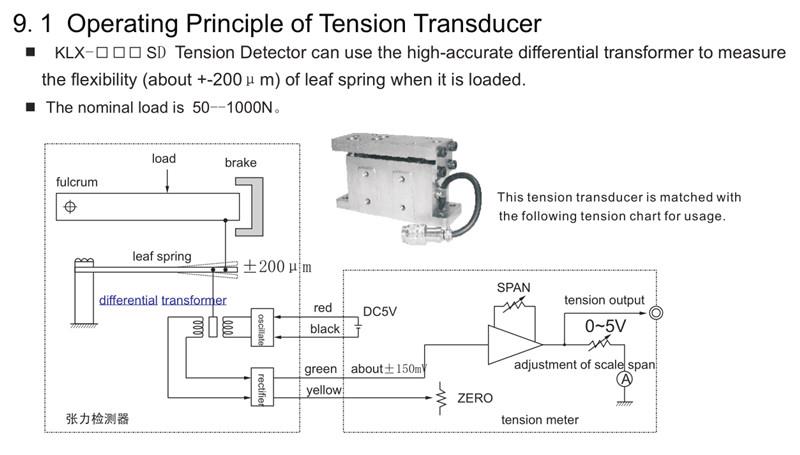

The tension sensor is made of a special rigid material. The primary coil of the tension sensor correctly passes through the 4 holes of the sensor. The primary coil is an excitation coil and the secondary coil is an induction coil. Under normal conditions, the secondary coil has no induced voltage. When horizontal tension is applied to the sensor, the secondary coil induces a corresponding voltage. The direction of the tension changes and the polarity of the voltage generated by the secondary coil also changes.

The reason why it is called the tension sensor is that only the stability of the tension can be controlled to ensure the quality of the product. Excessive tension is caused by the material being pulled off during operation. If the tension is too small, the position of the material will be shifted.

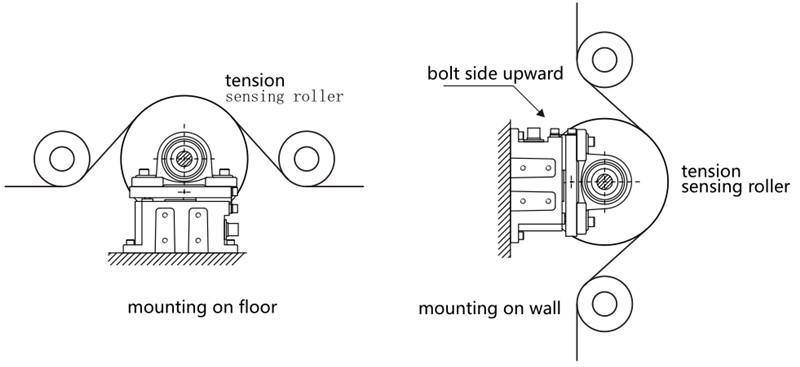

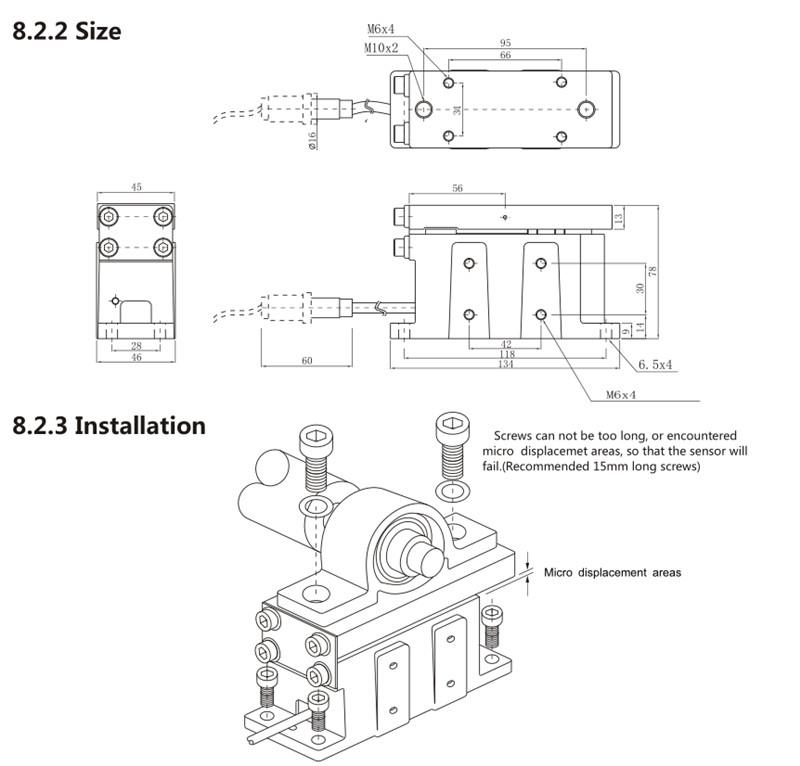

Mounting of Tension Sensors:

Maintenance

1. Preparations and precautions before starting

a. Thoroughly check the mechanical seal, and whether the attachments and pipelines are installed properly and meet the technical requirements.

b. Perform static pressure test before starting the mechanical seal to check whether the mechanical seal has leakage. If there are more leaks, you should find out the reasons and try to eliminate them. If it is still invalid, it should be disassembled and reinstalled. Generally, the static pressure test pressure is 2 - 3 kg / cm 2 .

c. Press the pump to turn the disc to check if it is light and even. If the car is struggling or not moving, check whether the assembly size is wrong and the installation is reasonable.

2. Installation and shutdown

a. Keep the sealed chamber filled with liquid before starting. For transporting the solidified medium, steam is applied to heat the sealed chamber to melt the medium. The car must be driven before starting to prevent the soft ring from breaking due to sudden start.

b. For the mechanical seal using the pump external sealing system, the oil sealing system should be activated first. Finally stop the oil sealing system after parking.

c. After the hot oil pump is stopped, the cooling water of the sealing oil chamber and the end face seal cannot be stopped immediately. When the oil temperature of the end seal is lowered to below 80 degrees, the cooling water can be stopped to avoid damage to the sealing parts.

3. Operation

a. If there is a slight leakage after the pump starts, it should be observed for a while. If the leakage is still not reduced after 4 hours of continuous operation, the pump should be stopped.

b. The operating pressure of the pump should be stable and the pressure fluctuation should be no more than 1 kg/cm 2 .

c. During the operation of the pump, evacuation should be avoided to avoid dry friction and seal damage on the sealing surface.

d. Sealing should be checked frequently. During operation, when the leakage exceeds the standard, the heavy oil is not more than 5 drops/min, and the light oil is not more than 10/min. If there is no improvement trend within 2-3 days, the pump plug should be stopped to check the sealing device.

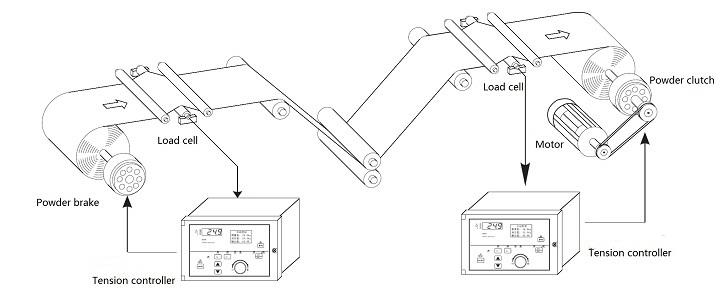

Application

Order Details
