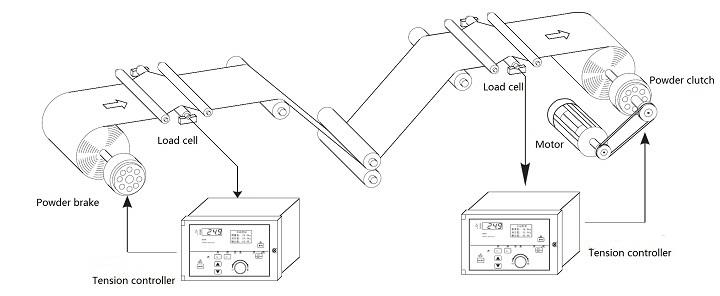

Tension control system is often a system integration of tension sensor and tension controller. It is mainly used in metallurgy, paper making, film, dyeing and finishing, weaving, plastic, wire and other equipment. It is a kind of constant tension or taper tension control. The automatic control system is mainly used to realize the synchronization between the rolls, the uniform control of the winding and unwinding.

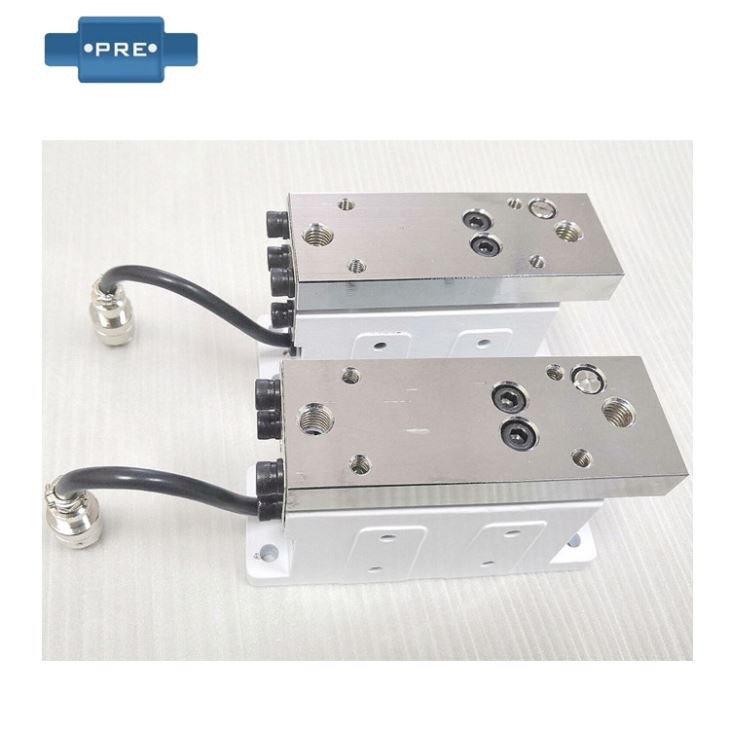

Foot Mounted Tension Sensor

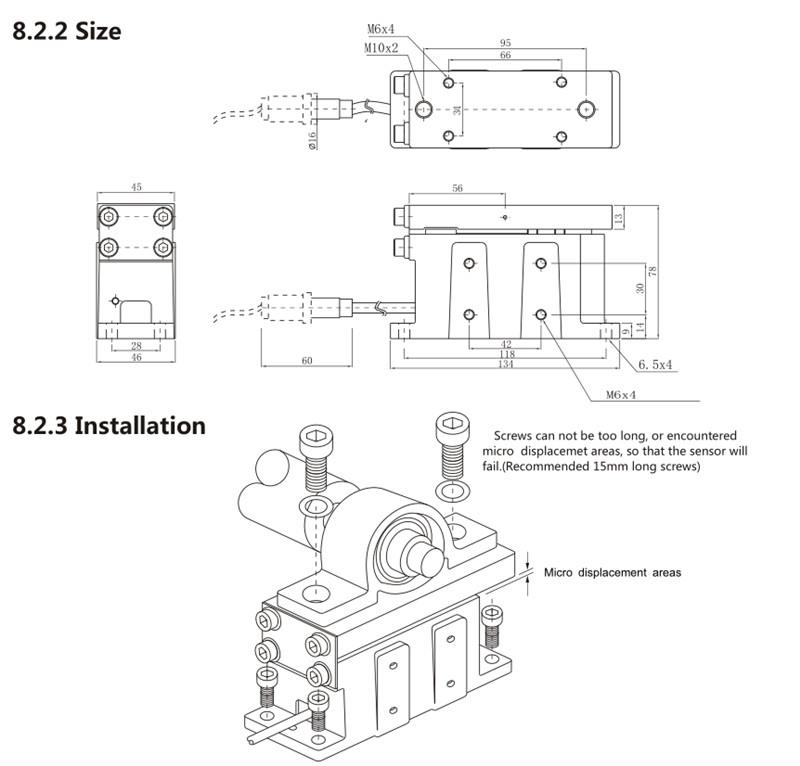

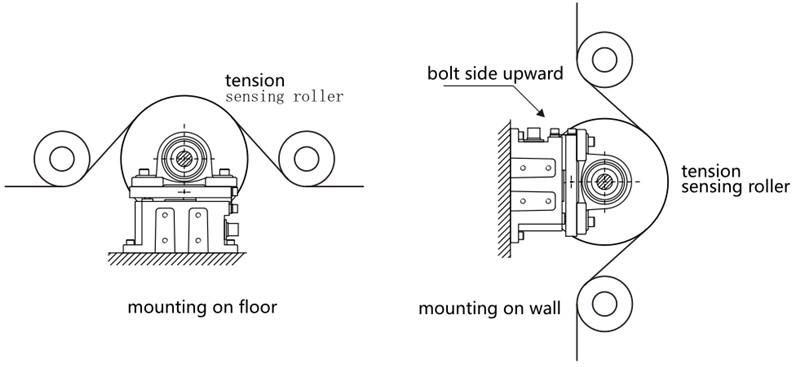

Mounting of Tension Sensors:

The effect of the tension sensor.

The purpose of the device tension sensor is to detect the actual tension of the film, feed it back into the tension manipulator and compare it with the set tension of the manipulator. Adjust the output of the manipulator according to the difference between them to make the tension of the film. Consistent with the set tension. If the tension sensor is damaged or the device is not properly installed, the active tension control will not be completed, so it is necessary to properly install and operate the tension sensor.

Device for tension sensor.
Select a guide rail or shaft at the location where the film tension is required to be detected, and fix the bearing assembly at both ends of the shaft to the tension sensor, and then fix the base of the tension sensor to the machine. After the bearing block device is fixed on the tension sensor, fix the base of the tension sensor to the machine. The bearing housing uses a spherical universal bearing housing to prevent the left and right sensors from interacting with each other.

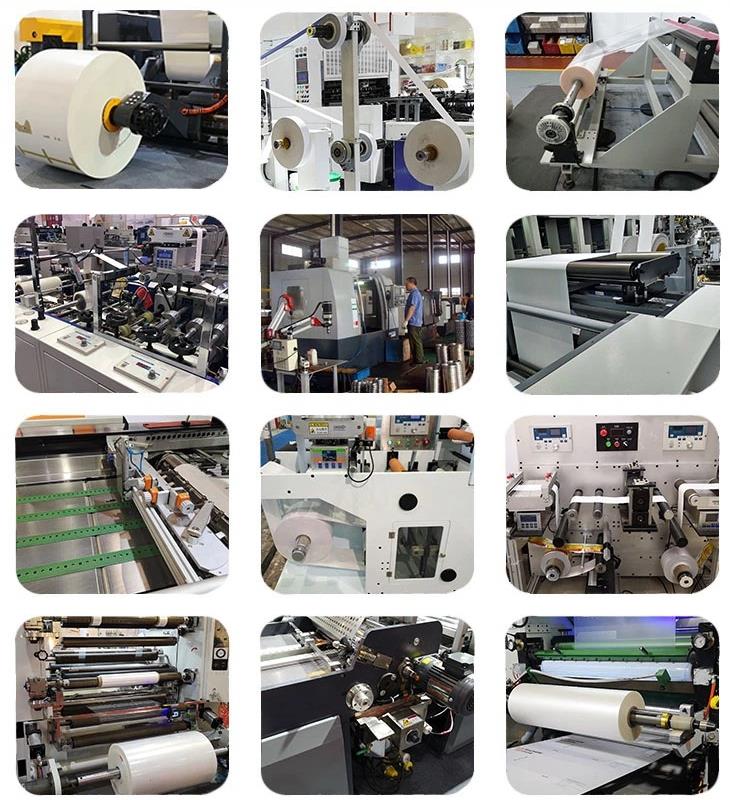

Application

Order Details
