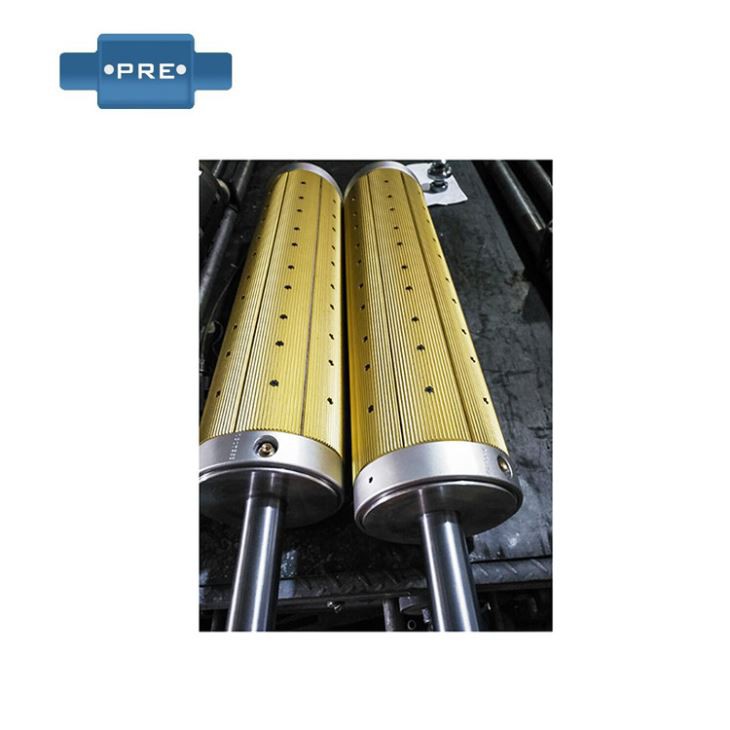

Resource Air Shaft

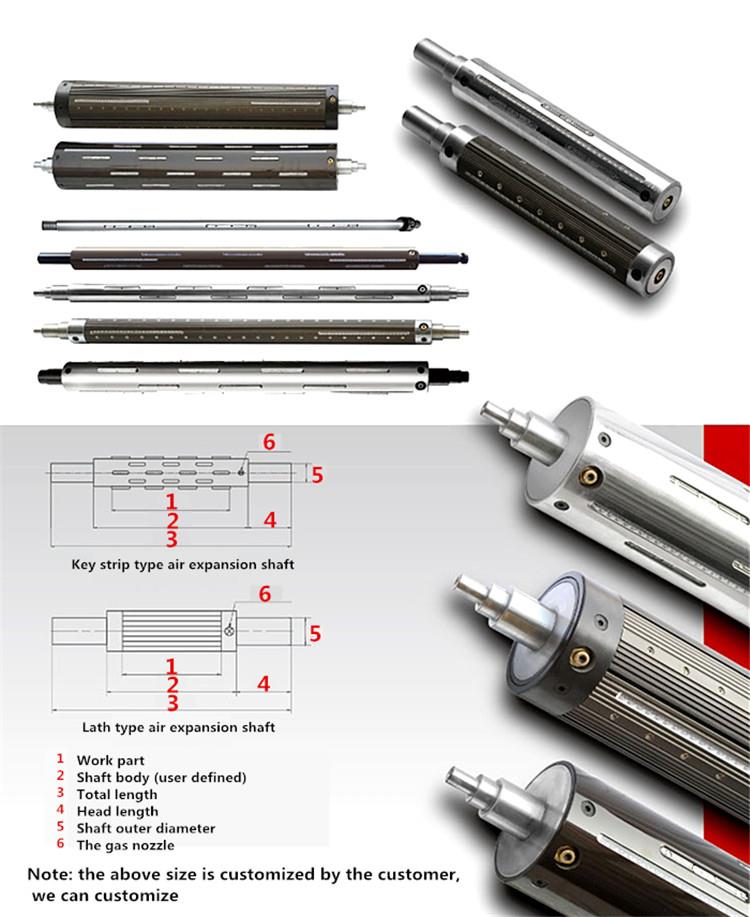

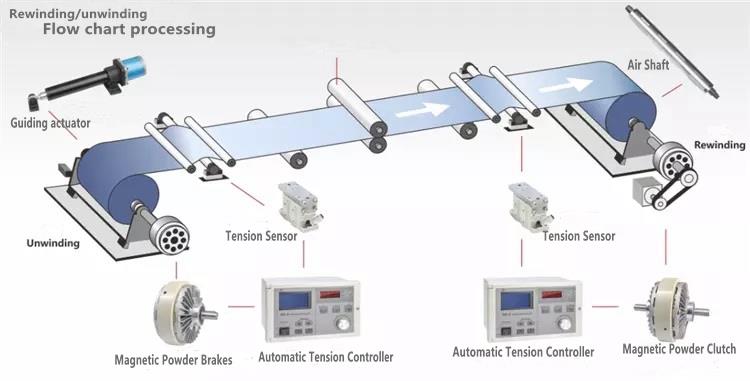

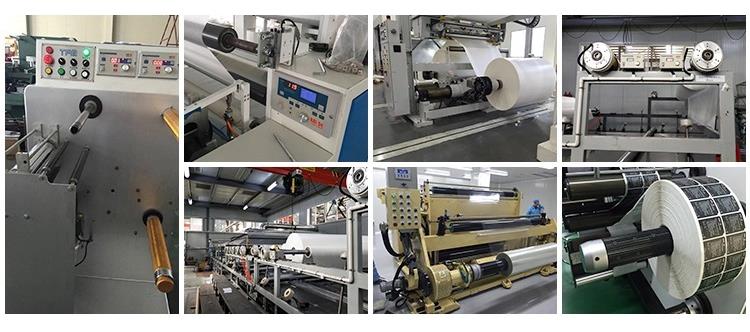

There are 1 inch, 1.five inch, 2 inch, 2.5 inch, three inch, 6 inch, eight inch, 10 inch, 12 inch, gasoline upward thrust sets, and so on., in step with customer needs processing and manufacturing of different specifications of the fuel upward push axis. easy preservation and long provider lifestyles: although the inflation shaft is a mechanical accent, each part in its very own creation has constant specifications and may be used interchangeably for easy maintenance. it can be used for rewinding and reeling of associated equipment which includes coating, slitting, printing, rewinding, compounding, paper making, bag making, plastics, and so on., that can correctly improve paintings performance.

   the shaft is designed for special features and can be used for all kinds of paper tubes of thick, skinny, huge and slim. easy preservation and long provider lifestyles: the inflation shaft is a unmarried element, and each component within the structure has fixed specifications, which may be used interchangeably, making it easy to hold. the bearing weight is big: the diameter of the shaft can be determined according to the actual wishes of the purchaser, and the excessive-hardness steel is used to increase the bearing weight.

   despite the fact that the inflation shaft is a mechanical accessory, every a part of its production has a hard and fast size and may be used interchangeably for smooth maintenance. it's miles extraordinarily convenient and quick to apply. it best desires to be self-contained. the air strain is managed in the variety of 6-8kg/cm2. when the outside components (inclusive of a spherical paper tube) need to be locked, as long as the inflatable manage is going through the inflation shaft. the upper nozzle may be inflated.

A comprehensive understanding of the daily maintenance methods of the inflation shaft
1. Pay attention to the cleanness of the expansion sleeve during installation, and do not have any pollution.
2. Under normal circumstances, friends who don't understand the expansion sleeve may use MoS2 oil. Then it is wrong. It is a big mistake. It is best not to use this.
3. If the working environment is poor, such as long-term exposure, we must apply anti-rust oil on the front end.
4. Of course, you can also choose the expansion sleeve with good rust resistance, which can also solve this problem.
5. Inflate the inflation shaft, then use a φ1.6mm thin wire to pass through the small hole (φ2mm) on the floating key in the circumferential direction, and fix the key every four groups (remember not to let the key fall to the expansion shaft during maintenance). inside).
6. Use the inner hexagon of 4.7 mm to remove the 4 screws on the outer circumference of the inflation end of the air-up shaft.
7. Release the air and remove the one-way copper valve in the inflation end of the expansion shaft with the processed φ20mm sleeve. (If the inner hole of the expansion shaft is deformed, the inner hole of the expansion shaft can be slightly repaired by the lathe. Be careful not to damage the internal thread. ).
8. Screw the machined double-start threaded rod into the internal shaft of the inflation shaft, and then remove the expansion shaft with the pin.
9. Remove the air bag, check it with a small amount of gas (mostly open and large leaks), repair or replace it.
10. Fill a small amount of gas into the water for inspection.
11. It must be erected during installation. The method is basically the opposite of disassembly, and the sealant is added at the joint.
