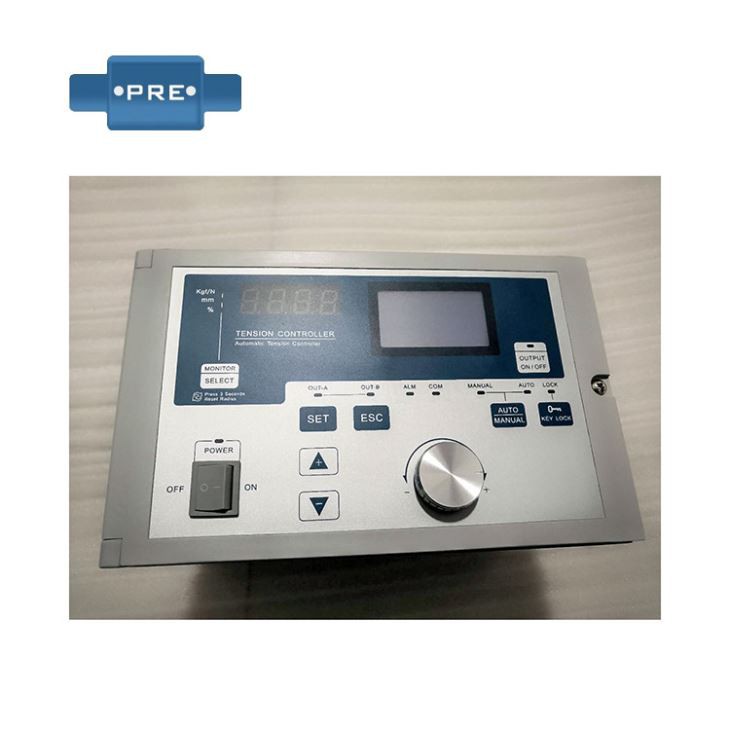

Measure Tension

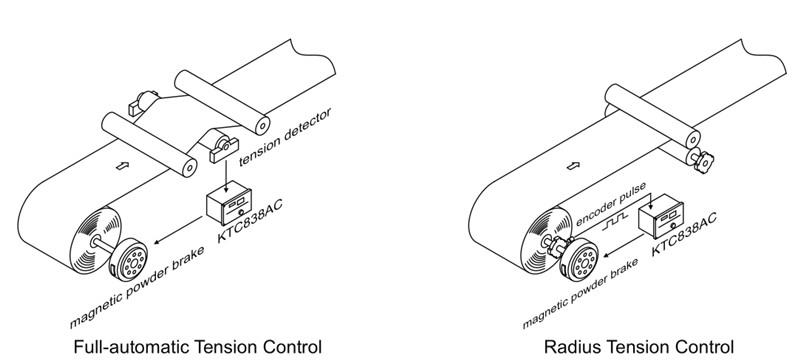

The tension controller KTC-838A is a excessive-precision, multi-feature, all-digital wise tension controller that may be mixed with a anxiety detector to form a closed-loop tension control system, or an automatic calculation of hysteria thru a proximity transfer/encoder to shape an open-loop tension control machine. it has the functions of KTC-838A and KTC-838A on the same time, presenting customers with extra loose choices.

Commissioning of automatic tension controller

1. Make sure the tension sensor is installed and wired correctly, and check if the tension sensor signal is normal.

2. If the above steps are normal, switch to the automatic control mode and adjust the PI parameters according to the operation to ensure smooth running of the tension system.

3. Ensure that the tension controller is properly installed and wired and then powered on.

4. Check the system by manual adjustment and operation to confirm that the tension display is normal and the actuator is operating normally.

5. Program the relevant parameters of the tension measurement.

6. Calibrate the zero and full scale of the tension signal and confirm that the tension display is normal. If the tension display is not normal, return to step 2.

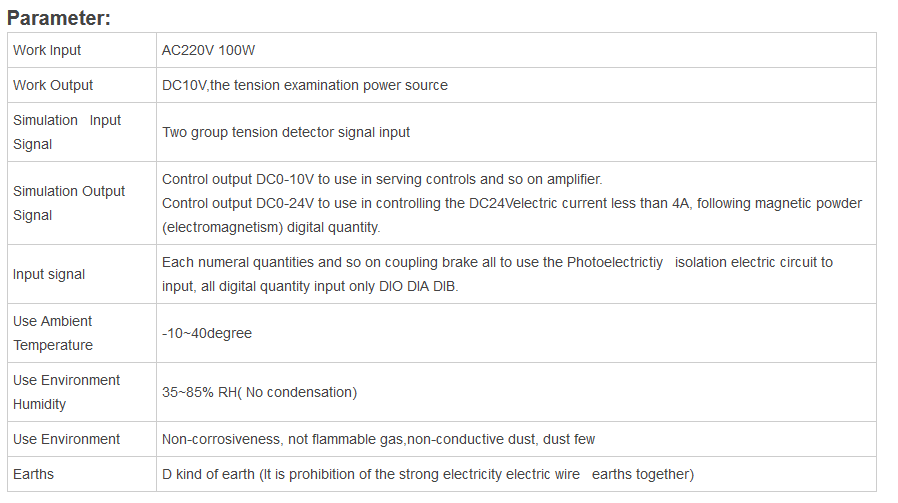

Automatic Tension Controller with Taper and Communication Function

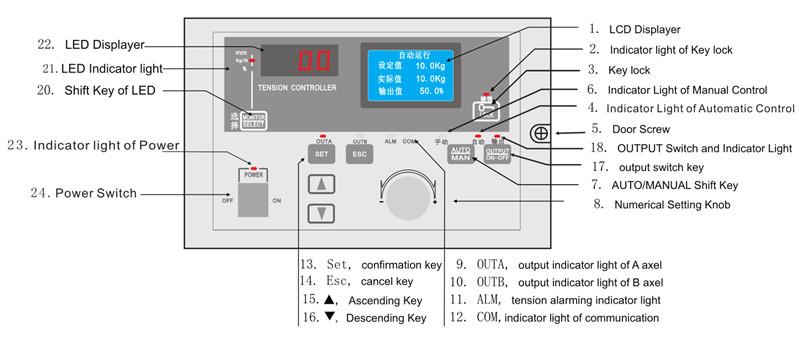

Operating Panel:

In order to perform correct closed-loop tension control, the tension display must be accurate. In this case, the tension controller should be calibrated, and the tension value indicated by the calibrated tension controller can achieve the desired accuracy. The TC818 tension controller uses a two-point linear calibration method, and the calibration process is very simple.

Use the multimeter 200mV file to measure the sensor output signal. When the sensor is not stressed, it is about OmV. When the sensor is stressed, the output signal will change: the greater the force, the larger the signal, but the signal output of the sensor cannot be exceeded. LX series tension The output signal of the sensor will not exceed 200mV, and the output signal of the CTS/HTS series tension sensor will not exceed 20mV. Otherwise, the sensor is faulty and needs to be replaced and installed after calibration.

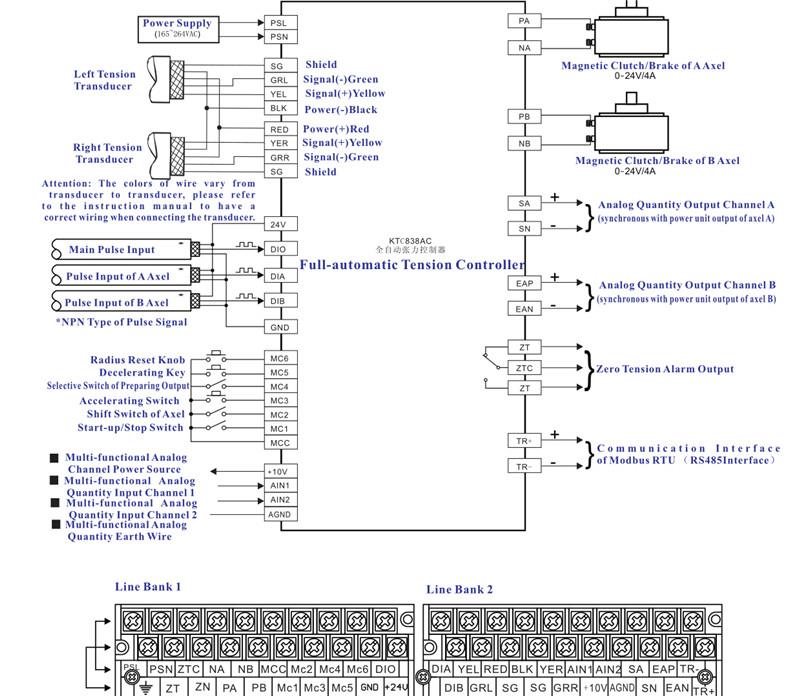

Wiring Diagram:

When the tension measurement is correct, you can enter the automatic and manual operation mode debugging of the controller. Firstly, the manual control mode is used. When the manual operation is normal and the coil material reaches the proper and stable tension, it can be switched to the automatic control mode.

1. Automatic control: When the controller is in the manual control mode, press the AUT0/MAN button, the AUT0 indicator lights, the controller switches to the automatic control mode, you can rotate the value setting knob or press the increment key/decrement key to directly modify the tension setting value. The modification range is limited by the set value and the set value.

2. Manual control: When the controller is in the automatic control mode, press the AUT0/MAN button, the MANU-AL indicator lights, the controller turns to the manual control mode, you can rotate the value setting knob or press the increment key/decrement key to directly modify the output power. The value, the modification range is limited by the S large output value.

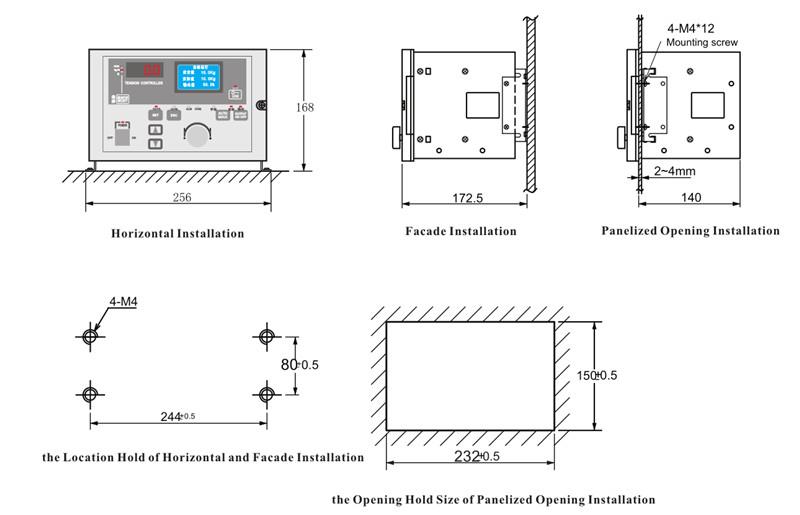

Installation:
