Measuring Tension

Tension controller person interface design is very clean to function
The absolutely automatic tension controller can at once pressure the magnetic powder grab and the magnetic powder brake, in addition to the inverter and servo motor. different benefits encompass the potential to simply accept unmarried or dual sensor input indicators, car zero, and automatic calibration. user-pleasant interface design, operation is quite simple.

Anxiety controller anxiety manipulate system consists of magnetic powder brake, proportional amplification, power amplification, anxiety detection and so forth. the system can manually choose the pre-anxiety in keeping with distinctive paper anxiety necessities, set the "automated" function at some stage in ordinary operation, regulate the tension to the pre-tension with the aid of "given", and the anxiety adjustment curler is in equilibrium. if the tension adjustments due to a few interference, the anxiety adjusting roller is displaced, and the anxiety detector outputs a corresponding trade sign. after the circuit is amplified, the braking torque of the magnetic powder brake is controlled to exchange as a result, the tension adjustments for that reason, and the tension adjusting roller returns to the equilibrium country, thereby preserving the tension strong.

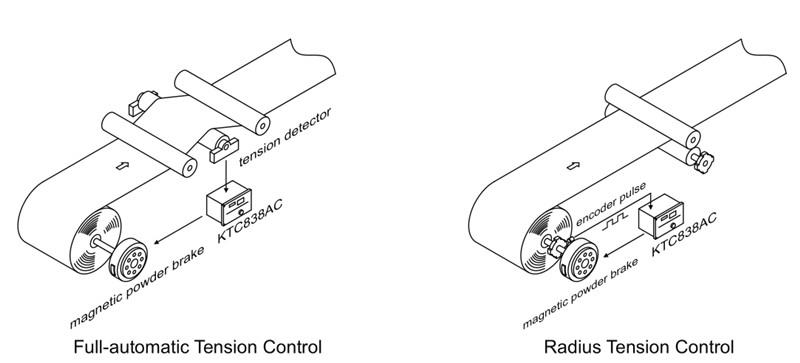

Fully automated: there are usually  detection strategies. one is to degree the tension of the coil by means of a tension sensor, after which the controller routinely adjusts the clutch or brake to manipulate the anxiety of the web. this method is the overall closed-loop control of anxiety. in principle, this sort of scheme can mirror the trade of tension in actual time, so the control precision is the highest. therefore, a few excessive-grade completing generators, high-velocity slitting machines and different metallurgy adopt computerized anxiety manipulate machine.

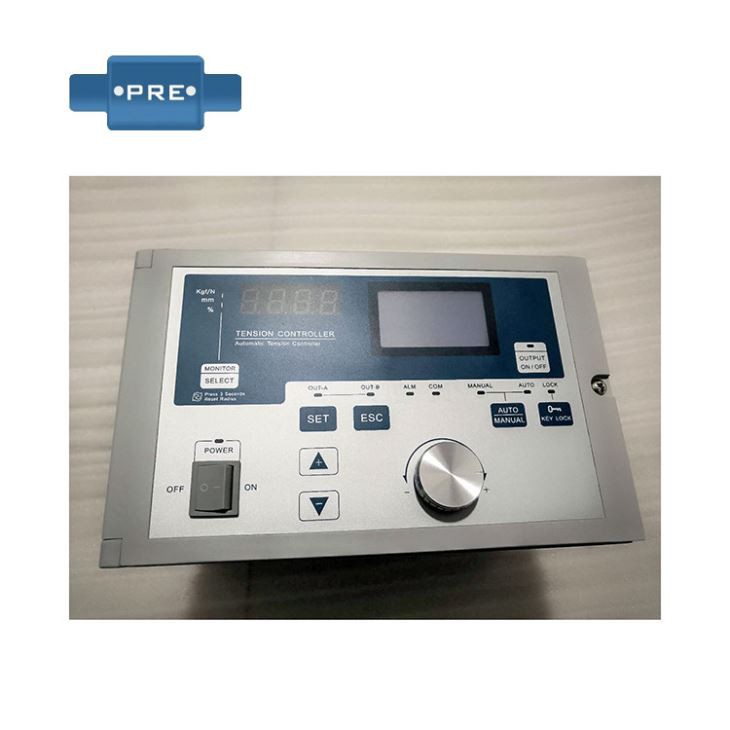

Automatic Tension Controller with Radius:KTC-838A

The tension controller can set the tension price to be managed, and the tension sensor feedback signal is compared and processed, and output to the brake grab control. the tension controller also can be used in all fields associated with coil processing. more used in packaging, printing, labeling, paper, plastic, clothing, cable, non-woven, corrugated paper processing and other industries.

The consistent anxiety manage of the tension controller requires a regular torque, however at some stage in the winding technique, the radius of the winding wheel is constantly growing, which calls for the torque of the motor to be progressively growing. the moment is identical to the end result of the anxiety and radius). the actual-time information of the coil diameter is obtained through the coil diameter calculation.

Anxiety controller for taper control of coil tension
In the route of the winding or unwinding technique, whilst the winding diameter adjustments to a certain diploma, the operator adjusts the guide electricity supply tool to collect the reason of controlling the anxiety. however, the modern gravure press manual tension manage device has been essentially eliminated, and best exists as a mode of operation inside the closed-loop computerized tension manipulate system.

The tension controller realizes the regular tension control of the coil or realizes the taper control of the coil anxiety in step with the manner requirements. underneath everyday circumstances, there are numerous activities requiring everyday tension manipulate; for taper manipulate, it is typically carried out in the case of winding, including achieving tight internal ring of the coil and loose outer ring, in order that the cloth isn't always resultseasily deformed after being rolled up.

Automatic Tension Controller with Taper and Communication Function

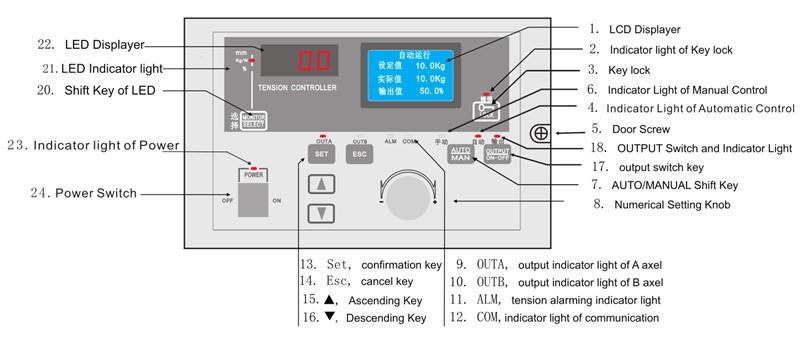

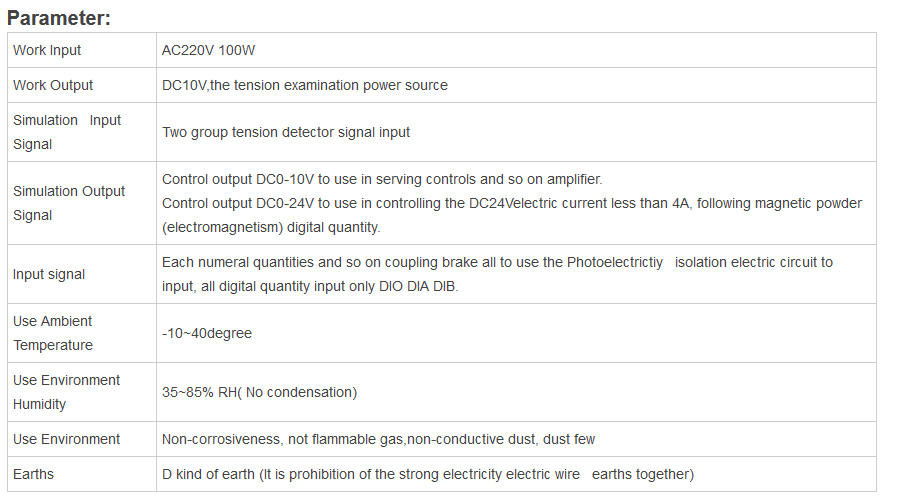

Operating Panel:

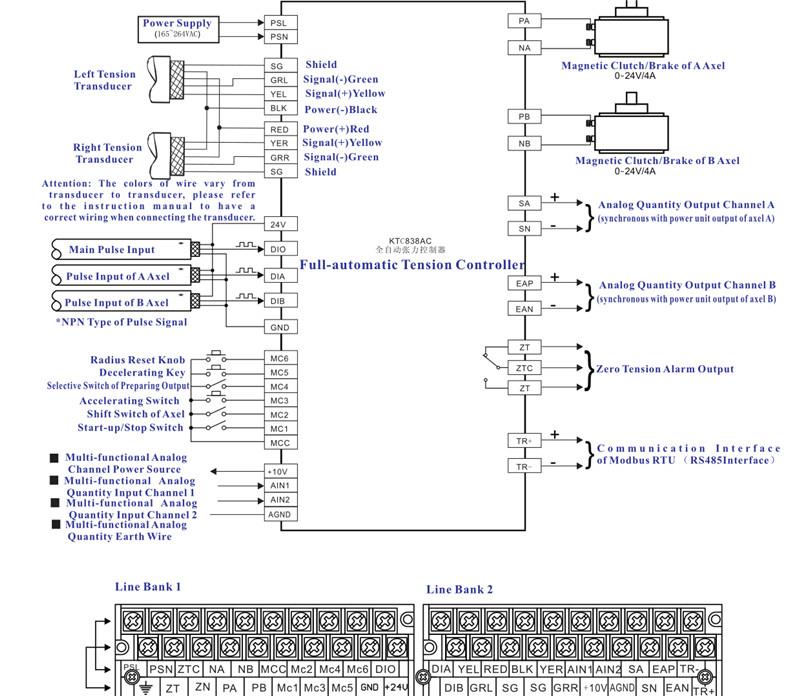

Wiring Diagram:

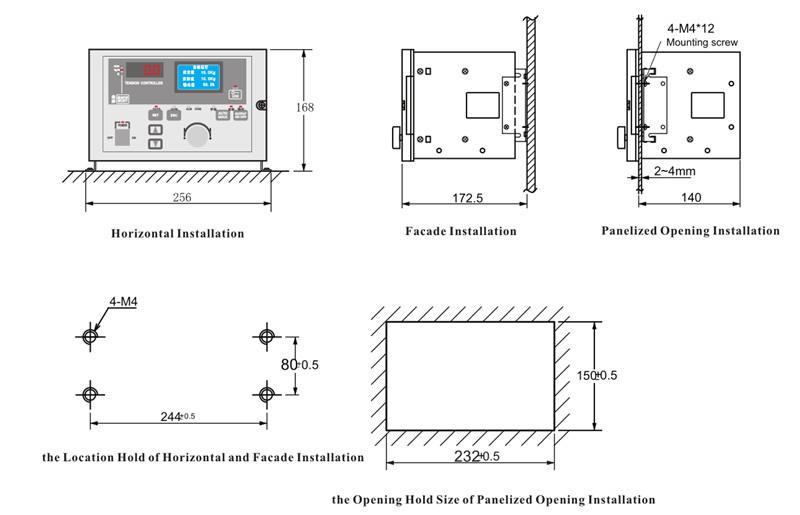

Installation:

Whether the tension controller is stable or is not directly related to the quality of the slitting product.

The stability of the tension controller is directly related to the quality of the slitting product. If the tension is insufficient, the raw material will drift during operation, and the finished paper will wrinkle after slitting and rewinding; if the tension is too large, the raw material will be easily broken, so that the finished paper breaks after slitting and rewinding.

The tension controller amplifier is rated for a maximum output voltage of 24V, but it is not a constant voltage or constant current source. By controlling the magnitude of the input voltage, you can control the percentage of output voltage and current, not the absolute value of the output voltage and current.

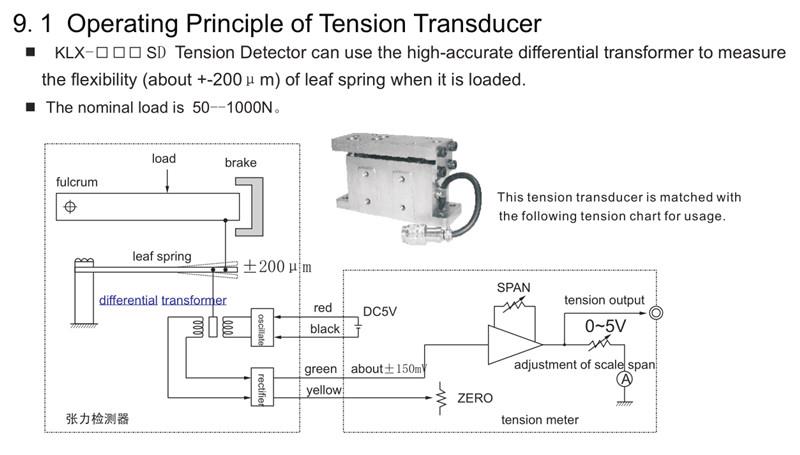

LX Foot-Mounted Tension Detector

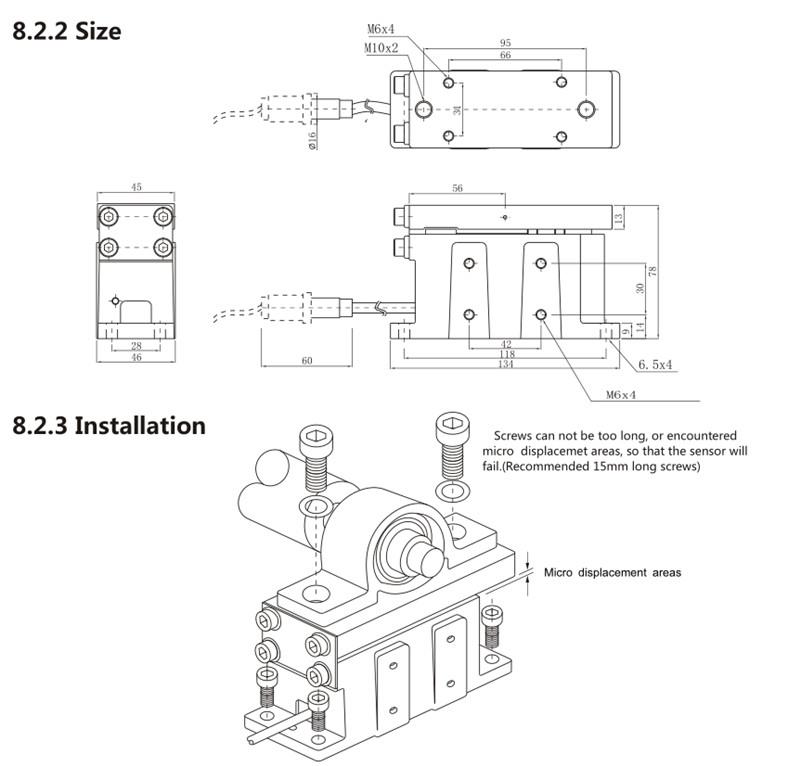

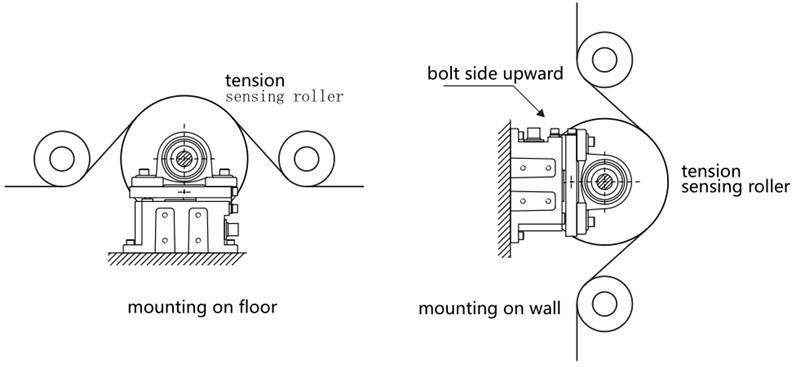

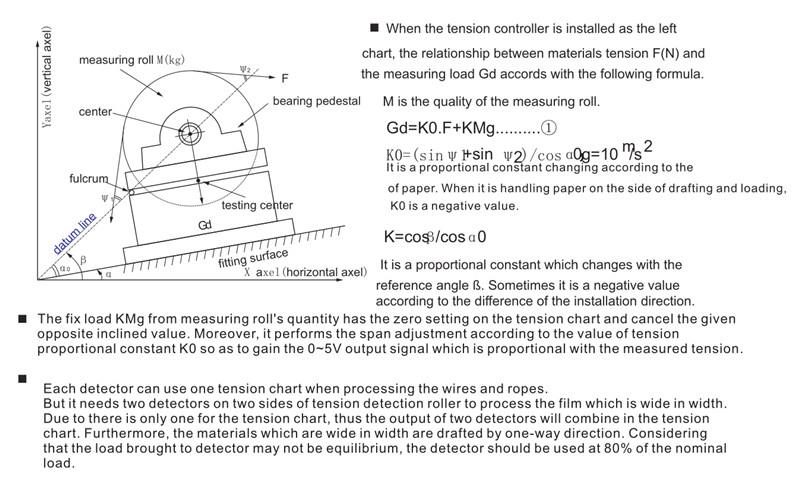

Mounting of Tension Sensors:

Order Details
