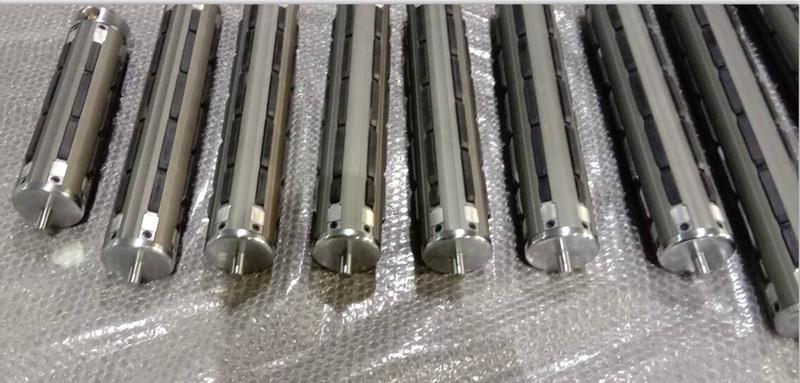

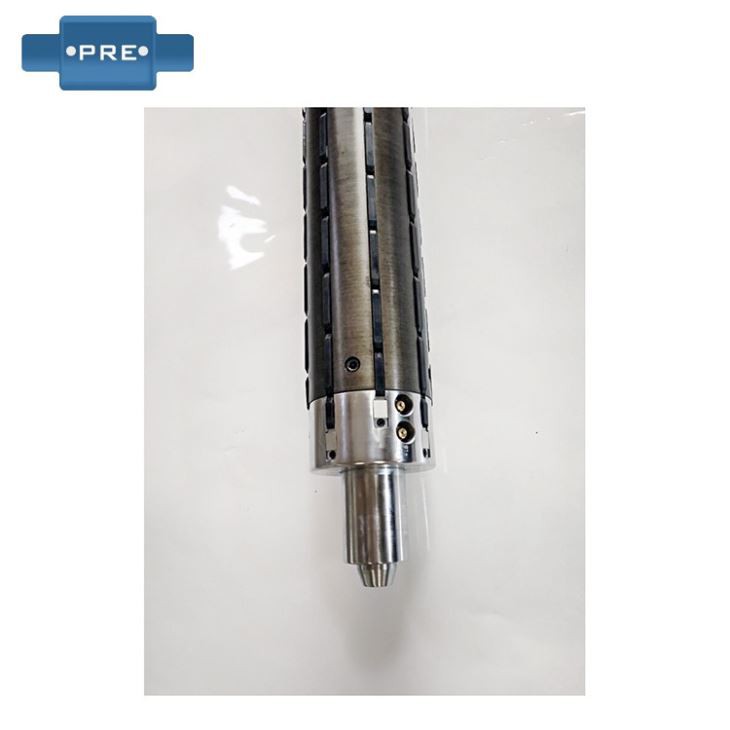

Multi Bladder Air Shaft

Product Features
1. Through-shaft clutch, easy to install-----Installation and fixing method is not affected by the position of the air inlet.
2. Suitable for continuous sliding or high frequency use---When continuous sliding, the best heat dissipation effect is good, and it can be used for connection.
Also suitable for tension control or high frequency use, accurate and accurate.
3, buffer start, with soft start characteristics ---- soft start and can be used for overload sliding protection.
4, adjustable torque limiter ----- can be adjusted by air pressure, as a fixed tension brake.
5, a wide range of torque adjustment -------- air pressure adjustment range is wide 0.4-6kgf / m easy to adjust.
6, explosion-proof, non-sparking, safety ----- use of air pressure to act, so it is inherently explosion-proof, will not produce
Electrical sparks, high safety.
7, long life, easy maintenance ----- good heat dissipation, friction plate, wear-resistant and 2-piece replacement capacity.

Multi Bladder Air Shaft advantage
1. The three-inch shaft is 5 individual airbags, and the six-inch shaft is 8 individual airbags, which are not easy to leak and easy to maintain;

2. The flat area of the whole key strip is similar to the tile type air expansion shaft, but the flat air expansion shaft is not deformed easily;

3. The key bar is the whole flat air area is better than the key bar type air expansion axis;

4. The key bar is made of wear-resistant rubber material, which is not easy to damage the paper tube and has stronger grip;

5. The shaft body is made of high-hardness alloy material, which has high hardness and 30%-40% weight reduction compared with common materials. It is lighter to use.

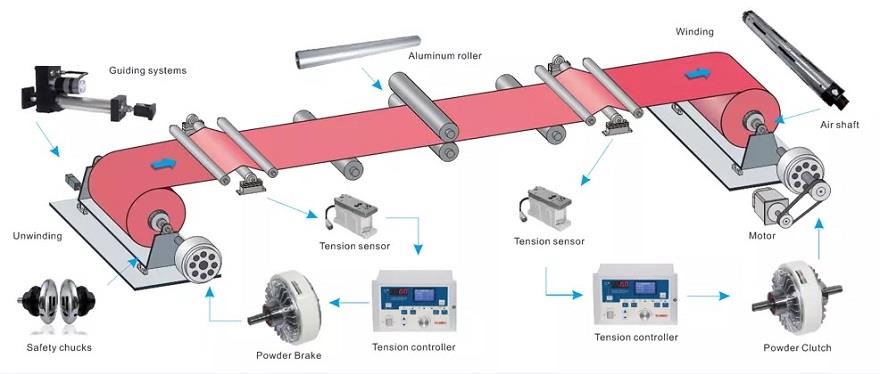

Application of air expansion shaft in high speed dry laminating machine
The main tension of the high-speed dry laminating machine is controlled by the man-machine interface to set the tension value and the tension taper value according to different data tension characteristics. The lateral conditioning of the roll is to adjust the hand wheel on the return arm to make all the rolls move laterally, and the conditioning scale is ±20mm. The reversing frame is mainly used for changing the roll, according to the material pressure roller; turning the glue switch to make the anilox roller glue. Turn off the heating oven, heat the drum and hot air blower, exhaust fan power and circulating water. Lower the glue tray, raise the scraper holder, clean the scraper holder and the anilox roller with high-speed dry laminating machine, recycle the remaining glue and seal the barrel, and clean the glue tray.
The high-speed dry laminator mounts the new material on the inflatable shaft and attaches the tape to the head of the new roll (or paper tube). Then press the "Rack forward" button, the arm is actively reversed to the discharge direction abort. The cutter arm falls and the arm continues to reverse.
The installation of the dry composite machine coil adopts the air expansion shaft clamping, the replacement is quick, the supporting force is uniform, the centering is correct, and the transfer position of the motorized slewing frame is automatically positioned. Double-roller-to-roller type, rigid-flexible combination, and the tension zone is guaranteed.
