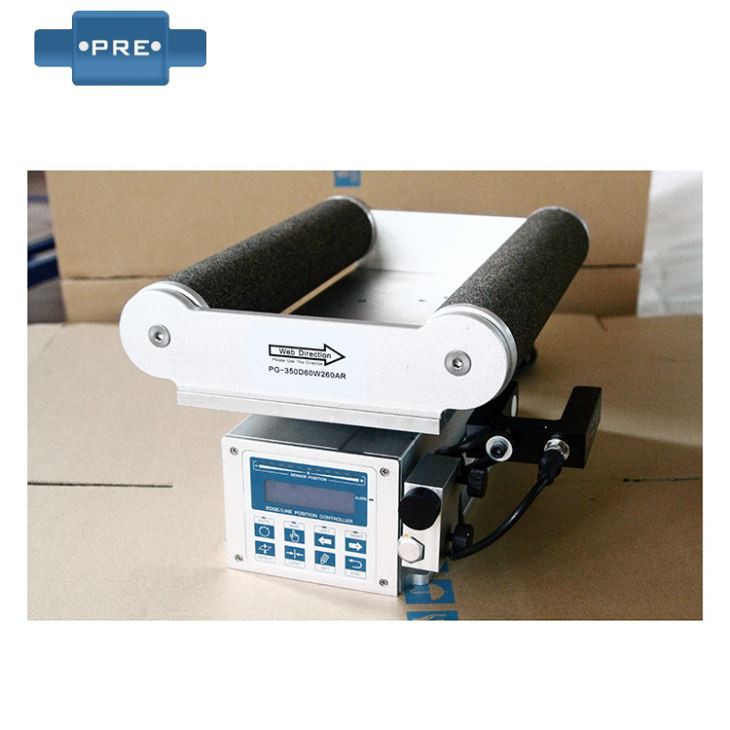

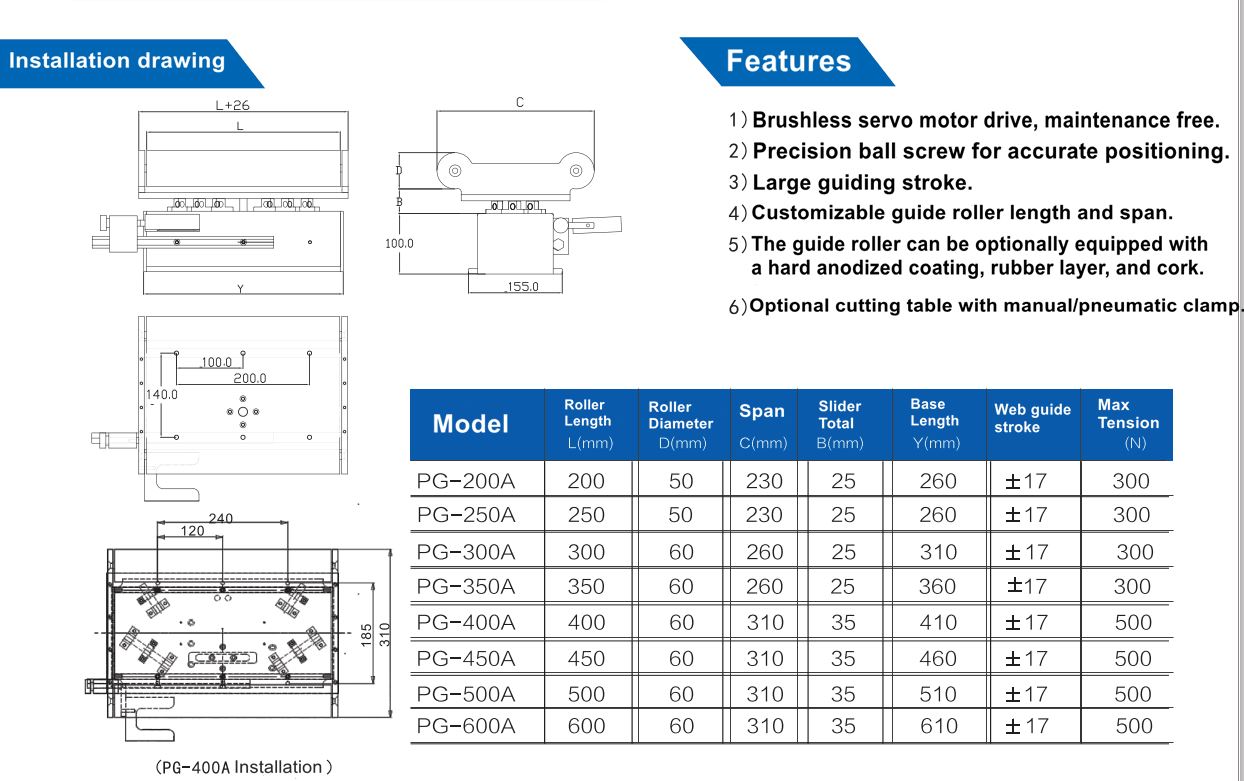

Offset Pivot Web Guide Control System

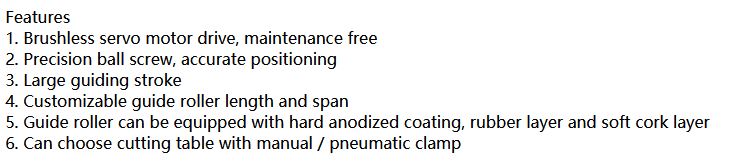

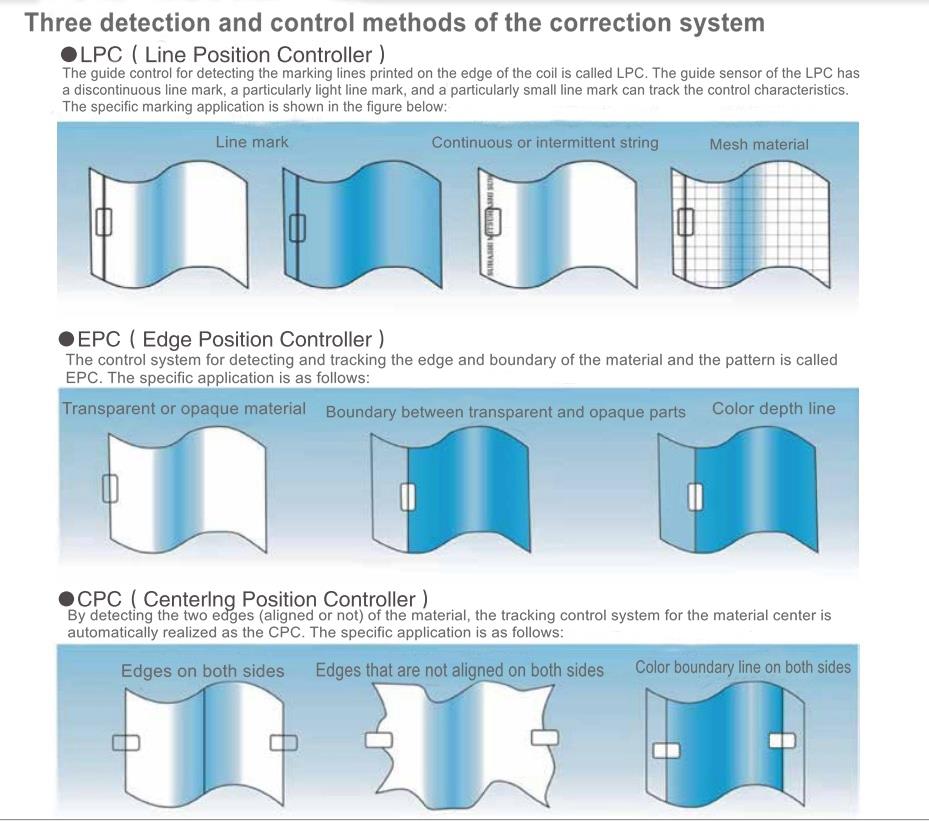

1. Support photoelectric sensor, ultrasonic sensor, ccd sensor, support centering, chasing and chasing working methods;
2, automatic stroke detection without mechanical limit switch and intelligent detection of sensor parameters, generally do not need to calibrate the sensor;
3, using no overshoot integral variable pi adjustment algorithm, response sensitive ultra-fast response speed (more than 0.5 milliseconds), high precision and small error;
4, using the hysteresis filter, fir digital filter, the signal is more stable and anti-interference performance is better;
5, analog sensor signal 12-bit AD sampling up to 700,000 times per second sampling speed;
6, humanized operation is fast and simple, there are 3 language menu operations in Simplified Chinese, Traditional Chinese and English;
7. It is convenient and quick to store ten sets of different material parameter switching materials and support all system state parameters power-down memory;

8. The DC servo motor drives the ball screw and supports Modbus bus and PLC/human machine interface networking control.

1. The system can quickly and effectively solve the problem of material displacement caused by tensile force, speed, material thickness or mechanical damage;
2. The amount of trimming of the material that needs to be reserved can be minimized, saving the pre-added width of the processed material and reducing the cost;
3, increase the mechanical speed to increase production, and greatly reduce the time for personnel to view and adjust material bias, greatly reducing production costs;
4, the quality of intermediate processing is greatly improved, making the edge of your finished materials more flat, increasing the added value of finished materials, and thus winning the recognition of more downstream customers.

This system only needs external power supply power transmission, no need to connect any pneumatic and hydraulic power source, the system can be self-sufficient.

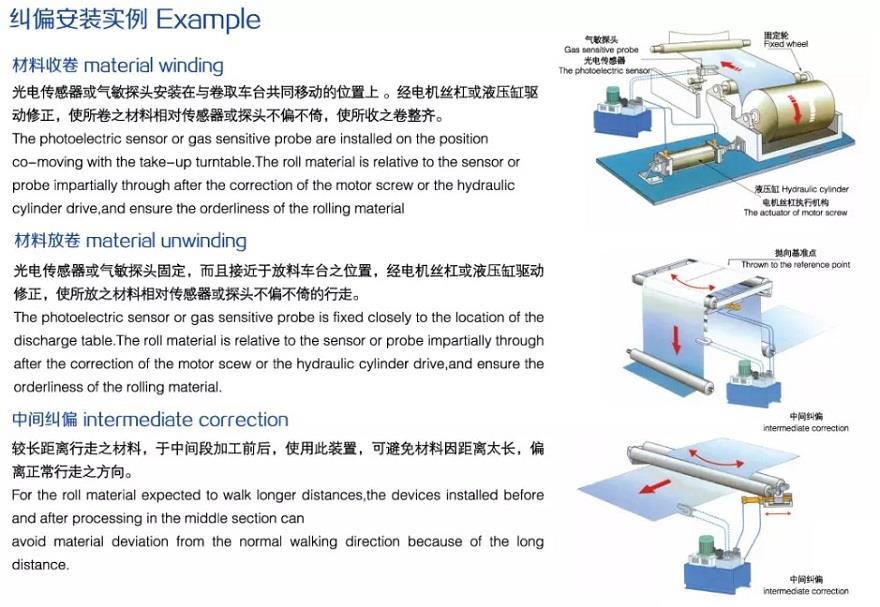

When one of the oil outlets performs the oil discharge operation, the other oil outlet port is automatically converted into a return oil flow path, which causes the pressure rod in the hydraulic cylinder to move.

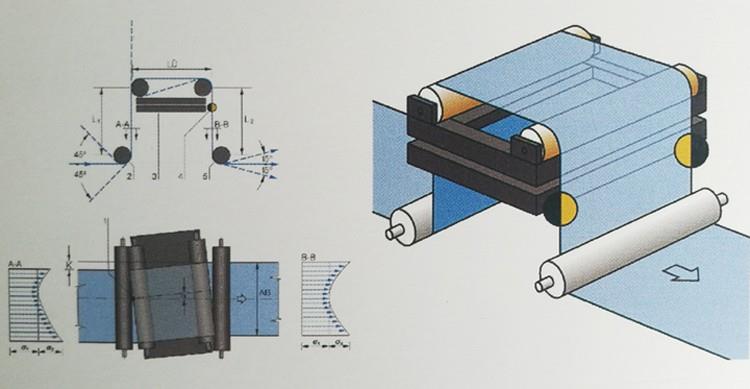

If the hydraulic cylinder and rod system are installed in the front, middle and rear sections of the mechanical material, the deviation ratio of the system is checked and the most effective driving correction is made to make the material on the production line. Snake-shaped movements are not produced.

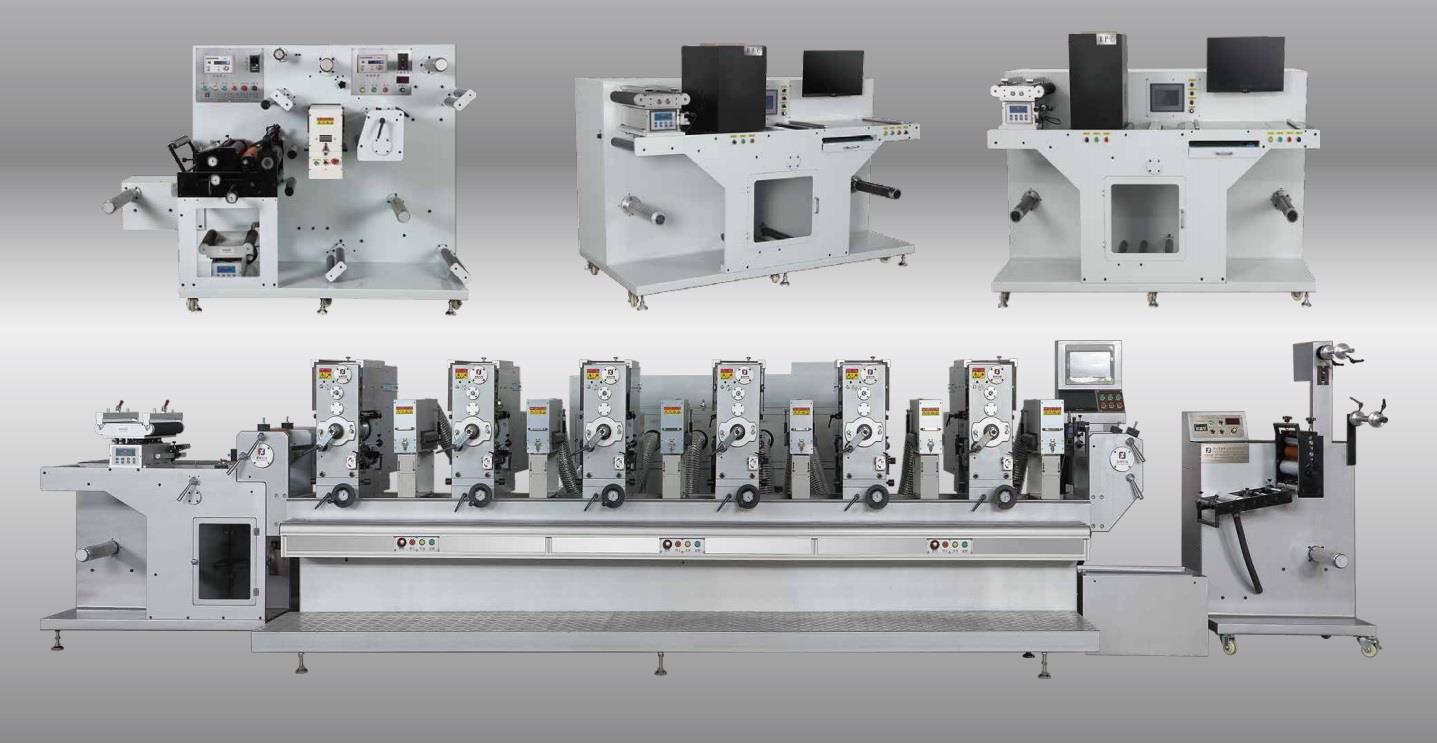

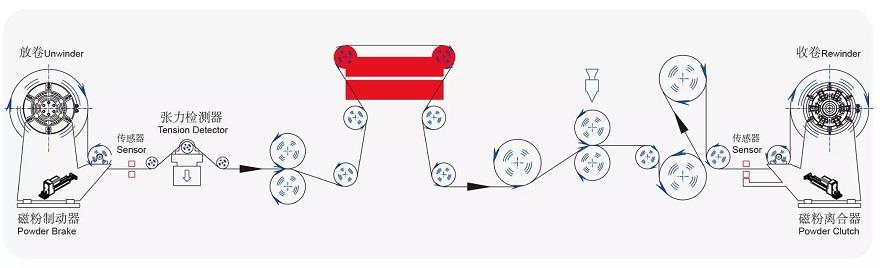

Application
