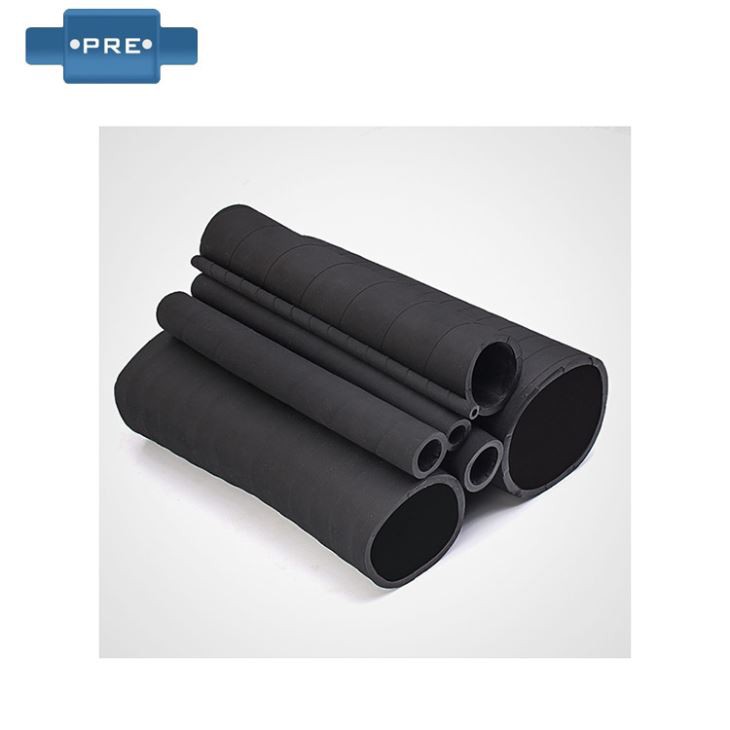

Pneumatic Air Bladder

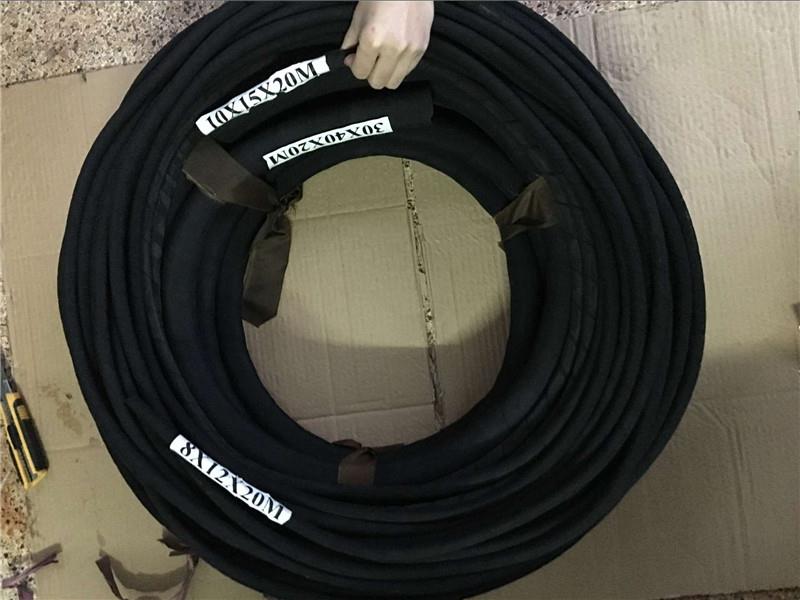

This air inflatable rubber hose (for air shaft) applicable for different types of air expanding shaft. It is searched and developed according to the application of air shaft. It can be inflated and deflated more than 100,000 times in the air expanding shaft. Specifications This rubber hose (for...
This air inflatable rubber hose (for air shaft) applicable for different types of air expanding shaft. It is searched and developed according to the application of air shaft. It can be inflated and deflated more than 100,000 times in the air expanding shaft.
Specifications
ID*OD*Wall Thickness(mm) | Length(Meter/Circle) | ID*OD*Wall Thickness(mm) | Length(Meter/Circle) |
6*10*2 | 100Meters/Circle | 42*50*4 | 40Meters/Circle |
6*12*3 | 100Meters/Circle | 42*51*4.5 | 40Meters/Circle |
7*12*2.5 | 100Meters/Circle | 42*52*5 | 40Meters/Circle |
9*13*2 | 40Meters/Circle | 44*54*5 | 40Meters/Circle |
9*15*3 | 40Meters/Circle | 45*55*5 | 40Meters/Circle |
11*16*2.5 | 40Meters/Circle | 48*58*5 | 40Meters/Circle |
11&17*3 | 40Meters/Circle | 48*59*5.5 | 40Meters/Circle |
11*18*3.5 | 40Meters/Circle | 51*61*5 | 40Meters/Circle |
13*19*3 | 40Meters/Circle | 51*63*6 | 40Meters/Circle |
13*20*3.5 | 40Meters/Circle | 57*67*5 | 40Meters/Circle |
13*21*4 | 40Meters/Circle | 60*70*5 | 40Meters/Circle |
16*22*3 | 40Meters/Circle | 64*74*5 | 40Meters/Circle |
16*23*3.5 | 40Meters/Circle | 76*86*5 | 40Meters/Circle |
16*25*4.5 | 40Meters/Circle | 76*88*6 | 40Meters/Circle |
19*25*3 | 40Meters/Circle | 85*95*5 | 10Meter/Circle |
19*29*5 | 40Meters/Circle | 85*97*6 | 10Meter/Circle |
20*30*5 | 40Meters/Circle | 89*99*5 | 10Meter/Circle |
22*30*4 | 40Meters/Circle | 89*100*5.5 | 10Meter/Circle |
25*35*5 | 40Meters/Circle | 89*101*6 | 10Meter/Circle |
28*38*5 | 40Meters/Circle | 95*106*5.5 | 10Meter/Circle |
30*38*4 | 40Meters/Circle | 102*112*5 | 10Meter/Circle |
30*39*4.5 | 40Meters/Circle | 102*113*5.5 | 10Meter/Circle |
30*40*5 | 40Meters/Circle | 102*114*6 | 10Meter/Circle |
32*40*4 | 40Meters/Circle | 108*120*6 | 10Meter/Circle |
32*42*5 | 40Meters/Circle | 115*127*6 | 10Meter/Circle |
34*42*4 | 40Meters/Circle | 127*139*6 | 10Meter/Circle |
34*44*5 | 40Meters/Circle | 140*152*6 | 10Meter/Circle |
38*48*5 | 40Meters/Circle | 152*164*6 | 10Meter/Circle |
40*48*4 | 40Meters/Circle | 180*194*7 | 10Meter/Circle |
40*49*4.5 | 40Meters/Circle | 219*231*6 | 10Meter/Circle |
40*50*5 | For more dimension,can be customized (ID6mm-ID600). |
This
rubber hose (for air shaft) can bear high pressure (4-4kg air
pressure). It is wear-resisting and insulating. It has high flexibility,
high oil resistance and anti-corrosion. It has passed professional
tests, can be used in ant condition without breaking burst (under 4-8kg
air pressure).
Application: air expanding shaft, air adapter drum
Specification: diameter from 6mm to 1200mm (All have molds and can be produced at any time)
Material: Rubber or PU
Length: 20-50m
Service life: 3-8 years
Applicable temperature: MAX 60℃
Lowest/highest temperature resistance: -20℃~60℃
Usage: Inflate air
Color: Black, white
Shape: Round
Export packaging: PE film winds inside, braided strap winds outside. Can be custom-made according to clients' demand.

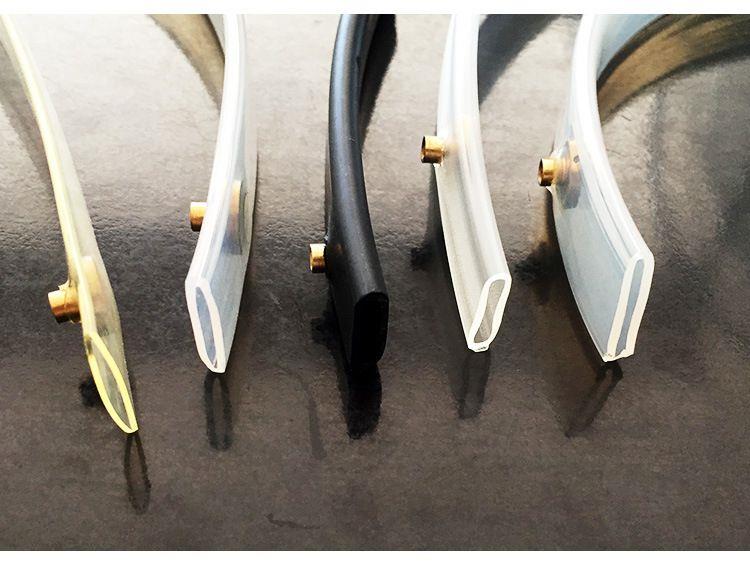

Specifications
Total Height*Wall Thickness(mm) | Length(Meter/Circle) | Total Height*Wall Thickness(mm) | Length(Meter/Circle) |
15*1.5 | 200Meters/Circle | 20*1.5 | 200Meters/Circle |
18*1.1 | 200Meters/Circle | 20*2 | 200Meters/Circle |
For more dimension, can be customized. |
Order Details
Item Name | Bladder for Expanding Shaft |
MOQ(Minimum Order Quantity) | 5 Meters |
Lead time | 5-7 days after receiving the deposit |
Calculated Weight | Based on different dimension to calculate |
Package | Carton/Wooden Box |
Price Term | EXW,FOB, CIF, etc |
Payment term | TT,L/C,Western Union |
Country of Origin | China |
