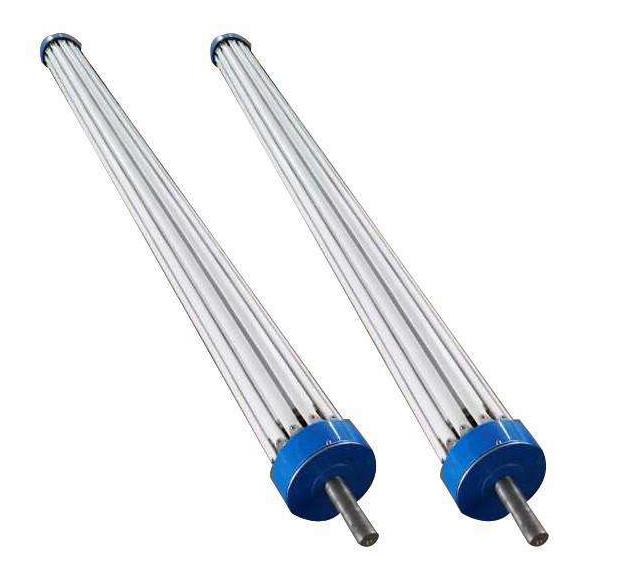

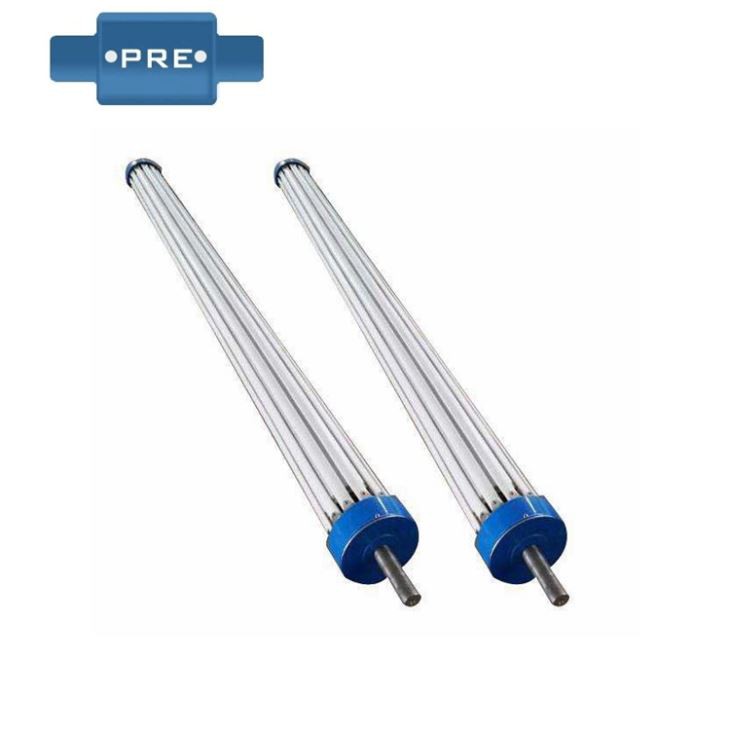

Rubber Strip Stretch Roller

Stretch roller feature
● The die-oriented stretch roller is stretched and stretched, the flattening ability is strong, the substrate is evenly stressed, the flattening mode is soft, and the substrate is not deformed.
● High speed, low jitter, no noise, safe and reliable
● Light weight, low inertia and low rotating torque
● Strip wear resistance, dynamic fatigue resistance, aging resistance, corrosion resistance and durability
● Mandrel length is not limited
● There are two types of stretcher roller housings to choose from, the housing is small, and the installation is simple.
● Debugging is simple, you only need to turn the mandrel, you can eliminate the wrinkles caused by various reasons at one time, no need to adjust frequently

Ordering instructions
please note
● Roller length
● Mandrel length
● Roller diameter
● Line speed

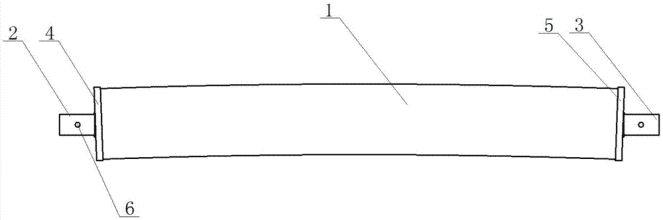

Structural principle
Mainly composed of rubber strip, aluminum alloy roller body, mandrel, inclined wheel, oblique shield and shaft seat.
A lateral groove is evenly distributed on the surface of the aluminum alloy roller body, and the rubber strip is embedded in the groove and is higher than the roller body to form a roller surface arranged by the rubber strip. The two ends of the strip are respectively connected to the outwardly inclined runners on both sides of the roller body. When the strip follows the rotation of the roller body, the strip drives the inclined wheel to rotate, and the inclined wheel gradually pulls the strip toward the shaft end, and the strip is gradually elongated from 0° to 180°, and is rotated from 180° to 360°. It gradually retracted back to its original length. When the substrate wraps around the above 0°-180° strip, it can be flattened by following the strip to the ends.

Packing
