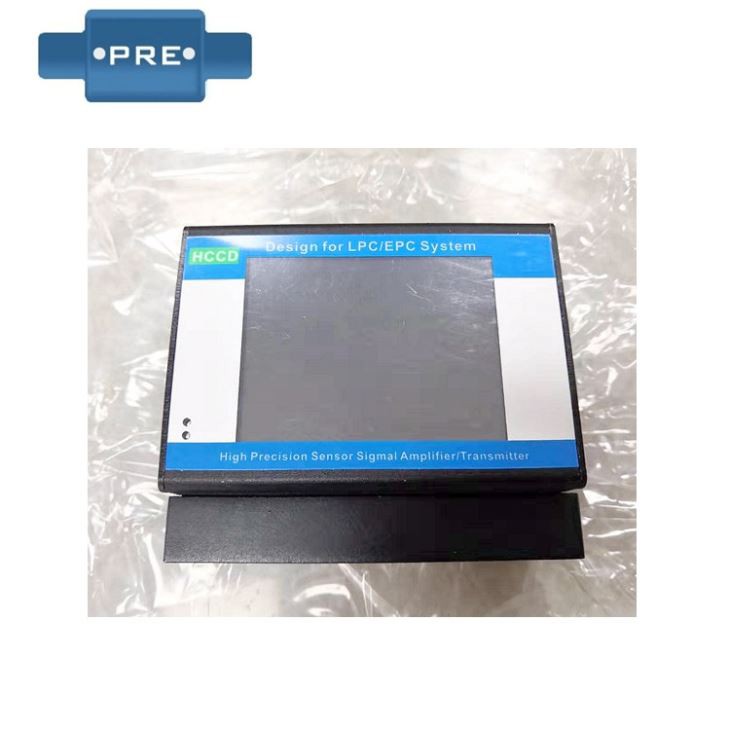

Precision Web New Sensor Technology

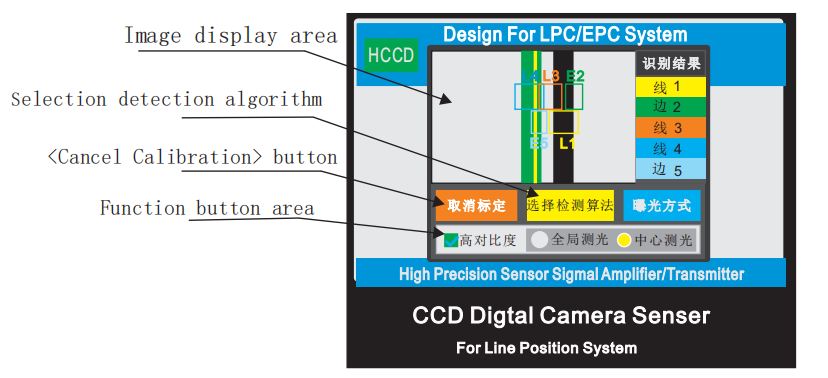

CCD sensor working principle:

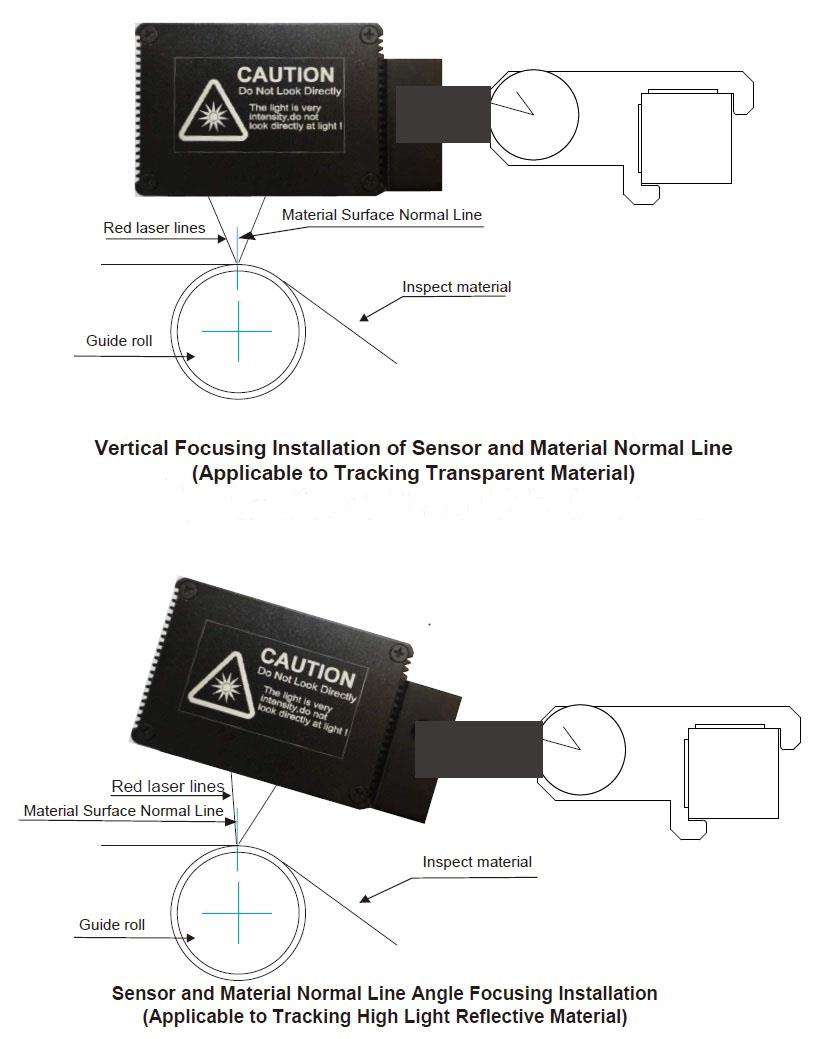

The CCD sensor reads the edge of the thin line on the coil through a miniature lens.
Different types of CCD sensor can be used depending on the requirements for coil deflection detection.
Since the CCD sensor has a built-in color filter system, the CCD sensor can easily read even thin lines with extremely low contrast.
This effectively reduces the time required for the new coil to be newly identified due to the replacement of the coil, which reduces production costs and increases productivity.

Features

1. High precision

a. Accuracy: 0.02mm

b. The finest trace: 0.2mm

c. Detection range: 20mm

2. High speed

Reaction time: 2ms

3. High stability

Full metal housing, high-speed digital communication to ensure freedom from outside interference

4. Powerful performance

Can chase and chase

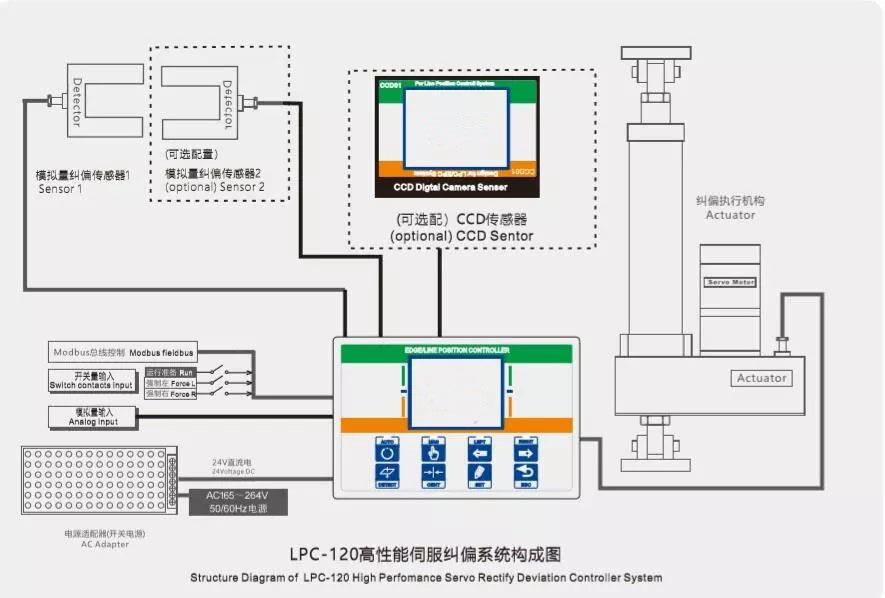

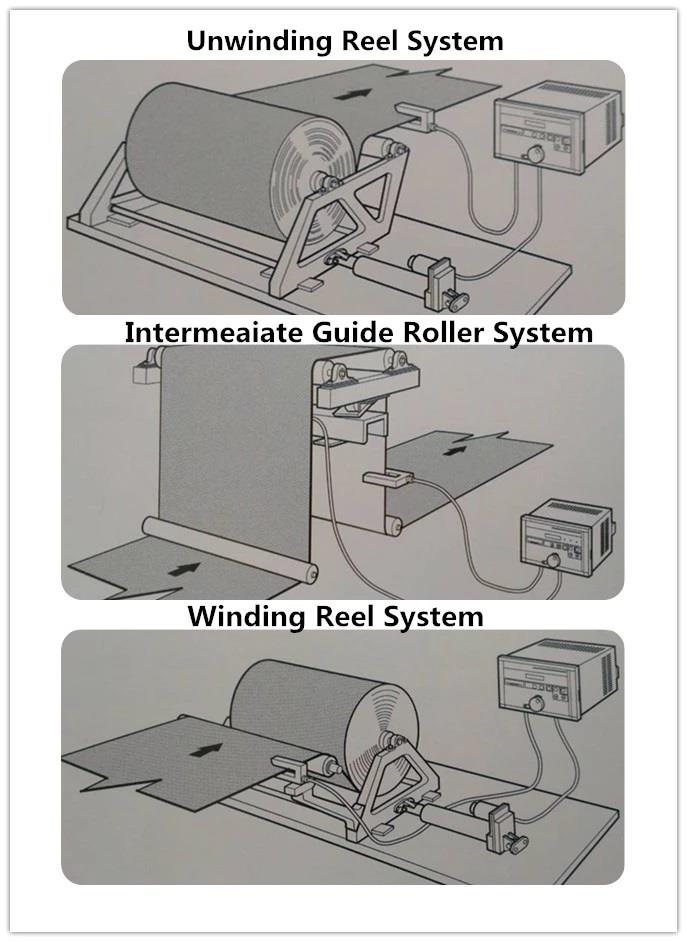

The guiding system refers to the technical operation that the coils produced by the manufacturer always keep the sides of the coils neat and consistent during the spraying, printing, punching, laminating, slitting or other coil winding process. Its wide use has brought great benefits to the industry. Correction control has made the corrugated paper, textile, printing, labeling, labeling, paper, plastic film, building materials, rubber, tires, non-woven corrugated paper processing industries and other industries control.

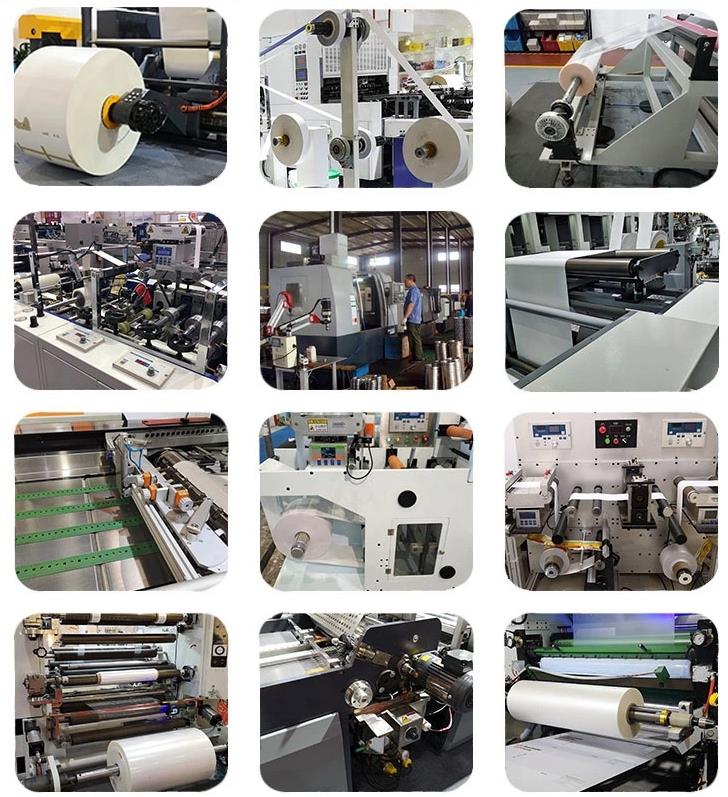

Application

Order Details
