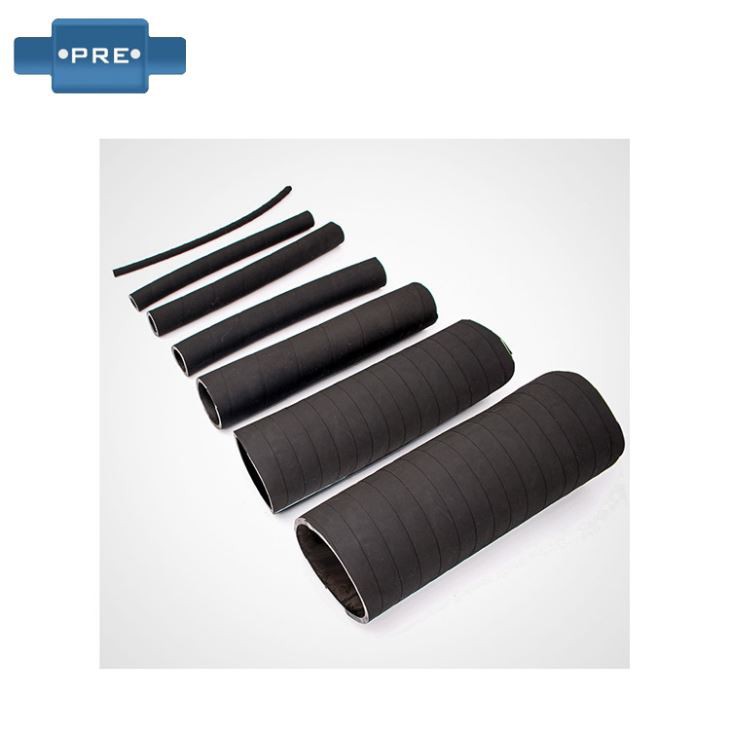

Rubber Air Bladder
Product specifications The inner diameter of 6-600mm can be customized, and the color length can be customized according to customer requirements. Material standard: pure natural synthetic rubber, tear resistant, evenly inflated. Specifications How to change the airbag 1. Lift the key bar on the...
Product specifications
The inner diameter of 6-600mm can be customized, and the color length can be customized according to customer requirements.
Material standard: pure natural synthetic rubber, tear resistant, evenly inflated.
Specifications
ID*OD*Wall Thickness(mm) | Length(Meter/Circle) | ID*OD*Wall Thickness(mm) | Length(Meter/Circle) |
6*10*2 | 100Meters/Circle | 42*50*4 | 40Meters/Circle |
6*12*3 | 100Meters/Circle | 42*51*4.5 | 40Meters/Circle |
7*12*2.5 | 100Meters/Circle | 42*52*5 | 40Meters/Circle |
9*13*2 | 40Meters/Circle | 44*54*5 | 40Meters/Circle |
9*15*3 | 40Meters/Circle | 45*55*5 | 40Meters/Circle |
11*16*2.5 | 40Meters/Circle | 48*58*5 | 40Meters/Circle |
11&17*3 | 40Meters/Circle | 48*59*5.5 | 40Meters/Circle |
11*18*3.5 | 40Meters/Circle | 51*61*5 | 40Meters/Circle |
13*19*3 | 40Meters/Circle | 51*63*6 | 40Meters/Circle |
13*20*3.5 | 40Meters/Circle | 57*67*5 | 40Meters/Circle |
13*21*4 | 40Meters/Circle | 60*70*5 | 40Meters/Circle |
16*22*3 | 40Meters/Circle | 64*74*5 | 40Meters/Circle |
16*23*3.5 | 40Meters/Circle | 76*86*5 | 40Meters/Circle |
16*25*4.5 | 40Meters/Circle | 76*88*6 | 40Meters/Circle |
19*25*3 | 40Meters/Circle | 85*95*5 | 10Meter/Circle |
19*29*5 | 40Meters/Circle | 85*97*6 | 10Meter/Circle |
20*30*5 | 40Meters/Circle | 89*99*5 | 10Meter/Circle |
22*30*4 | 40Meters/Circle | 89*100*5.5 | 10Meter/Circle |
25*35*5 | 40Meters/Circle | 89*101*6 | 10Meter/Circle |
28*38*5 | 40Meters/Circle | 95*106*5.5 | 10Meter/Circle |
30*38*4 | 40Meters/Circle | 102*112*5 | 10Meter/Circle |
30*39*4.5 | 40Meters/Circle | 102*113*5.5 | 10Meter/Circle |
30*40*5 | 40Meters/Circle | 102*114*6 | 10Meter/Circle |
32*40*4 | 40Meters/Circle | 108*120*6 | 10Meter/Circle |
32*42*5 | 40Meters/Circle | 115*127*6 | 10Meter/Circle |
34*42*4 | 40Meters/Circle | 127*139*6 | 10Meter/Circle |
34*44*5 | 40Meters/Circle | 140*152*6 | 10Meter/Circle |
38*48*5 | 40Meters/Circle | 152*164*6 | 10Meter/Circle |
40*48*4 | 40Meters/Circle | 180*194*7 | 10Meter/Circle |
40*49*4.5 | 40Meters/Circle | 219*231*6 | 10Meter/Circle |
40*50*5 | For more dimension,can be customized (ID6mm-ID600). |
How to change the airbag
1. Lift the key bar on the shaft body (the plate type air expansion shaft first removes the plate on the shaft surface);
2. Remove the end of the shaft with the nozzle;
3. Then remove the airbag from the shaft;
4. Replace the new airbag and pressurize both ends of the airbag;
5. Check the seals at the airbag plug for wear and other conditions, and replace them with new ones if they are not correct;
6. Insert the airbag into the fixed shaft to fix the shaft;
7. Install the air nozzle to inflate, and then check the air nozzle for air leakage;
8. Disassemble the screw hanger on the shaft.
Order Details
Item Name | Rubber air bladder |
MOQ(Minimum Order Quantity) | 5 Meters |
Lead time | 5-7 days after receiving the deposit |
Calculated Weight | Based on different dimension to calculate |
Package | Carton/Wooden Box |
Price Term | EXW,FOB, CIF, etc |
Payment term | TT,L/C,Western Union |
Country of Origin | China |
