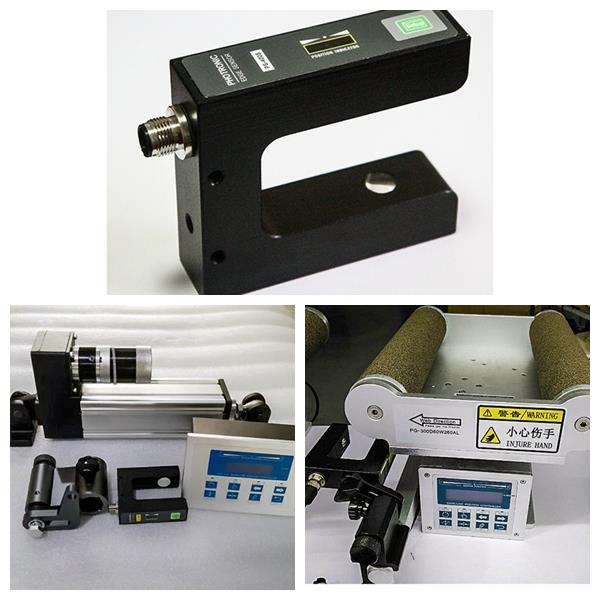

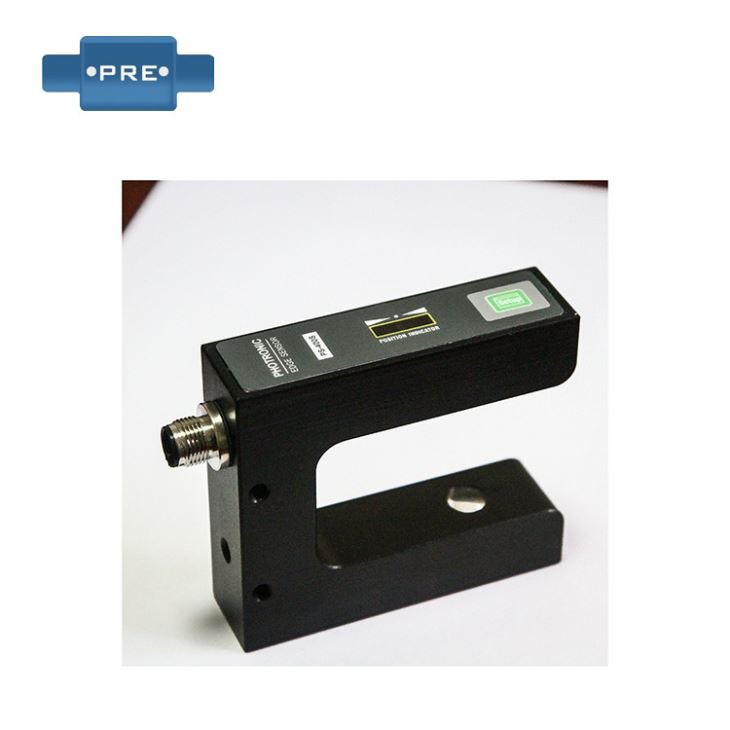

Sensor Edge

Photoelectric sensor characteristics
1, high reliability, long life, maintenance free
Since all the components inside the sensor are resin-sealed, there are no mechanical moving parts inside the sensor, so the sensor has high reliability, long life and maintenance-free.

2, can be made into a multi-point liquid level sensor
Since the photoelectric probe is relatively small in volume, a plurality of photoelectric probes can be mounted on one measuring body to form a multi-point liquid level sensor and a transmitter.

3, liquid level detection is accurate, high repeatability, fast response
The output of the liquid level is only related to whether the photoelectric probe is in contact with the liquid surface (body), and has nothing to do with other characteristics of the medium (temperature, pressure, density, electrical parameters), so the liquid level detection is accurate and the repeating precision is high; the response speed is fast, the liquid level The control is very precise.

4, free of debugging, free of calibration, direct installation can be applied
Since the liquid level signal output is only related to whether the liquid is in contact with the photodetector, it has nothing to do with other factors, so it can be directly installed and used without adjustment.

5, adapt to special container installation
The photodetector is ultra-small and can be installed separately in a small space for use in special tanks or containers.

6. Strong ability to adapt to the environment
Vacuum, pressure environment, flammable and explosive occasions, as well as special liquid environments such as turbulence, air bubbles, vibration, steam, gdy-series liquid level sensors can be adapted.

Features

1: Widely used

2: Accurate Edge Detection

3: For perfect Roll Generation

4: Easy Installation

Application

* Film industry:Blown film machine, stretch film machine, solvent-free composite machine, coating machine and so on.
* Transformer electrical equipment industry & Tyre industry
* Battery industry:Battery lamination machine, slitting machine, winding machine, coating machine, rolling machine and so on.
* Paper- making Industry: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines,label making machines

*Textile machinery: fiber twisters, treatment machines, weaving machines
* Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
*Machine tool systems: lathes,
* Millers, steel extruders, CNC lathes, specialized machinery
* Transportation equipment: hoists, feeders, conveyors, rollers, winders
