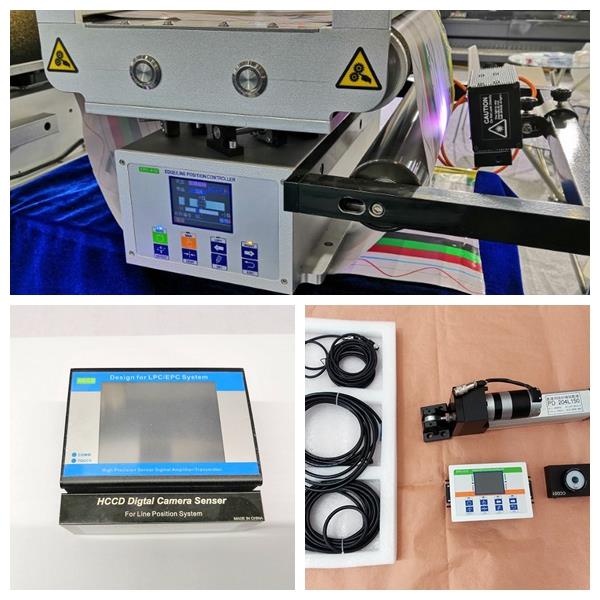

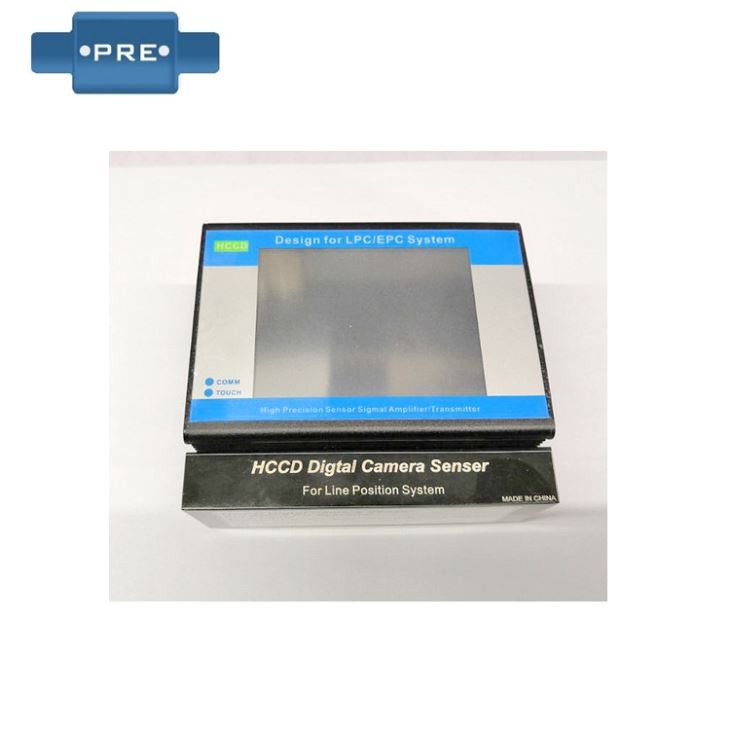

HCCD guide sensor. Applicable to all kinds of high-precision edge detection / line guide systems, such as slitting machine, compound machine, pc flexo printing machine, and various winding systems, etc.
It can also be applied to applications where the displacement, velocity, acceleration, external shape, size, etc. of the object to be detected are applied, and the scope of application is wide. Line array
HCCD recognizes subtle changes due to its extremely dense internal photosensitive cells, which are mainly applied to lines and edges.
Detection. HCCD probes are undoubtedly the best solution for applications where tracking or contrasting colors are detected.

Features

1. High precision

a. Accuracy: 0.02mm

b. The finest trace: 0.2mm

c. Detection range: 20mm

2. High speed

Reaction time: 2ms

3. High stability

Full metal housing, high-speed digital communication to ensure freedom from outside interference

4. Powerful performance

Can chase and chase

HCCD probe working principle:
The HCCD probe reads the thin lines or edges of the coil through a miniature lens.
Different types of HCCD probes can be used depending on the requirements for coil deflection detection.
Since the HCCD probe has a built-in color filter system, the HCCD probe can easily read even thin lines with extremely low contrast.
This effectively reduces the time required for the new coil to be newly identified due to the replacement of the coil, which reduces production costs and increases productivity.
