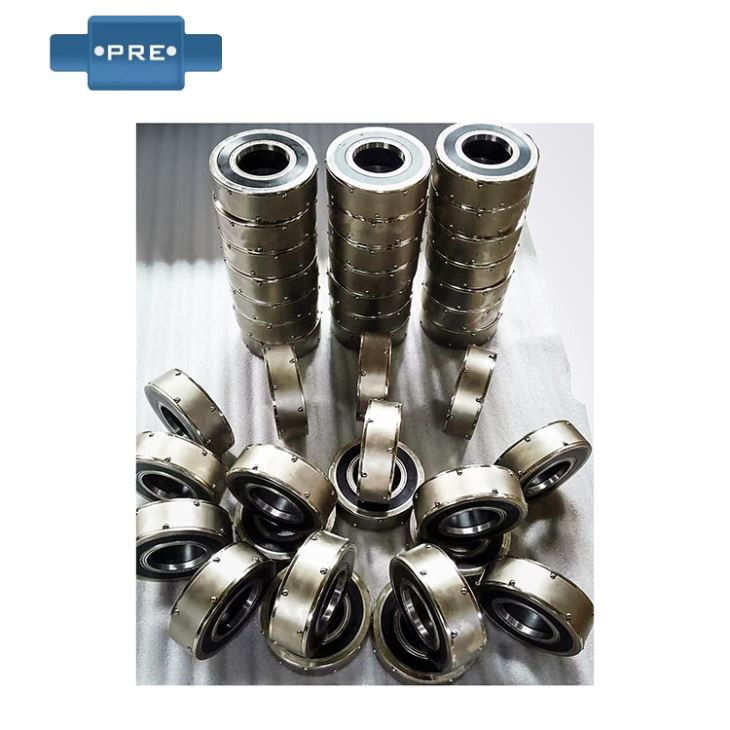

Sliding Ring

East extension slip axis:
1. Center air pressure differential shaft, pneumatic locking, pneumatic slip. High precision, high performance, accurate torque and precise control of tension over a wide range.
2. It is suitable for the sliding shaft of the fully automatic loading and unloading coil, ensuring that the core is not displaced and does not loose during forward and reverse rotation.
3.3 inch main body outer diameter 75.5mm, action diameter 77.8mm, suitable for paper tube inner diameter 76.2mm, standard width 50mm.

Low tension slip axis:
1. The low-tension slip axis is based on the principle of air compression, so that the device is inflated inside the shaft to cause the top block to expand, and the two air intake holes push each torque machine.
The group expands outward, and each torque is set according to the inflation pressure, which is suitable for the PE elastic film material.
2. According to customer needs, professional evaluation and design and manufacture, production of special specifications and special tension, special surface treatment.
3. All kinds of special environments (no dust, corrosive, high temperature environment) can be applied.

West Village slip axis:
1. Center air pressure differential shaft, pneumatic locking, pneumatic slip. High precision, high performance, accurate torque and precise control of tension over a wide range.
2. It is suitable for the sliding shaft of the fully automatic loading and unloading coil, ensuring that the core is not displaced and does not loose during forward and reverse rotation.
3. It is suitable for short-axis use. When coiling metal foil, copper foil and aluminum foil, it shows its excellent performance. The special form of Nishimura: it can also achieve extremely low
Friction tension, applied to the thinnest (10U) pet film, the slitting of the electronic film.

Ball type slip shaft:
1. It can form a central pneumatic, pneumatic side pressure type, mechanical side pressure type high performance slip shaft, which has the narrowest slitting material, large bearing capacity and strong adaptability.
2. Slip shaft with easy loading and unloading ring.
3. Large shaft diameter = high strength + low deviation The shaft steel has excellent performance.
4.3 inch main body outer diameter 75.5mm, action diameter 77.8mm, suitable for paper tube inner diameter 76.2mm, standard width 25mm, can be customized according to customer requirements.

Universal slip shaft:
1. The universal standard type of slip shaft clamps the die with mechanical convexity. It itself supplies air by air pressure. With the internal tension, it pushes each torque.
The unit expands outward, and then according to the size of the inflation pressure, the slip torque value of each torque group is set, which is convenient for the conditional dividing line, when each roll of material is rolled up
The tension makes each slip ring solve the phenomenon of unwinding of the thickness of the drinking material and the uneven tension, so that it can be wound up on average.
2. According to customer needs, professional evaluation and design and manufacture, production of special specifications and special tension, special surface treatment.
3. All kinds of special environments (no dust, corrosive, high temperature environment) can be applied.

 Sliding Rings For Differential Air Shaft
