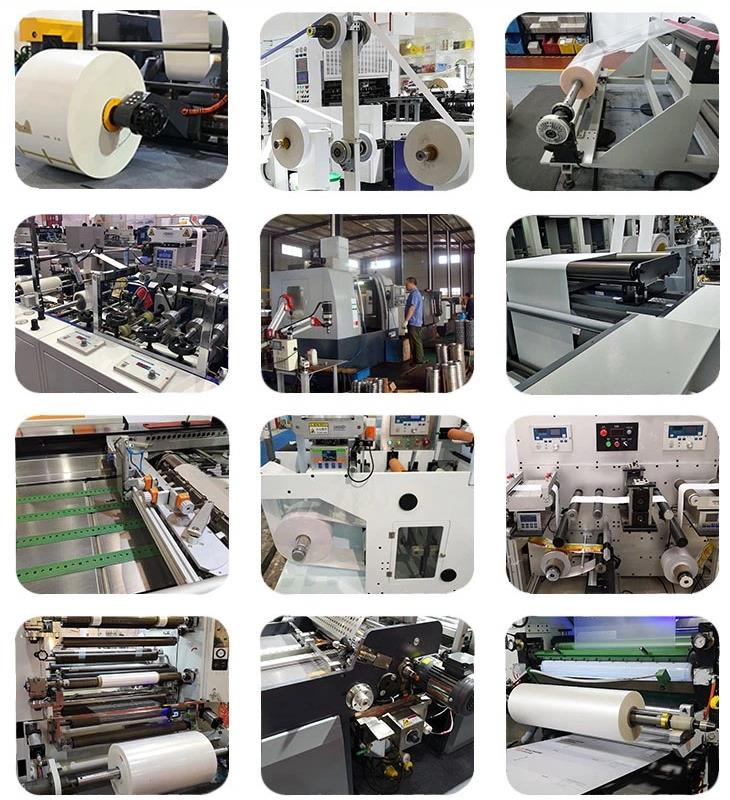

Tension control gadget tension control refers back to the ability to permanently control the tension of a cloth as it is added on a device. this manage have to be effective for any speed of the device, such as acceleration, deceleration and steady velocity of the device. even within the case of an emergency forestall, there have to be the ability to make sure that the cuts are not broken. the steadiness of tension control is immediately related to the first-rate of the slitting product. if the tension is insufficient, the raw material will float at some stage in operation, and the finished paper will wrinkle after slitting and rewinding; if the anxiety is simply too massive, the raw material may be without problems broken, so that the completed paper breaks after slitting and rewinding.

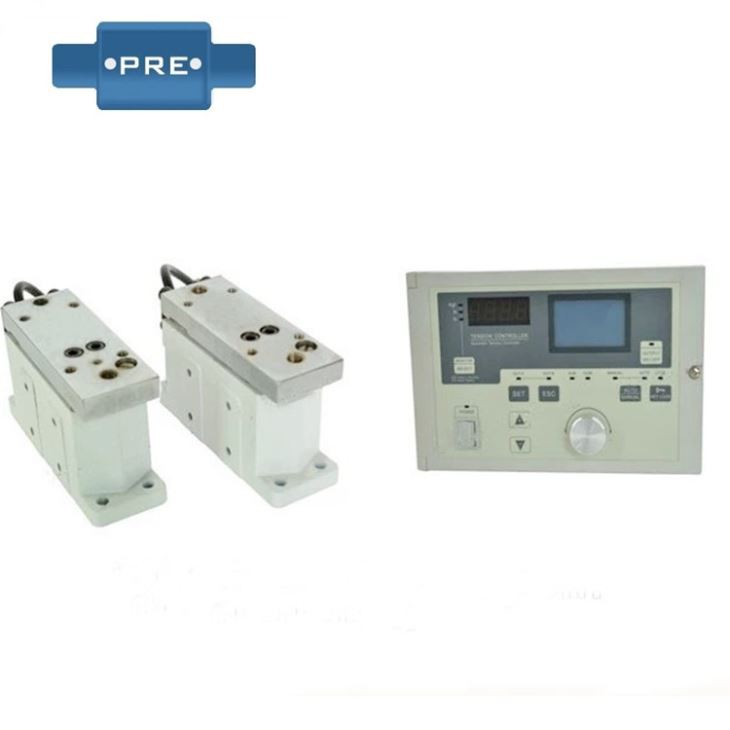

Automatic Tension Controller with Taper and Communication Function

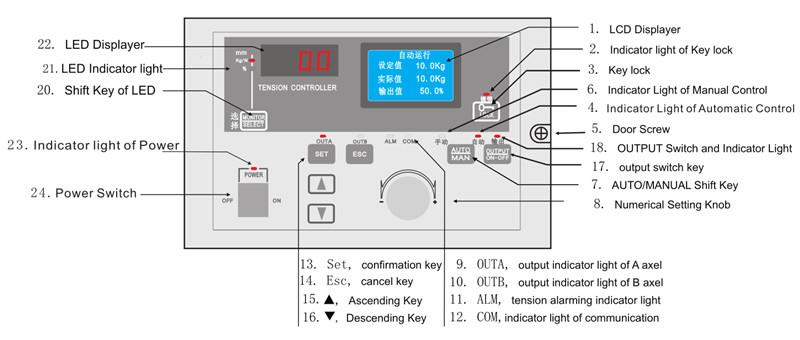

Operating Panel:

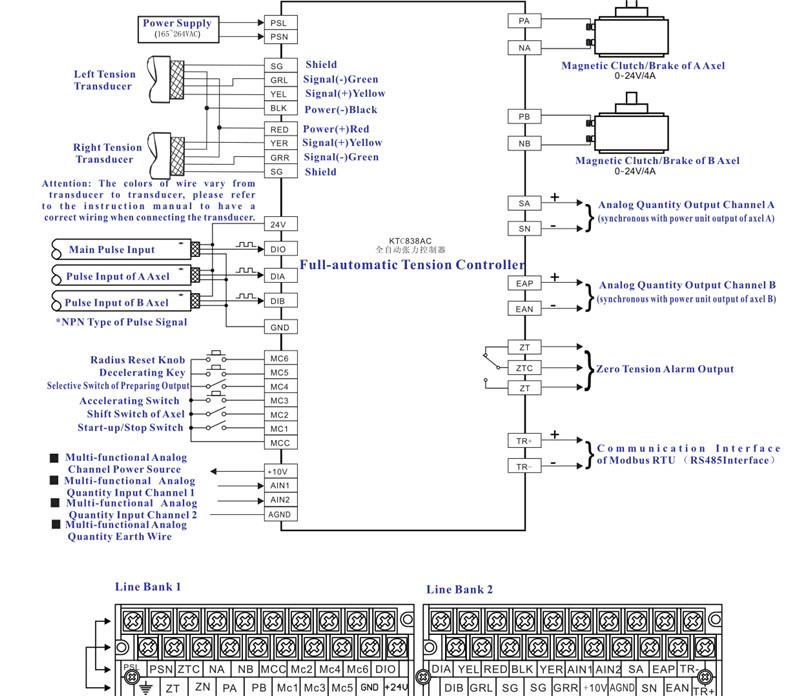

Wiring Diagram:

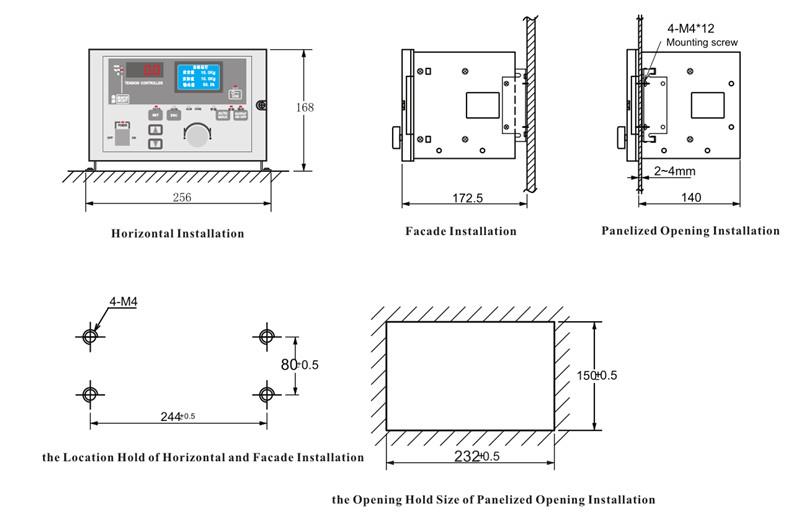

Installation:

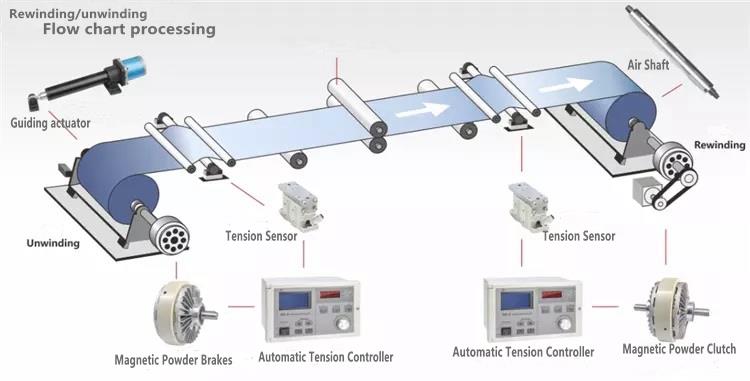

Introduction of automatic tension control system

1. The connection is smooth and non-impact. The impact of the automatic tension and retraction tension controller is small, and it can start and stop smoothly. Its resistance torque is extremely small and does not cause useless heat.

2. The stable torque of the superior group, the magnetic characteristics of the magnetic powder are excellent, the bonding force between the powder particles is stable, the sliding torque is very stable, and the relative rotation number has no relationship to maintain a constant torque for a long time.

3. Continuous sliding operation. The heat-dissipating effect is excellent, and the cooling structure with uniform heat distortion and the high heat resistance of the magnetic powder allow the connection and the braking power and the sliding power to be large, and the sliding operation can be smoothly performed without causing vibration.

4. High precision torque control. The magnetic powder tension controller has a wide control range of torque, high control precision, and the correct ratio of torque and excitation current to achieve high-precision control.

5, superior durability and long life. The magnetic powder tension controller adopts super-alloy magnetic powder with high heat resistance, wear resistance, oxidation resistance and corrosion resistance, and has a long service life.

6, suitable for high frequency operation. The automatic tension controller responds to agile, fast and special heat dissipation construction for high frequency operation.

7, lightweight, maintenance-free, long life. The type is simple and lightweight, using high-temperature coils and special grease bearings, and wear-resistant special treatment for the armature that is easy to wear, prolonging the service life.

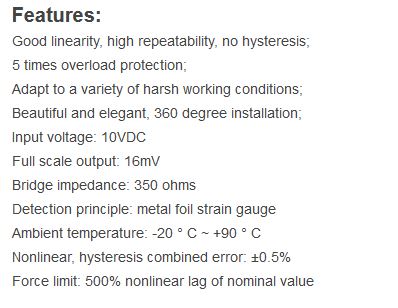

Foot Mounted Tension Sensor LX series

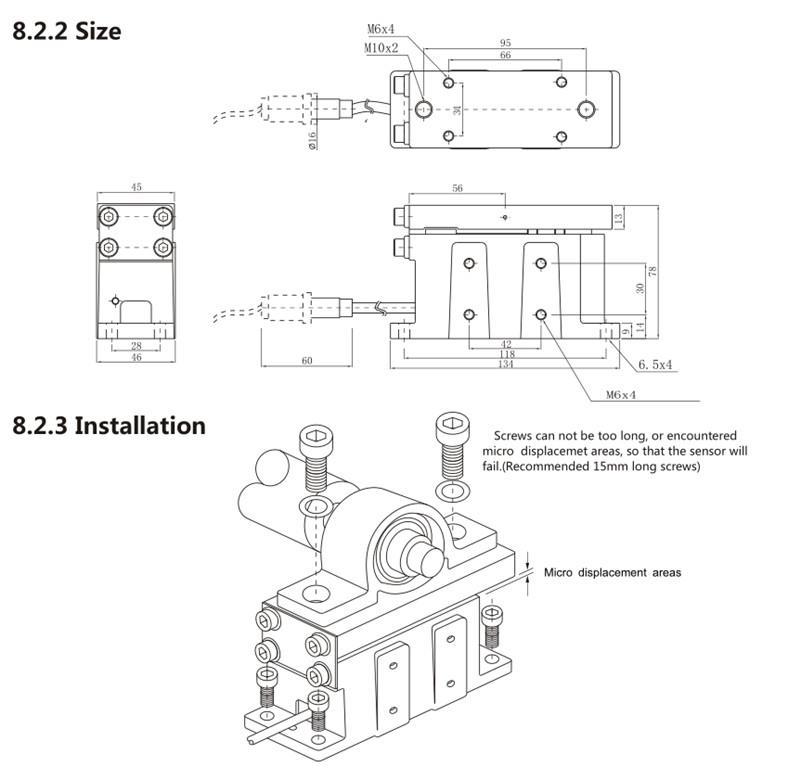

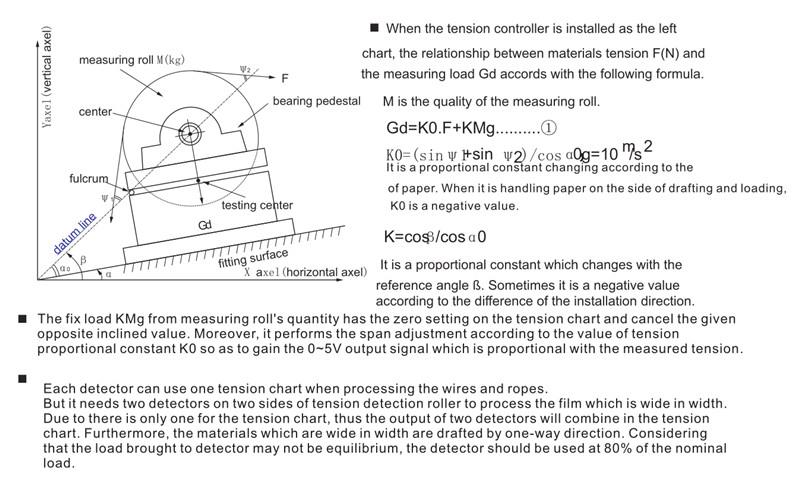

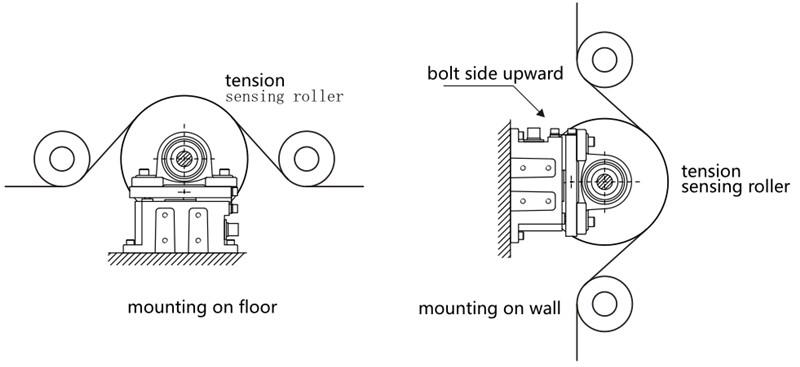

Mounting of Tension Sensors:

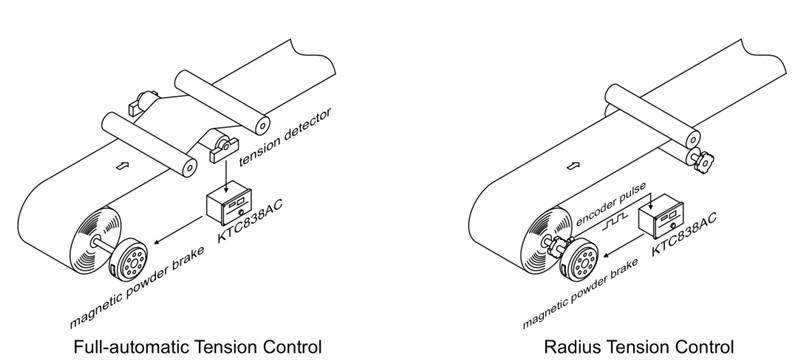

Application

Order Details
