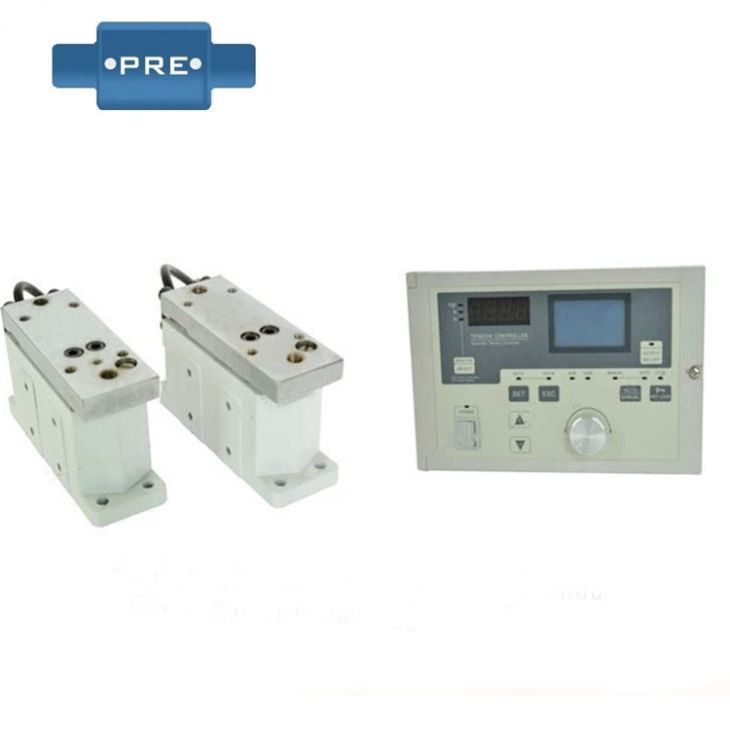

Magnetic Tension

Magnetic Tension

Sensors have long penetrated into areas such as industrial production, space development, ocean exploration, environmental protection, resource surveys, medical diagnostics, bioengineering, and even cultural relics protection. It is no exaggeration to say that from the vast space, to the vast...

Send Inquiry Chat Now
Product Details


Sensors have long penetrated into areas such as industrial production, space development, ocean exploration, environmental protection, resource surveys, medical diagnostics, bioengineering, and even cultural relics protection. It is no exaggeration to say that from the vast space, to the vast ocean, to various complex engineering systems, almost every modern project can not be separated from a variety of sensors.
It can be seen that the important role of sensor technology in developing the economy and promoting social progress is very obvious. All countries in the world attach great importance to the development of this field. It is believed that in the near future, sensor technology will have a leap to reach a new level commensurate with its important position.

Foot Mounted Tension Sensor

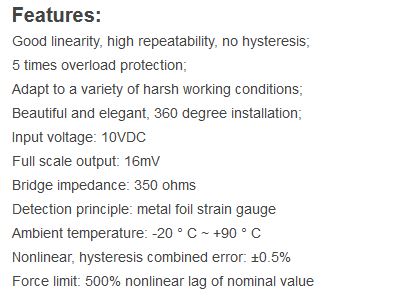

LX series

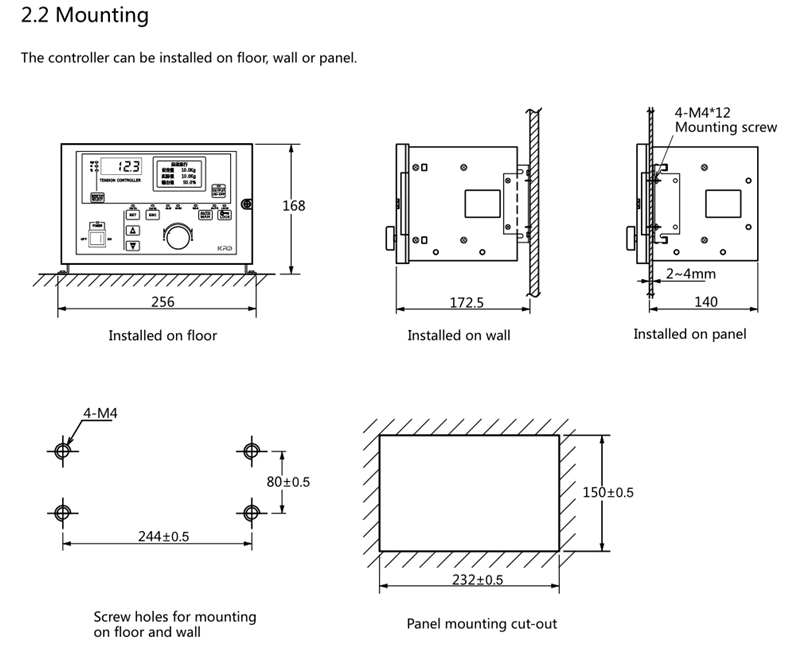

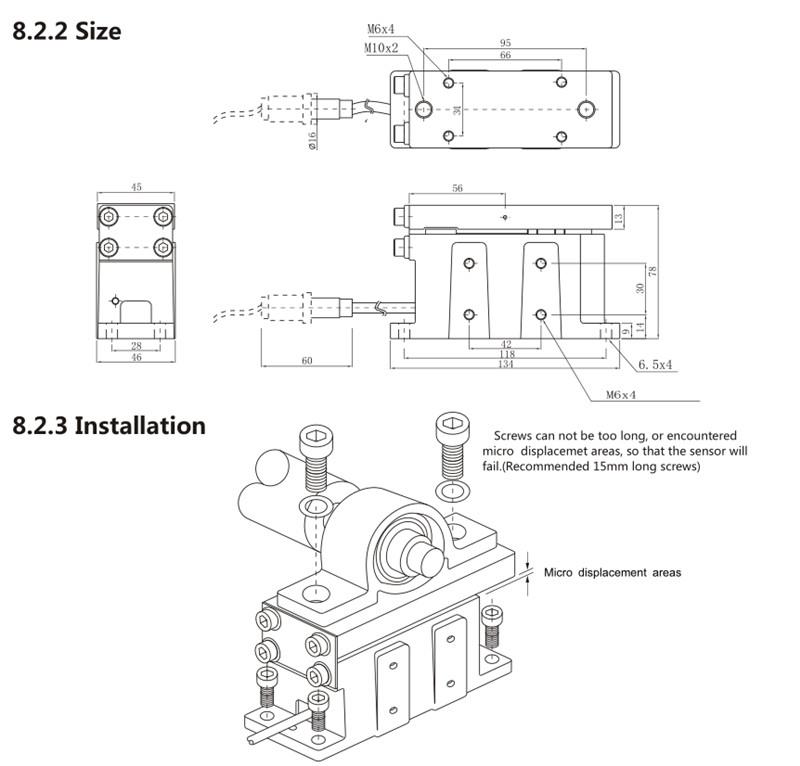

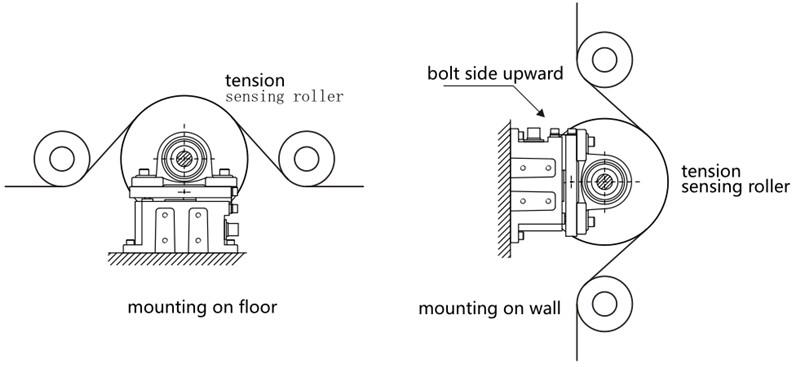

Mounting of Tension Sensors:



KTC-828A tension controller is a type of excessive precision, multi-characteristic digital clever tension controller, detector of the closed loop anxiety manipulate device.

Via accepting the LX machine tension detector transmits alerts, after internal intelligence PID mathematics processing, alter the actuator, automatic manipulate rolling,

Center of lengthy size material manual and winding tension.

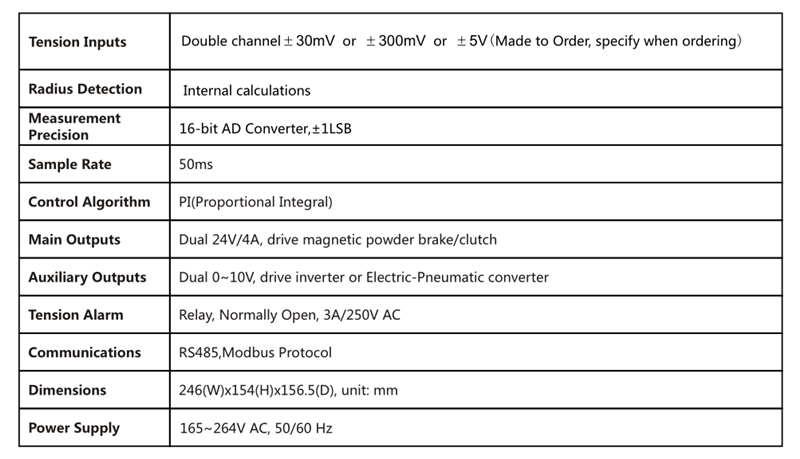

Automatic controller information:

Automatic Tension Controller KTC-828A

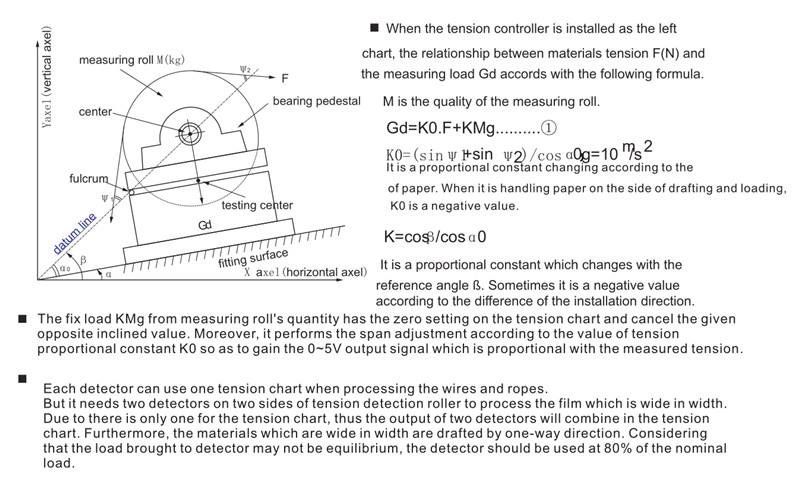

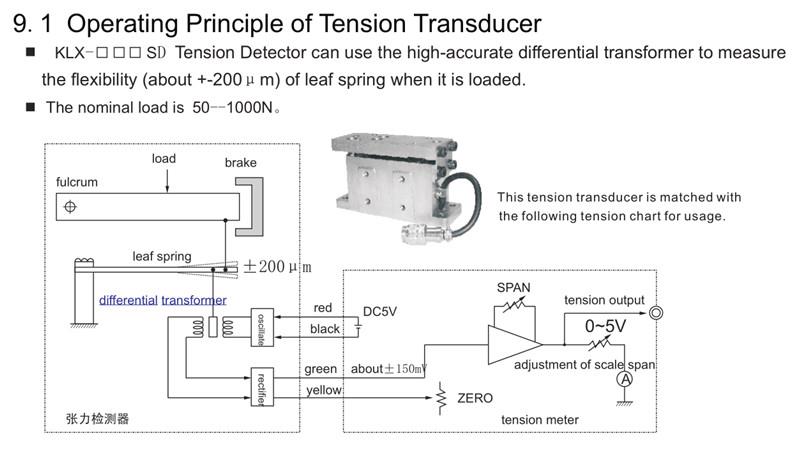

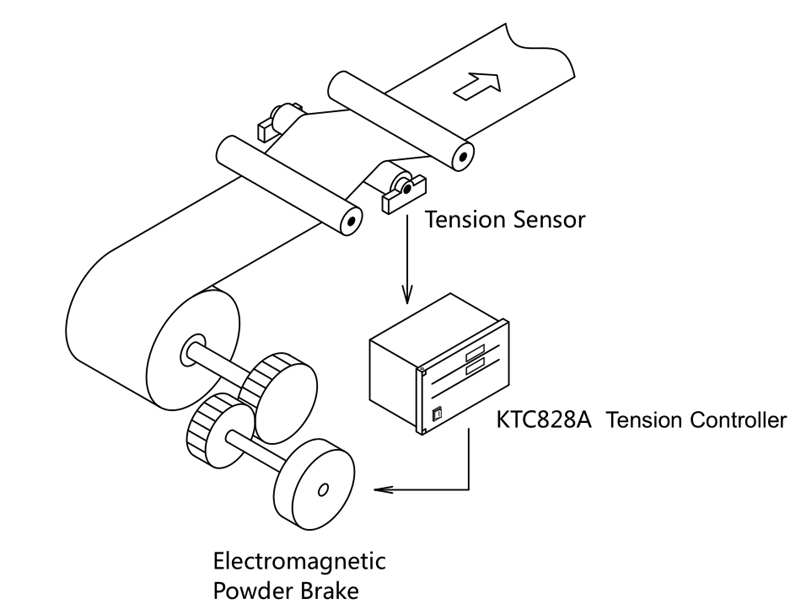

Working Principle:

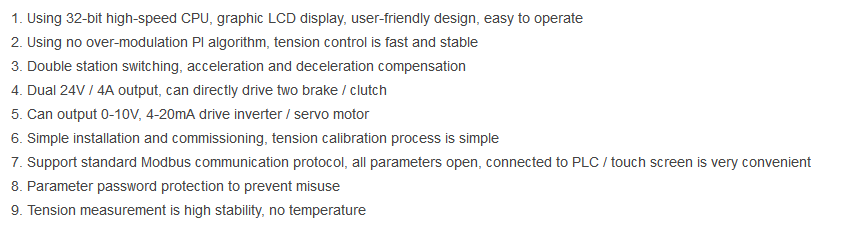

KTC-828A

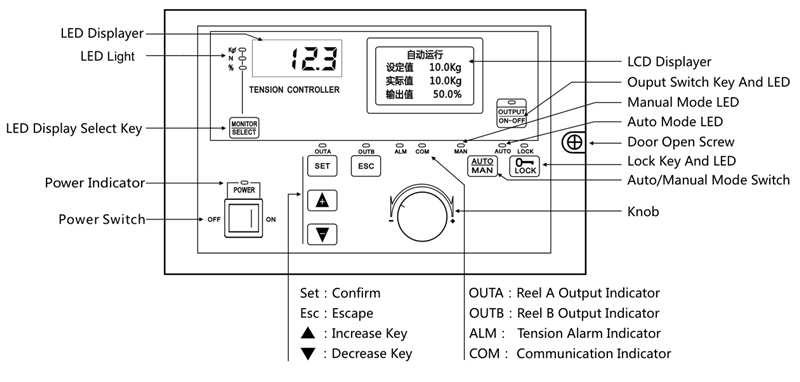

Operating Panel:

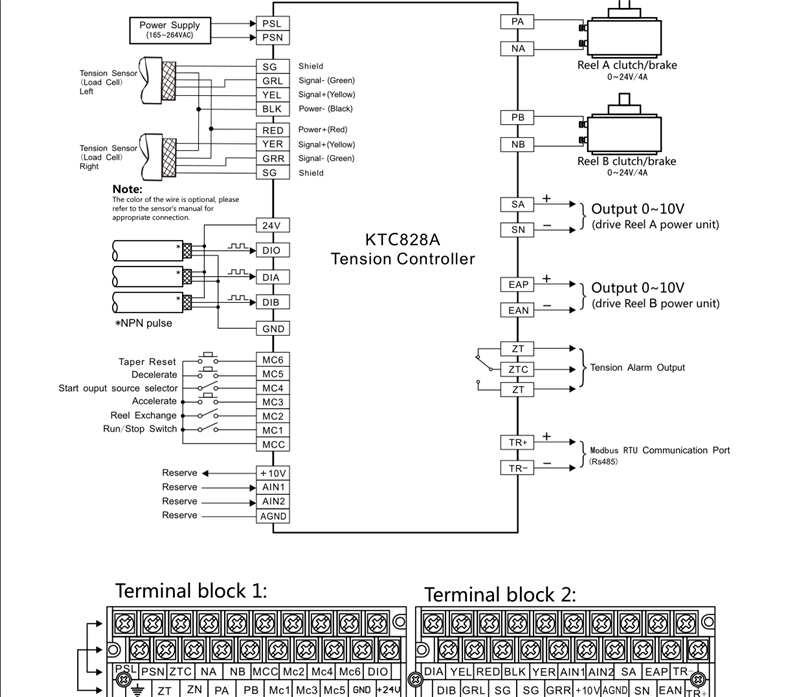

Wiring Diagram:

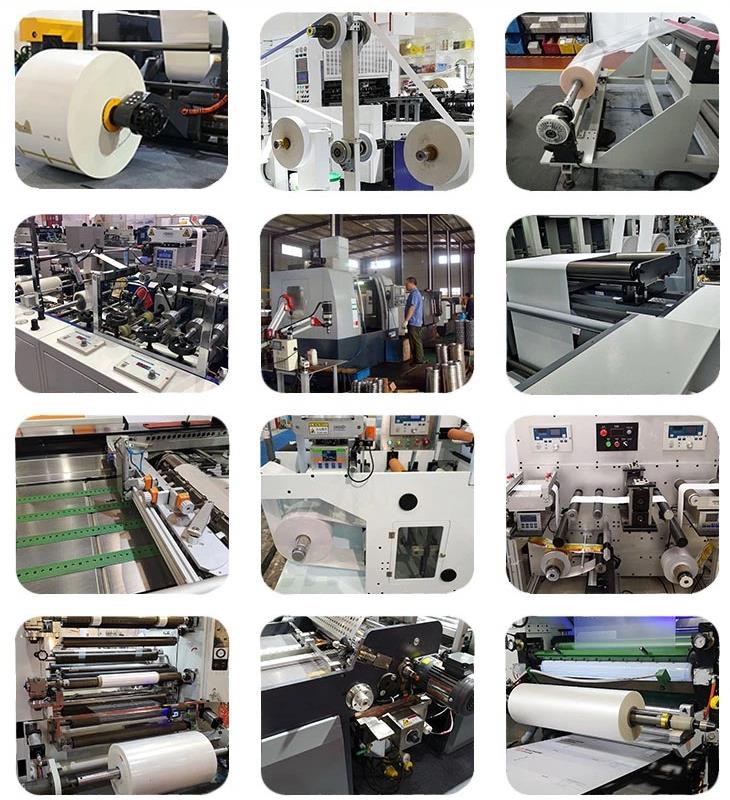

Application

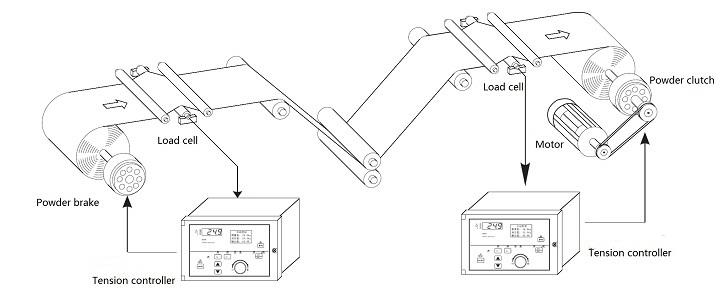

Tension Control

Tension Control


Order Details

Item Name

LX Foot-Mounted Tension Detector

KTC-828A Automatic Tension Controller

MOQ(Minimum Order Quantity)

1Pair(2pcs)

1pcs

Lead time

2 days after receiving the deposit

Calculated Packing Size

20cm*15cm*15cm,4kg/Pair/2pcs

20cm*15cm*15cm,2kg/pc

Package

Carton

Price Term

EXW,FOB, CIF, etc

Payment term

TT,L/C,Western Union

Country of Origin

China
