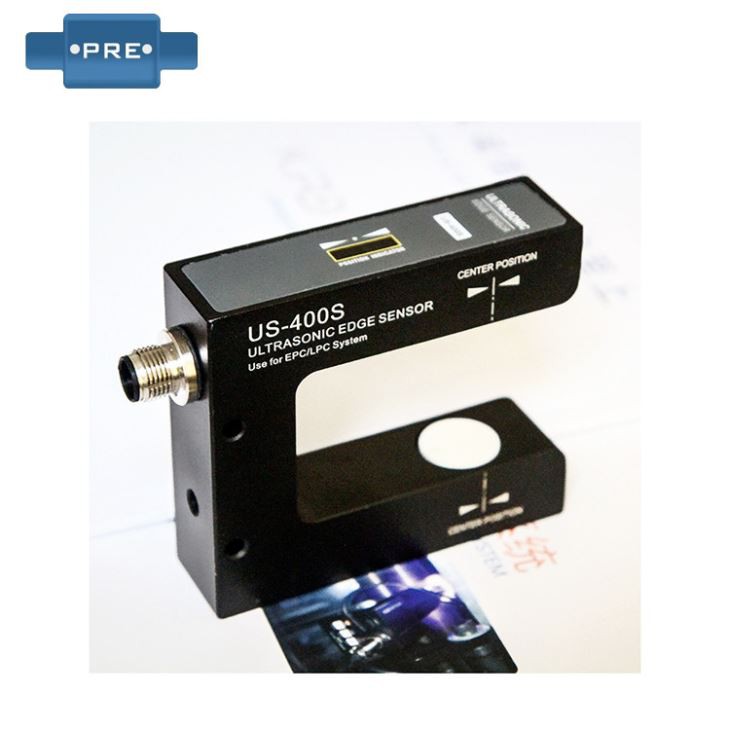

Ultrasonic Position Sensors

Main features of ultrasonic sensor:
1. Ultrasonic edge sensor is an analog output sensor with a metal case that is resistant to electromagnetic interference.
2. The detection accuracy is high, the response speed is fast, and it is not sensitive to the vibration of the coil in the vertical direction and the web jitter.
3. With environmental compensation, it can be used in harsh environments.
4. Installation and debugging is simple, the indicator light on the sensor dynamically displays the position of the material, which is very convenient for users to install and debug.
5. Suitable for transparent or opaque film, film, paper, metal foil and other coils.

1. Support analog/switch output, can be used with EPC-A10 or EPC-D12 correction controller

2. Suitable for opaque, transparent, ultra-transparent film edge application

3. No need to manually adjust the calibration

4. 200K ultrasonic beam

5. 1ms reaction time

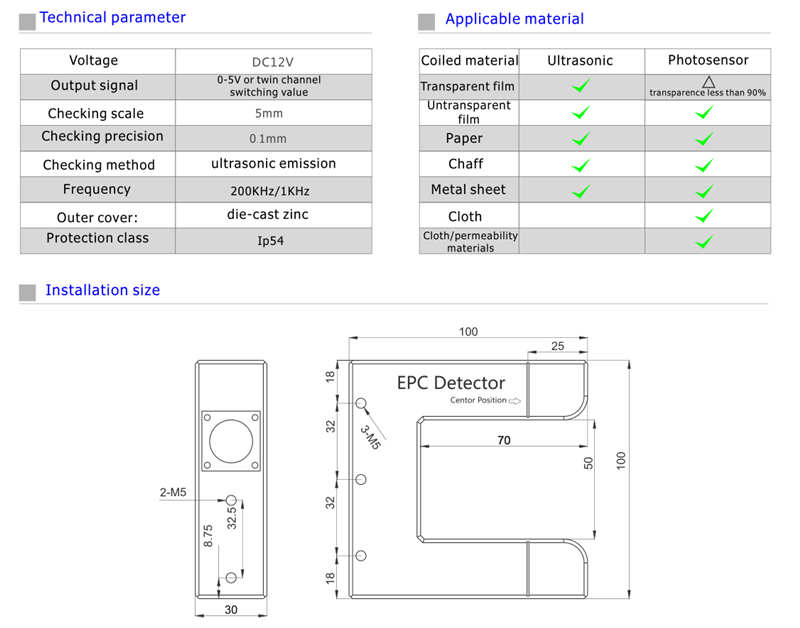

6. The detection range is 5mm, the detection accuracy is 0.1mm

7. With offset display

The PS-400 ultrasonic correction sensor uses the principle of high-frequency ultrasonic linear propagation to detect the edge position of the coil. Compared with the photoelectric sensor, it is not affected by the transparency of the material, so it is very convenient to use without calibration. Suitable for edge-trimming applications of opaque materials (such as plastic film, paper, etc.) (transparent materials such as cloth, non-woven fabrics are not applicable).

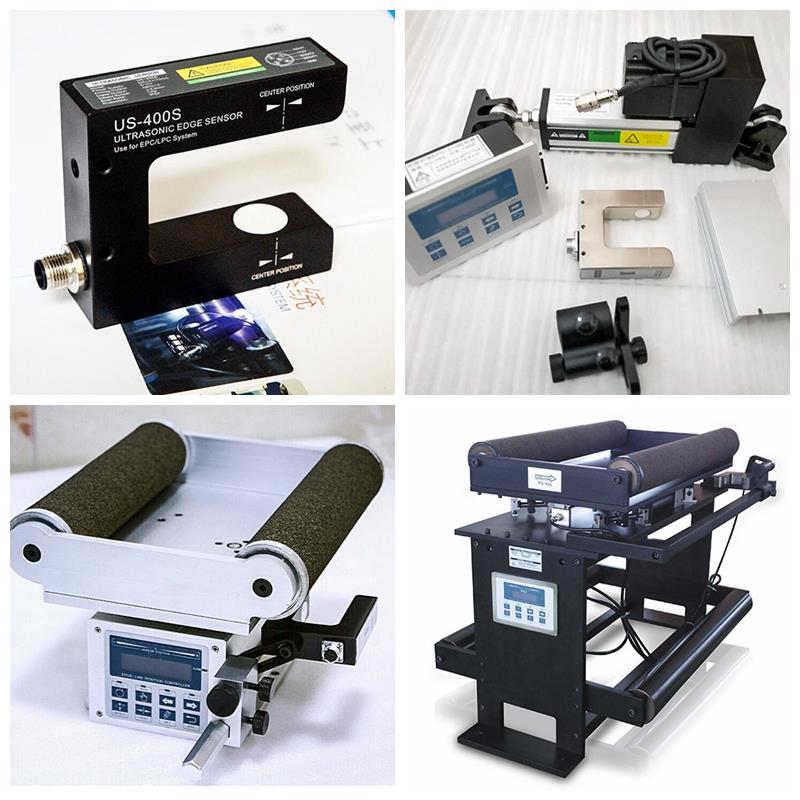

Application

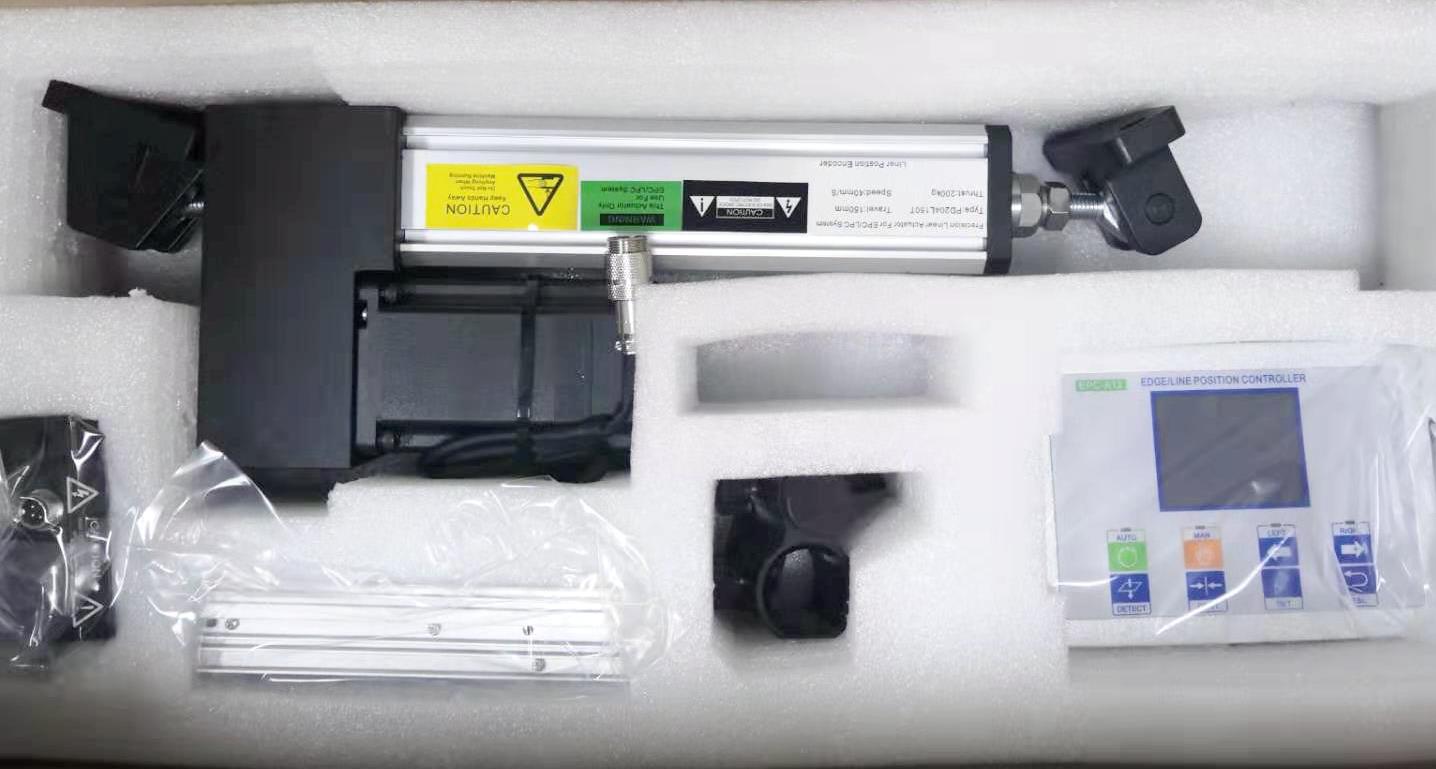

Packaging

Order Details
