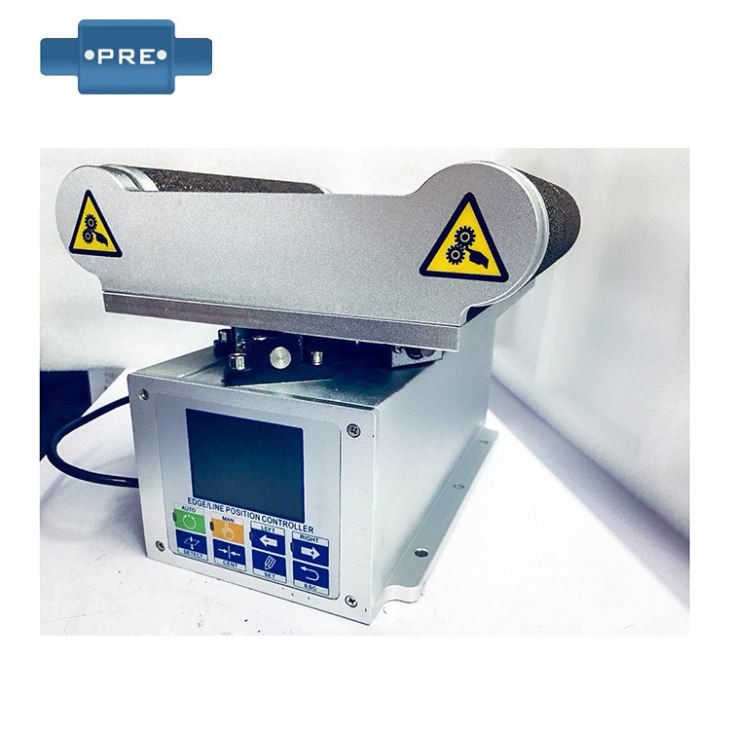

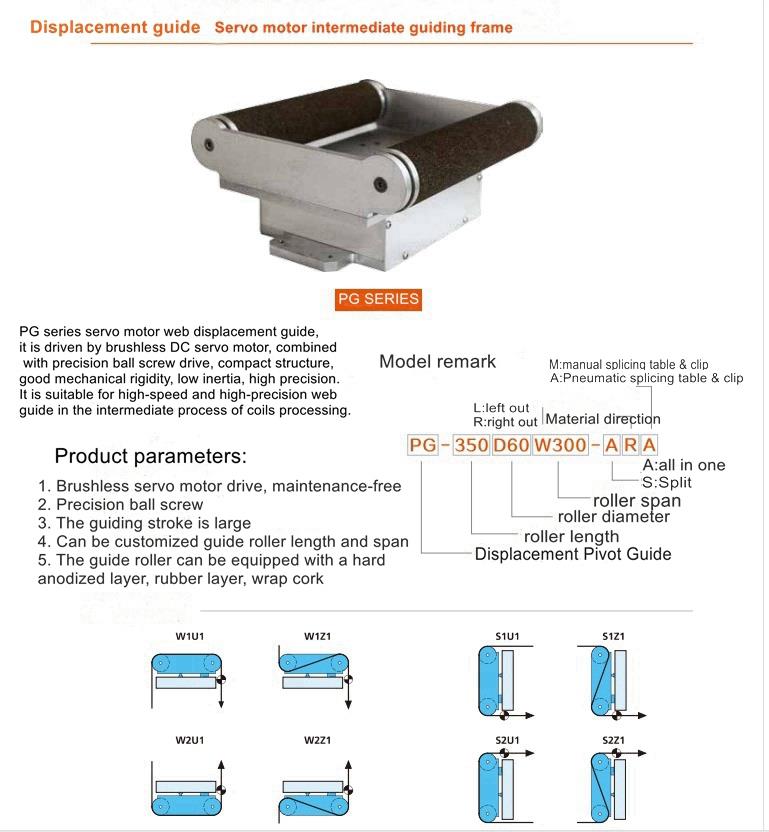

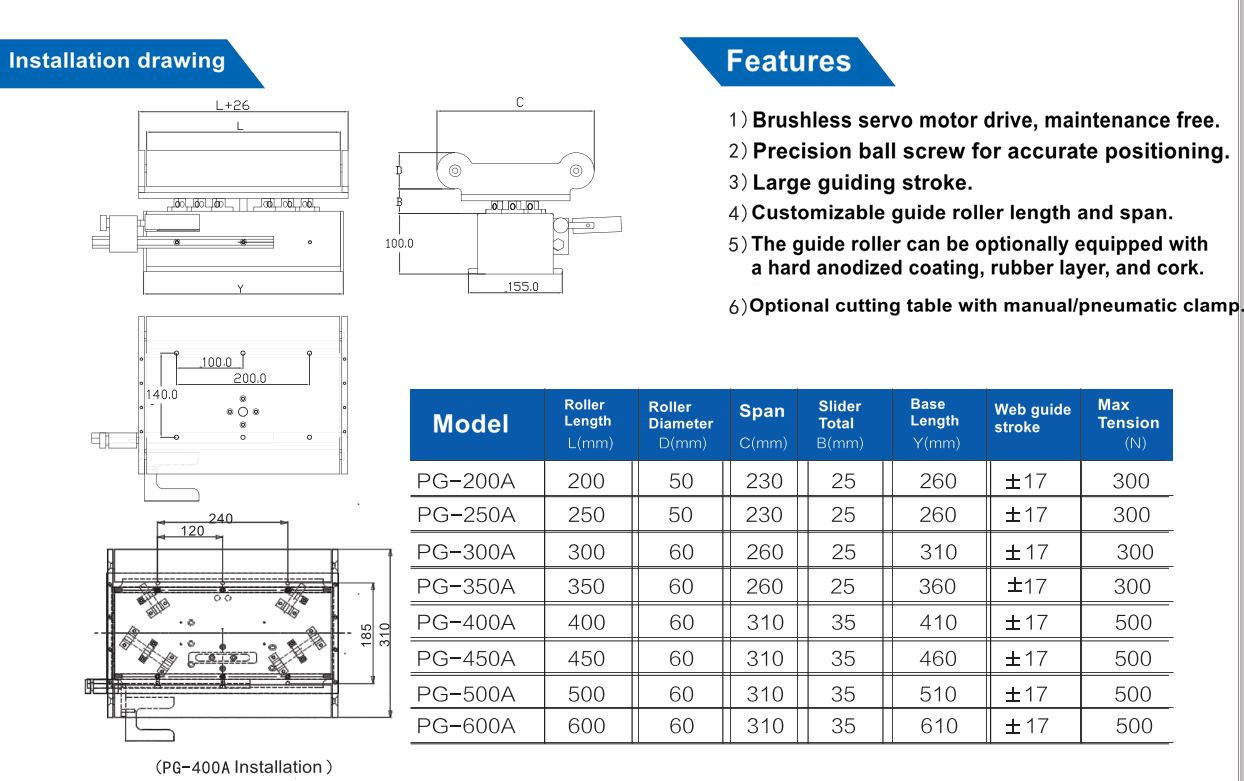

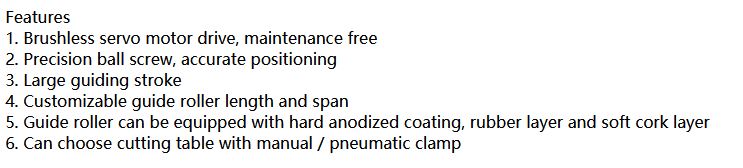

Web Edge Guide System

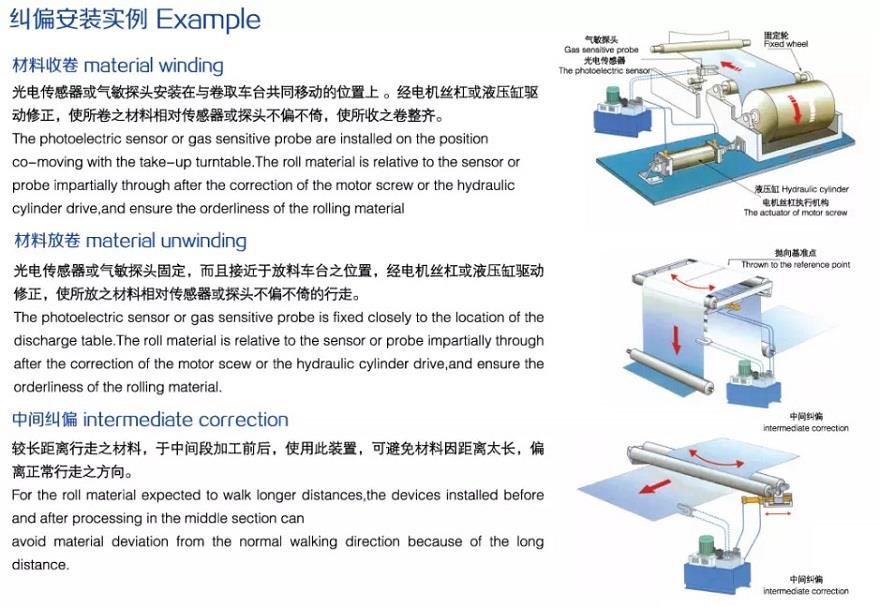

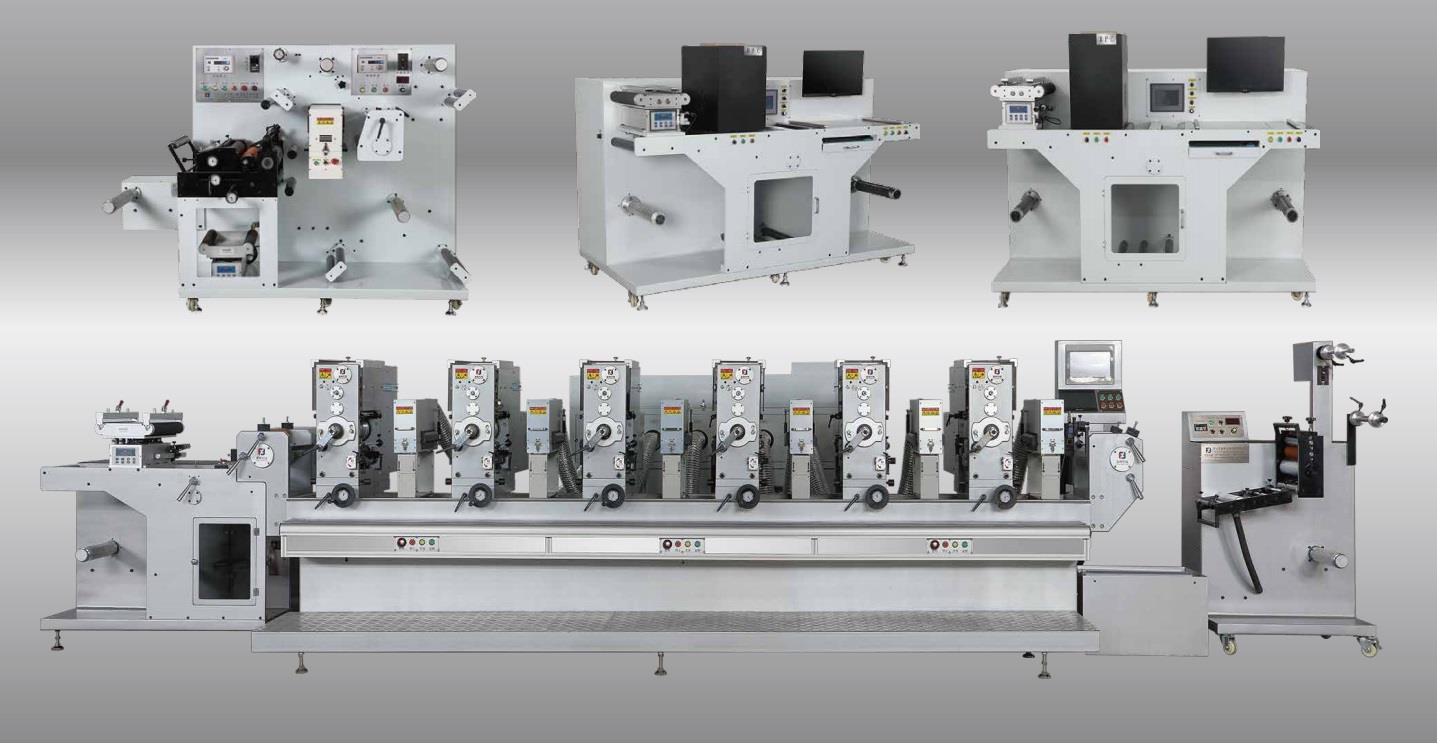

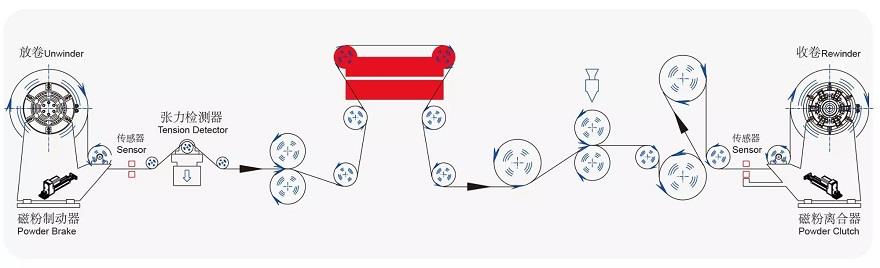

The servo guiding system (automatic photoelectric guiding device) has an automatic processing process for high speed, high precision and high efficiency, and the control position of the horizontal position of the coil is getting higher and higher. Equipped with high-performance automatic rectification is the key to improving the production capacity and yield of coils. The coil will produce lateral displacement (running deviation) during the discharge, intermediate section and receiving process, so the correction system can be installed in the above three positions to control the coil to pass the specified position accurately.

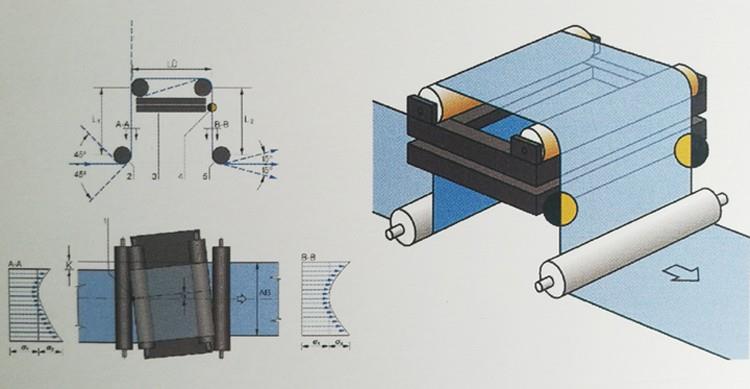

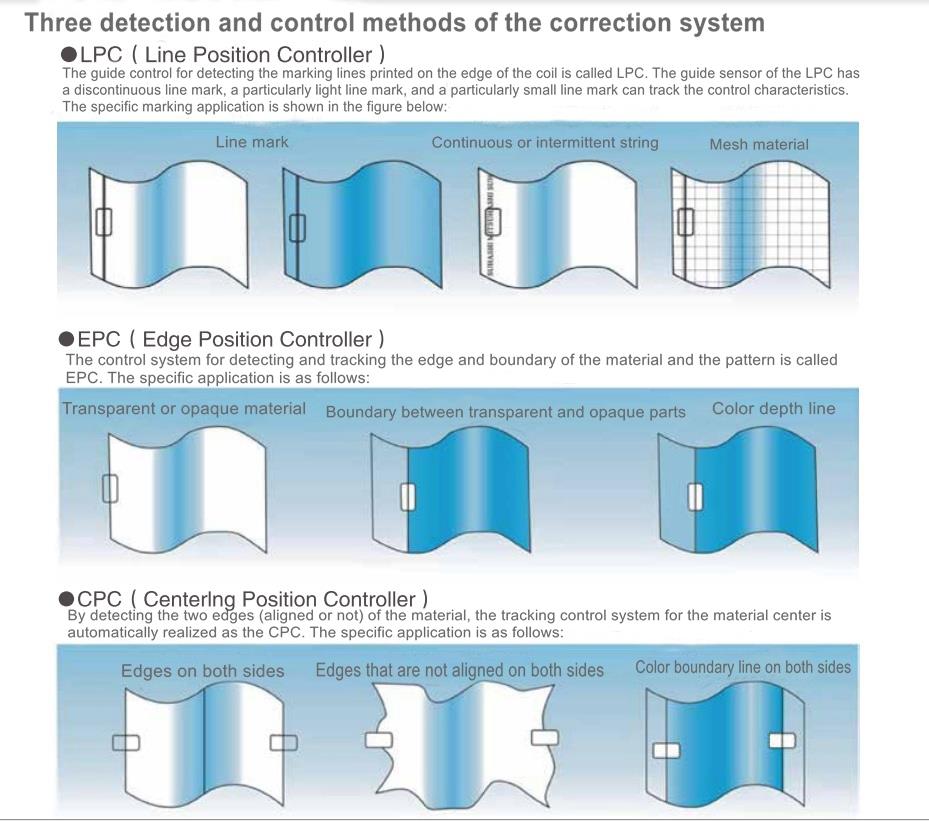

The servo guide system (automatic photoelectric guide device) consists of an automatic control system consisting of a controller, an edge detection/detection line sensor, an electric drive, and a guiding mechanism. The guiding sensor detects the relative position of the edge, the line or the color block of the coil, converts it into an electric signal and transmits it to the correcting controller, and the guiding controller compares the signal with the set signal, and according to the deviation amount, the controller outputs a proportional proportional The signal is corrected immediately to the electric drive.
