The tension sensor is the soul of the tension measurement and control system. Only the high-precision, high-sensitivity and high-stability tension sensor can ensure the effect of tension measurement and control. A tension detector, also called a tension sensor, is an instrument used to measure the tension value of a coil during tension control.

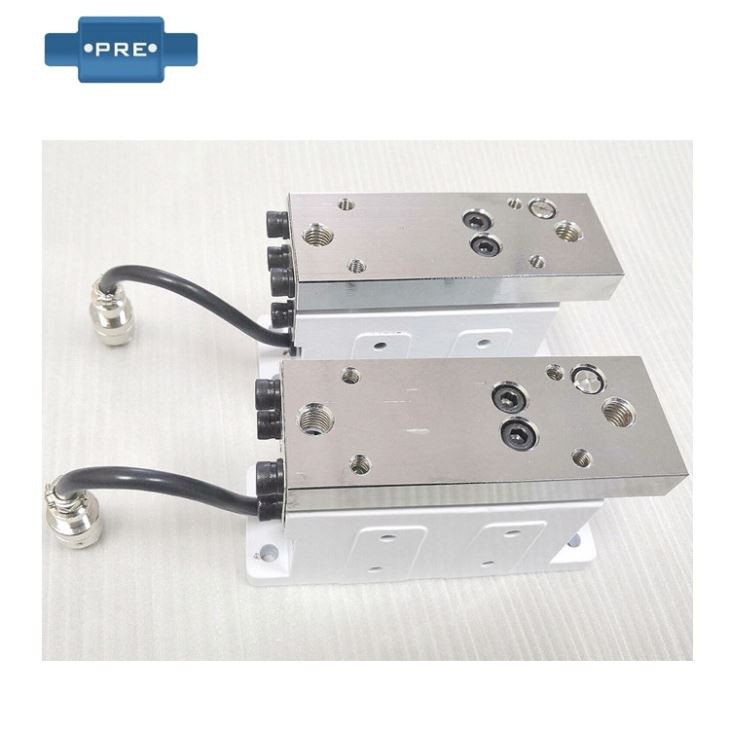

Foot Mounted Tension Sensor

Lx series anxiety sensor is the anxiety detector typically prepared with automatic tension sensor, magnetic powder grab and magnetic powder brake. it uses high precision to discover the bending of the leaf spring when the burden acts, accordingly detecting the tension feedback to the absolutely computerized anxiety controller. lx series tension sensor (detector) has excessive stability, correct linearity, fast response and small size. it's far a great detection device for anxiety manage in printing, packaging, film printing and processing. this sort of anxiety detector applies a load thru a curler to motive a slight displacement (approximately ± μm) of the leaf spring, after which the anxiety is detected through a differential transformer. the anxiety sensor adopts a differential transformer structure with suitable temperature balance and excessive linearity.

Tension sensor (anxiety detector) works: strain gauge resistance pressure gauge within the tension sensor. the running precept of the steel resistance strain gauge is that the stress resistance adsorbed on the bottom cloth modifications with the mechanical deformation, which is typically called the resistance stress impact.

Mounting of Tension Sensors:

Precautions for set up of anxiety sensor:
1. the anxiety detector must no longer be subjected to sturdy effect or vibration at any time, in any other case it'll purpose harm to the tension detector.

2. whilst the use of the facet fixing, it should be cited that the fixing screw ought to no longer be too lengthy, in any other case the measuring mechanism inside the anxiety detector can be damaged. three, the screw that installs the tension detector and the bearing housing have to no longer be too lengthy. if it's far too long, the reed of the tension detector will no longer paintings normally and no anxiety could be detected.

Through-Hole Tension Detector

Installation:

The shaft-kind tension detector lc series is rugged and sturdy, and may be overloaded routinely in two anxiety instructions for heavy-duty packages. the use of wheatstone's complete bridge layout improves accuracy and balance. used in pairs, one for each pillow-formed bearing housing, helping the induction curler. when established in this manner, the anxiety detector correctly measures the resultant pressure of the tension applied to the idler by using the internet and is displayed by means of the anxiety reader no matter the placement of the web.

The shaft tension detector lc collection has superiority and practicability in utility and characteristic, and also has anti-interference interference technology, that is greater convenient and solid to use. the absolutely computerized anxiety controller is a high-precision, all-digital, clever tension controller. it can receive the signal transmitted by means of the tension sensor, and then output the signal through the clever pid no overshoot set of rules of the internal tool, and modify the actuator to manipulate the trade of the tension length. similarly, high-precision d/a converters are used, and the output accuracy is as high as zero.1% to make the tension manage extra solid.
