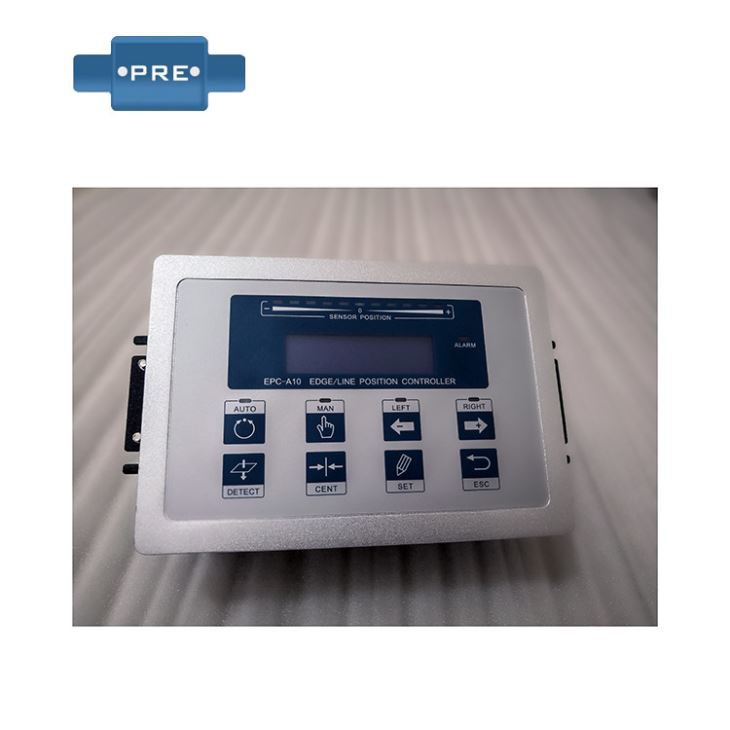

Web Guide Controllers

Use
The correction controller is the heart of the electronic correction system. The correcting controller can correct the various coils and combine them with appropriate sensors, actuators, and other correcting components to help the production line run efficiently and efficiently. Mainly used in printing and packaging, paper, film.

Working principle

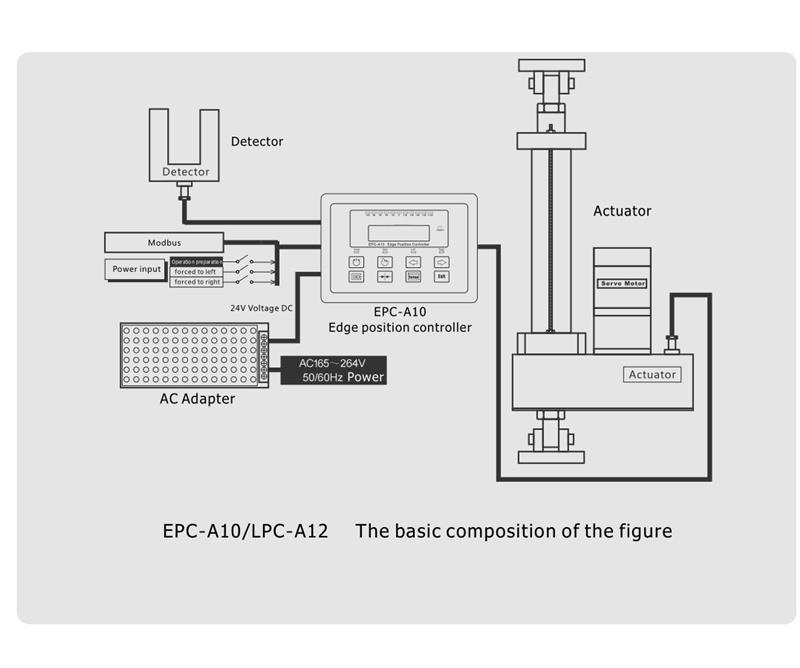

During the material winding process, the position of the edge or line is detected by the photosensor to pick up the edge or line position deviation signal. Then, the position deviation signal is transmitted to the photoelectric correction controller for logic operation, and a control signal is sent to the mechanical actuator to drive the mechanical actuator to correct the serpentine deviation of the material during operation to ensure linear motion of the material. Optional left and right limit switches prevent the system from running out of control.

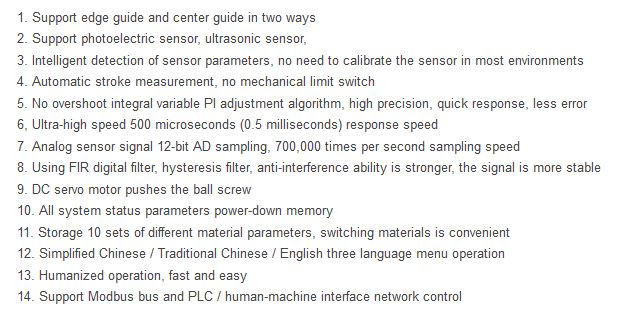

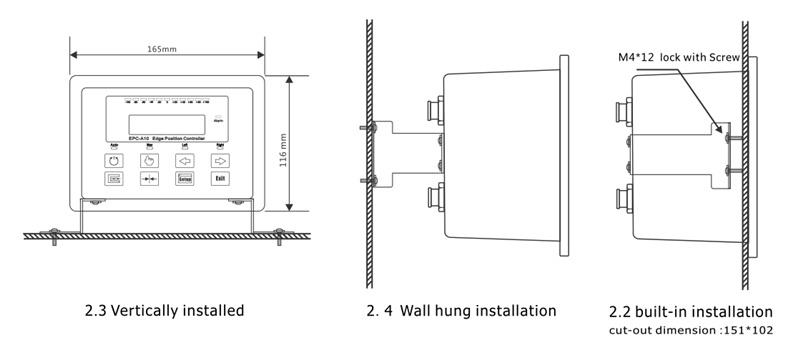

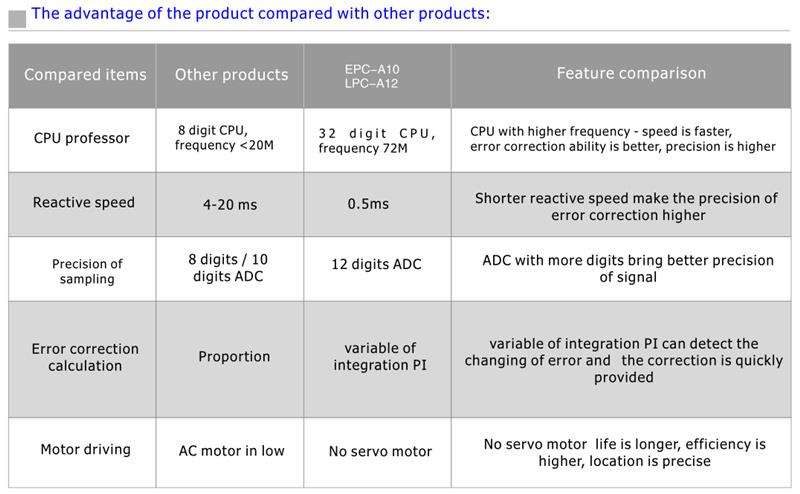

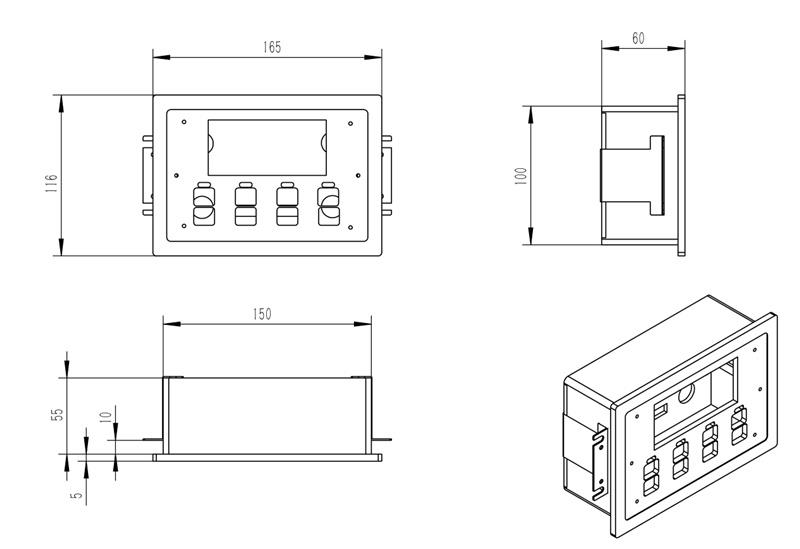

EPC-A10 Web Guide Controller Dimension:

Installation:

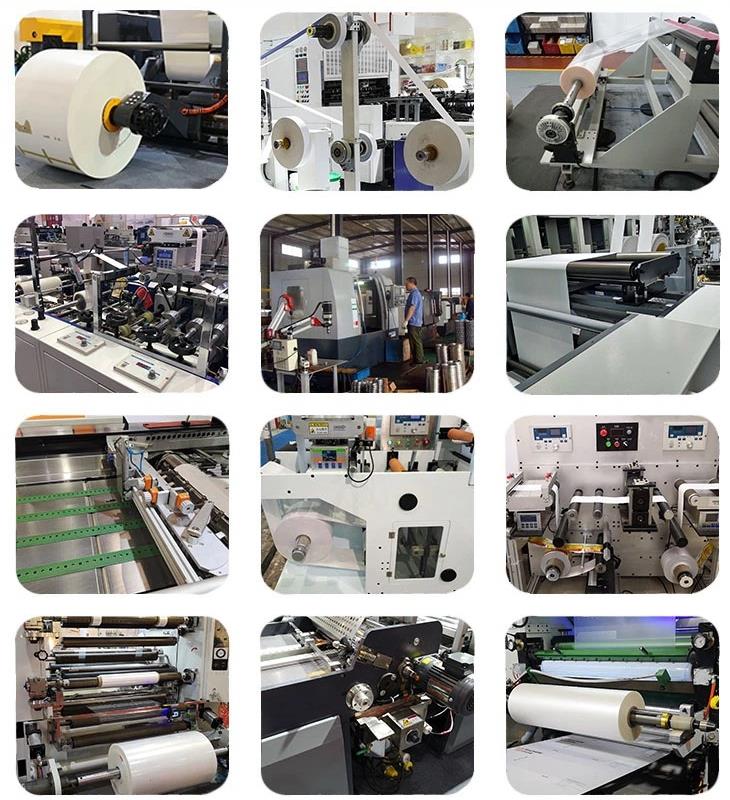

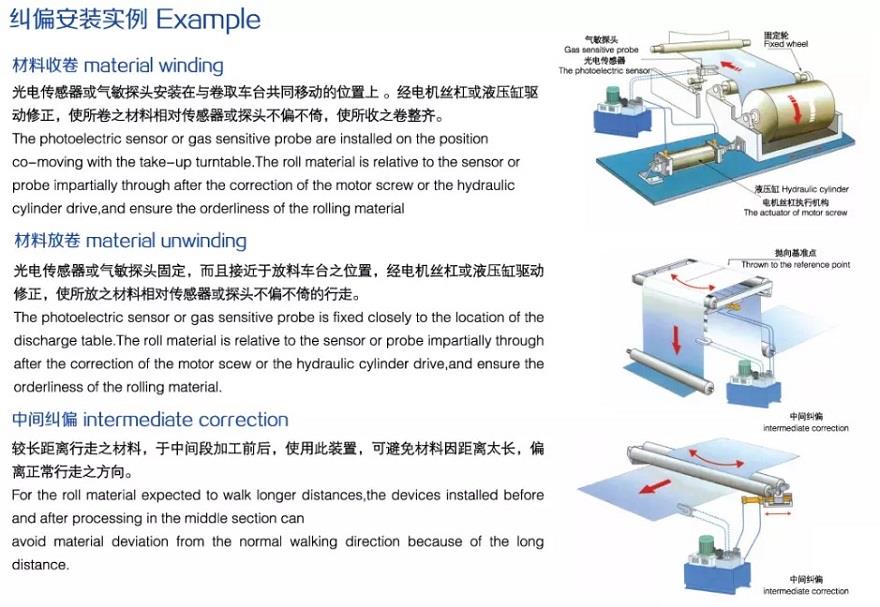

Application

Order Details
