Web Guiders
In the production process of printing, printing and dyeing, film, textile, packaging and other industries, thin materials are unwinded, transported and wound up on long high-speed production lines. Due to various mechanical reasons, the coils will be deflected, resulting in Problems such as...
In the production process of printing, printing and dyeing, film, textile, packaging and other industries, thin materials are unwinded, transported and wound up on long high-speed production lines. Due to various mechanical reasons, the coils will be deflected, resulting in Problems such as unwinding, unwinding, and intermediate transmission misalignment affect product quality and even fail to complete the production process.

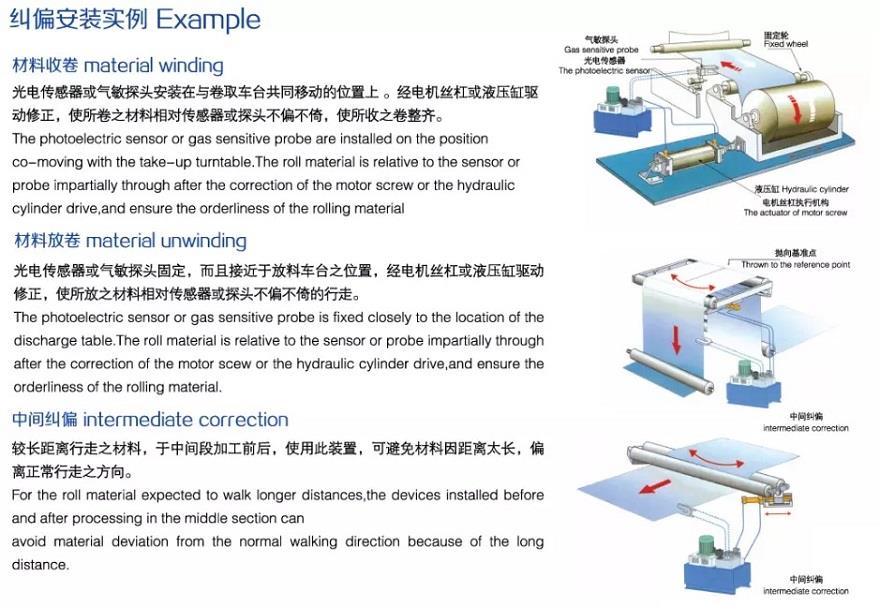

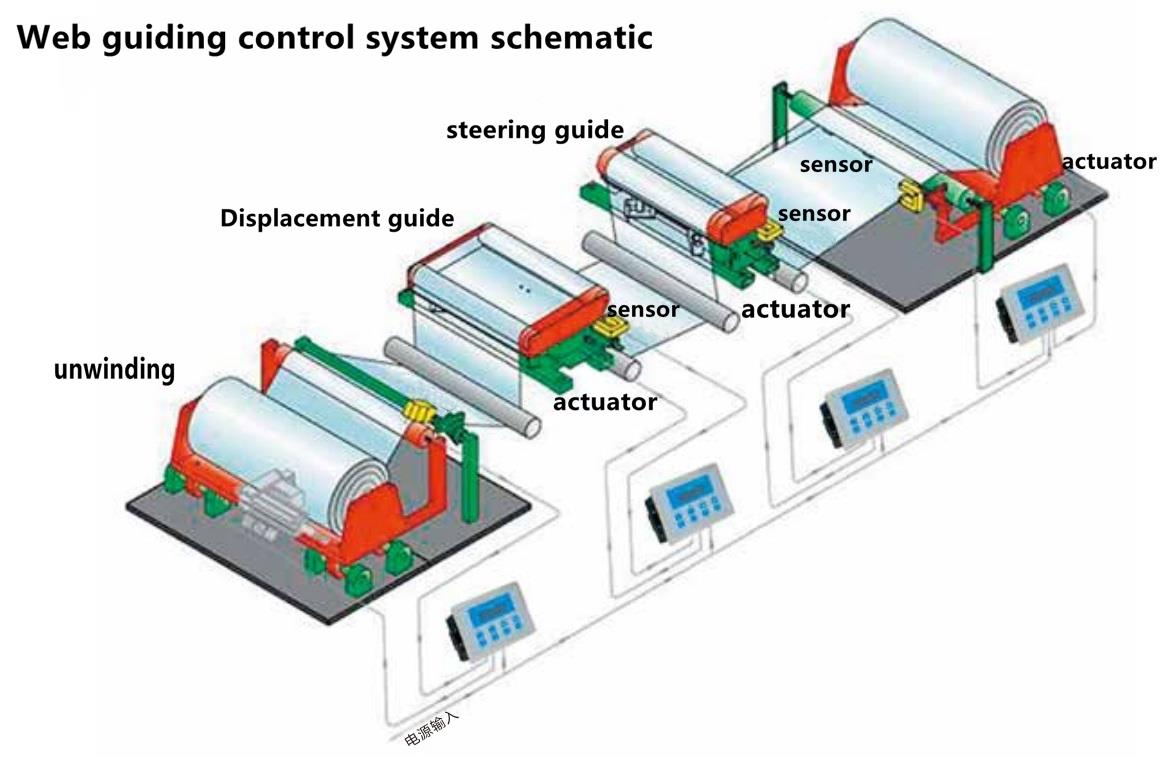

The automatic guide system solves the above problem. If the coil is transferred, processed, unwinded or wound in the production line, if the deviation is made, the automatic guiding opportunity will automatically pull the material (tow) to the correct position in real time, so that the production process can be carried out smoothly and the product quality can be guaranteed. Automatic web guide system is an indispensable production equipment for printing, printing and dyeing, film, textile, packaging and other industries.

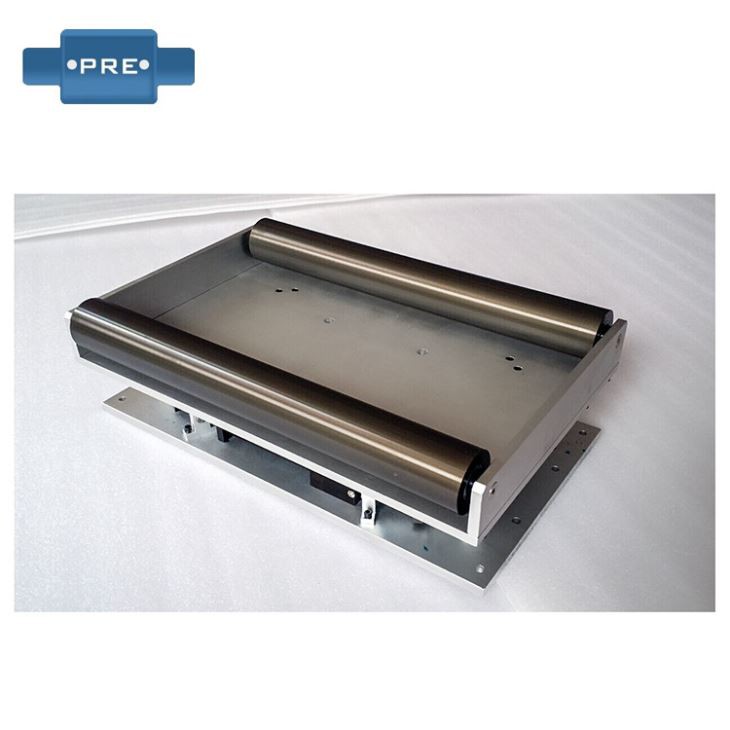

800mm Width Web Guide System

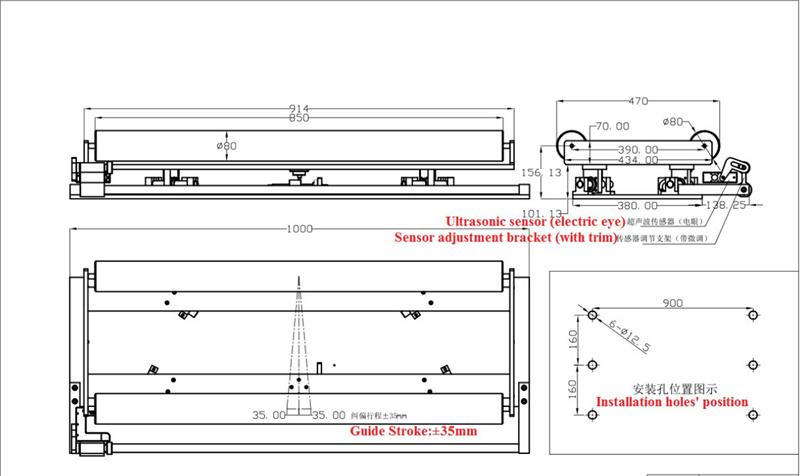

Drawing:
Technical Details
Model | 800mm Web Displacement Guide System |
Roller Diameter | 80mm(can be customized) |
Roller Length | 800mm(Different models have different roller length) |
Web Width Range | 200mm-770mm |
Guide Angle | ±15° |
Maximum Tension | |
Power Input | AC220V/80W |
Span Between 2 Rollers | 390mm(can be customized) |
Maximum Drive Speed | 40mm/s |
Environment Temperature | -10~60℃/below RH90% |

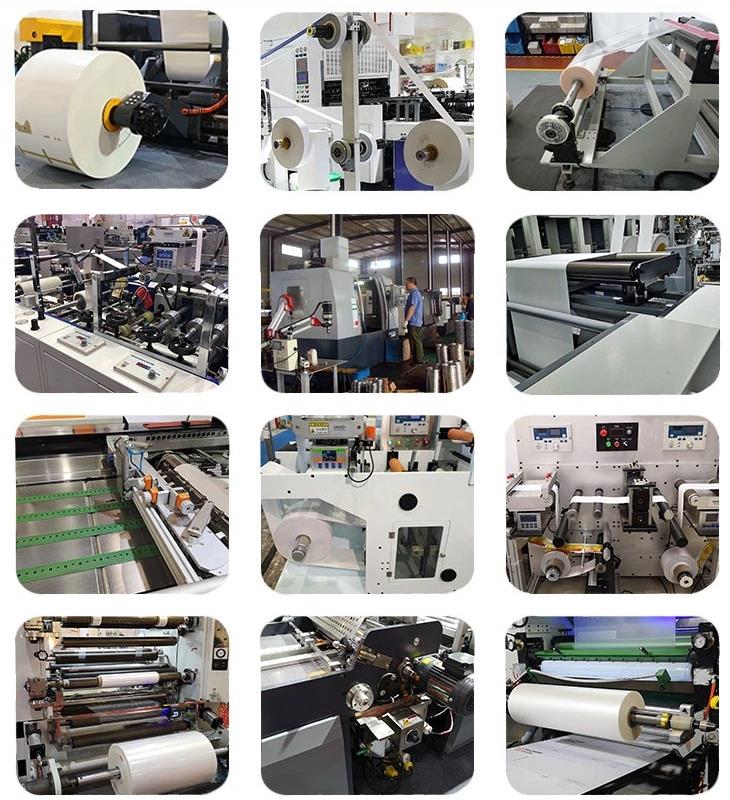

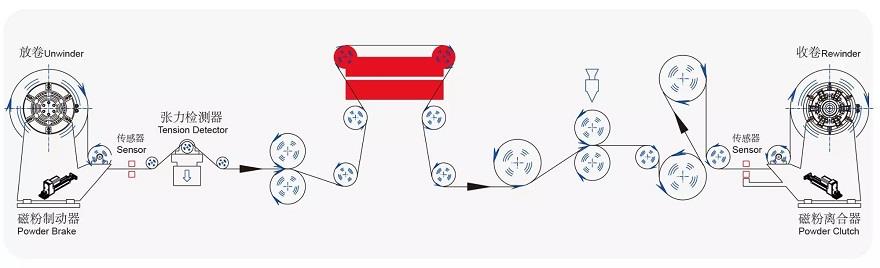

Application

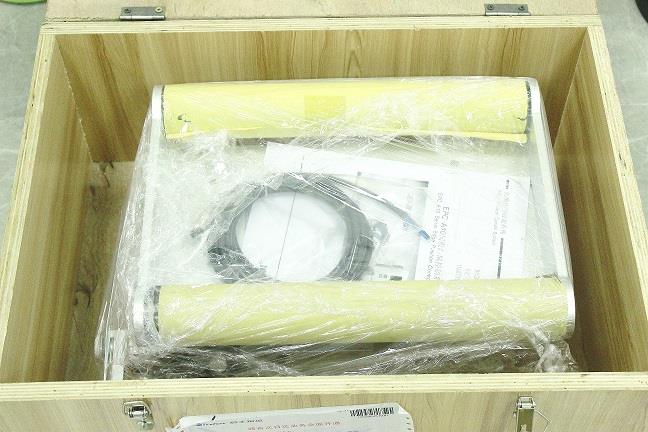

Packing
Order Details
Item Name | PG-800A Offset Pivot Guide System |
MOQ(Minimum Order Quantity) | 1pc |
Lead time | 10-15 days after receiving the deposit |
Calculated Packing Size | 90cm*55cm*45cm |
Package | Wooden Box |
Price Term | EXW,FOB, CIF, etc |
Payment term | TT, L/C,Western Union |
Country of Origin | China |
