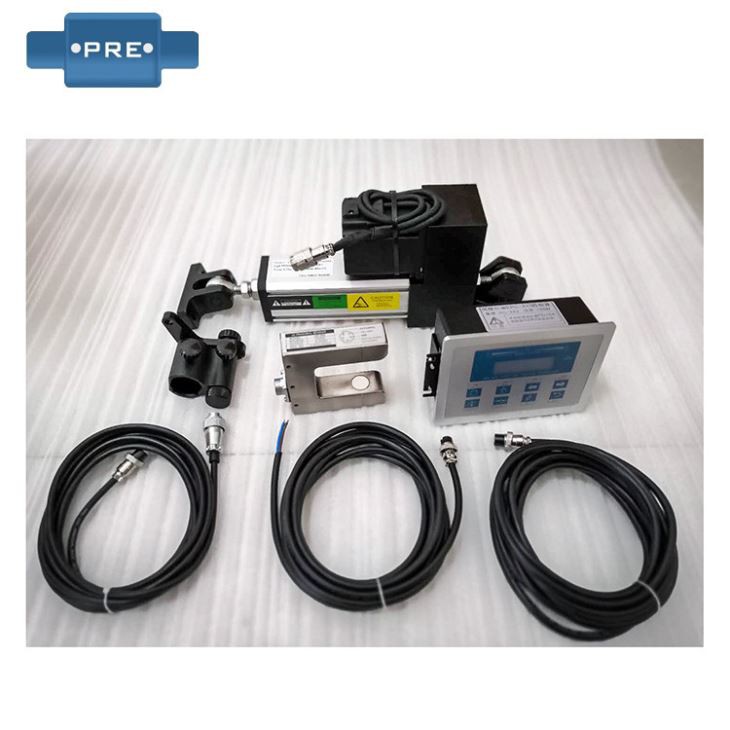

Web Guiding And Spreading Systems

The coil material mainly refers to paper, plastic film, film, cloth, metal foil, etc., and the coil correction system is widely used in printing and packaging equipment.

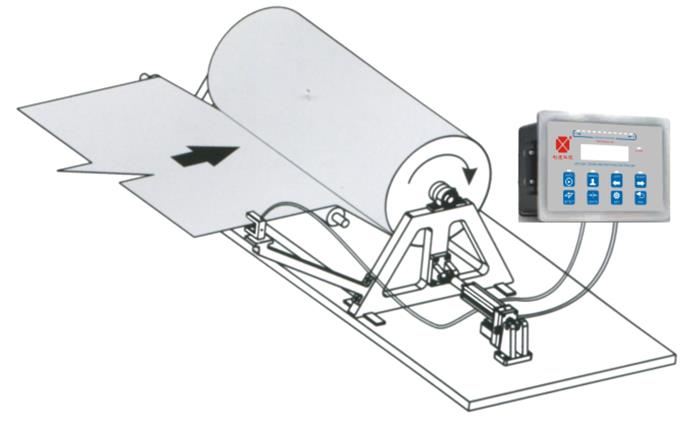

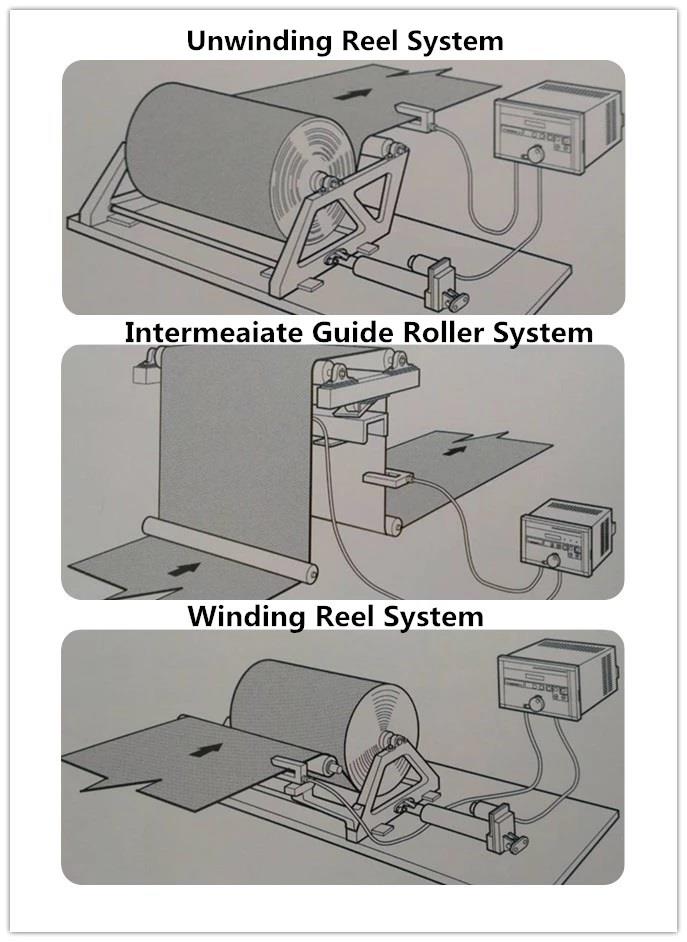

Winding correction system
This method is mainly used to ensure that the curling is neat when the coil is wound. The sensor is integrated with the winding frame and swings with the curling of the curling edge instead of correcting it. The sensor integrated with the winding frame keeps track of the curling, so the curling can be neat.

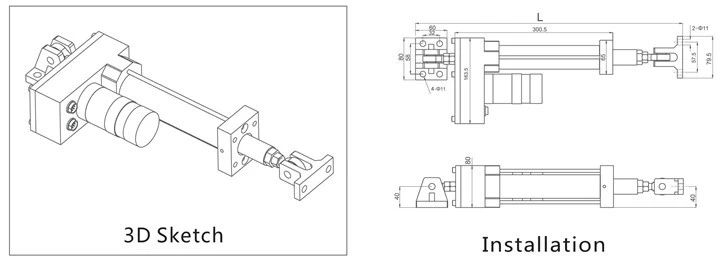

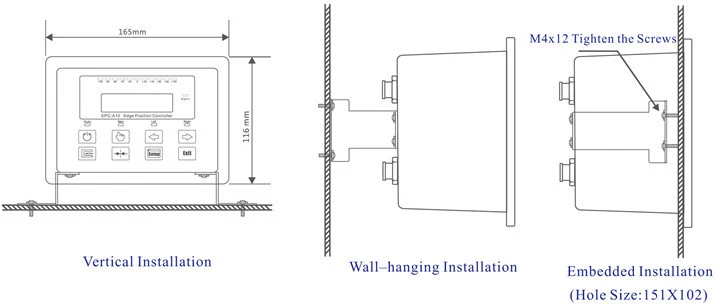

Installation :

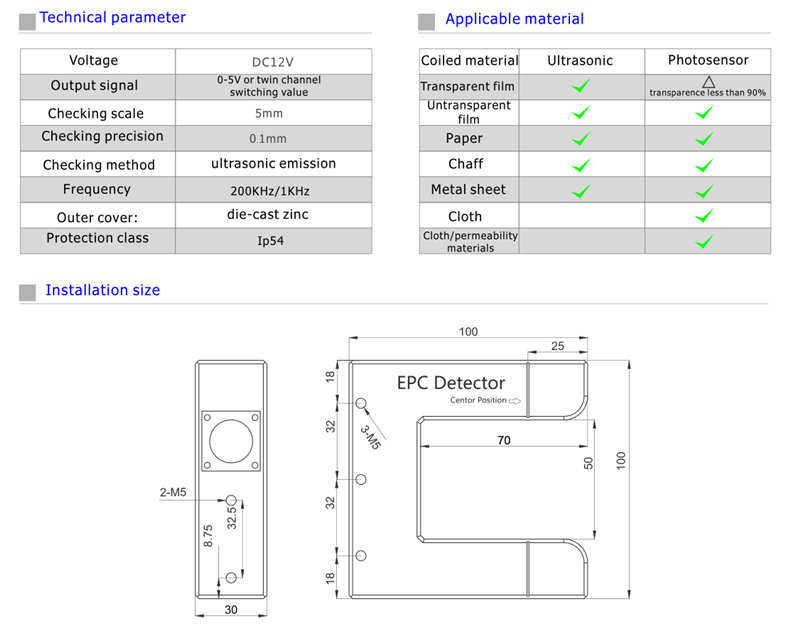

Guide sensor

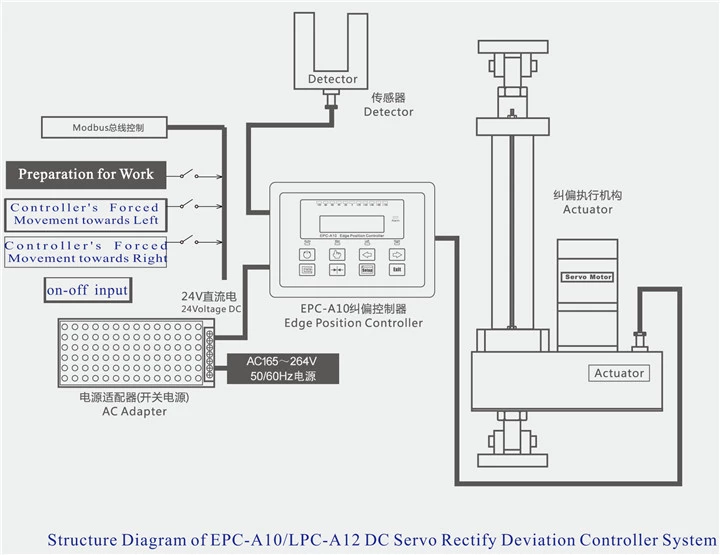

Web guide system:
Mechanical movement, vibration will be eccentrically offset, serpentine state, any machine running state will appear serpentine motion state.
The correction control system includes the EPC opposite side, the LPC pair line, and the centering CPC, (ie, the opposite side, the opposite line, and the centering correction).
The servo control in the actuator is more accurate than the DC control.

With the continuous improvement of product quality requirements, with the continuous improvement of equipment speed, enterprises hope to save production costs and save personnel costs, so that enterprises can obtain the maximum input-output ratio. These goals can be achieved by installing a corrective and corrective system on the device. The use of a corrective and corrective system has become a trend, an indispensable configuration on the device, and a consensus among professionals.

Application

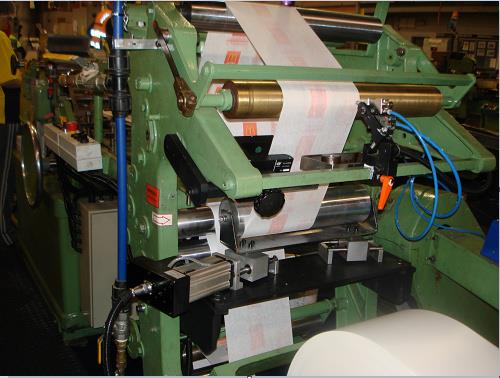

Actual Installation:

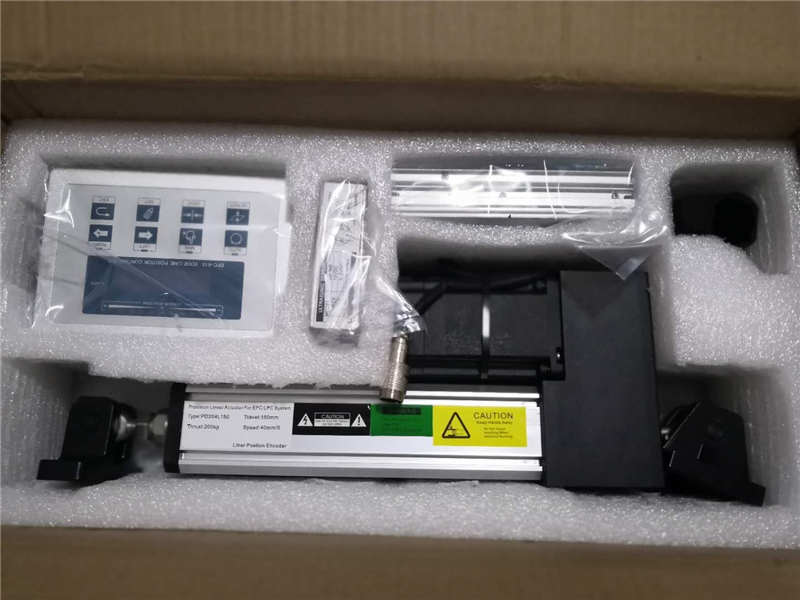

Packing

Order Details
