EPC-A10 Coil Guide System is the crystallization of PRE and another advanced technology, providing you with first-class. Guide performance, the system uses high-speed 32-bit CPU, no overshoot integral variable PI adjustment algorithm, DC servo motor drive, High precision of rectification, fast...

Send Inquiry Chat Now

Product Details

EPC-A10 Coil Guide System is the crystallization of PRE and another advanced technology, providing you with first-class.

Guide performance, the system uses high-speed 32-bit CPU, no overshoot integral variable PI adjustment algorithm, DC servo motor drive,

High precision of rectification, fast response, support for heel, heel and medium.

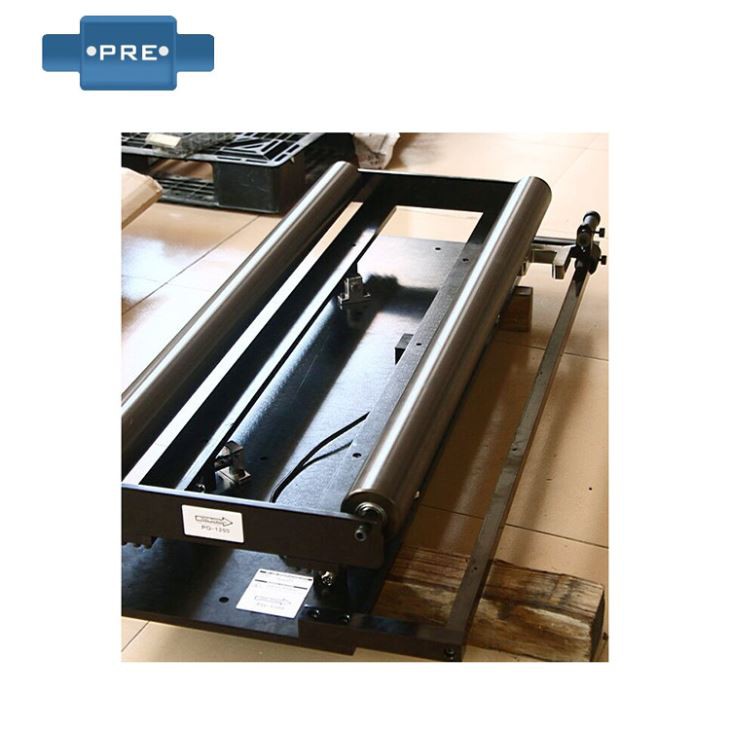

1200mm Width Web Guide System

Technical Details

Model	1200mm Web Displacement Guide System
Roller Diameter	80mm(can be customized)
Roller Length	1200mm(Different models have different roller length)
Web Width Range	200mm-1150mm
Guide Angle	±15°
Maximum Tension
Power Input	AC220V/80W
Span Between 2 Rollers	390mm(can be customized)
Maximum Drive Speed	40mm/s
Environment Temperature	-10~60℃/below RH90%

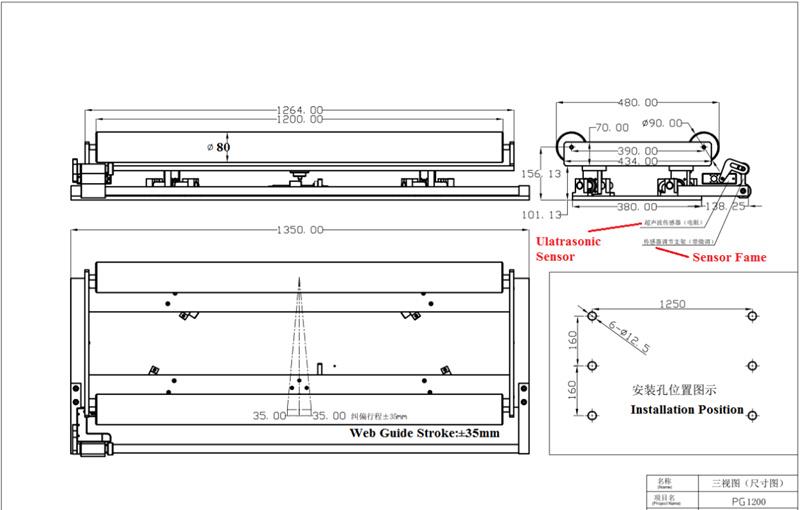

image001_副本

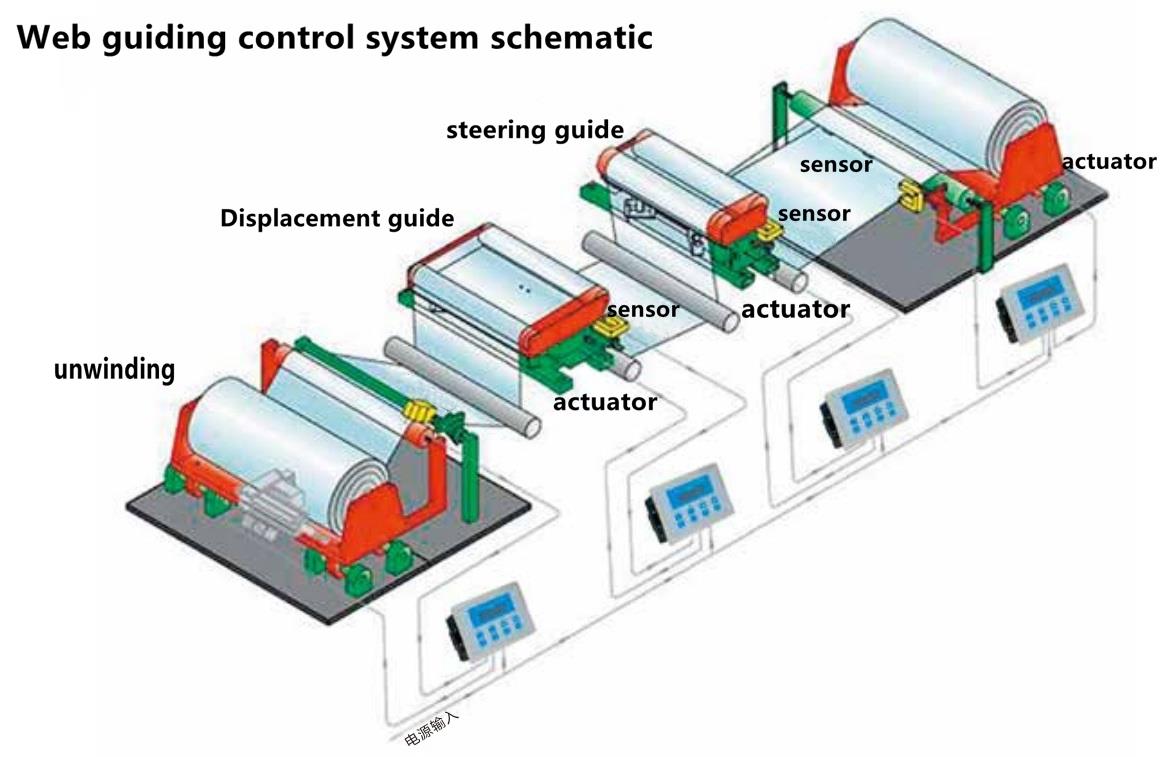

纠偏控制系统原理图_副本

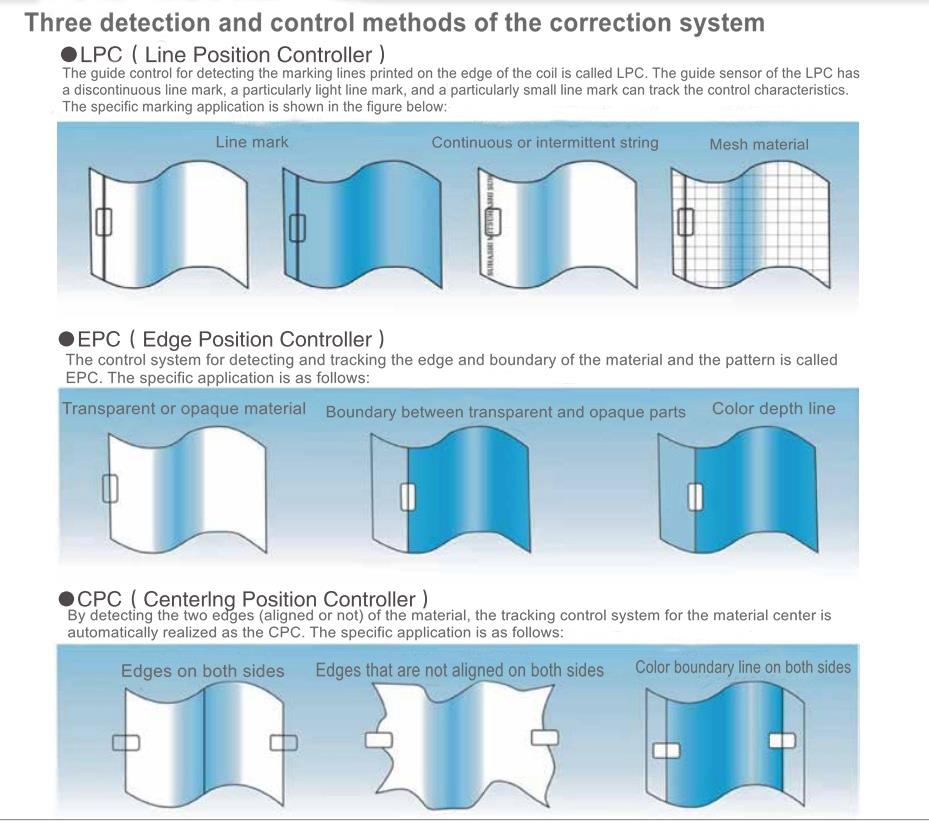

纠偏系统的3种检测方式2_副本

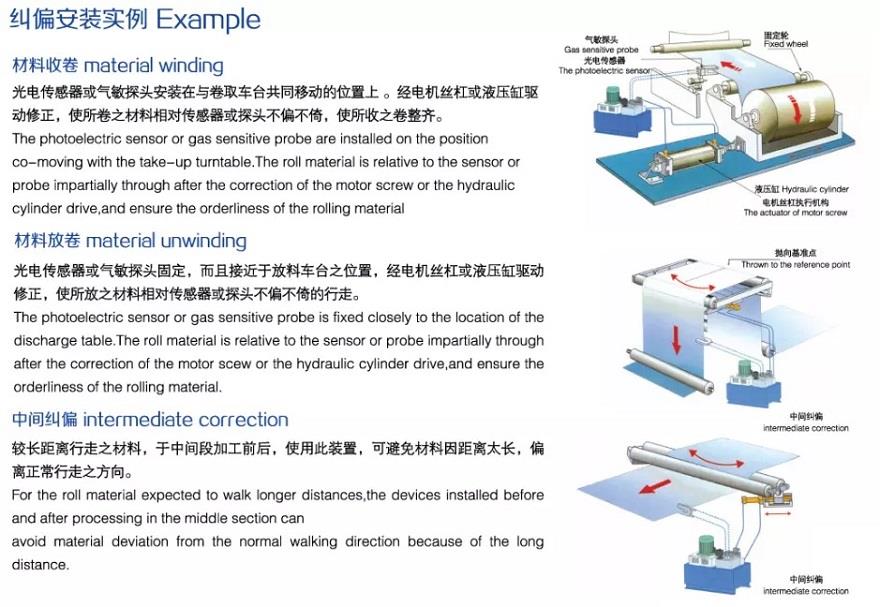

web guide system2

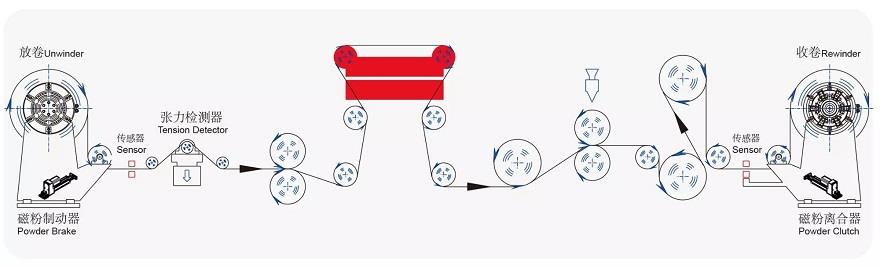

web guide,powder clutch

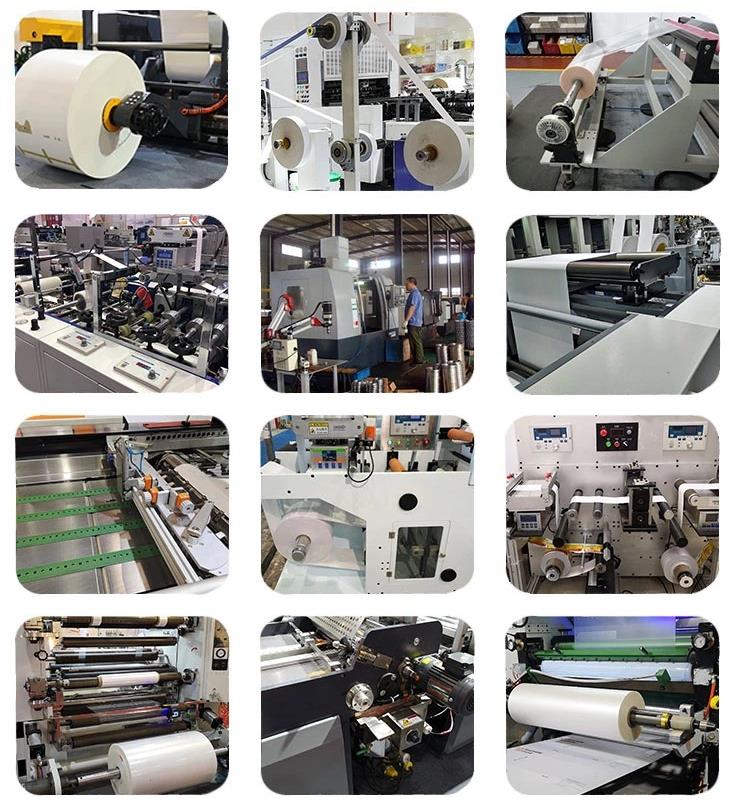

Application

application

Packing

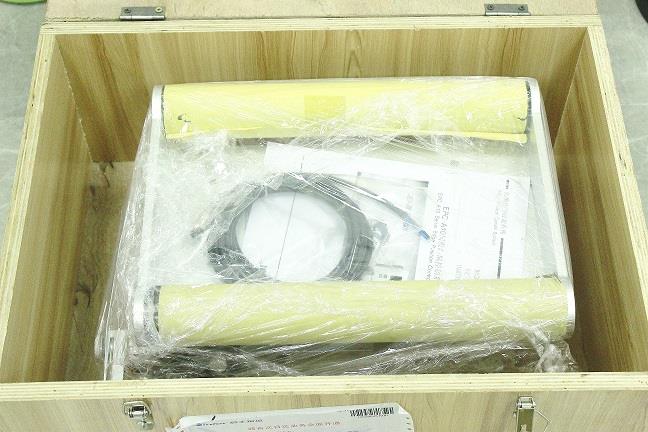

_MG_6957_副本

_MG_6978_副本

Order Details

Item Name	PG-1200A Offset Pivot Guide System
MOQ(Minimum Order Quantity)	1pc
Lead time	10-15 days after receiving the deposit
Calculated Packing Size	130cm60cm50cm
Package	Wooden Box
Price Term	EXW,FOB, CIF, etc
Payment term	TT, L/C,Western Union
Country of Origin	China
