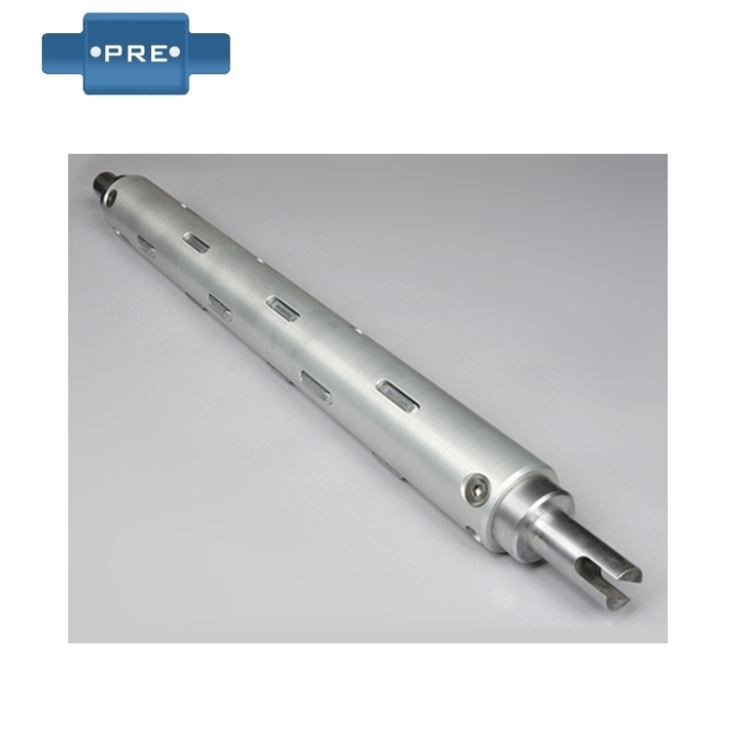

Air Shaft Building

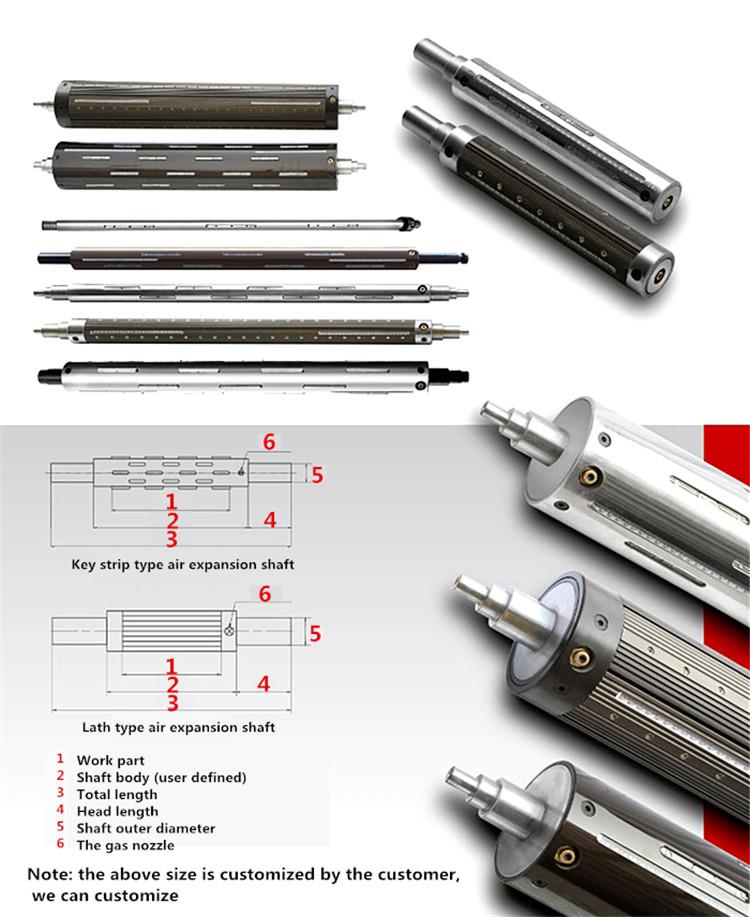

The plate kind air expansion shaft, the key type air expansion shaft and the slip air enlargement shaft are all commonplace air enlargement shafts (air enlargement shafts), so how to set up them at the cylindrical shaft when the use of various inflation shafts? ?

When putting in the air enlargement shaft (air growth shaft),  installation techniques may be adopted. one is to install it without delay at the conical shaft, and the opposite is to put in on the cylindrical shaft using the adapter sleeve or the withdrawal sleeve.

While hooked up with adapter sleeves or withdrawal sleeves, decrease cost axle seats (without opposite cone value) are allowed, and it is viable to use larger shaft tolerances and trade the location of the bearings at the shaft. since the dimensional accuracy of the bushing isn't as excessive as that of the bearing, the bushing is not suitable for programs requiring high precision or high rotational pace. however, if the accuracy requirements are distinctly high, it's far advocated to use the direct mounting approach wherein the inflation shaft is directly established at the conical shaft.

Similarly, the shoulders are no longer required when the use of tapered sleeve bearings. however, on the way to save you the loosening of the nut, the shaft with a diameter of ≤200mm should use a washing machine, and the shaft with a diameter of 200mm or extra have to use a locking card. the tightening route of the nut is opposite to the route of rotation.

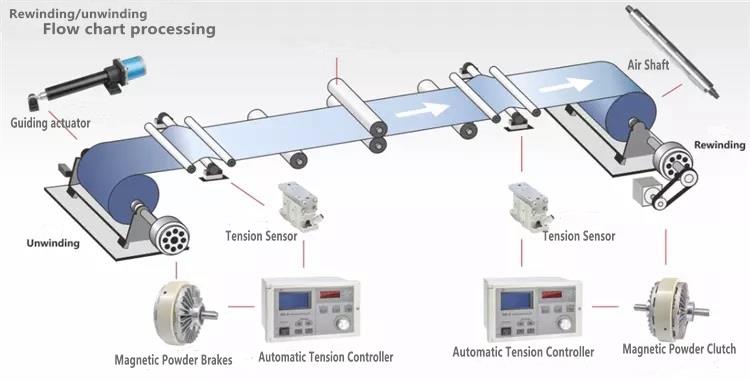

The gas rise shaft is also referred to as the inflation roll, that is a sort of winding and unwinding that's not unusual inside the paper coating and printing industries. after the compressed air is inflated, the important thing strip on the floor of the shaft may be raised (the shaft diameter is multiplied), and the key strip on the floor after deflation is quickly retracted (healing of the shaft diameter) for tightening the core.

What are the technical blessings of the inflation shaft?

Shop working time: isolating and placing the coiled tubing takes handiest approximately 3 seconds to finish the filling and deflation operation. it is able to tightly chew the coiled tubing without disassembling someone of the components at the shaft give up facet.

The coil tube is absolutely placed: circulate and fasten the coil tube at any position on the shaft surface of the reel with the aid of filling and deflation. the weight-bearing weight is big: the pneumatic reel may be designed in line with the conditions of use, the shaft diameter is extended, and excessive-pressure metallic is used to boom the bearing weight.

Cost-effective: the layout of the inflation shaft is fully purposeful, and it can be carried out to all sorts of coils of thickness, thickness, width and width.

Easy protection and lengthy existence: the pneumatic reel is a multi-issue aggregate of single elements. every component in the shape has a set specification, and they all can be decomposed and blended. the components are strictly inspected by means of the manufacturing unit and sturdy.

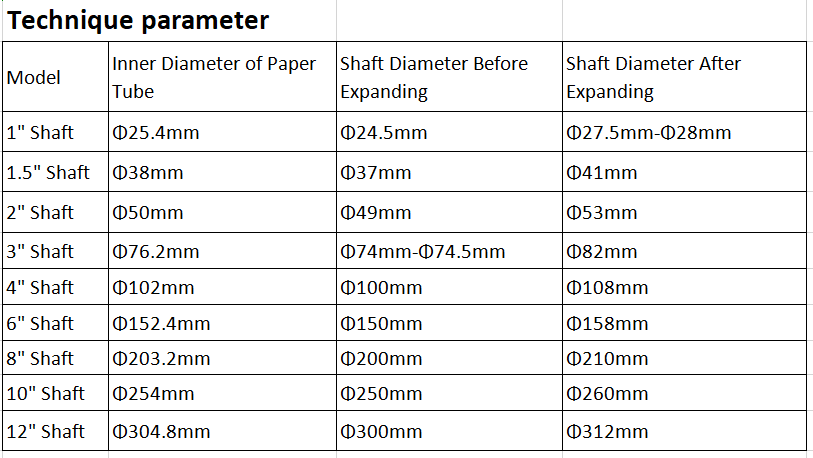

Huge range of applications: independent design, from 1 inch to twelve inches, used for torsion and cargo bearing, printing, rewinding, coating, lamination, bag making, paper making and different related device and different associated facilities used at the side of the cloth of the sending fabric.

Packing

Order Details
