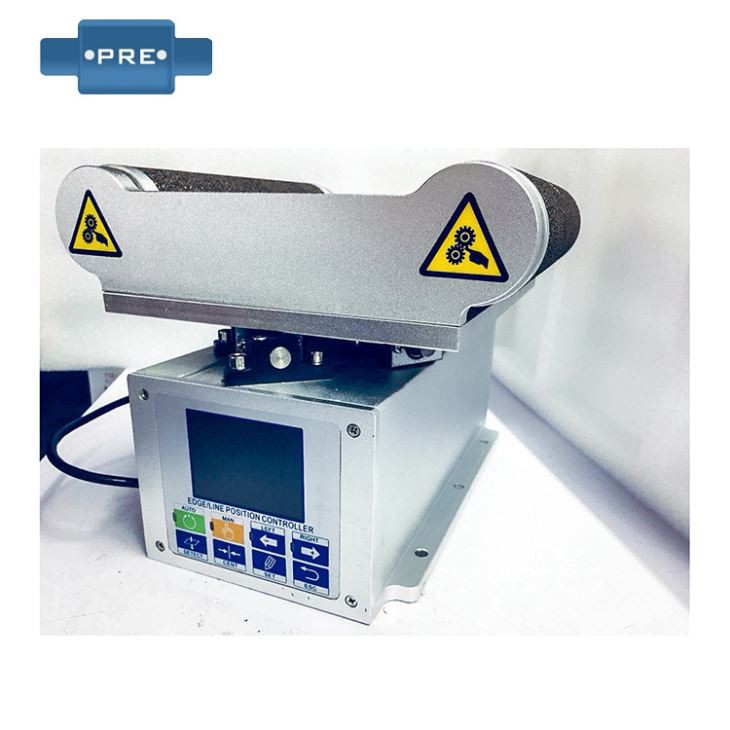

Webposition Converting Precise And Accurate Examples

Photoelectric guide device (photoelectric guide system) is an automatic control system for controlling the positional deviation of materials such as coils and cardboard during transmission. The products have functions such as automatic detection, automatic tracking and automatic correction. It can track and correct the marking lines or edges of cardboard, film, aluminum foil, strip and other materials to ensure the winding and slitting are neat. The system can be used in light industry, packaging, printing and dyeing, printing, steel rolling and other industries.

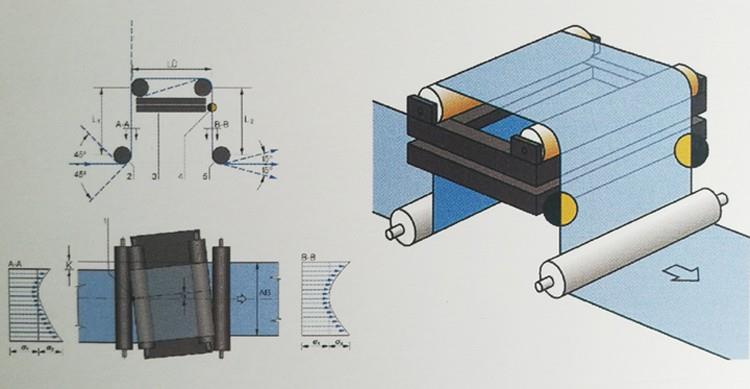

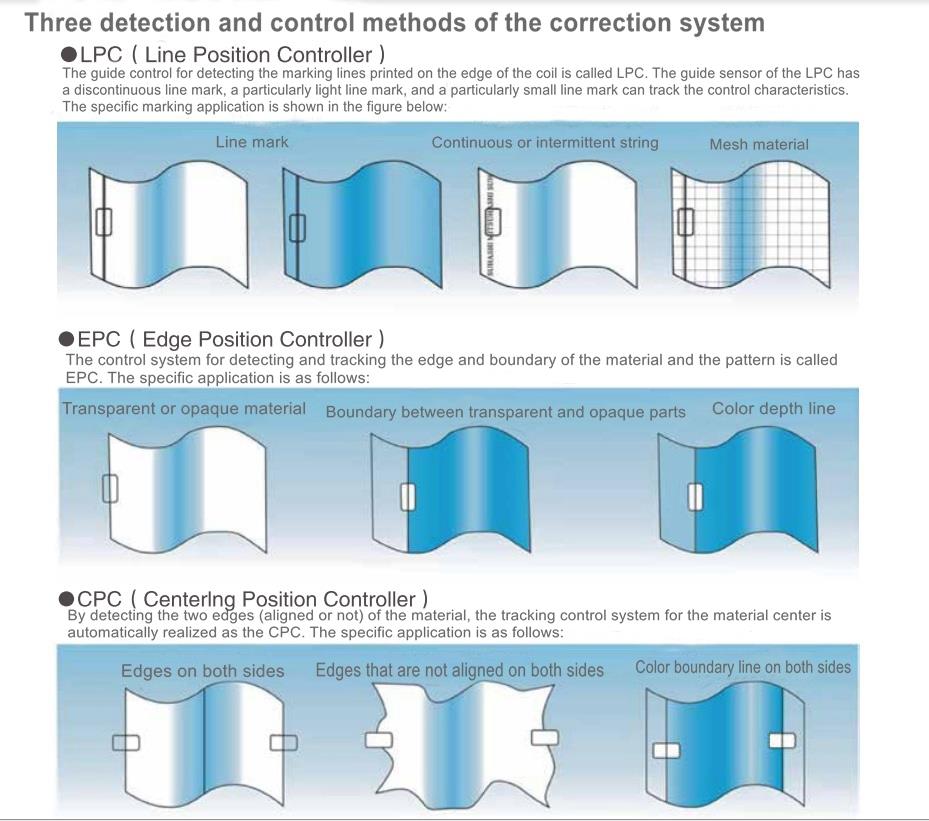

The guiding system (correcting device) is composed of a controller, an edge detecting/detecting line sensor, an electric drive, and a correcting mechanism to form an automatic control system. The correcting sensor detects the relative position of the edge, the line or the color block of the coil, converts it into an electric signal and transmits it to the correcting controller, and the correcting controller compares the signal with the set signal, and according to the deviation amount, the controller outputs a proportional proportional The signal is corrected immediately to the electric drive.

The rectification technology has developed rapidly in recent years. In the field of printing and packaging industry, the production equipment for handling strip-shaped materials is equipped with a high-performance automatic rectification control system, so that the production speed of the entire production line is not reduced. The quality of the manufactured products is increased by at least 5 times based on the premise. It ensures that the material does not deviate from the correct position, because even a small error, the resulting waste is unaffordable for any company.

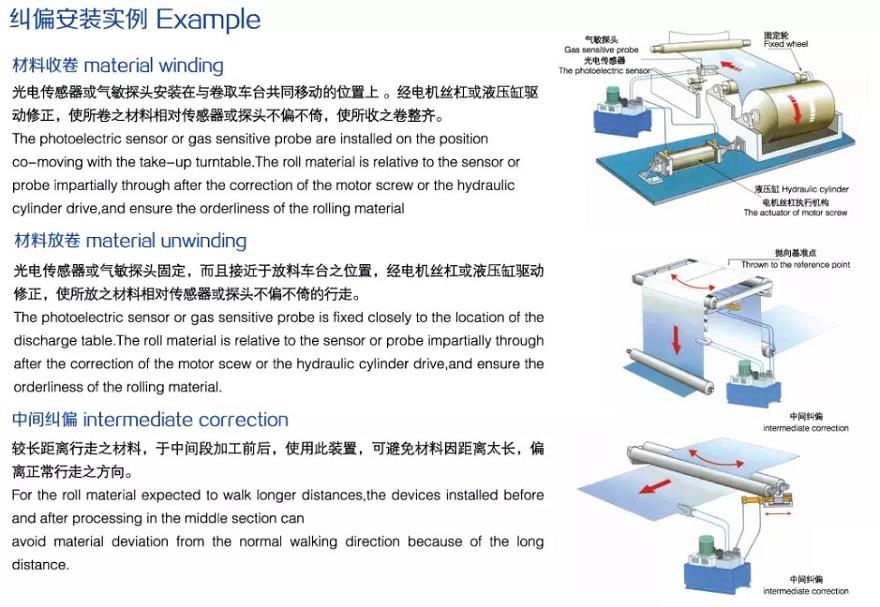

The PRE automatic rectification system ensures continuous and precise control of all types of strip materials in a variety of production processes, limiting waste and downtime to a lower level. PRE correction products will ensure that your machine is running at full speed.

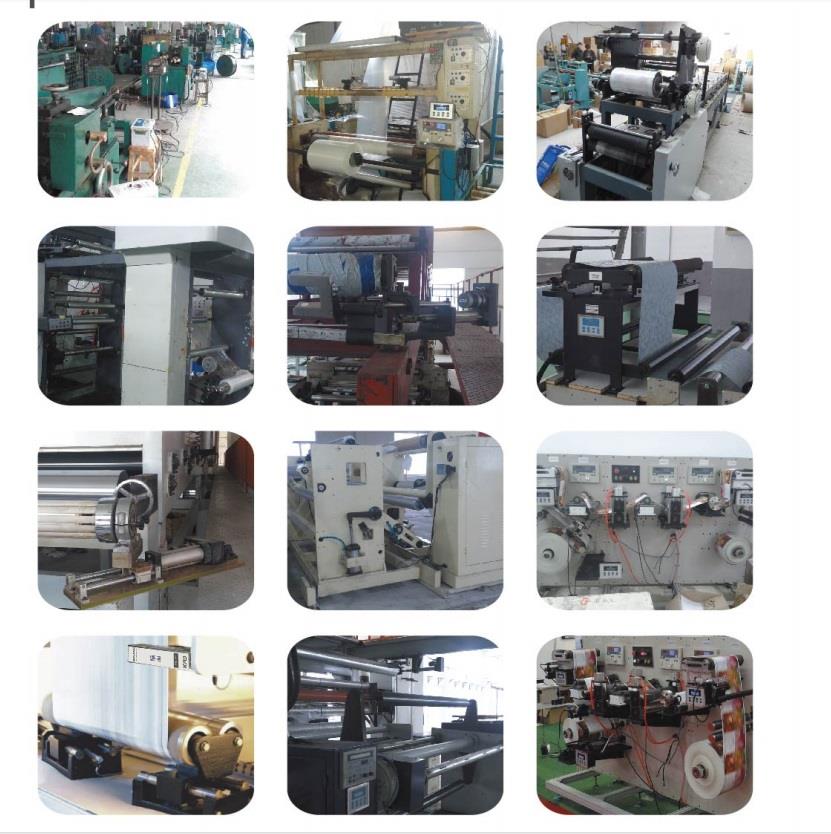

The main application areas are:

Tire rubber industry: forming machine, carcass ply pre-correction, sidewall pre-redirection, laminating drum common template rectification, inner liner pre-redirection, bi-directional stretching machine, film blowing machine, industrial belt laminating machine correction.

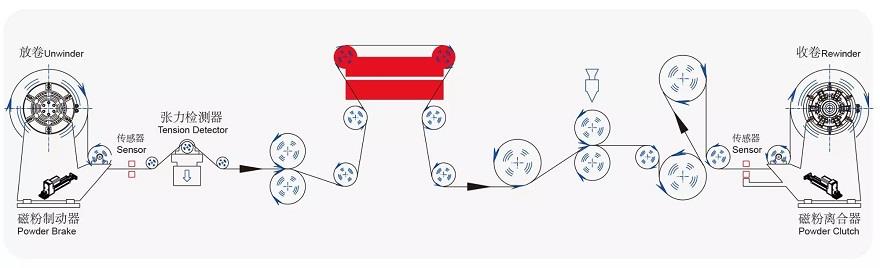

Packaging and printing paper industry: satellite rotary printing machine correction, concave plate printing machine correction, inspection machine correction, slitting and rewinding machine correction, coating machine correction, etc.

Battery industry: lithium battery coating machine, lithium battery slitting machine, lithium battery rolling machine, battery laminating machine
