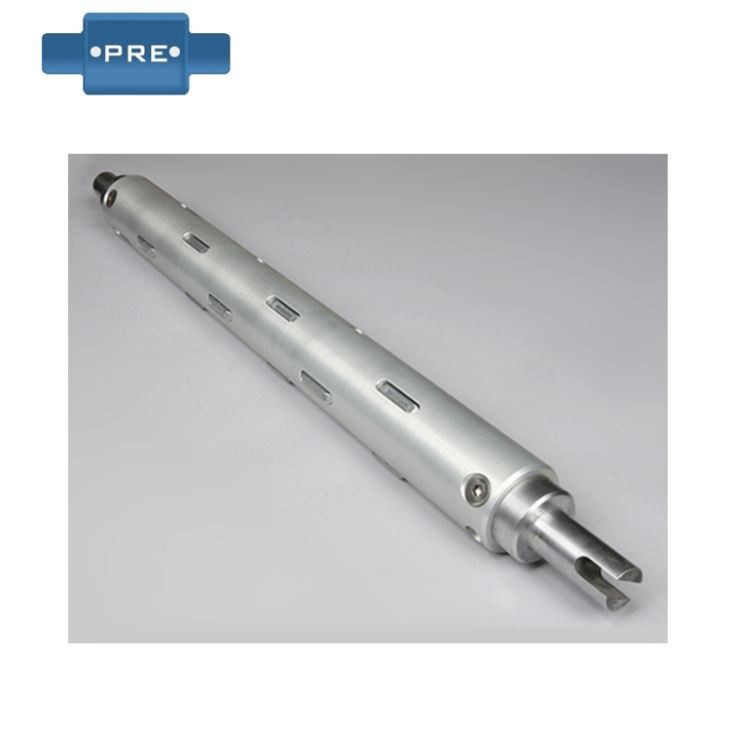

Air Shafts Uk

The use of the air-expansion shaft is versatile: the air-expansion shaft can be applied to any gadget that has a winding and unwinding.

Appropriate for printing device: drying machine, flexo printing device, gravure system, trademark printing system and so forth. suitable for other mechanical device: coating device, leather-based gadget, setting device, embossing machine, slitting gadget, die cutting machine, rewinding gadget, rewinding device, paper tube system, laminating machine, laminating gadget, using blown movie system, foaming machine, laminating system, embossing system, paper system, non-woven machine, material inspection device, bronzing device, battery equipment and other related equipment.

The indispensable steel body excavates a field-kind window at the constant end of the cantilever mandrel working side to ensure the structural rigidity of the printing platform. the bearing seat is installed on the internal of the movable metallic block, and the metal block is product of high-precision ball cord. the rod is driven, and the moving position of the screw is on the center line of the plate mandrel. linear guides are respectively installed on the higher and decrease ends of the field window to restoration the movable steel block, thereby ensuring the stableness of the printing platform in high-pace operation.

In this design, the fixing of the mandrel is absolutely automated, and the movement of the entire screw and the locking of the shaft stop eliminate the human thing. the shifting metal block is constant to the frame via  higher and lower linear guide rails, and because the screw rod movements at the middle line of the plate roller mandrel, the thrust of the center impact cylinder in opposition to the plate roller and the driving force alongside the path of the ball screw are both powerful. on the center of the plate mandrel, best a small partial stress is fashioned, and for the reason that pressure load acts most effective on the middle of the plate mandrel, there's no torque at the aid frame.

What are the unusual operating test strategies for the inflation shaft?

The purpose of the abnormal operation test is to improve machine reliability and keep away from undue injuries as plenty as viable. the atypical operation check may be executed as follows:

1. outside unexpected strength failure test. while the device is operated manually or routinely, regardless of below any occasions, the unexpected power-off of the external can be reliably stopped, and the device may be restored to everyday operation by means of the specified operation steps.

2. emergency breaking test. whilst the tool is going for walks manually or automatically, irrespective of what the situations, for emergency disconnection operation (inclusive of pressing the emergency stop button on the control panel), the device may be reliably stopped and the everyday operation can be resumed thru the required operation steps. .

3. hit upon transfer failure test. consideration need to receive to the possibility of device detection transfer failure, especially for additives which are susceptible to collision, interference, and protection of mechanical components, and strange checks ought to be executed on signals which includes cease-of-stroke detection. it need to be ensured that even though a sure detection transfer is defective or broken, it nevertheless does not. a protection incident will arise.

Four. carry out no residual bad checks. attention need to be given to the opportunity of system failure, in particular for actuators that are prone to mechanical collisions, interference, and safety. the abnormality take a look at have to be carried out, and it need to be ensured that even if a positive actuator is faulty or broken, it's going to no longer arise. protection incident.

5. safety circuit movement check. the opportunity of the safety circuit of the system should be considered. specially for protection gadgets inclusive of circuit breakers and automatic switches, it ought to be examined abnormally. it must be ensured that the tool may be reliably stopped whilst the protection device is operated, and the desired operation steps may be used. resume everyday paintings.

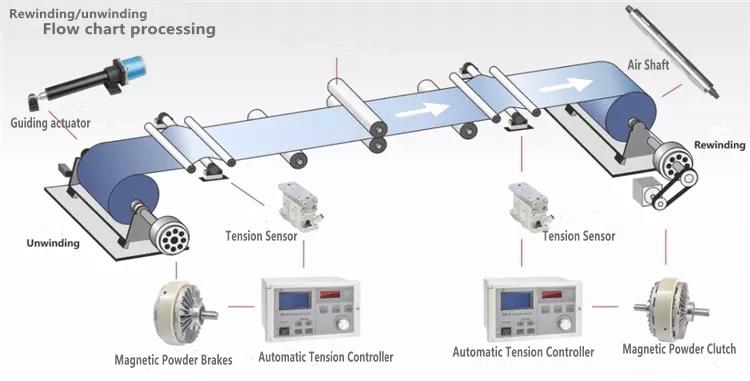

Application

Packing

Order Details
