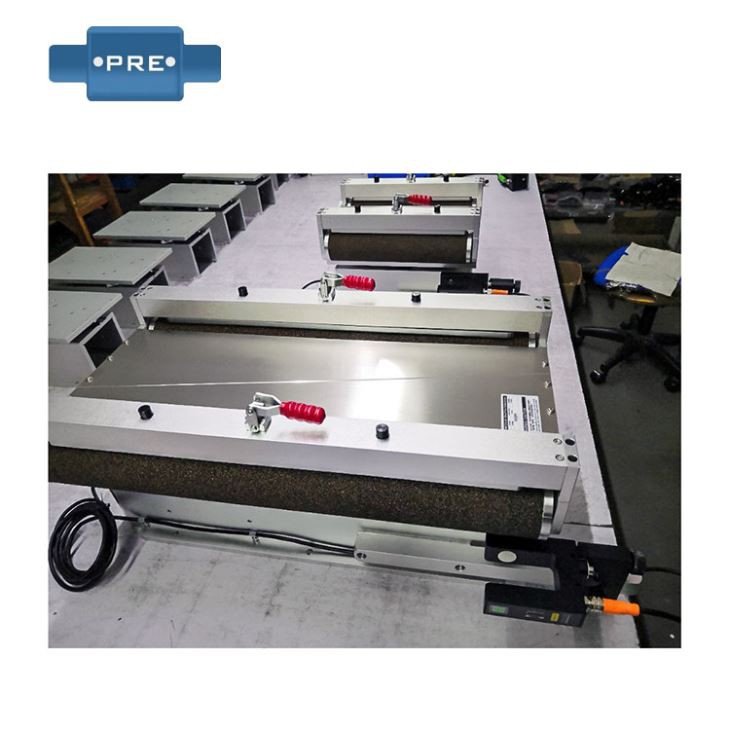

Auto Web Guiding Systems

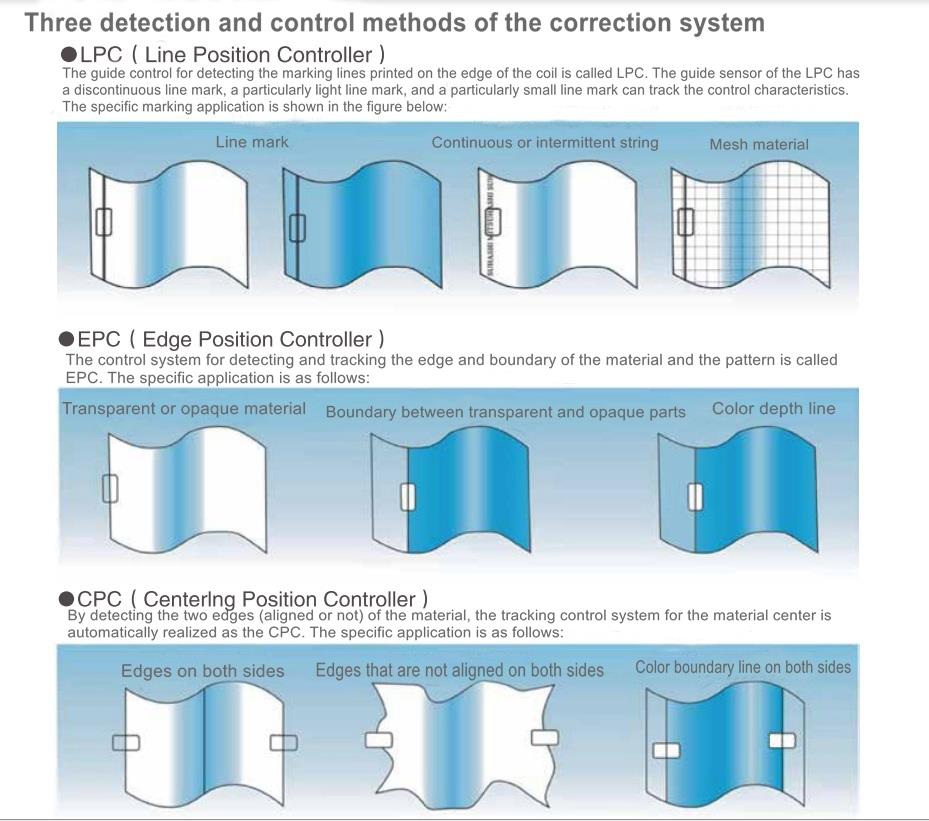

The photoelectric guiding device is an automatic photoelectric guiding control system for controlling the positional deviation of materials such as coils and cardboard during the conveying process. The products have functions of automatic detection, automatic tracking and automatic correcting. It can track and correct the marking lines or edges of cardboard, film, aluminum foil, strip and other materials to ensure the winding and slitting are neat.

Features:
1. The world's first corrective CPU adopts quad-core processor, and the working frequency can reach 1.2GHz.
2, 16-bit imported high-precision AD sampling chip, sampling time 1us, sensor signal is more stable
3, South Korea's Samsung industrial touch screen, graphical menu multi-language operation
4. The control is controlled by the new fuzzy PID algorithm in the United States. Any material automatically adapts to the optimal parameters.
5, fuzzy recognition balance-free adjustment system
6, imitating the human eye coil dynamic identification system
7, can be connected to single / dual ultrasonic sensors, photoelectric sensors, CCD sensors
8, using titanium alloy wire drawing shell, high strength, anti-corrosion, anti-interference is stronger
9, using electronic commutation, truly achieve maintenance-free, commute without spark safety.

product advantages:
1. Beautiful and compact appearance, high level of technology, strong anti-interference ability, strong corrosion resistance and easy installation.
2, modular design, high stability, no fragile components, no maintenance.
3. There is no operation knob on the operation interface. It is easy to operate with the touch of a button, which can prevent misoperation.
4, the system integration is high, the setting parameters are automatically saved, the three-loop fuzzy PID control, the control accuracy is 0.02mm.
5. Drive current overload protection.

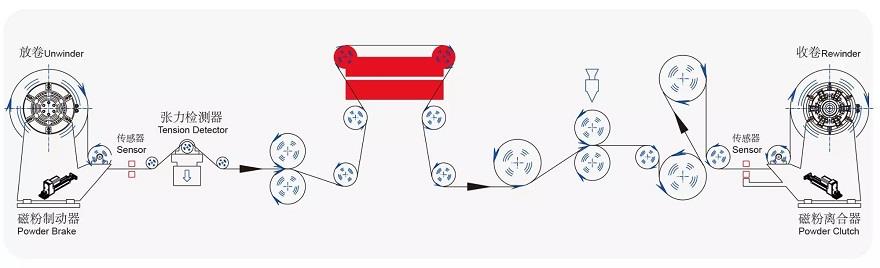

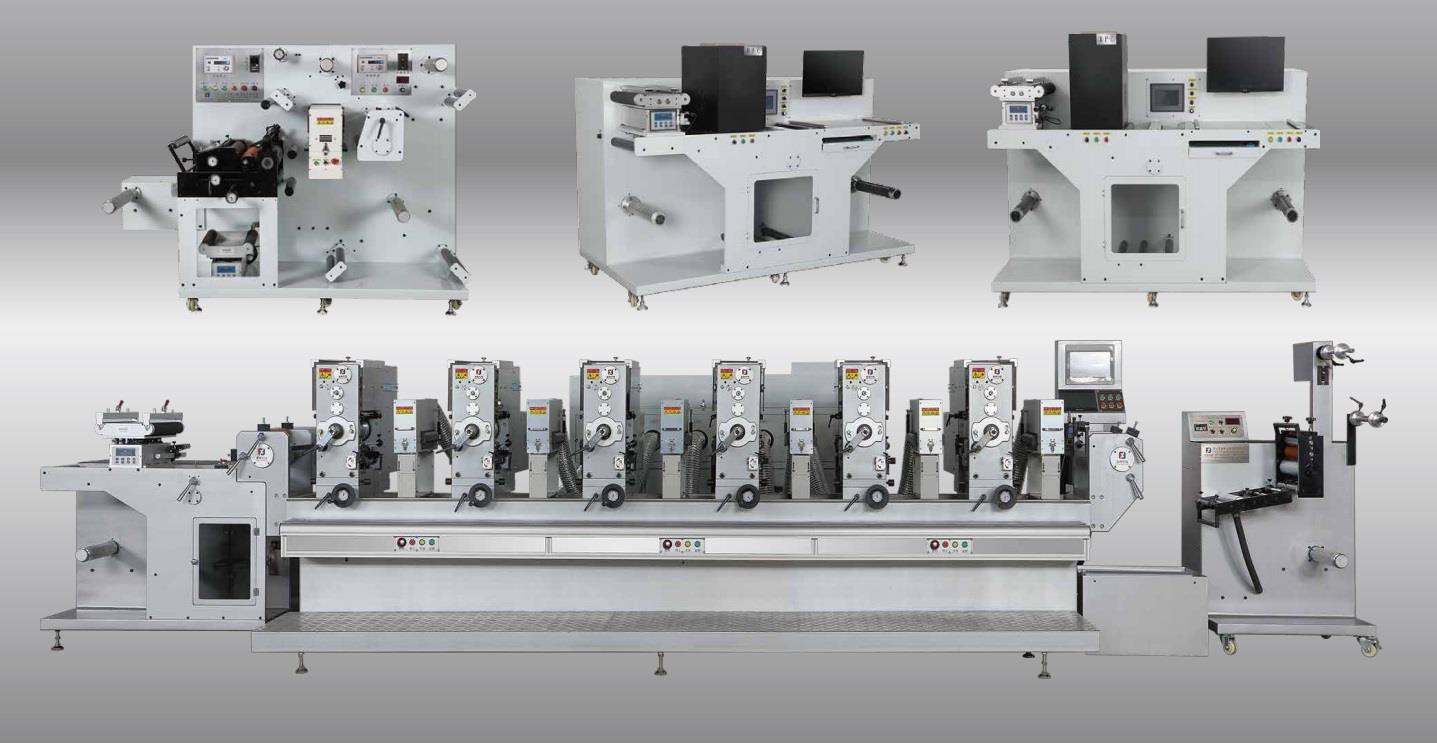

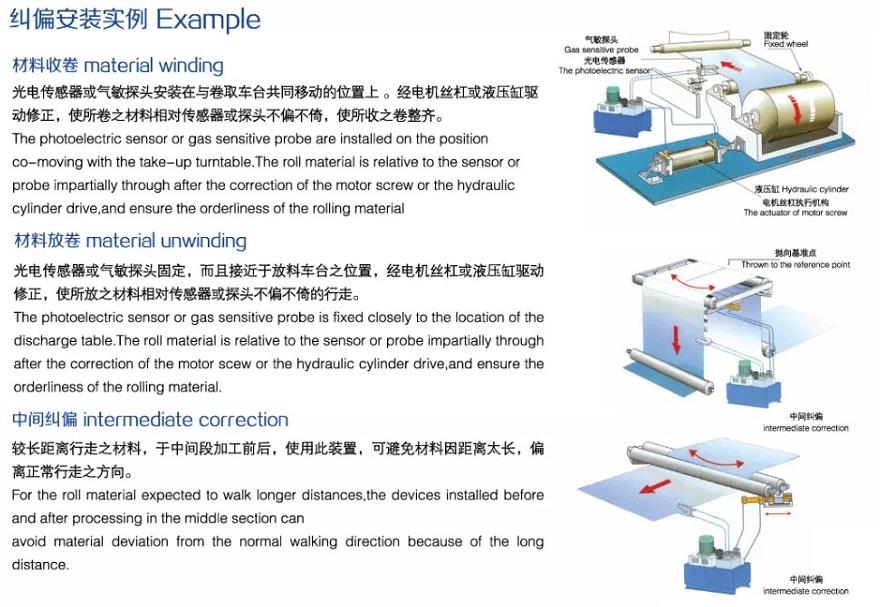

Application

Packing

Order Details
