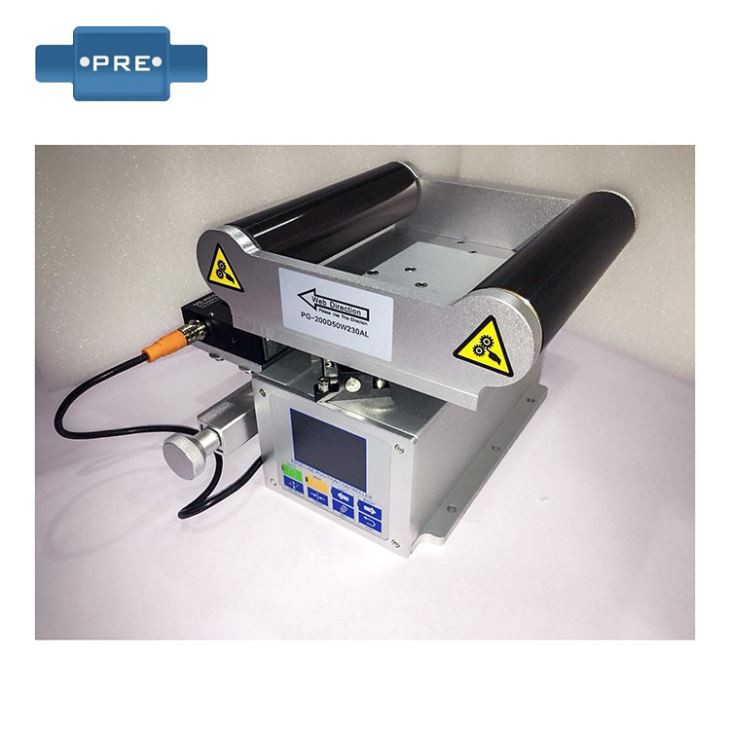

Edge Guide Control Systems

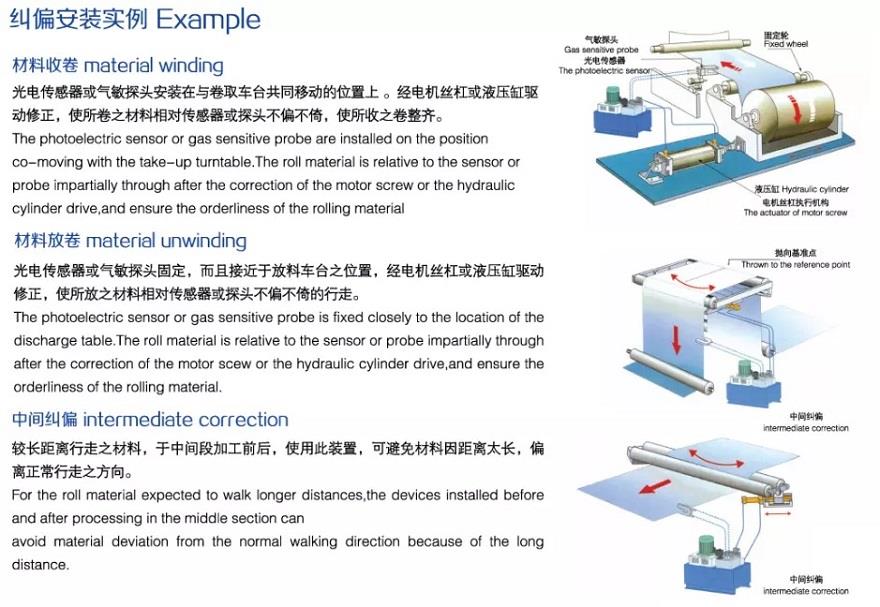

The EPC servo automatic photoelectric guide control system is composed of a guide controller, a guide driver, and a sensor. The position of the edge or line is detected by the photoelectric sensor to pick up the edge or line position deviation signal, and then the position deviation signal is transmitted to the photoelectric guide controller for logic operation, and a control signal is sent to the mechanical actuator to drive the mechanical actuator to correct the material operation. The serpentine deviation of the time ensures the linear motion of the material. The main purposes are the rectification of the coil and the opposite side, to prevent the deviation of the coil in the process of processing, such as deviation, walking, etc., to ensure that the coil is accurately and smoothly carried out throughout the processing, as well as winding and slitting neatly. .

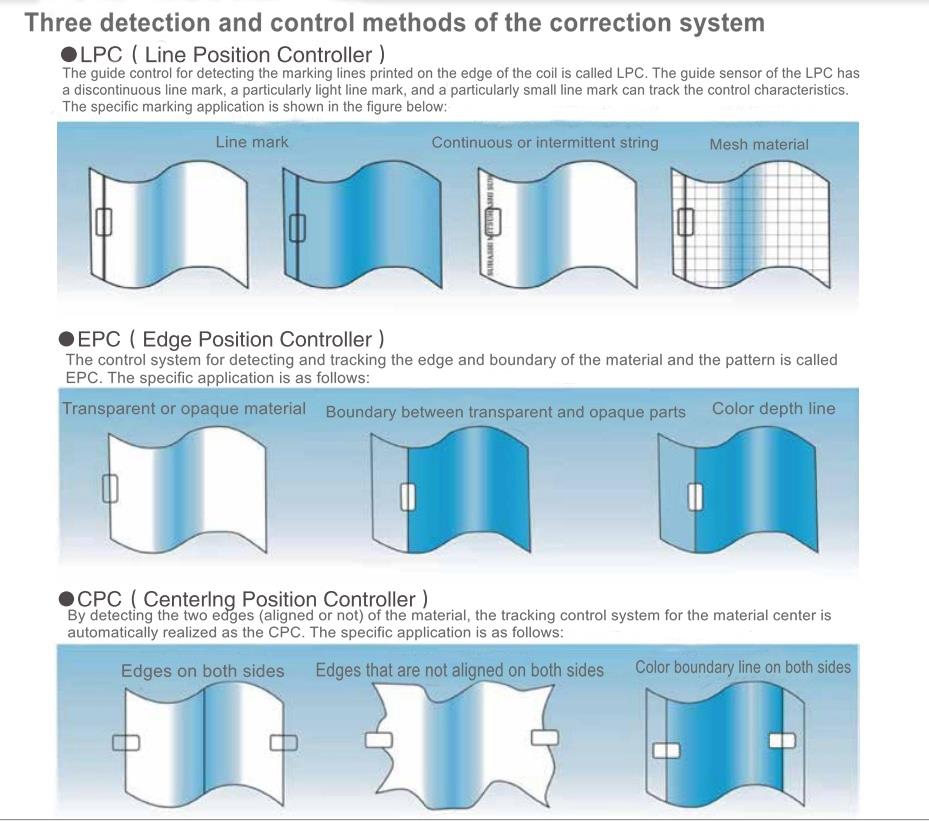

The EPC servo automatic photoelectric guide control system can correct the deviation of coils such as web film, non-woven fabric and woven fabric. It can correct the deviation of various coil materials such as web film, metal foil, non-woven fabric and woven fabric. The controller can select the heel and follow-up methods according to the different materials, and freely select single/double electric eye detection to meet the needs of various materials.

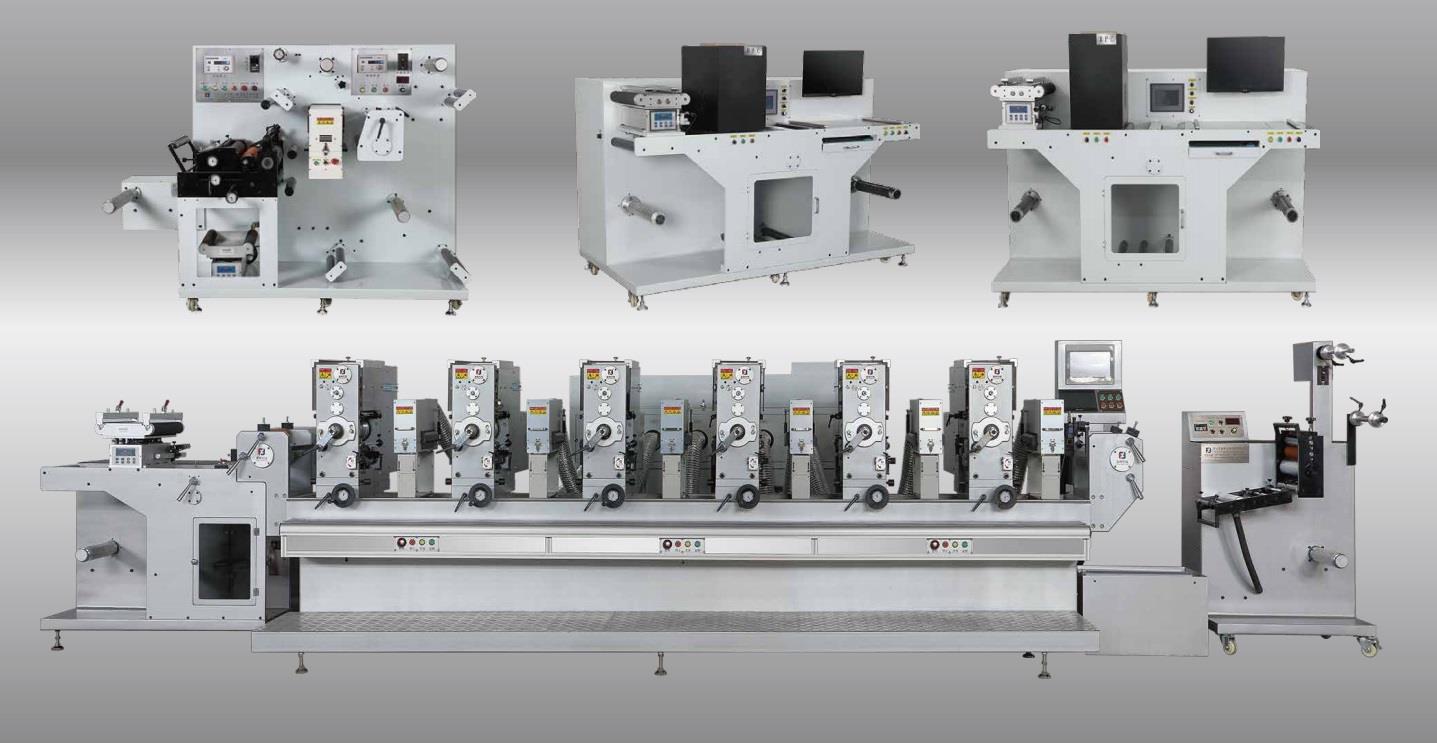

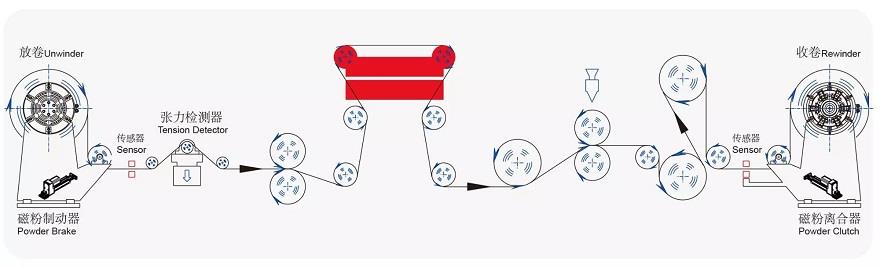

Application

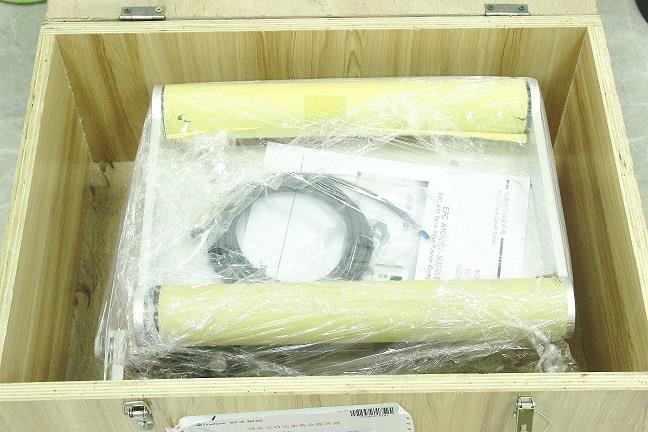

Packing

Order Details
