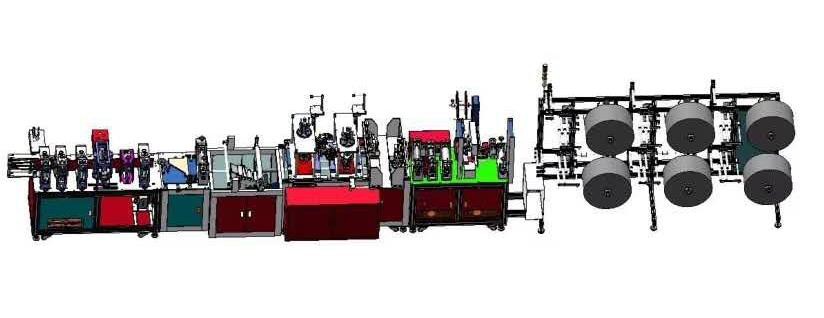

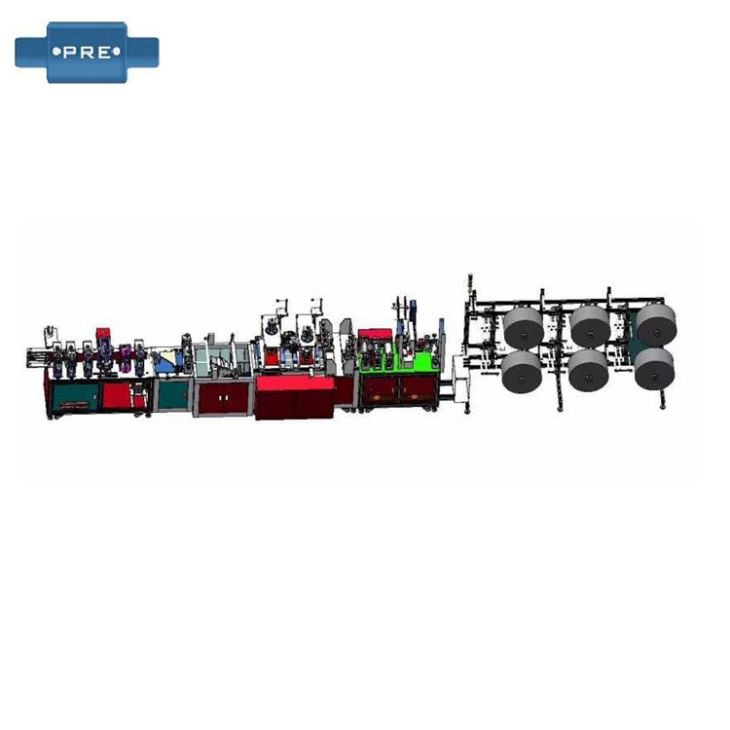

Fully Automatic Numerical Control N95 Mask Machine

Function introduction:
This equipment is a fully automatic CNC production line for medical N95, including:
1, six-layer material rack, labeling and cutting in the front section, ultrasonic welding in the middle section, folding output molding.
2. The machine is formed at one time, the production efficiency and production capacity are 3-5 times higher than that of stamping, and the spinning type is 60 to 80 pieces per minute, and the speed is automatically adjustable.
3, labor saving, only one person can operate, traditional semi-automatic N95 mask production needs: one person, two ultrasonic welding machines, two ear band machines, one folding machine, a total of six people. Can save 5 labors.
4, with no material shutdown alarm.
5, 3 levels of security protection, abnormal recovery automatically.
6, simple operation, technical operators have no special skills requirements, easy to get on the job, is the best choice of equipment for current medical mask manufacturers.

Technical Parameters: (we can produce according to customer requirements)

Equipment color: substrate: off-white, door: Chinese red;
Equipment size: 9700x900x2120mm;
Equipment weight: 2385kg;
Equipment voltage: 220V / 50Hz;
Equipment power: 3.75KW;
Air compressor: V0.17-8, 1.5KW (working pressure: 0.5-0.7MPa);
Use environment: 0-35 ℃
Capacity: 60-80Pcs / Min
Control, photoelectric detection, high reliability and low failure rate.

Packaging

Order Details
