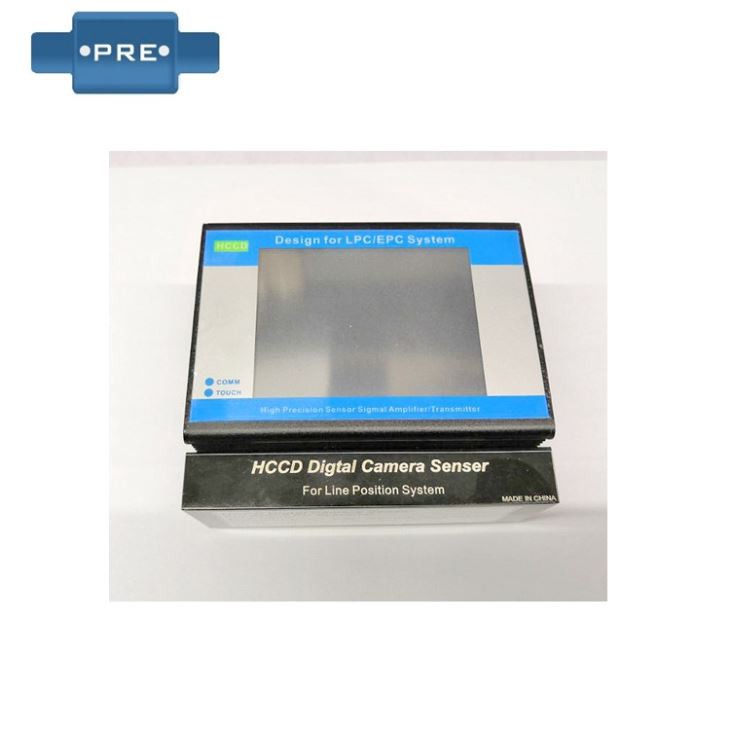

CCD Line Position Guide System

The CCD uses the CCD vision sensor technology to directly analyze the pattern in the coil, extract the lines and edges in the image and automatically track it, and easily complete the chasing and chasing applications. The intelligent one-button calibration function is very simple to use. Just align the image and press the AUTO TUNING button to complete the setting. It is the sensor of the EPC, LPC system.

Features

1. High precision

a. Accuracy: 0.02mm

b. The finest trace: 0.2mm

c. Detection range: 20mm

2. High speed

Reaction time: 2ms

3. High stability

Full metal housing, high-speed digital communication to ensure freedom from outside interference

4. Powerful performance

Can chase and chase

It consists of digital rectification controller, CCD rectification sensor and stepper motor actuator. The CCD sensor is a new image rectification sensor developed and produced by our company. It uses line CCD device to collect material image, run high speed device to analyze image and output displacement signal. At the same time, it supports both switching and analog output, which can track the edge of the image and track the surface of the material with a resolution of 0.012mm.

l The controller adopts all-digital device design, which is resistant to static electricity on site, strong electromagnetic interference capability and stable operation;
l The controller supports switching signal and analog signal conversion, and adapts to a wide range according to the accuracy requirements of different materials;
l The maximum output power of the controller reaches 70W, which can directly drive motors above 70W, and has good heat dissipation performance, which is suitable for long-term working environment requirements;
