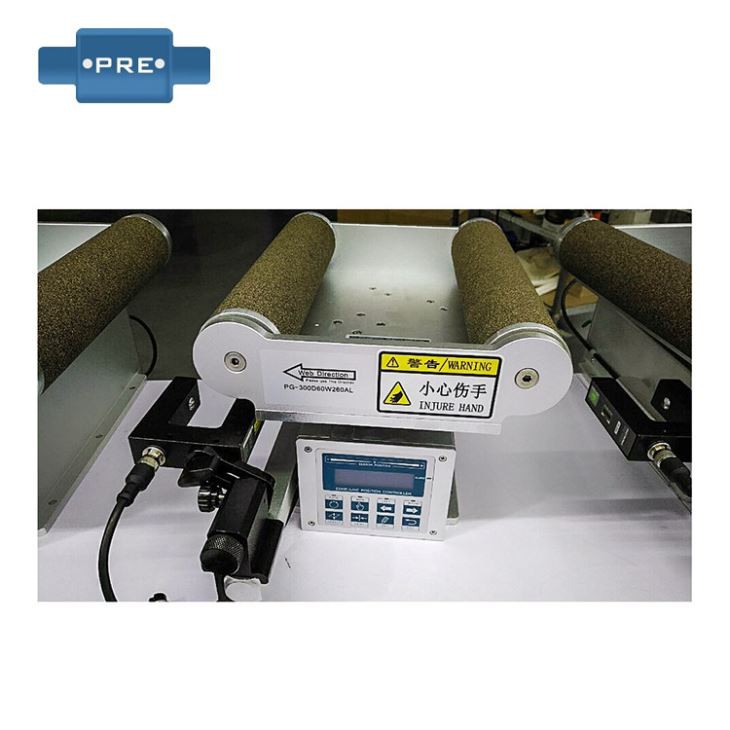

Integrated Web Guide Control System

Integrated web guide control system featured features:
1) One-piece design: tightly sealed, compact.
2) Powerful performance: perfect function and high precision.
3) Convenient operation: user-friendly interface design, LCD digital display.
4) Beautiful appearance: aluminum alloy finishing, surface sandblasting oxidation.
5) Flexible installation: can be integrated, separated and installed, can be installed at any angle.

web guide control system refers to the extensive use of the technical operation of the coil produced by the manufacturer during the spraying, printing, die cutting, laminating, slitting or other coil winding process, which always keeps the side of the coil neat and consistent. Bringing great benefits to the industry, correction control has led to the emergence of steel, corrugated, textile, printing, labeling, labeling, paper, plastic film, building materials, cables, rubber, tires, non-woven corrugated paper processing industries. Automated control.

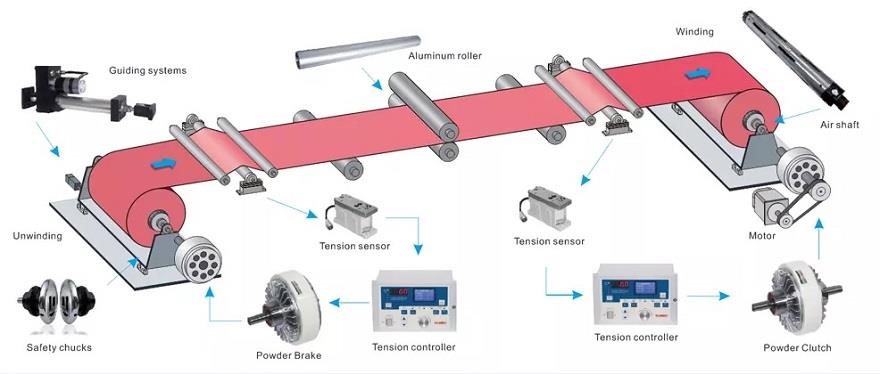

web guiding system principle:
The operation of the infrared light/ultrasonic/laser/visible light monitoring coil is emitted by the correcting sensor B, and the signal is sent to the controller A. After the controller finds that the coil has a positional drift, the controller D controls the swing of the web guide frame C to correct the position of the coil according to a command preset by the controller. The automatic material rectification system uses a photoelectric sensor to detect the edge position of the coil, and sends the measured position error signal to the controller. After the control unit judges the process, the drive motor is controlled to correct the coil at the deviation position to the correct position. .
The guiding system provides several different detection methods: edge detection, follow-up or alignment.
The drive system uses low-speed synchronization, variable frequency speed regulation, stepping and servo motor drive, and the drive stroke and the coil offset are strictly proportional. The system can also be used with different probes to suit the needs of different coils, such as: infrared photoelectric, analog infrared photoelectric. The microcomputer digital controller provides precise control of the system's functions.

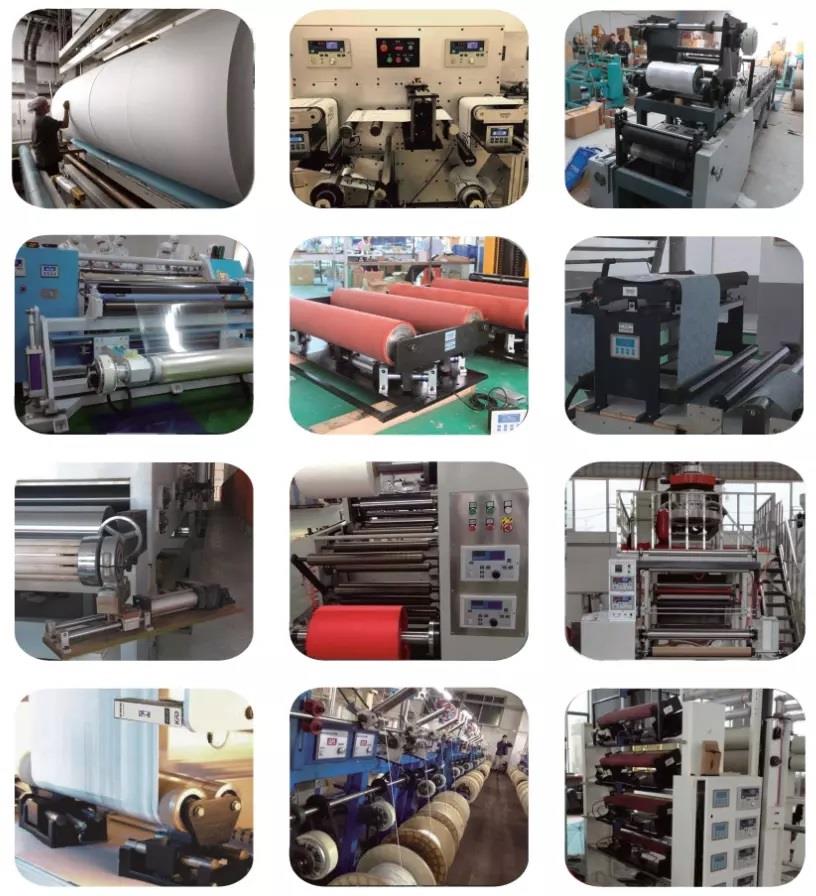

Application:
