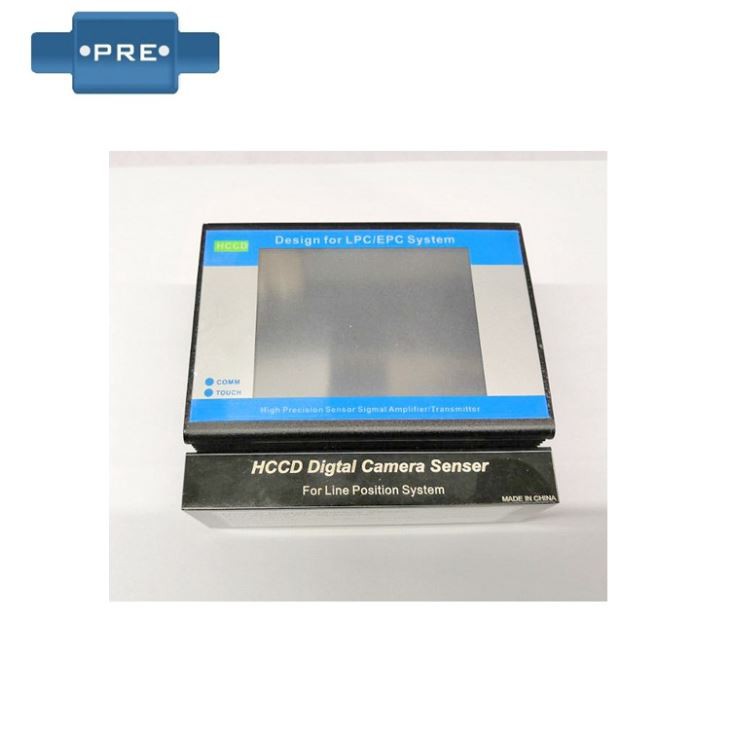

Line Sensors

summary(HCCD sensor match with EPC-A12):
● HCCD color linear image sensor can meet the detection requirements of more coils.
● It can be used to detect the edges of different materials, print pattern boundaries and line marks.
● Combined with controller, driver, etc., for snake correction of lateral deflection of the coil.

Features:
● The tracking line/edge will not be affected by the pattern, text, etc. on the side.
● Teaching operation can be carried out through the touch panel of the control panel, which is very convenient.
● The snake correction status can be displayed on the touch screen, which is straightforward.
● The configured operation panel can switch remote operations such as various modes (AUTO, MAN, CENT), jog and gain adjustment.

Features

1. High precision

a. Accuracy: 0.02mm

b. The finest trace: 0.2mm

c. Detection range: 20mm

2. High speed

Reaction time: 2ms

3. High stability

Full metal housing, high-speed digital communication to ensure freedom from outside interference

4. Powerful performance

Can chase and chase

Application

Order Details
