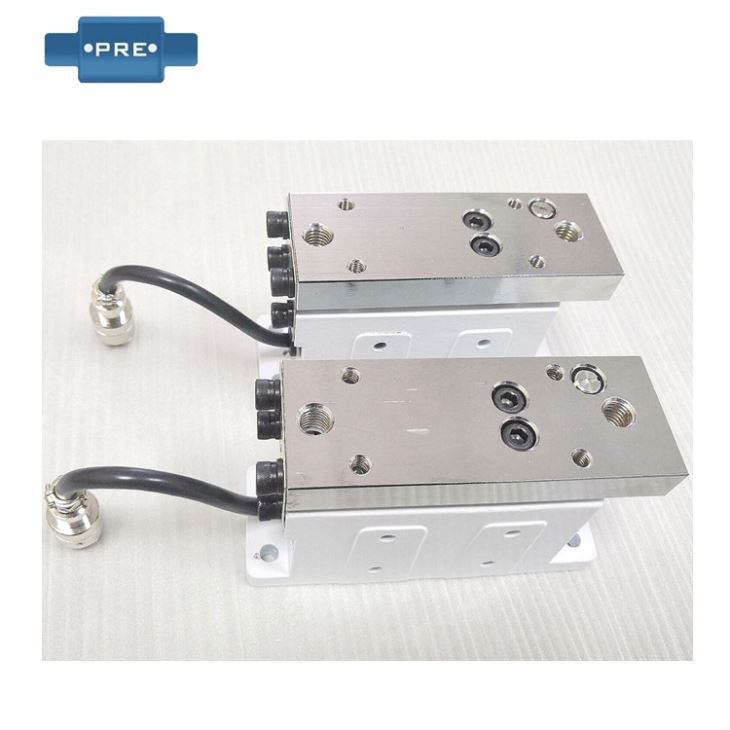

The tension sensor is an instrument used to measure the tension value of the coil during tension control.
1, use
The sensor is a special sensor for tension test, and the constant tension automatic controller, the magnetic powder brake and the magnetic powder clutch form a tension control system to realize tension control. It is widely used in control systems such as six-color gravure printing machine, slitting machine and dry double machine.

2, working principle and structural characteristics
The sensor adopts the resistance strain measurement principle, and the S beam structure is used to ensure the test accuracy requirement and the lateral swing resistance is enhanced.

Mounting of Tension Sensors:

4, Using
1) Install the sensor in one piece with the shoulder, the housing rubber roller, etc. according to the installation requirements. The center of the shoulder should correspond to the center point of the upper plate. When mounting the bearing on the upper plate of the sensor, be careful not to exceed the thickness of the upper plate after the screw is tightened (13)
2) Electrical connection socket according to 1 power + 4 power ground 2 signal + 3 signal ground or red, blue, yellow, green.
3) When installing, be careful not to drop hard objects such as pins into the nip between the indenter and the upper cover to avoid affecting the performance.
4) After adjusting the connection parts of the sensor, the parameters have been strictly tested, and it is not allowed to disassemble and install the original installation state.
