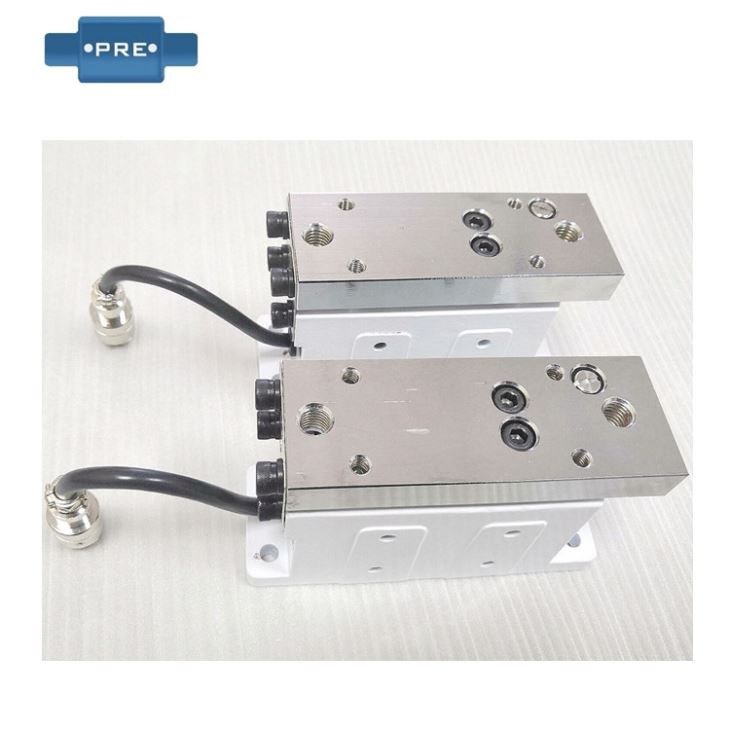

Load Cell Force Sensor

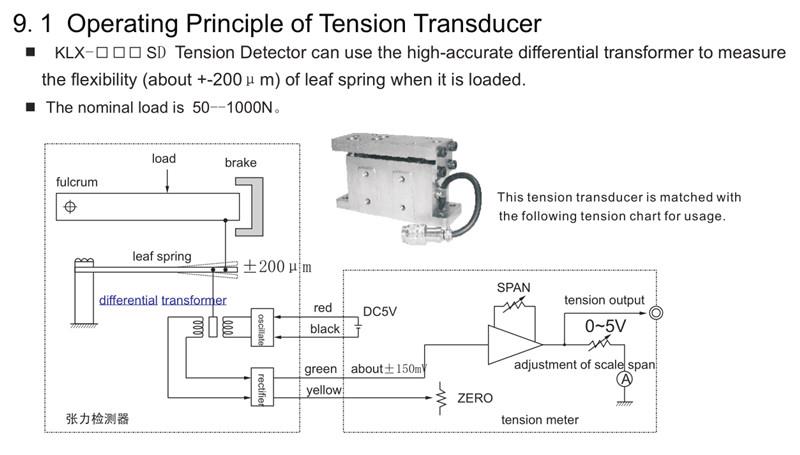

The tension sensor LX series detects the bending degree of the leaf spring when the load is applied by a high-precision detector, thereby detecting the tension, and has the characteristics of low temperature drift, high stability, and good linearity.

Technical Parameters:
The non-contact principle of the differential transformer is adopted, and the pillow-type installation method has the characteristics of small volume, saving installation space, high measurement precision, small temperature drift, high strength of the whole machine, good stability, convenient installation and long service life

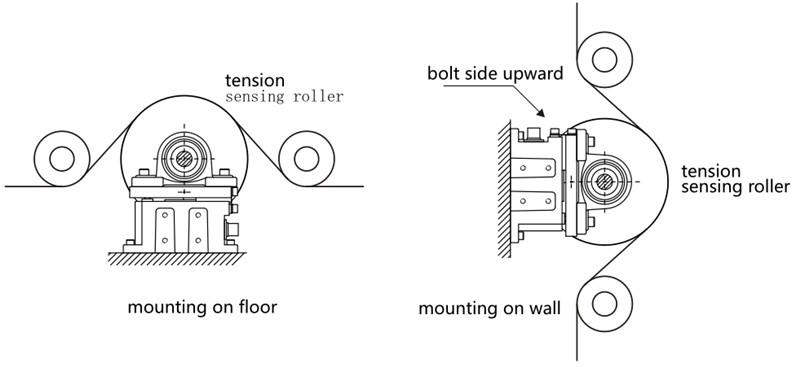

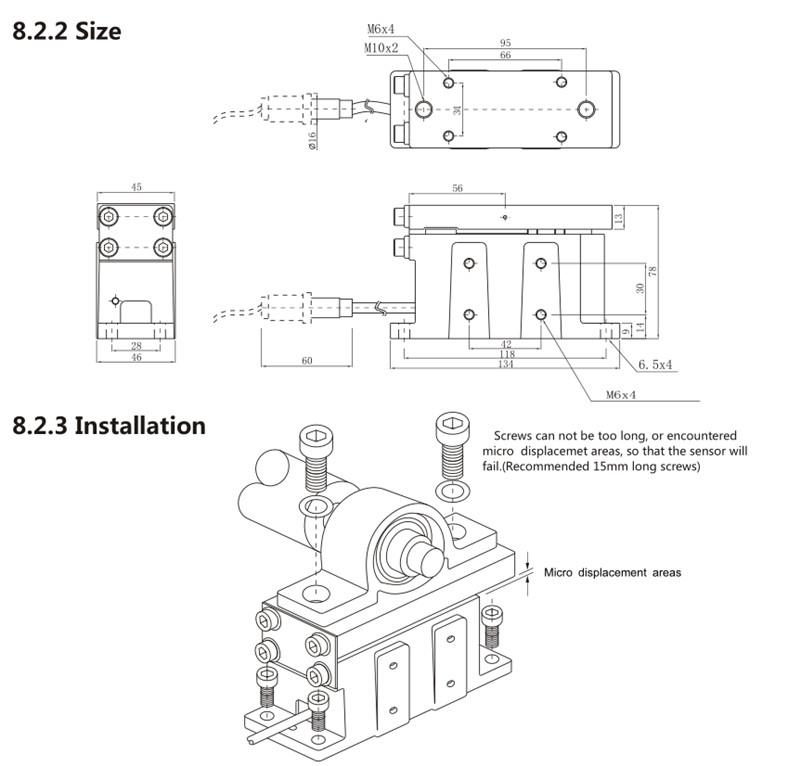

Mounting of Tension Sensors:

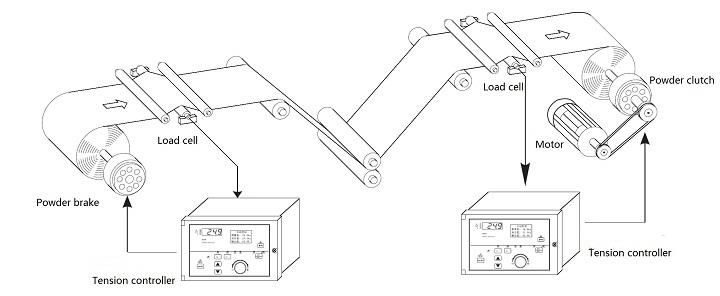

Application

Order Details
