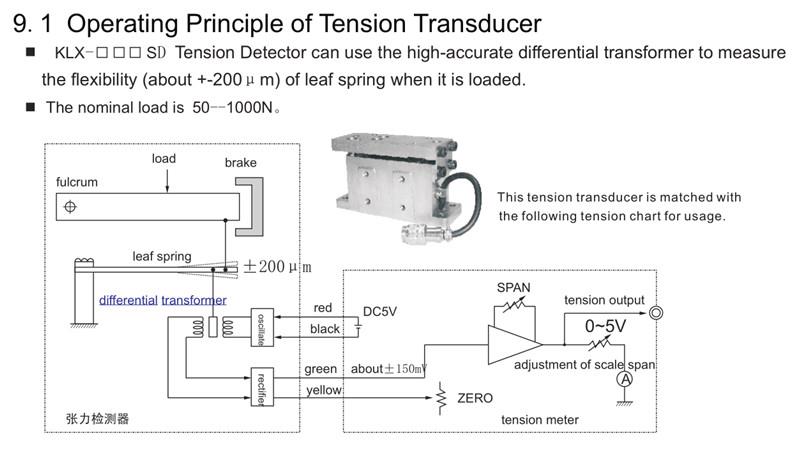

Tension Detector, Tension load cell,  tension transducer  LX Series measures the flexibility of leaf spring which is loaded through high-accurate detector. The tension it measures has the features of low temperature excursion, high stability and linearity..

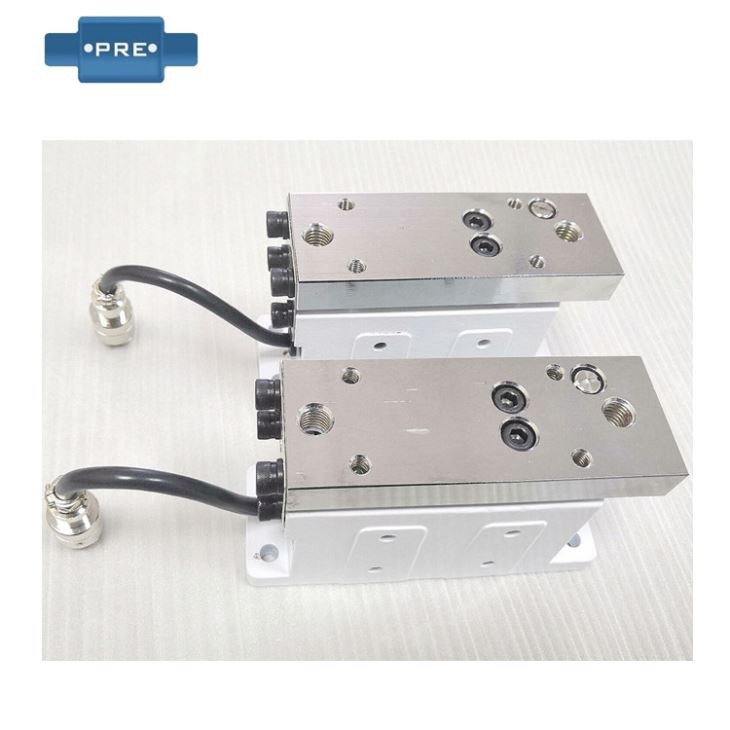

Foot Mounted Tension Sensor

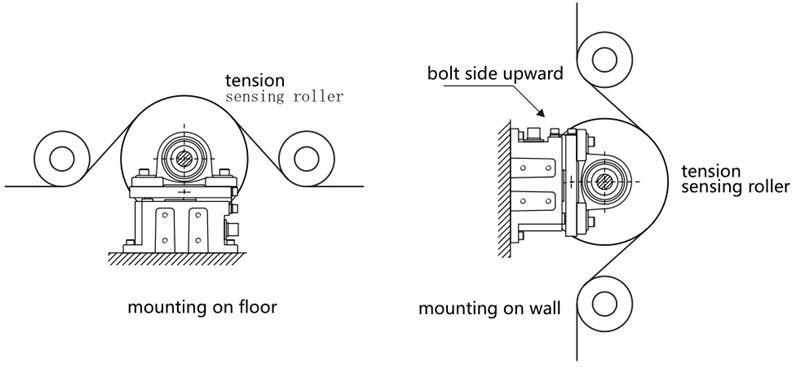

Mounting of Tension Sensors:

Attention to using tension sensors.

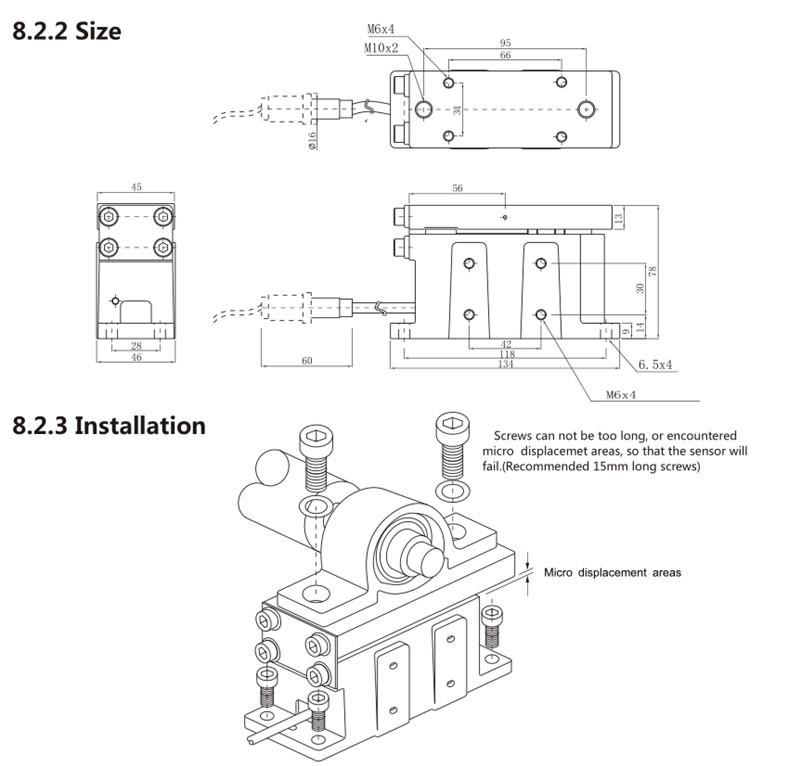

At the same time as the bearing seat is hooked up at the sensor, the solving screws a and b want to not be too prolonged to be related to the lowest, just so the displacement can't be deformed when the strain is performed, and the sensor is disabled. please use the spherical not unusual bearing housing to keep away from the mutual influence of the left and proper tension sensors and have an effect at the calibration.

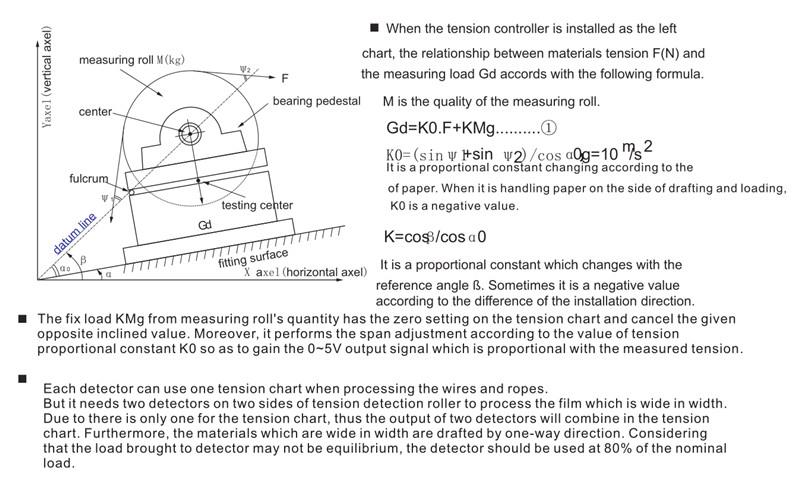

The wrap mindset of the movie thru the sensor rail axis should not be too massive, and its wrap mindset ought to no longer be extra than one hundred twenty levels, and the excellent is 60 levels. if the wrap attitude is without a doubt too big, 01 and 02 are too small. at this second, the tension sensor can be changed thru a course tool.
Wall-mounted tool, the screw give up of the tension sensor desires to get up, for the identical reason.
If the movie passes underneath the shaft, that is, the load formed by way of the use of manner of the film anxiety isn't always the stress anxiety sensor, but the outward anxiety sensor, the signal output line of the anxiety sensor is set up to the terminal block of the manipulator, and the nice and horrible indicators are to be done. line ac connection.
The tension sensor is precisely prohibited from being subjected to extreme impact or oscillation collectively with hitting or falling, in any other case the anxiety sensor may be broken.

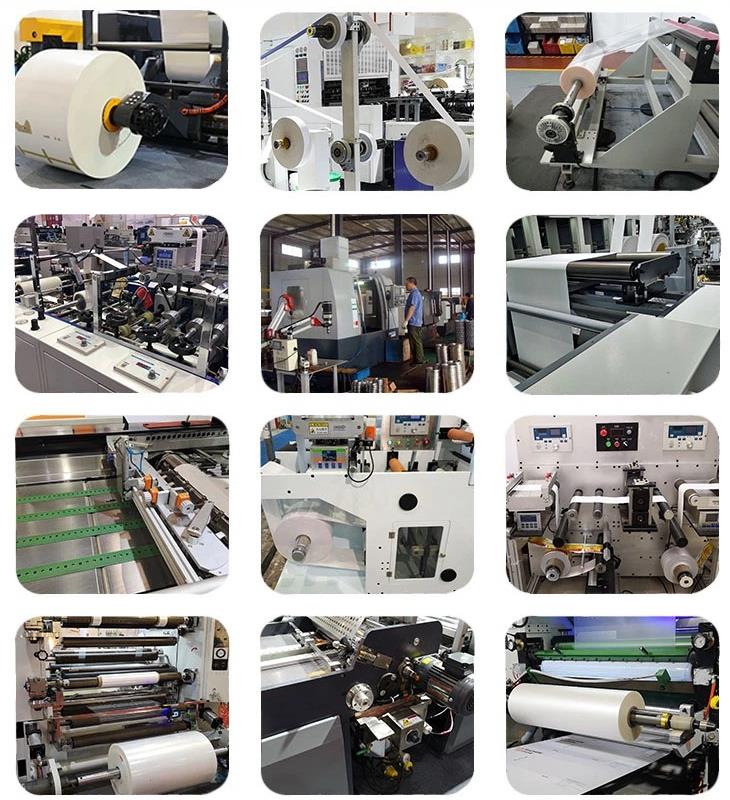

Application

*Textile machinery: fiber twisters, treatment machines, weaving machines

* Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
*Machine tool systems: lathes,
* Millers, steel extruders, CNC lathes, specialized machinery

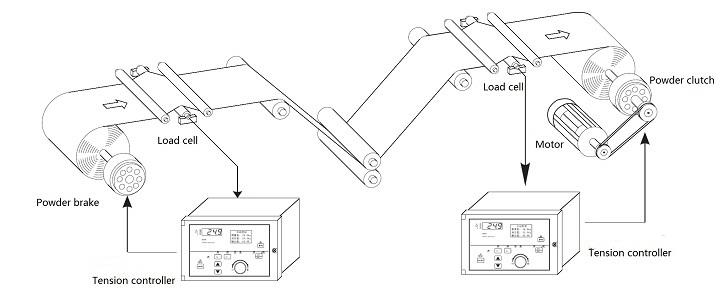

* Transportation equipment: hoists, feeders, conveyors, rollers, winders
* Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines

Order Details
