The LC series wear a shaft series tension detector is made to be used with the KTC-838A automatic tension controller,Cooperate with the idler stick or live round stick to install the application.

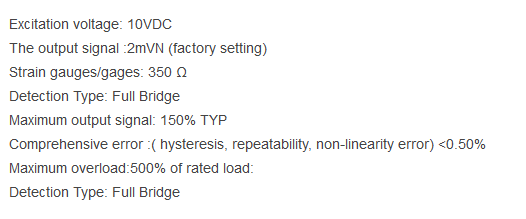

This detector uses  Full-bridge strain gages detect the size of tension, Applied to different web tension measurement.

It can be installed directly on the machine floor stand or fixed installation use, easy to wear shaft installation, small footprint.

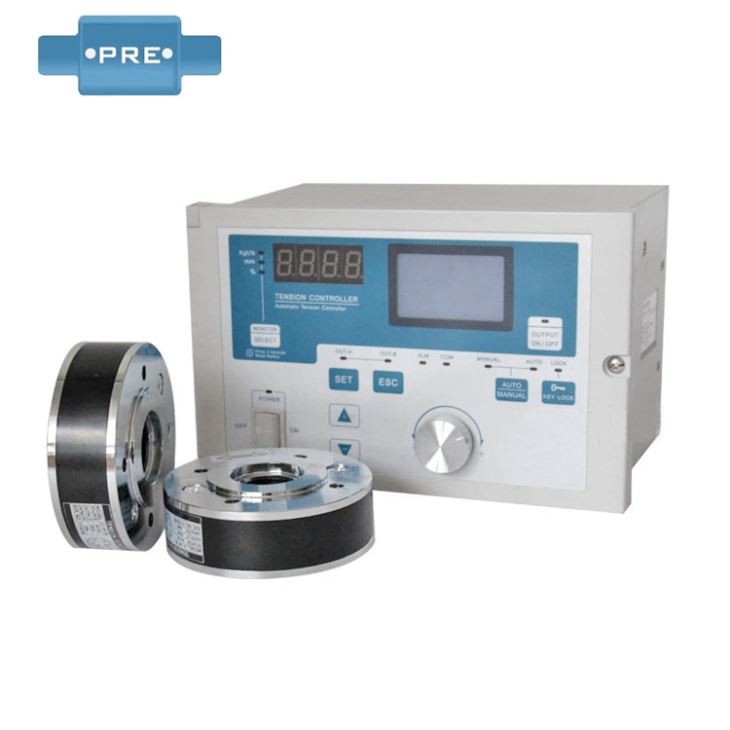

LC Series Through-Hole Tension Detector

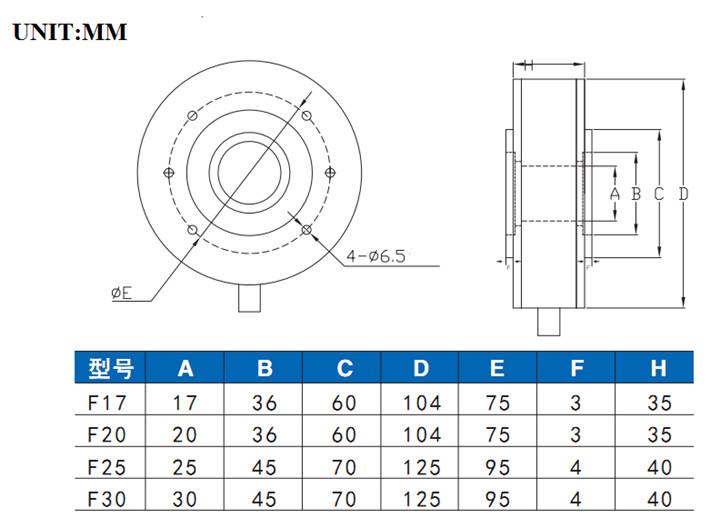

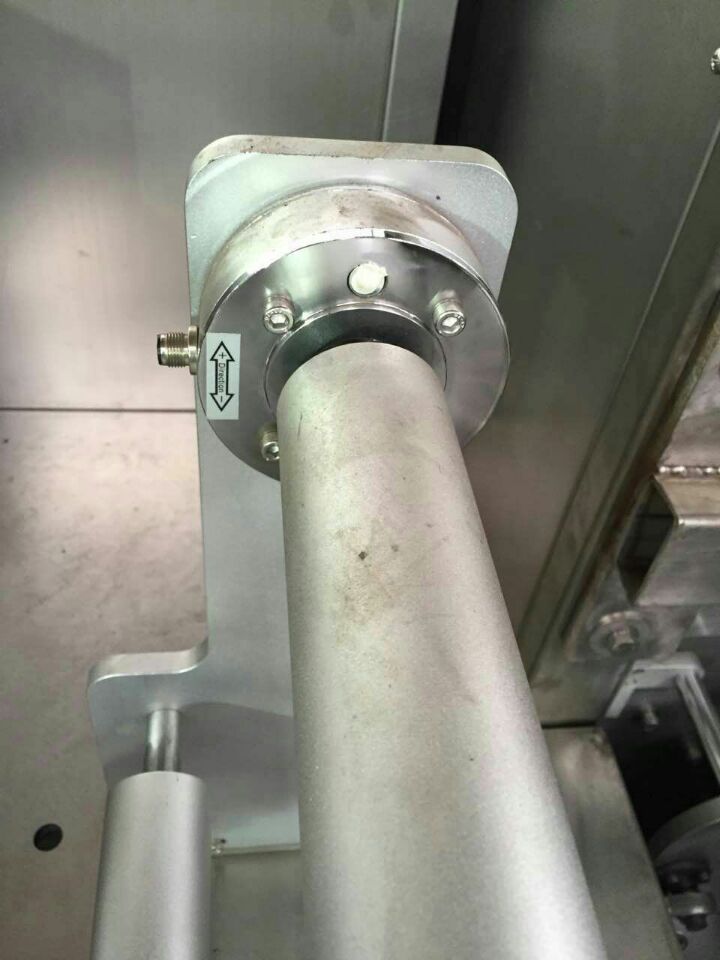

Installation:

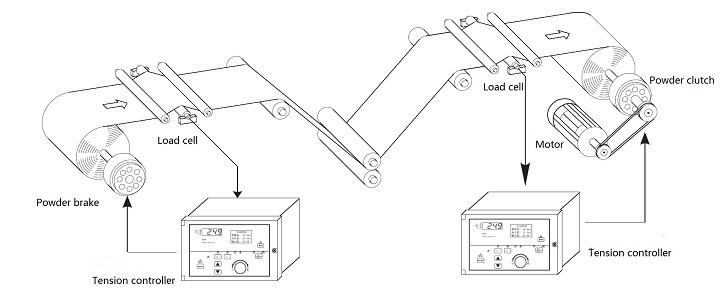

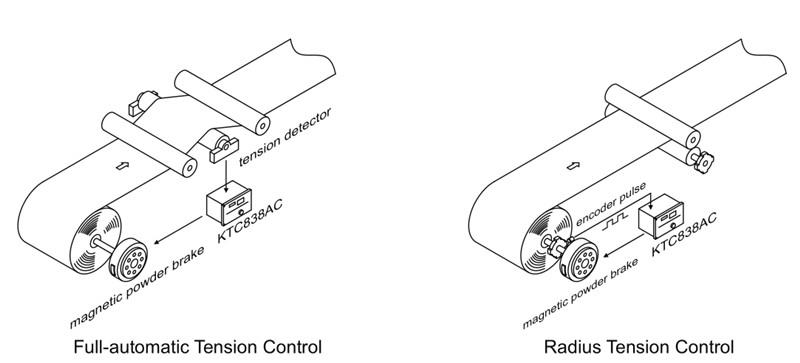

Tension Sensor (detector) usually is matching with automatic tension controller to control tension of the winding and unwinding in roll material processing industry.

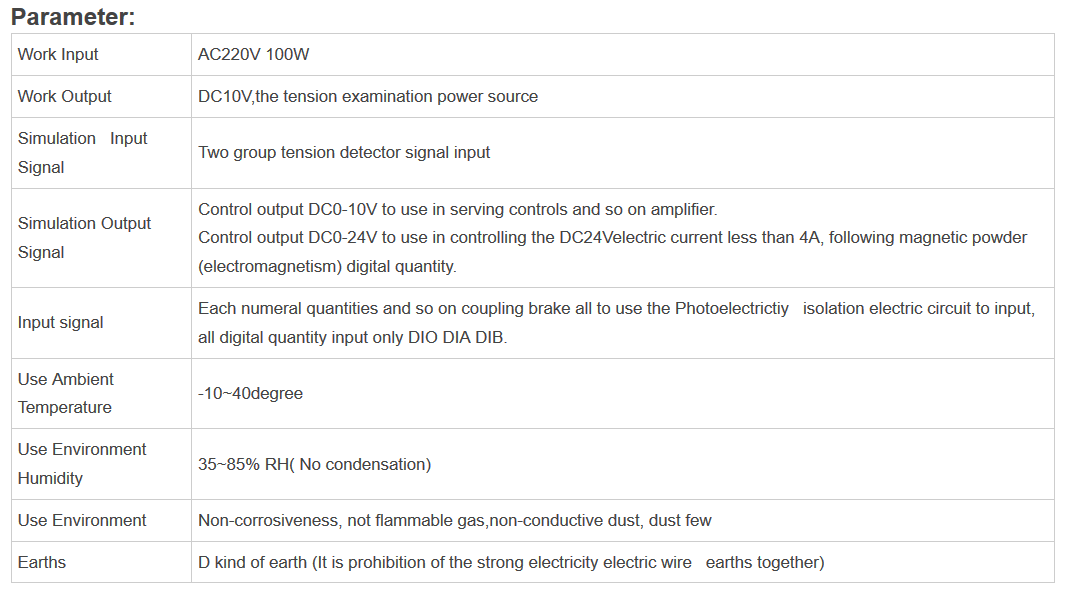

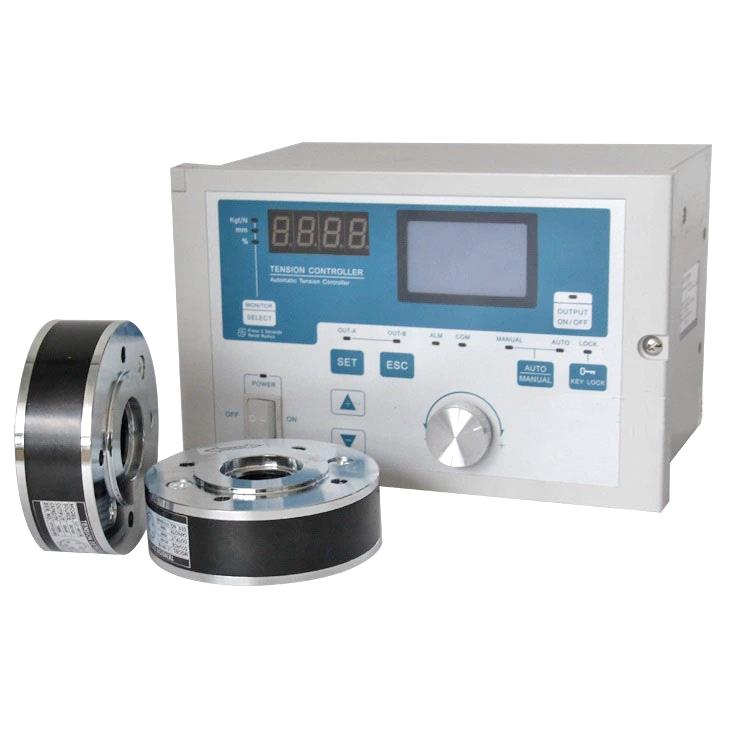

Automatic Tension Controller with Taper and Communication Function

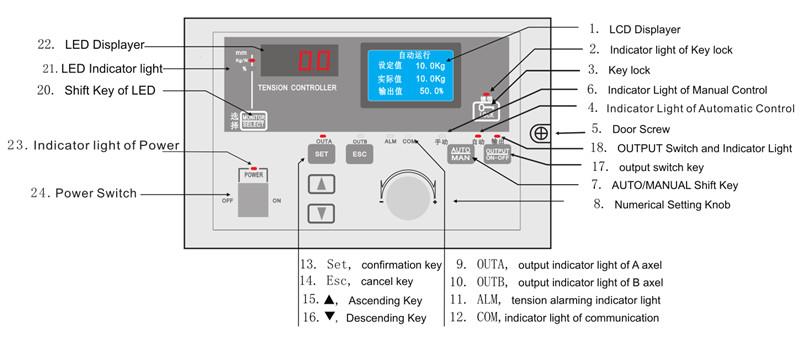

Operating Panel:

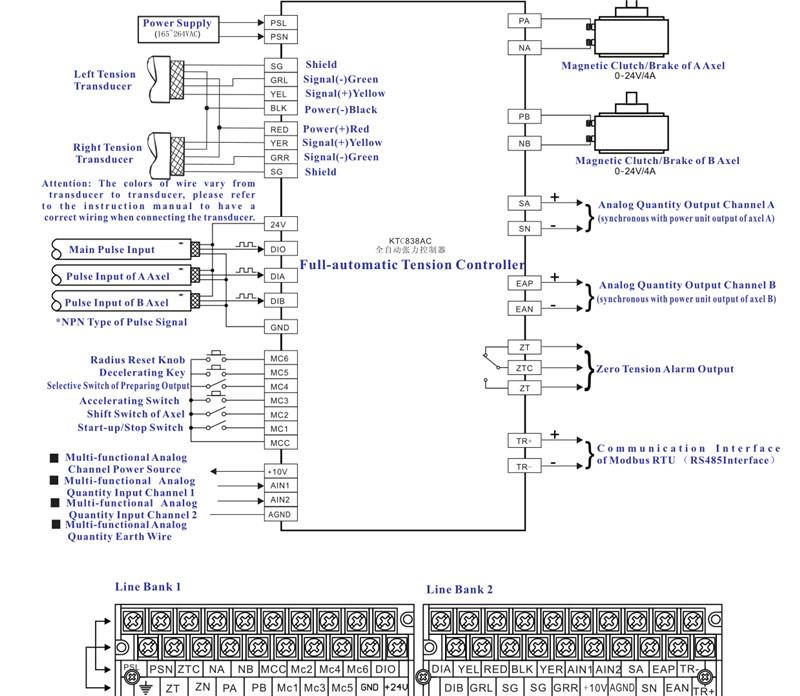

Wiring Diagram:

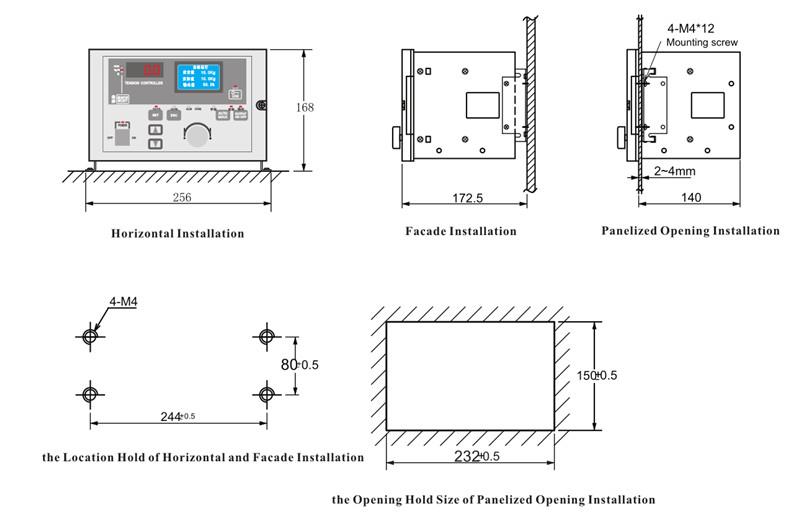

Installation:

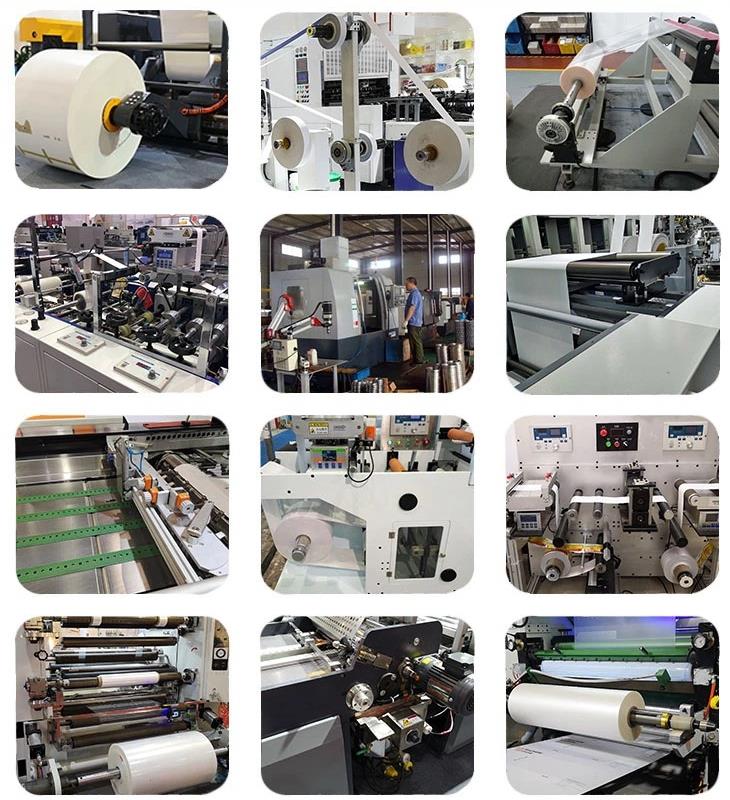

Application

Order Details
