Paper Roll Slitting And Rewinding Machine

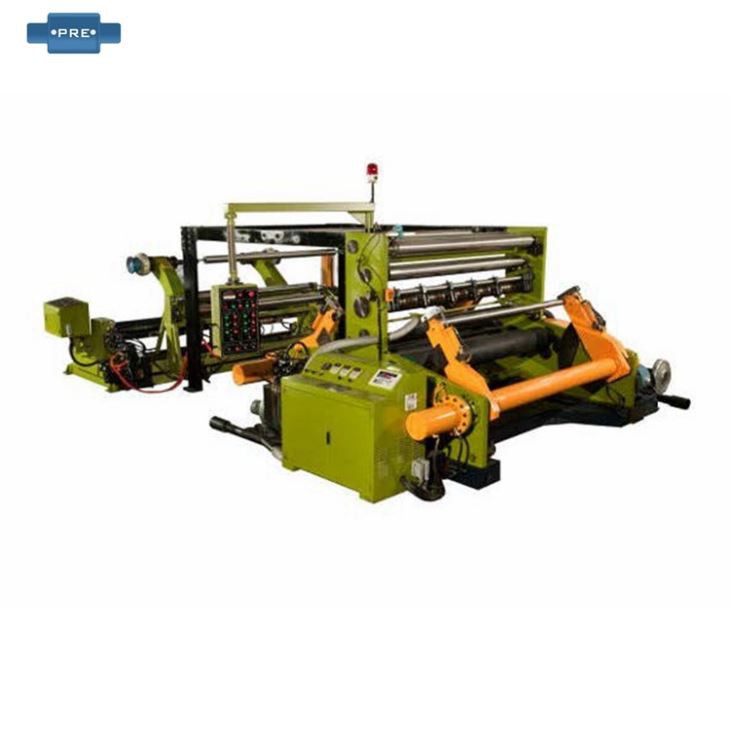

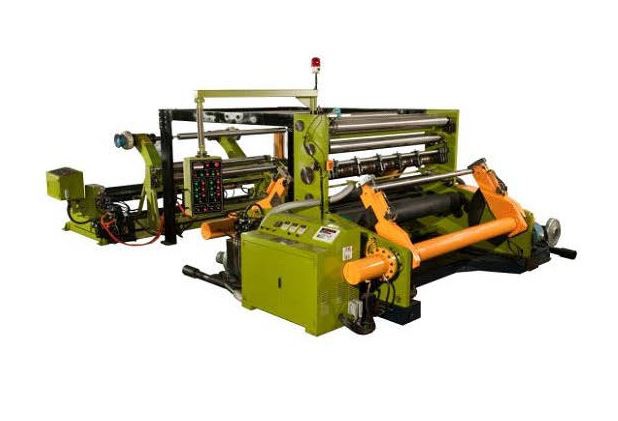

QBF-2500 Large paper slitting and rewinding machine

QBF large paper slitting and rewinding machine is a product developed by our research and summary of some slitting and rewinding machines in the past. The machine is divided into two types: gantry type and floor type structure. The machine is supported by an integrally cast base frame, the center of the double-swing winding shaft plus the surface winding method, which can make the machine's stable production speed reach 450m/min and complex. The roll diameter reaches 1300mm, which is the mainstream product in the rewinding machine market. It is also the only domestic manufacturer that can make a large span. The equipment can adapt to the various cutting requirements of different manufacturers. At the same time, the overall structure of the machine is reasonable and the operation is easy. It is the first choice of mechanical equipment in the paper slitting industry.

Machine characteristics:

1. The maximum unwinding width of the machine can reach 2500mm;
2. The normal maximum mechanical speed reaches 500m/min, and the stable production speed reaches 450m/min;
3. Adopt integral precision casting base frame, equipped with rubber-covered support roller for shock absorption, and reasonably distribute the center of gravity of the fuselage, which can minimize the vibration of the machine during operation;
4. The rewinding adopts double air-expansion shaft surface plus center rewinding, which not only ensures the tightness of the rewinding paper, but also completely solves the problem of rewinding;
5. Two 180° rotating hydraulic motors are used for unwinding, which can make the paper roll unload easily and smoothly, reducing labor intensity and lifting time and cost;
6. The unwinding adopts a coreless hydraulic unwinding system, equipped with imported semi-automatic taper tension controller and magnetic powder brake, which makes the winding more comfortable and the paper rolling force more stable;
7. Pneumatic automatic rectification system is adopted, and the unwinding frame moves as a whole, so that the rectification response is quicker and the rectification effect is better.

Technical characteristics:

Special function

Unloading of rotating hydraulic motor:

The rotating hydraulic motor can bear 5000N.m, which means it can put 1 ton The paper can be unloaded freely, and the rotation angle can be up to 180°, so that you can easily unload the roll paper to the ground. Compared with the traditional lifting equipment, the rotary hydraulic motor unloading has the advantages of small footprint, compact structure, simple operation, etc., and can greatly reduce the labor intensity of workers and improve the efficiency of lifting.

Double-roller surface winding mechanism:

This model adopts double roller supporting surface winding mechanism, two winding shafts are respectively Pressed on two active rollers with rubber coating on the surface.The friction force drives the paper to rewind. This structure completely solves the paper after slitting.The problem of inseparability between the paper rolls, at the same time using the rubber roller surface to increase the paper.The surface tension not only reduces the vibration of the fuselage when the machine is running, but also guarantees It improves the tightness of the winding paper roll and reduces the possibility of wrinkles in the paper.

Paper roll tightness control system:

Because this model adopts the center and surface winding mode, the pressure between the winding shaft and the active rubber roller becomes the key to control the tightness of the paper roll. The paper roll tightness control system uses four sets of hydraulic disc brake systems to control the pressure at both ends of the winding swing arm. The system automatically supplies oil through an air bag accumulator and adjusts the pressure through a pressure regulating valve to control the friction of the brake disc. It can realize the independent pressure adjustment of the four winding swing arms. In addition to adjusting the tightness of the paper roll according to user requirements, the system can also reduce the wrinkles of paper rewinding through adjustment.
