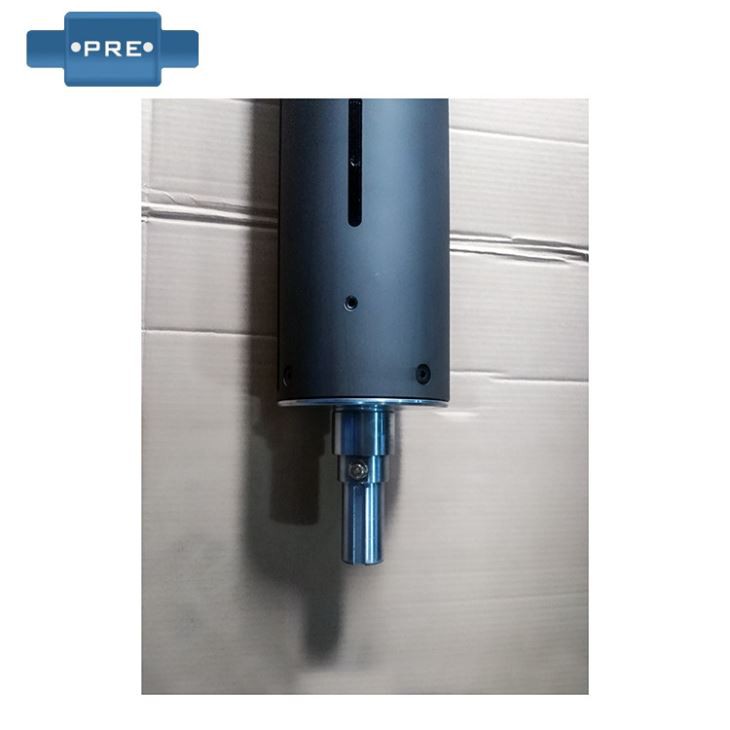

Pneumatic Shaft Clamp

Traits and makes use of of the air shaft
1. inflatable operation time is brief: the separation and placement of the inflation shaft and the paper tube can entire the inflation and deflation in only three seconds, and it does no longer need to disassemble any factors at the shaft stop side to be tightly engaged with the paper tube.
2, paper tube placement is simple: within the motion of inflation and deflation, can float and connect the paper tube at any role at the shaft surface.
3, the bearing weight is large: consistent with the actual dreams of clients, to decide the scale of the shaft diameter, and using immoderate-tough metal, so that its load bearing progressed.
4. excessive monetary efficiency: the layout of the shaft is a special feature, which can be finished to all forms of paper tubes of thick, thin, large and slender.
Five, easy protection, prolonged use time: even though the inflatable shaft is a mechanical accessory, however each part of its own structure has a tough and fast specification, can be used interchangeably, making it clean to preserve.

The role of the inflation shaft
It is mainly used for fixing various flexible packaging reels. The expansion shaft mainly comprises an outer sleeve, a telescopic block and a telescopic mechanism. The telescopic mechanism comprises a pull rod and an adjusting nut, and the rod has a conical inclined surface, and one end of the rod is provided with an adjusting external thread and a rod It is disposed in the outer sleeve and is driven by the adjusting nut to axially slide the rod relative to the outer sleeve. The fulcrum at the bottom of the telescopic block is located near the cone slope of the rod. The expansion shaft has the characteristics of simple structure, convenient operation and reliability.

Characteristics of the inflation axis (flat axis)
 The utility model relates to an air expansion shaft (air expansion shaft), which is mainly composed of an outer sleeve, a telescopic block and a telescopic mechanism, wherein the telescopic mechanism comprises a pull rod and an adjusting nut, and the pull rod is provided with a conical inclined surface, and one end of the pull rod is provided with adjustment Thread, the pull rod is disposed in the outer sleeve and the end of the pull rod with the adjusting external thread extends beyond the end surface of the outer sleeve, and the rod and the outer sleeve can only move relative to each other along the axis, and the adjustment nut is adjusted on the external thread of the rod At the end of the outer sleeve, the adjusting nut and the outer sleeve can only pivot around each other and cannot move relative to each other along the axis. At least two fulcrums at the bottom of each telescopic block are located near the tapered slope of the rod.

Maintenance and application of the air shaft
When the air shaft is repaired, the paper tube should be loosened. When the paper is pressed by the sliding air core on the air nozzle, the key strip will return to the original state, and the external parts (such as a round paper tube) can be taken out. .
1) Neat: tools, workpieces, and accessories are placed neatly; safety protection devices are complete; line piping is complete.
2) Cleaning: The inside and outside of the equipment are clean; all sliding surfaces and screws, gears, racks, etc. are free of oil and dirt; no leakage, no leakage, no leakage, no leakage; cleaning of the chips.
3) Lubrication: Oil is changed on time, oil quality meets the requirements; oil pot, oil gun, oil cup, linoleum, oil line are clean and complete, the oil mark is bright, and the oil path is smooth.
4) Safety: Analysis of the air-expansion shaft maintenance factory, implementation of the fixed-machine setting and handover system; familiar with the equipment structure and compliance with operational procedures, rational use of equipment, careful maintenance of equipment, to prevent accidents.
