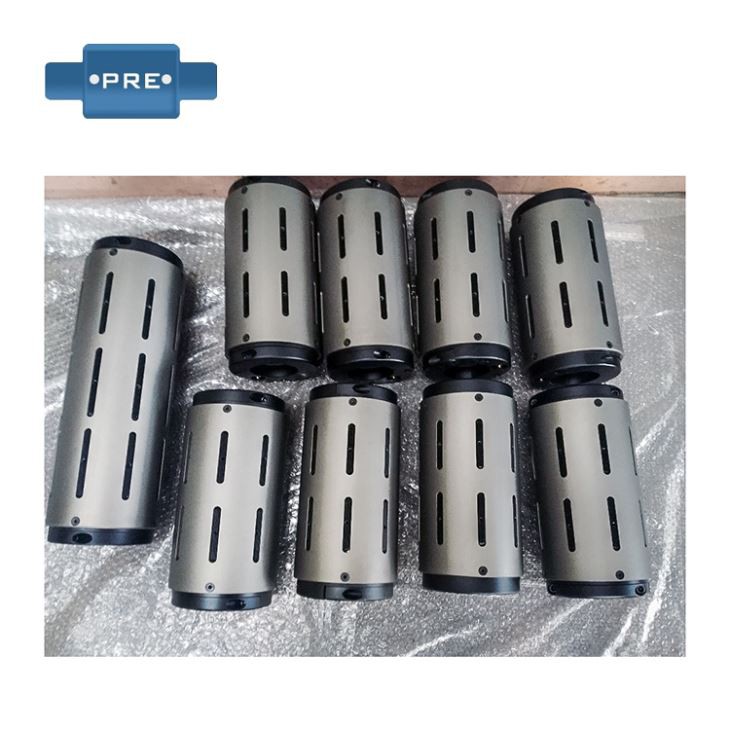

Quick Release Air Chuck

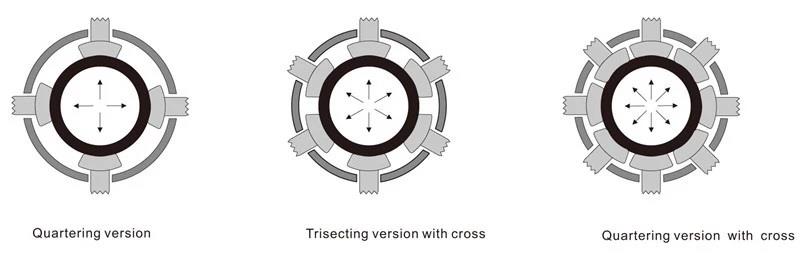

Inflatable collet (inflatable drum) product specifications: divided into key-type inflatable sleeves and plate-type inflatable sleeves. Common specifications are: 3 inches to 6 inches, 3 inches to 8 inches, 3 inches to 10 inches, and 3 inches to 12 inches. After inflation, the diameter increases by 8mm. The length is 200mm, 250mm, 300mm, 400mm, 500mm and so on. (The length can be set according to customer needs, and the length is not limited)

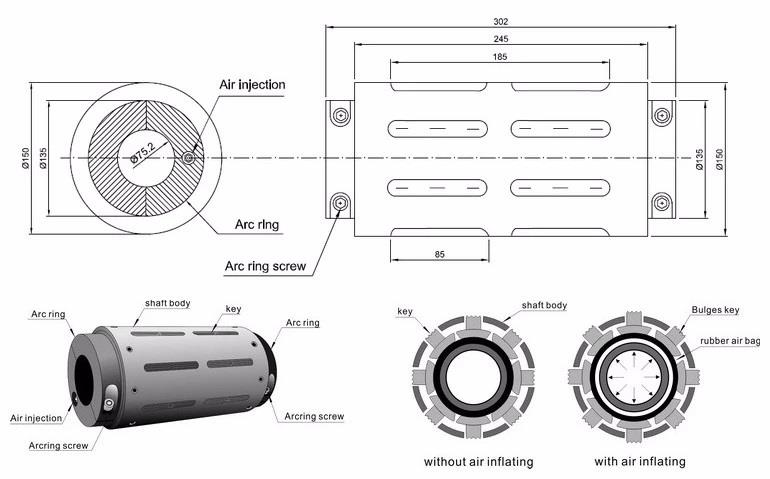

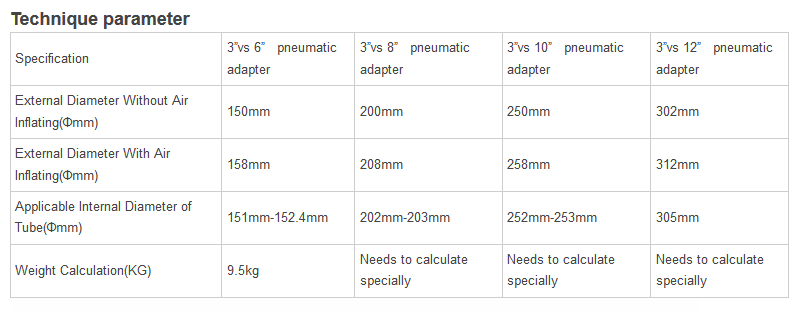

Inflatable collet technical parameters: the outer diameter of the main body of the inflatable sleeve Φ150mm, the outer diameter of the movement Φ155mm, suitable for paper tubes Φ149-153mm, 201-205mm, 252-256mm, 302-305mm body length 200mm, 250mm, 300mm, 400mm, 500mm, etc. .

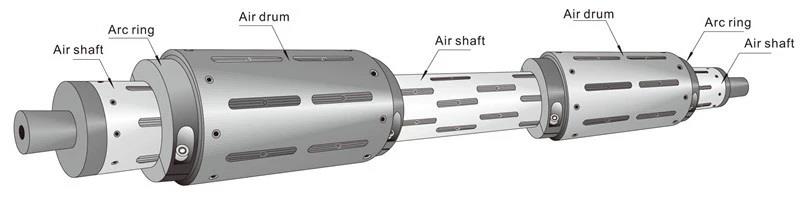

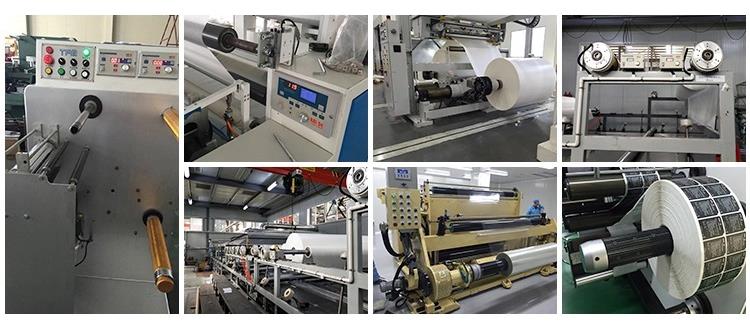

Inflatable collet (inflatable drum) product application: it can be fixed at any position on the inflatable shaft to facilitate winding and unwinding. The expansion sleeve is suitable for coating, printing, rewinding, papermaking, plastic and other related machinery. Retraction and so on.

Five points teach you how to detect the inflatable shaft

(1) Voltage method
The method of measuring the voltage value of a certain point on the line with the instrument to determine the range of the electrical fault point of the machine tool or the component failure is called the voltage method or voltage measurement method.
(2) Resistance method
The method of using a meter to measure a point on a line or a component to determine the point of failure is called the resistance method.
(3) Short circuit method
The inflatable shaft manufacturer tells you that the method of determining the range of the fault point or the fault point by shorting the two equipotential points on the machine with a wire is called the short circuit method.
(4) Open circuit method
In the inspection of machine tool circuits, sometimes in order to detect special needs, the circuit must be disconnected for inspection. This method is called an open circuit method.
(5) Current method
The inflatable shaft manufacturer tells you that the method of determining the fault point by measuring whether the current passing through a certain line is normal is called the current method.

Packaging

Order Details
