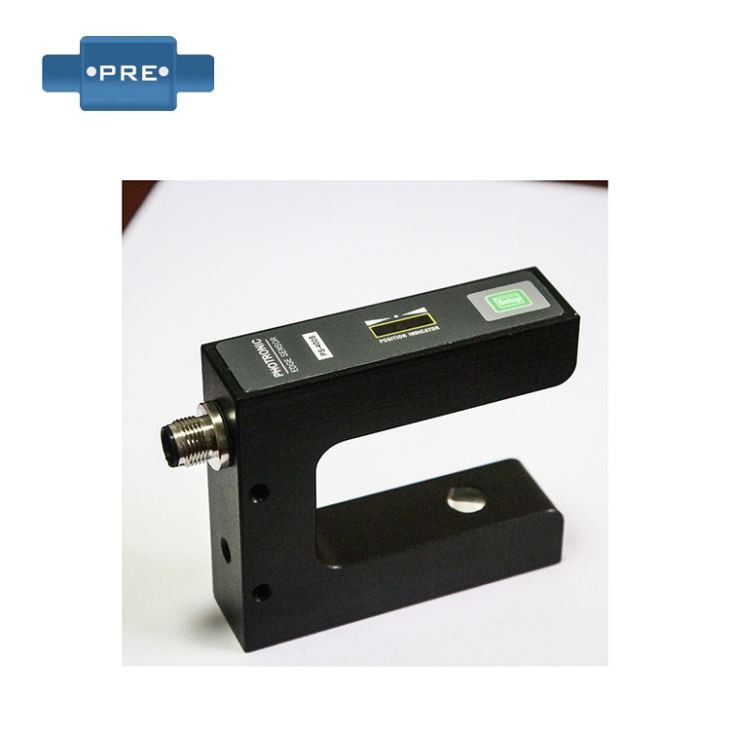

Sensor Line Accuracy Measurement

Features:
1. Embedded in single-chip processing, high process level, strong anti-interference ability, intuitive display, simple operation and convenient installation.
2, modular design, high stability, no fragile components, no maintenance.
3, eliminating the trouble and inaccuracy of the knob adjustment, using a button to set, the blind zone 8 adjustable.
4. The sensor has temperature compensation inside, which is not affected by external temperature. The maximum operating temperature can reach 80 °C.

Features

1: Widely used

2: Accurate Edge Detection

3: For perfect Roll Generation

4: Easy Installation

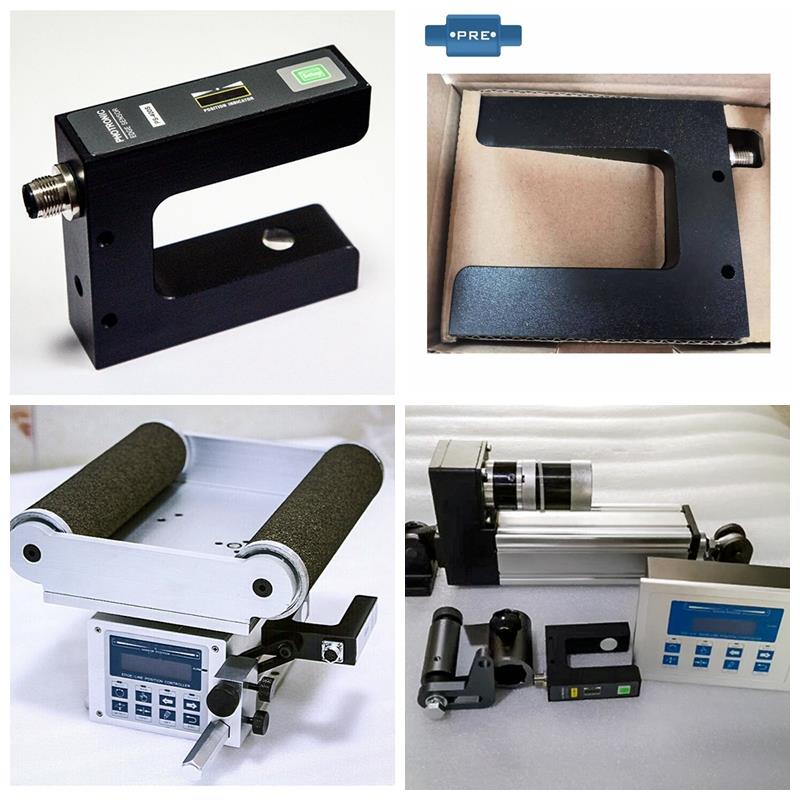

The appearance of photoelectric correction has brought great contributions to the development of the correction industry. Its quality is safe and reliable, and it is widely used in the industry. Photoelectric correction is mainly applied to the lateral deviation control of the reel material: it can correct the deviation of the web such as web film, non-woven fabric and woven fabric.

It can correct the deviation of various coil materials such as web film, metal foil, non-woven fabric and woven fabric. The controller can select the heel and follow-up methods according to the different materials, and freely select single/double electric eye detection to meet the needs of various materials.

The troubleshooting and troubleshooting methods for photoelectric correction are explained as follows:
1. The motor does not turn: open the outer casing to check the control board terminal, check whether the power supply and motor wiring are wrong, check the power supply insurance, check whether the panel control button is set correctly;
2. The photoelectric head is not bright, check whether the aviation plug connection cable is connected normally;
3, the set reference can not be found, check the material contrast color difference, eliminate interference factors;

Photoelectric correction sensor manufacturers believe that when using the photoelectric correction system on a daily basis, it should be operated by trained personnel, and it is strictly forbidden to touch the internal circuit. If there is a malfunction during use, the power should be turned off and repaired and inspected.
