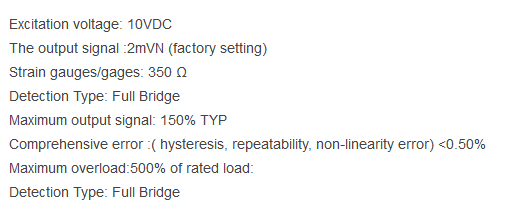

Lc tension sensor is a sensitive issue that may transform tension into micro-displacement then into micro-voltage. it has advantages of small length, mild weight, high sensitivity, rapid reaction and good linearity. it could be used in checking out weight and force independently. what’s greater, it can be used in conjunction with KTC-828A tension controller to manipulate anxiety routinely, so it is a ideal detection and manage device in printing, packaging, steel and metallic industry in processing.

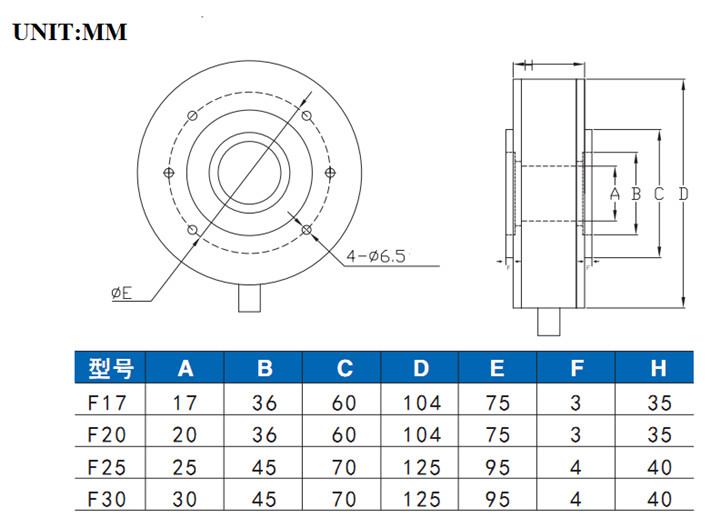

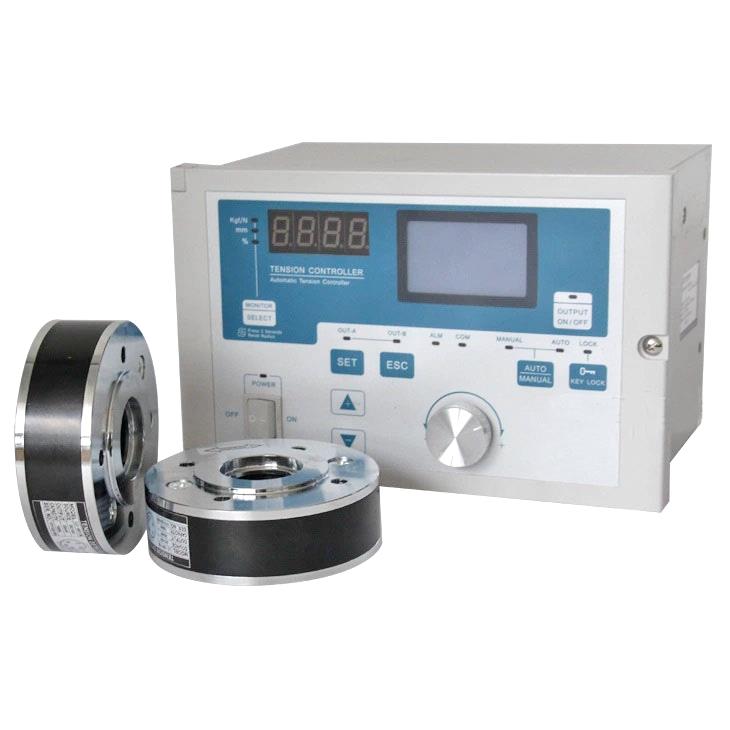

LC Series Through-Hole Tension Detector

Installation:

KTC-828A tension controller is a type of excessive precision, multi-characteristic digital shrewd tension controller, anxiety detector of the closed loop anxiety manipulate machine. through accepting the lc device tension detector transmits alerts, after internal intelligence pid mathematics processing, modify the actuator, automatic control rolling, middle of long length cloth guide and winding anxiety.

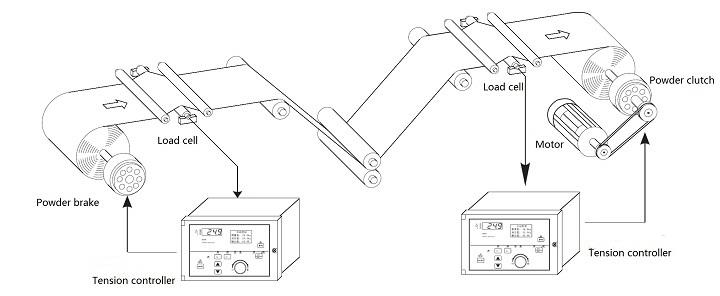

Tension control system is often a system integration of tension sensor and tension controller. It is mainly used in metallurgy, paper making, film, dyeing and finishing, weaving, plastic, wire and other equipment. It is a kind of constant tension or taper tension control. The automatic control system is mainly used to realize the synchronization between the rolls, the uniform control of the winding and unwinding.

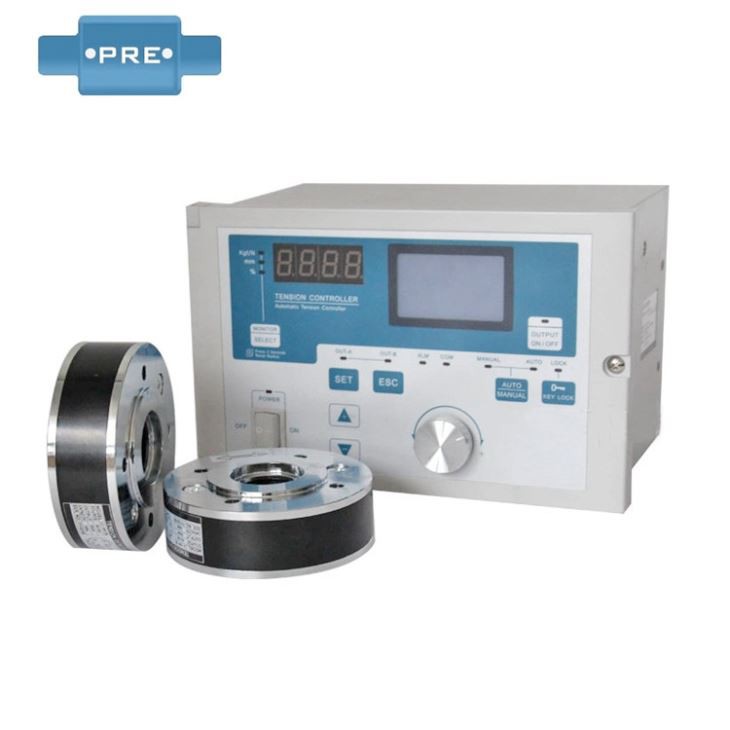

Automatic Tension Controller with Taper and Communication Function

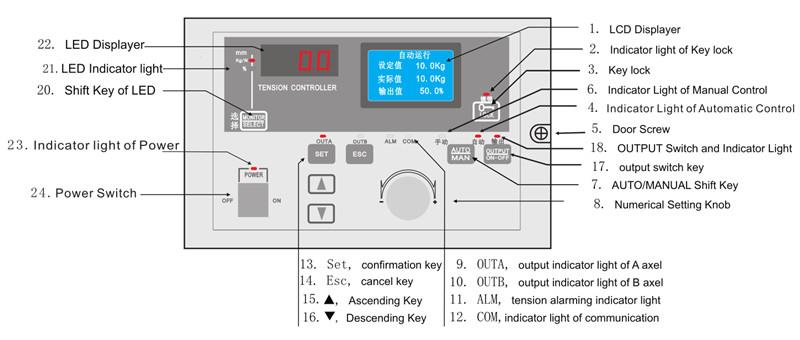

Operating Panel:

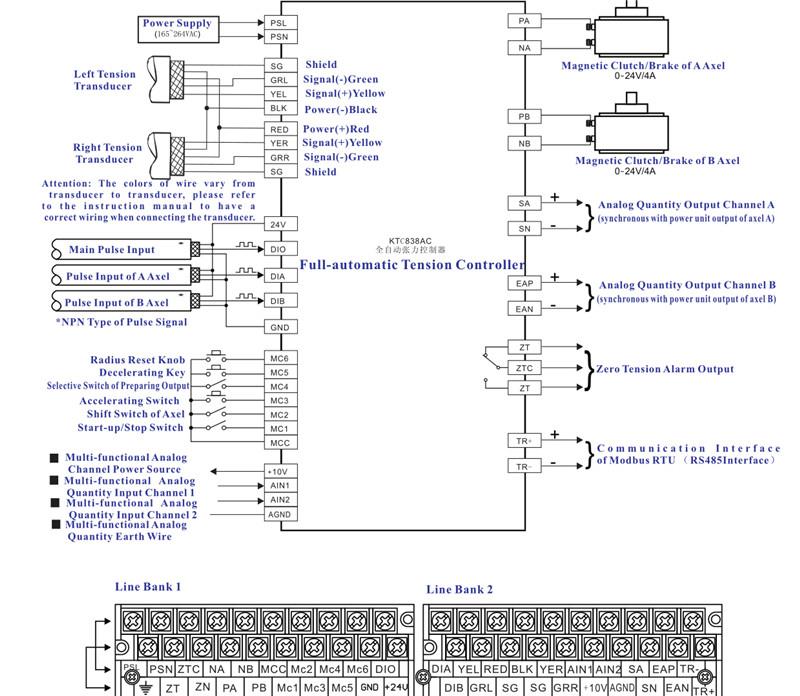

Wiring Diagram:

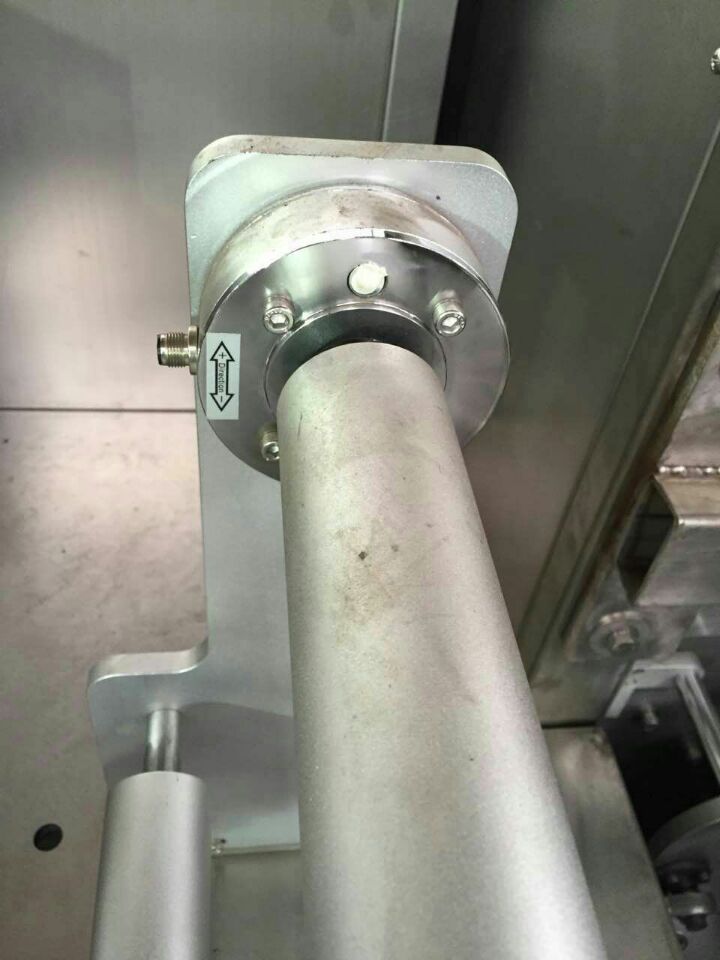

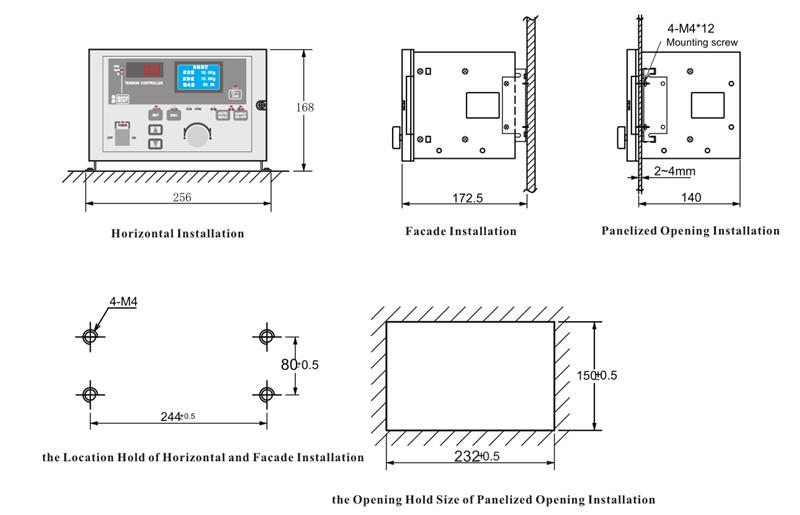

Installation:

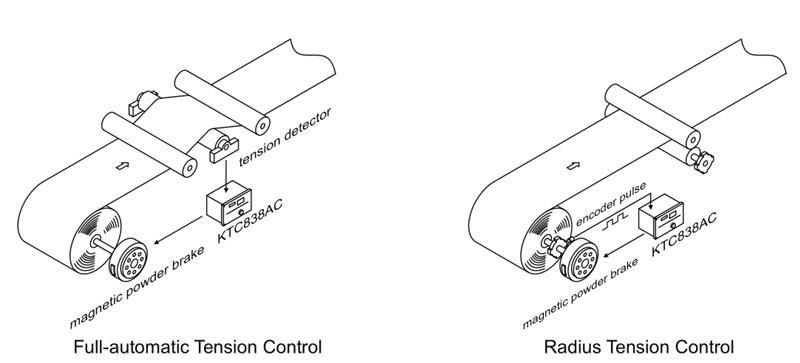

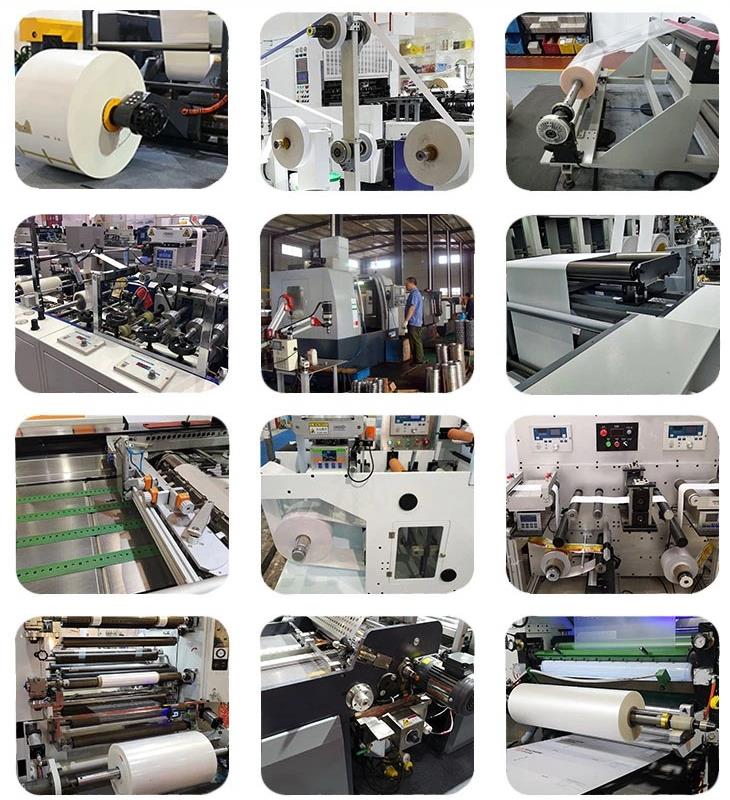

Application

Order Details
