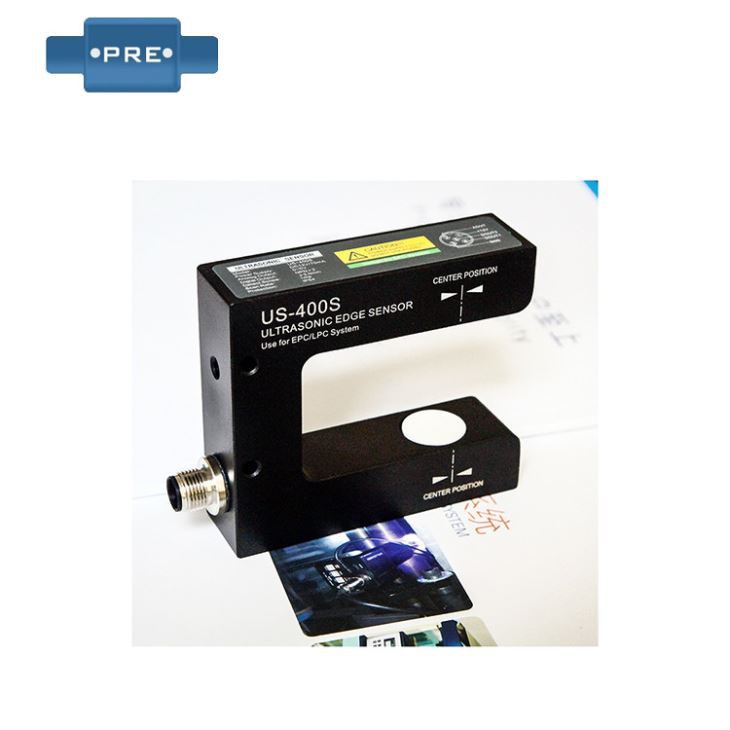

Ultrasonic Edge Sensor

The principle of linear propagation of excessive frequency ultrasonic wave is implemented inside the ultrasonic rectification sensor to stumble on the brink function of coil. as compared with optoelectronic sensor, it isn't tormented by cloth transparency, surface dirt, wet water mist and so on, so it's far very handy to use with out adjustment. it is appropriate for area-tracing programs of impermeable materials (inclusive of plastic movie, paper, and many others.) (air-permeable materials including material, non-woven fabrics are not relevant).

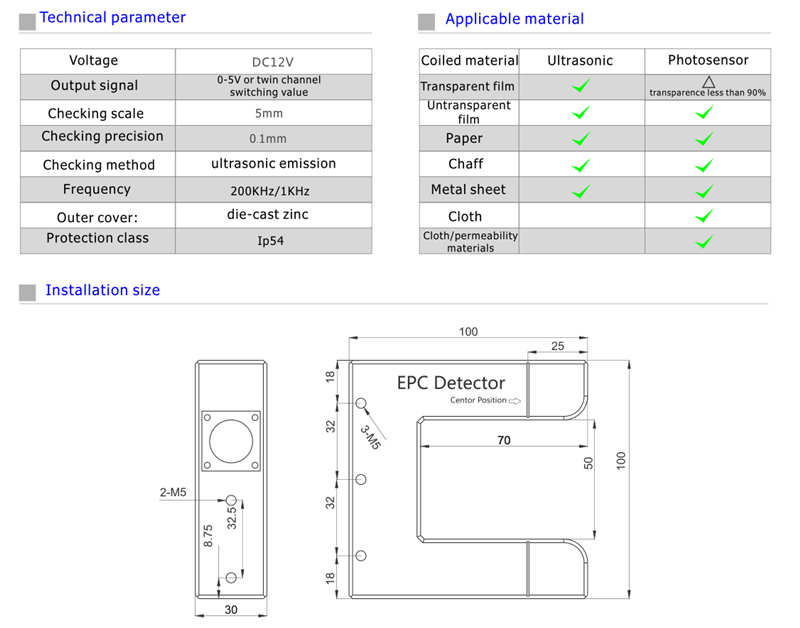

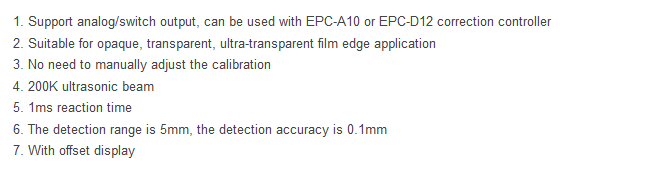

Detailed description

1. Supporting one-way analog/two-way switching output

2. Suitable for all impermeable materials (such as transparent film paper etc.)

3. No manual adjustment is needed to calibrate

4.200K ultrasonic radiation

5.0.05m/s reaction time

6. Detection range + 0.5mm, +1.0mm, t20mm, measurement precision 0.05mm6. Self-contained offset display

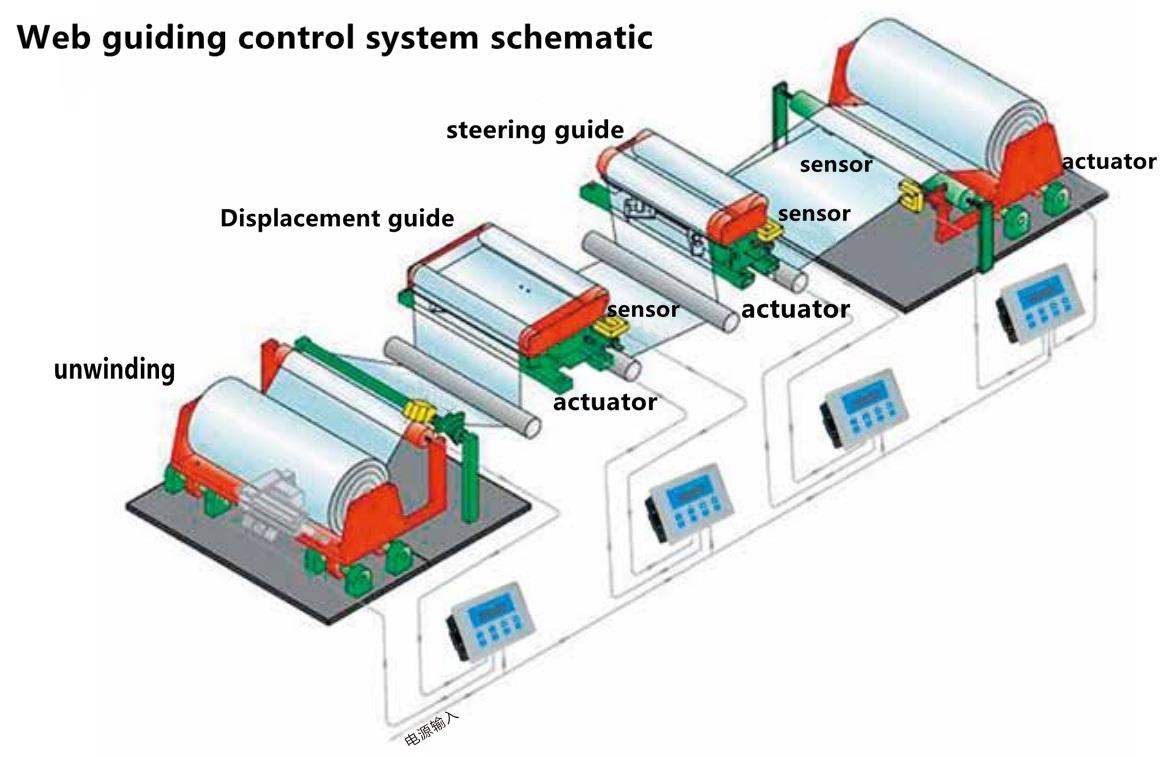

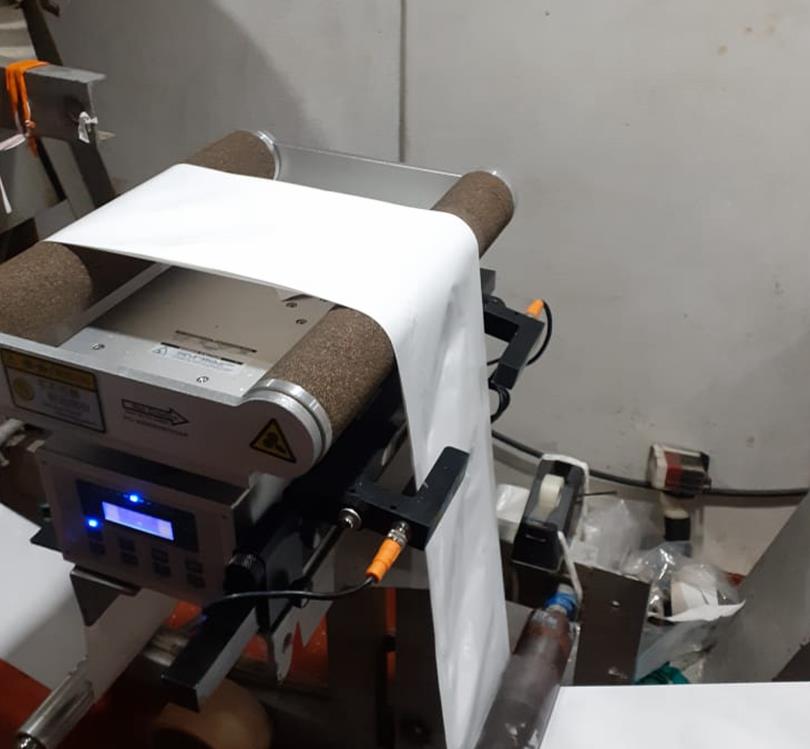

Application

Order Details
