Web Inspection

The automatic tension controller is mainly composed of a tension detector, a high-precision A/D, a D/A converter, and a high-performance single-chip microcomputer. The automatic constant tension controller compares the tension of the coil material with the set target tension according to the tension detector, and automatically adjusts the D/A output by the PID calculation of the single-chip microcomputer to change the magnetic powder clutch, the excitation current of the brake or the rotation of the servo motor. The moment is used to realize the constant tension of the coil material, and can be widely used in various occasions where the tension is precisely measured and controlled, and has flexibility and wide applicability.

Features:
1. LCD display can be displayed in Chinese or English
2. Automatic and manual switching is simple and convenient
3. Tension detector wiring is simple and convenient
4. Convenient parameter settings

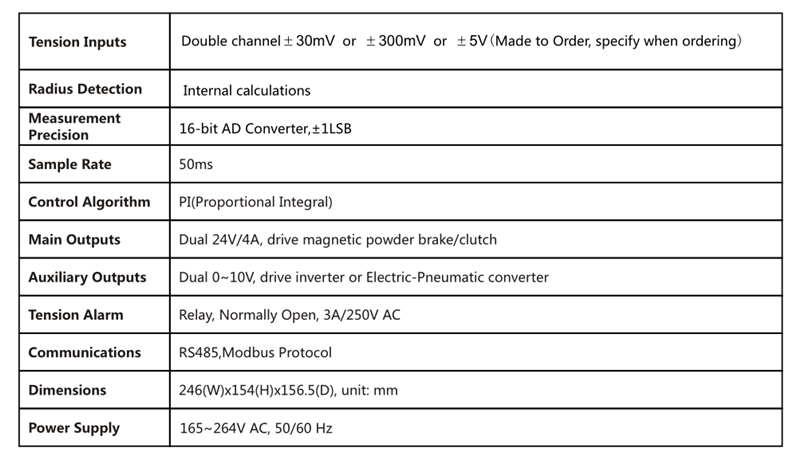

5. With double-station rotary axis output function parameters: Measurement accuracy: <±1 Newton sampling speed: 100 milliseconds Main output mode: DC 0-3A constant current output (adapted load impedance 8-12Ω) Auxiliary output: DC 0- 5V (MAX 10MA) analog signal output, power supply: AC 180-245V 50/60Hz

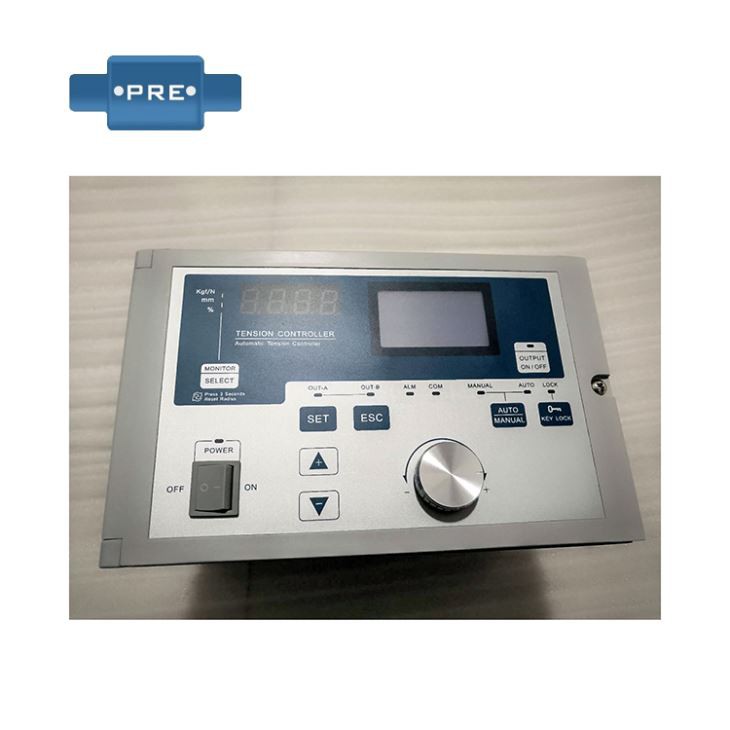

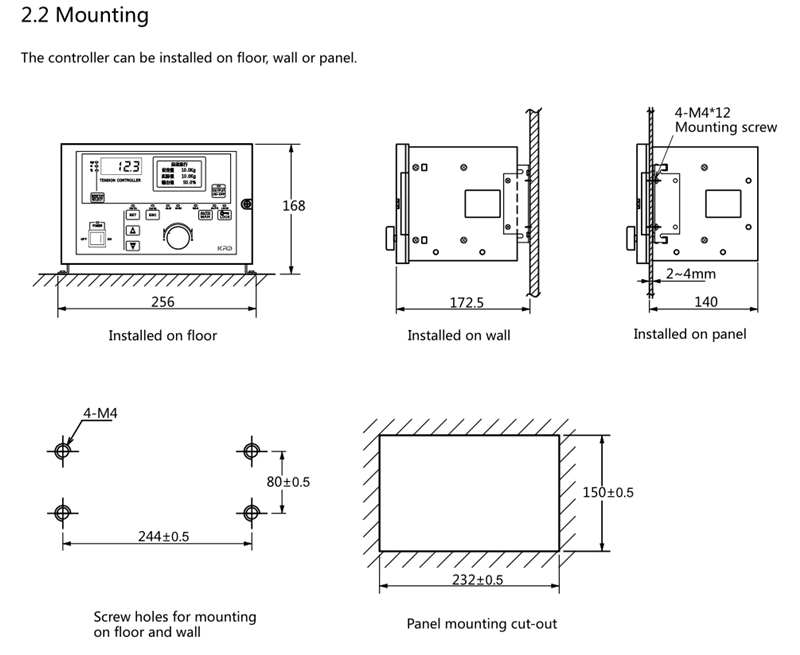

Model: KTC828A

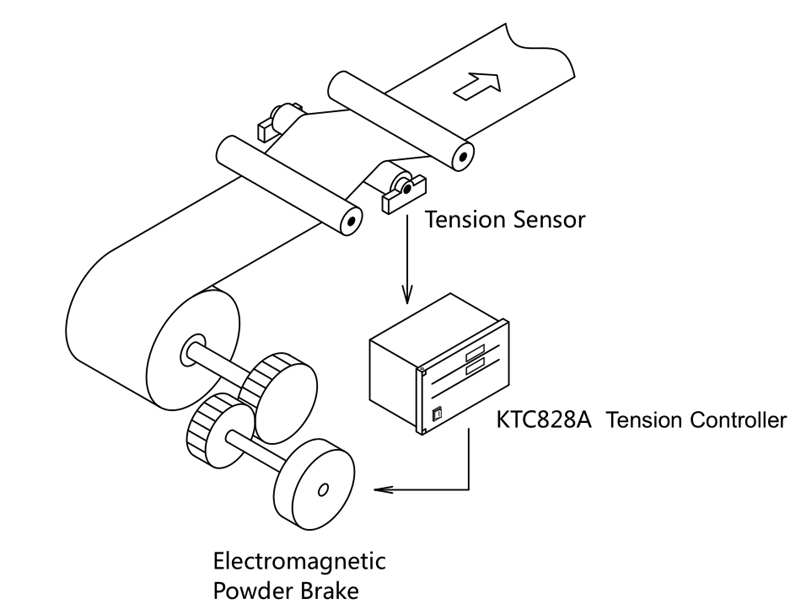

Working Principle:

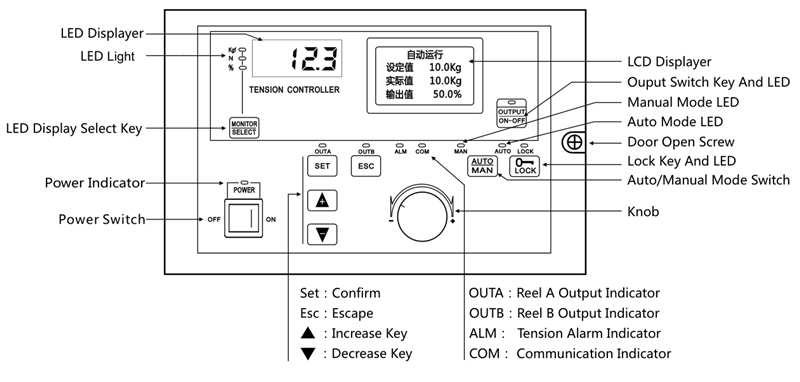

Operating Panel:

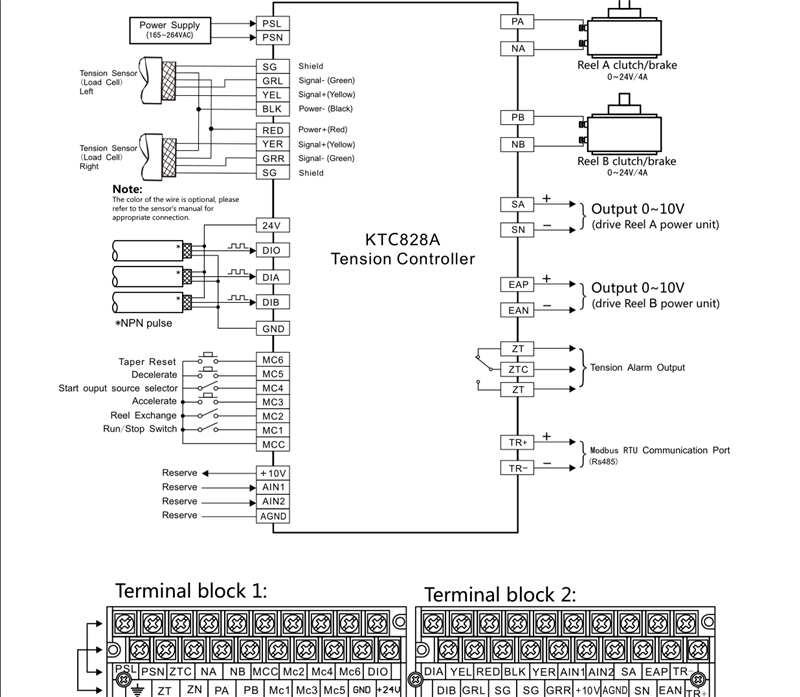

Wiring Diagram:

The tension controller performs manual control using a magnetic powder brake and a magnetic powder clutch when unwinding, winding control or intermediate shaft control with a small change in the winding diameter; performing emergency control when the machine is stopped or adjusting the knob during operation operating.

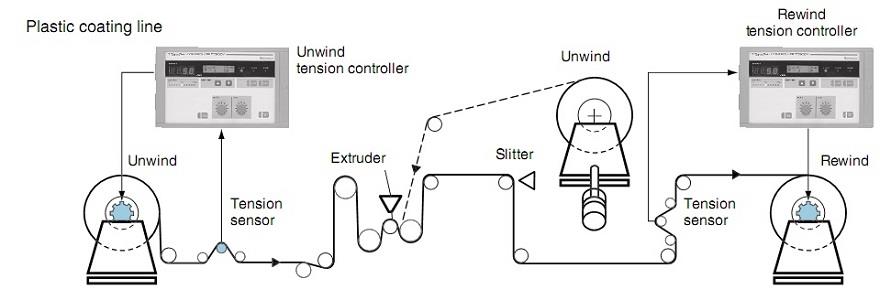

The tension controller receives the signals transmitted by the two tension detectors, compares the set tension with the controller, and outputs the control magnetic powder clutch, brake, torque motor or servo motor to realize automatic control of unwinding or winding large size large diameter. The material tension device is especially suitable for printing machines, slitting machines, coating machines, laminating machines, etc.

Application

Order Details
