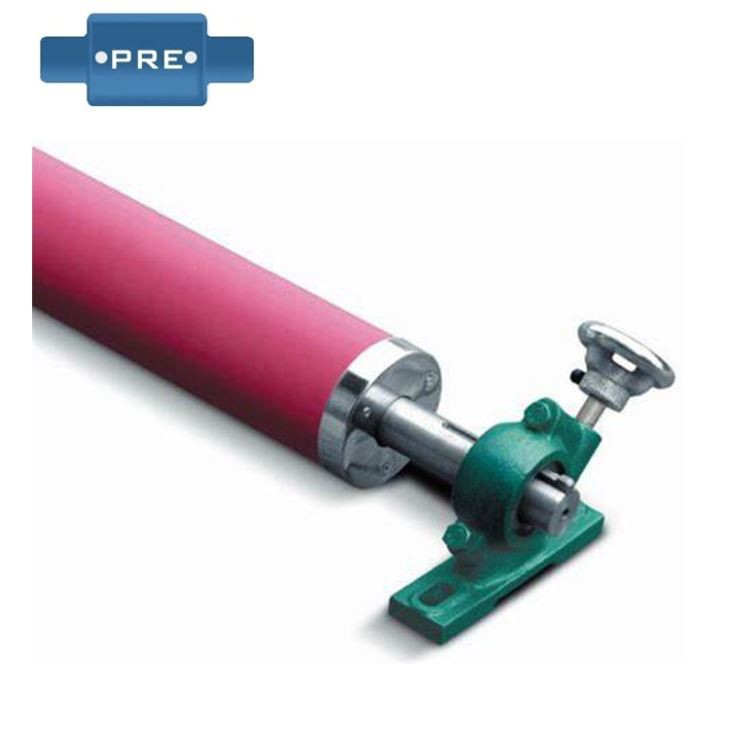

Web Rollers Accuracy Technology

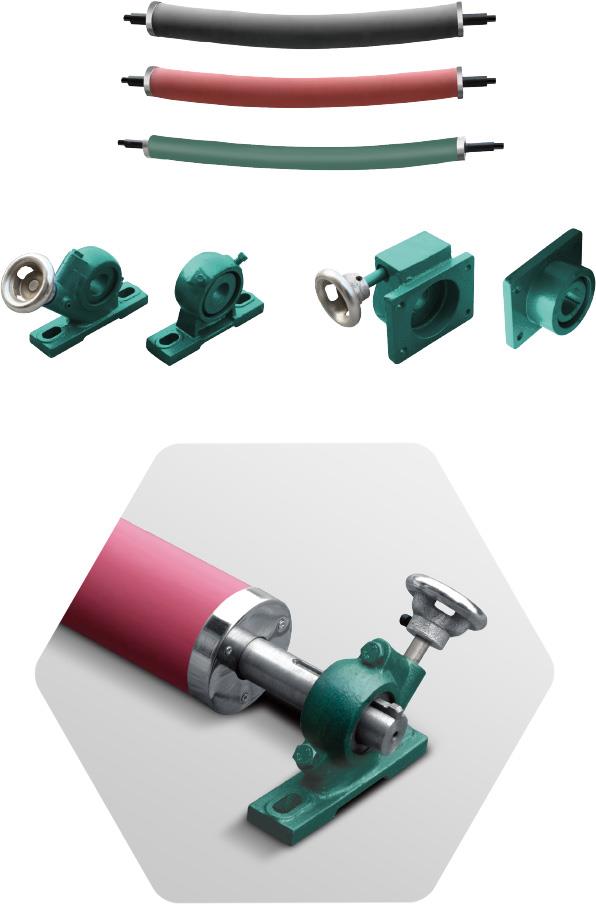

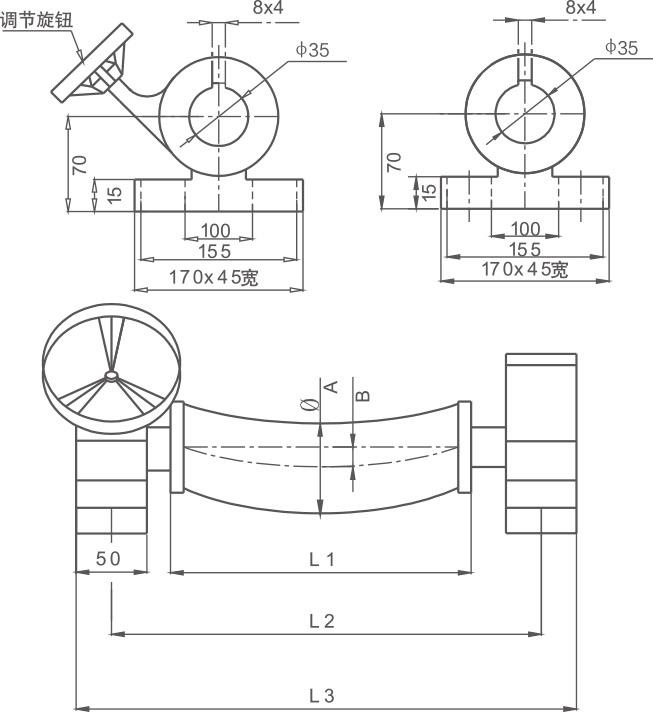

Features: The curved roller bends the shaft into the required arc shape. The bearing is mounted on the shaft at a certain distance. The bearing is covered with a rubber sleeve to form a roller with an arc shape and a rubber sleeve that can rotate around the shaft.

Application: Tension of paper, plastic film, fabric, etc.

CHARATERISTIC
1. The material is mainly made of nitrile rubber, and the color can be red, green, black, etc.
2, the internal structure is the bearing ring
3, the inner device of the hose, the torque is small
4, the rubber surface is smooth, no adverse effect on the substrate
5, the stretch roller angle can be adjusted freely

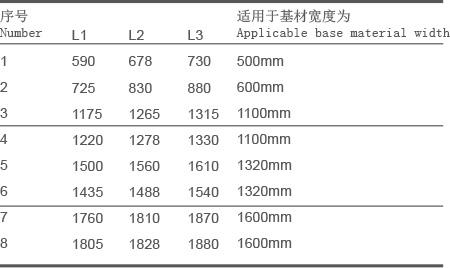

6, diameter: Ф80, Ф100, Ф125, Ф150, Ф160, Ф200

In order to achieve the best stretching effect, the arc roller should be kept at a certain length between the introduction roller and the arc roller. The lead roller and the curved roller should be as short as possible.
1. The distance between the introduction roll and the curved roll is at least twice the distance between the take-up roll and the curved roll.
2. The distance between the take-up roll and the curved roll is twice the roll diameter.

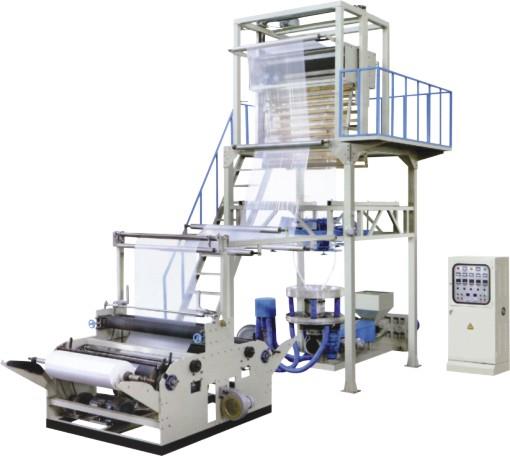

Application

Packaging

Order Details
