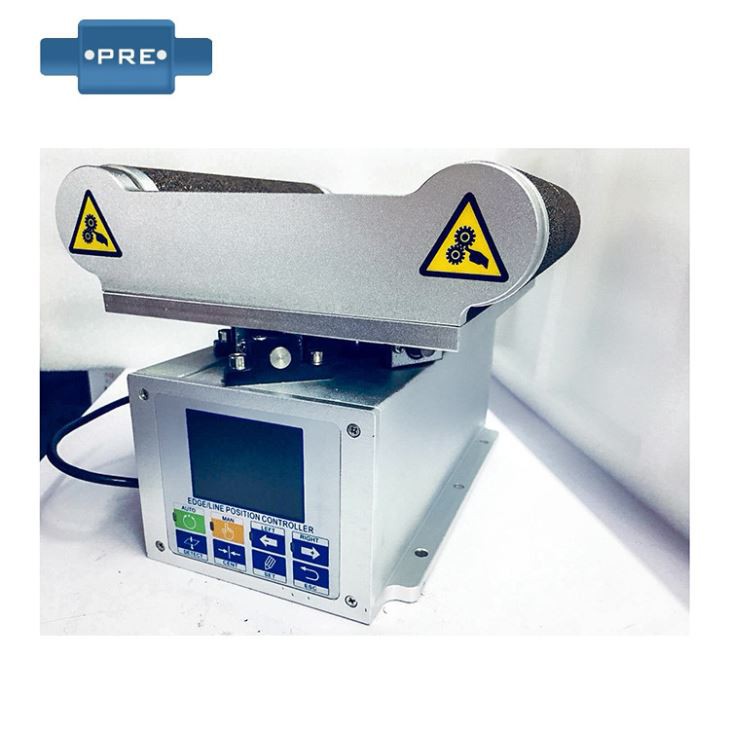

250mm Web Guiding Systems
All-In-One EPCS Web Guiding Control System Introduction The Newly developed all-in-one web guide controller is applied to accurate correct the narrow wide range of materials. Especially for label printing, packaging and non-woven industries. All-in-one web guiding controller is with compact...
All-In-One EPCS Web Guiding Control System Introduction
The Newly developed all-in-one web guide controller is applied to accurate correct the narrow wide range of materials. Especially for label printing, packaging and non-woven industries.
All-in-one web guiding controller is with compact design, easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.
Web guide system Specification:
Power supply | DC24V~45V, stand 36V |
CPU Processor | 32-bit CPU main Frequency>72M |
Rectification Algorithm | No Overshot Integral Variable PI Algorithm |
Analog input | 3 channel 0~6V, impedance 20K |
Sensor voltage | DC12V ,350mA Max |
Response time | 0.5ms |
Analog input resolution | 12 bit ADC |
Switch contacts input | 3 channel NPN |
Web control mode | EPC, LPC, CPC, SPC |
Support the sensor type | Ultrasonic sensors, photo sensor, CCD sensor |
Actuator speed | 14mm/s~40mm/s can adjust |
Actuator thrust | 100Kgf/200Kgf/400Kgf/800Kgf |
ESD protective | IEC1000-4-2,±15KV(Air),±8KV(Contact) |
Screen display | 2.8",260K colors TFT |
Motor drive | Brushless DC servo motor to drive |
Levels of protection | Ip53 |

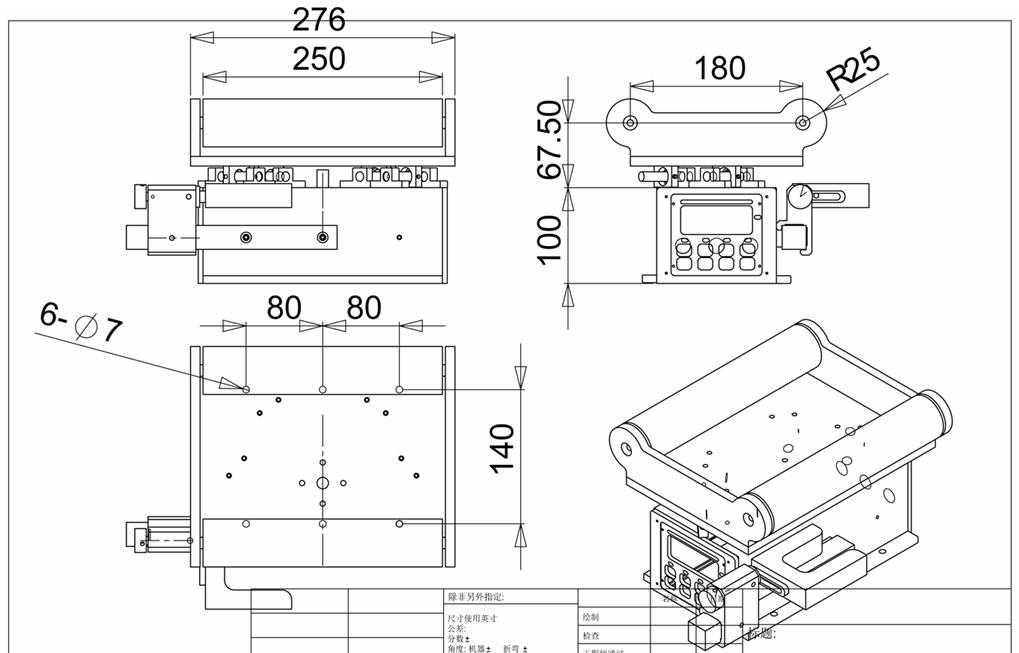

PG-250A Offset Pivot Guide System:
| Model | Roller Length | Roller Dia. D (mm) | Roller Width | Slide Block Height | Base Length | Web Guide range (degree°) | Max.Tension |
| L (mm) | C (mm) | B (mm) | Y (mm) | (N) | |||
| PG-250A | 250 | 50 | 230 | 25 | 260 | ±17 | 300 |
All-In-One EPCS Web Guiding Control System Features
1. Brushless DC servo motor driving, maintenance free;
2. Accuracy ball screw bar and accuracy positioning;
3. With large guiding travel;
4. Roller length and width can be custom made;
5. Roller surface treatment can be anodized, rubber and cork leather;
6. Manual or air fixture of the cutting station is optional.

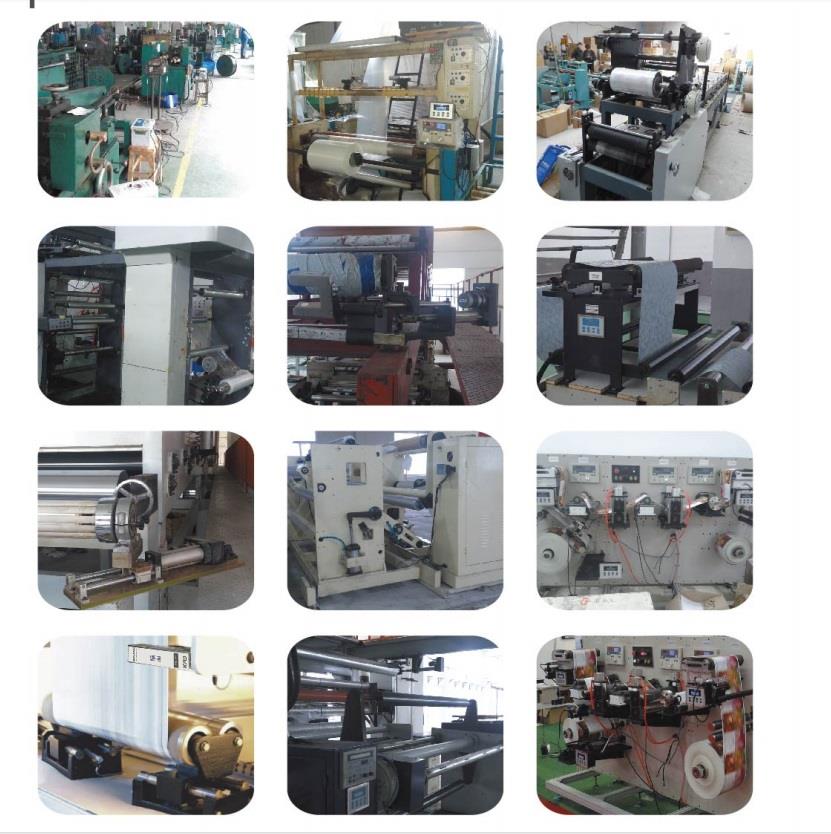

Application
Order Details
Item Name | PG-250A Offset Pivot Guide |
MOQ(Minimum Order Quantity) | 1pc |
Lead time | 10-15 days after receiving the deposit |
Calculated Packing Size | 50cm*45cm*36cm |
Package | Wooden Box |
Price Term | EXW,FOB, CIF, etc |
Payment term | TT, L/C,Western Union |
Country of Origin | China |
