Epc Web Guide System Manual

Guide system
1. Guide concept: an automatic closed-loop system that automatically corrects the lateral deviation of the coil.
2. Working principle: The Guiding sensor detects the relative position of the edge, line or color block of the coil, compares the detected value with the set value, and converts it into a proportional signal after the controller program calculates it to correct the electric drive.
3. System configuration: controller, edge detection / line detection sensor, electric drive, guide mechanism and other components.
4. System classification: rewinding and rewinding system, and rectification mechanism in progress (can be customized).

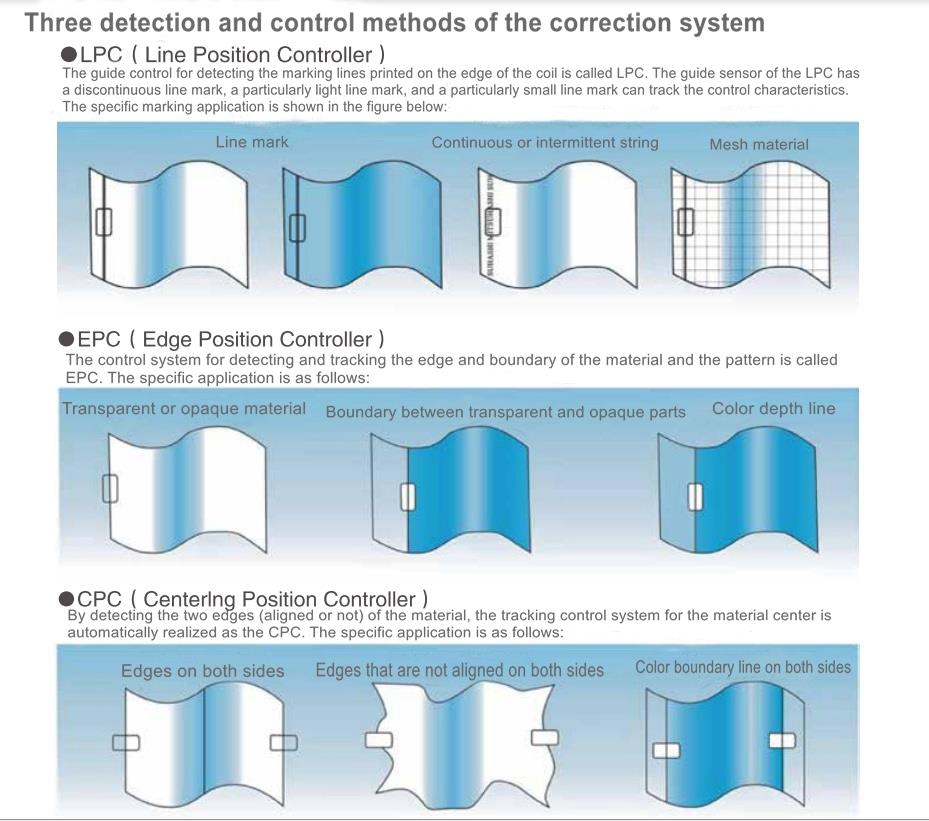

5. Detection method: edge detection, line inspection, alignment.

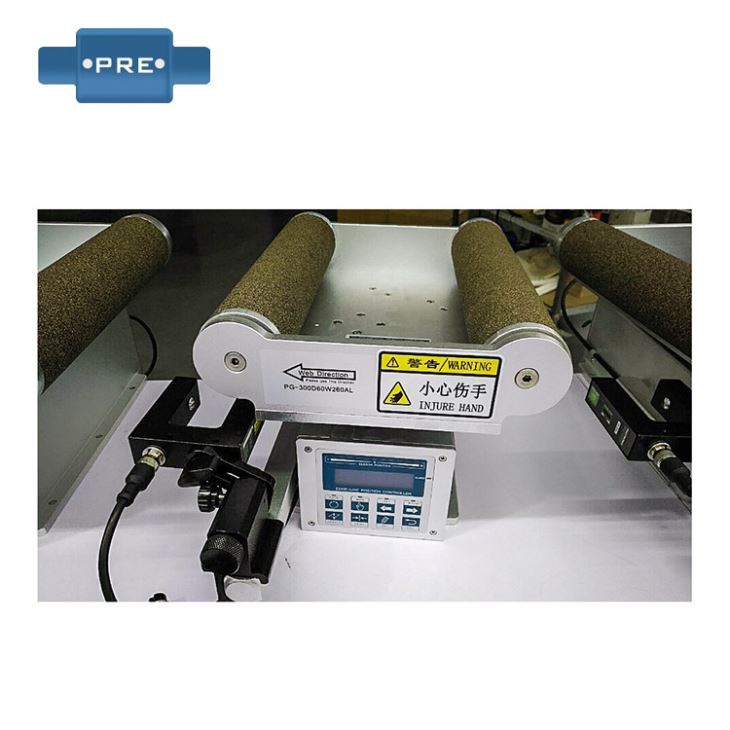

Product description:

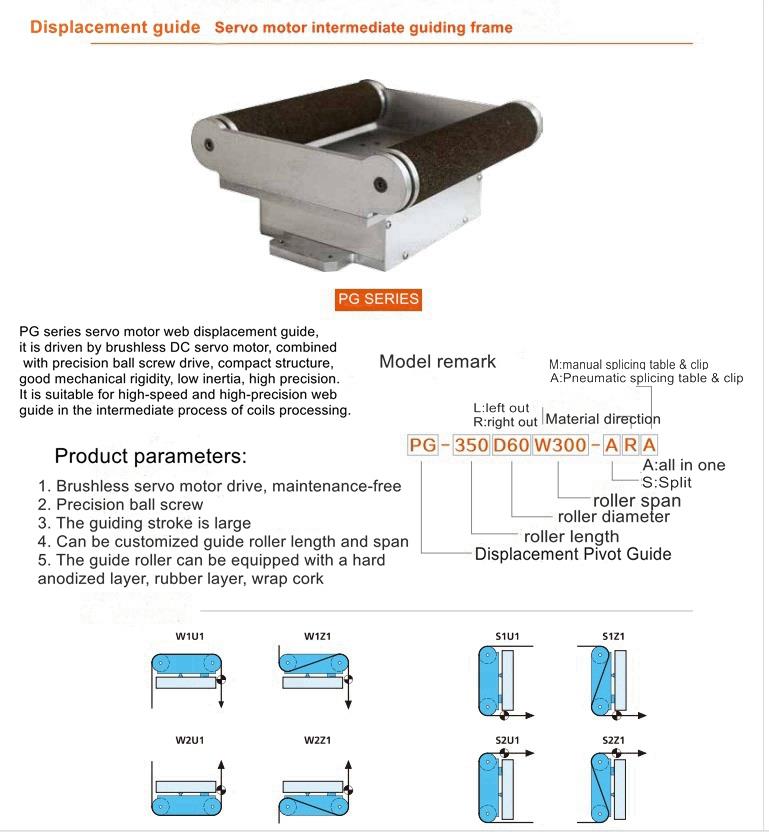

This one-piece rectification frame integrates the highly compact advantages of operation and control technology. It can be designed according to customers' different widths, strong structure and fine processing to ensure the balance of the guide roller of the correction frame, and the roller surface is processed finely. The correcting effect is optimal. The drive guiding mechanism comprises a set of servo drives and a set of guiding mechanisms, wherein the guiding mechanism is driven by the driving device to move in a specific geometrical trajectory, so that the strip material passing through the guiding mechanism is changed due to the lateral frictional force and the cross-sectional tension distribution. The lateral position changes.
In addition, a paper tray device can be added to the upper frame. A variety of roll surface materials are available, depending on the application, hard anodized coating rolls, rubberized rolls, rubber coated rolls, plasma spray rolls.

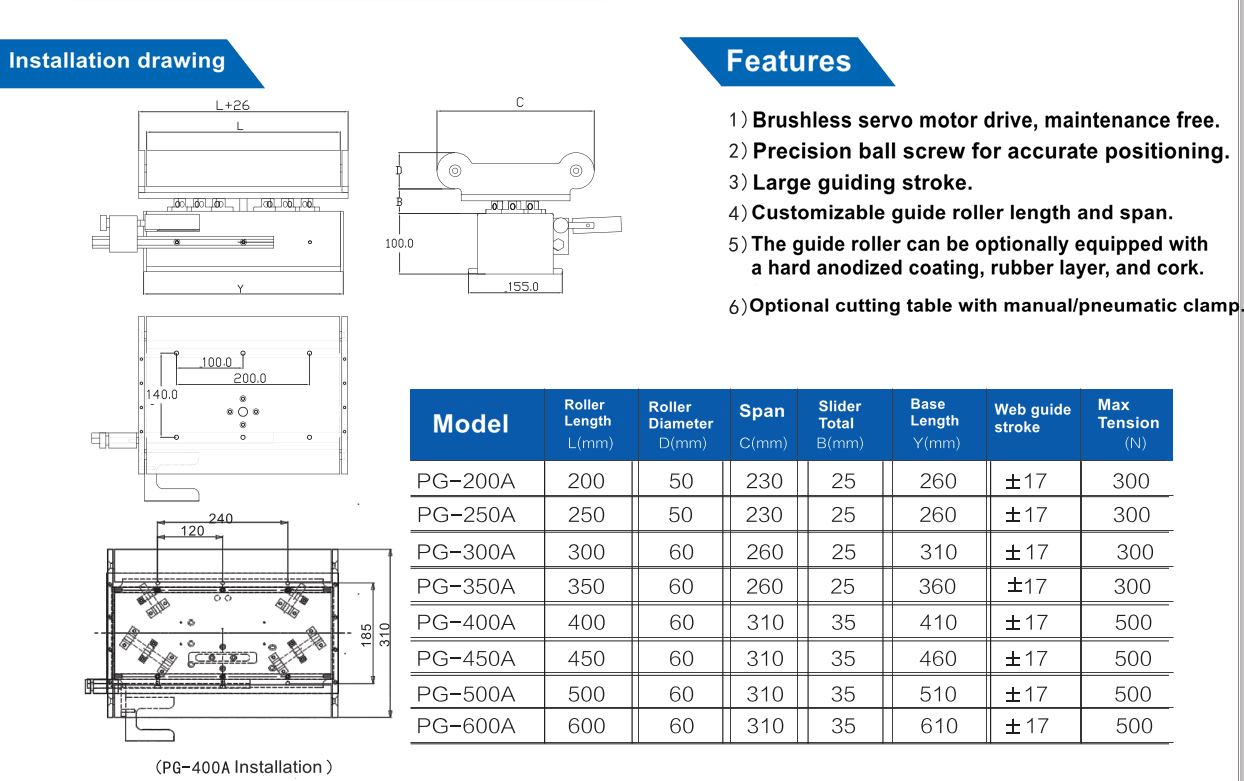

Features:
1, a large number of aluminum alloy materials, effectively reducing the driving inertia, reducing the corresponding time;
2, special rail design, the moving parts are highly tightly coupled, and the controller can work smoothly and without vibration at the corresponding frequency 3 of 4HZ;
4, can be installed with a probe drive frame;
5, according to the tension requirements, design the corresponding structural strength;
6, optional infrared or ultrasonic fluoroscopy;
7. Specially designed motion trajectory optimizes material guiding

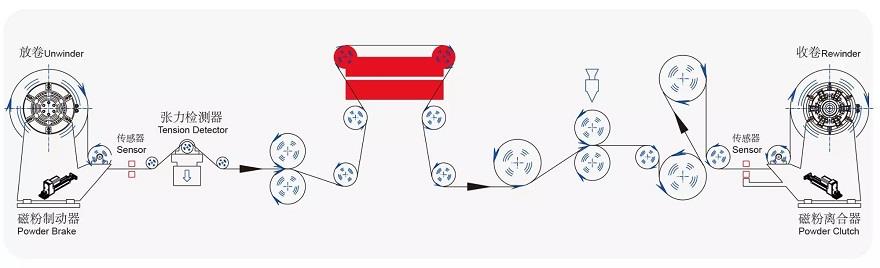

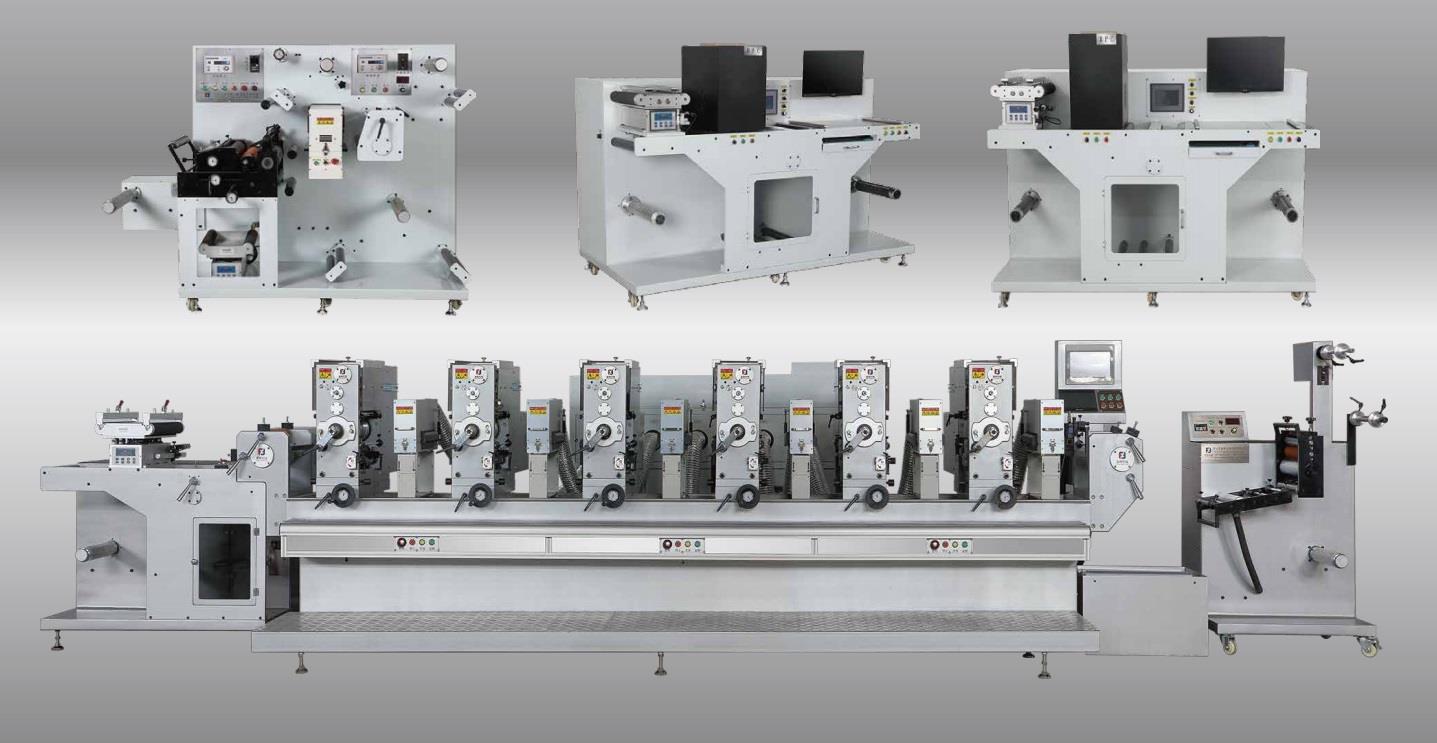

Application

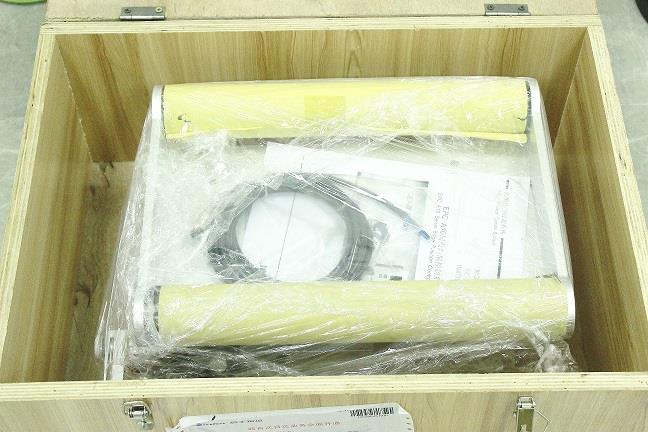

Packing

Order Details
