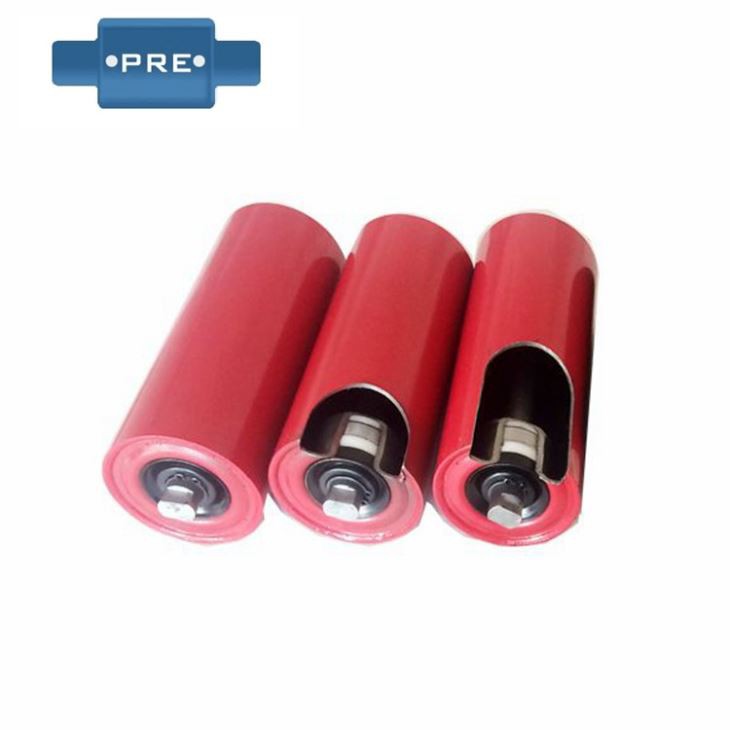

Aluminum Conveyor Roller

Feature:

1) Corrosion resistance

2) High hardness, strong wear resistance

3) Good sealing

4) Long life - more than 30,000 hours

5) Low operation costs

2, the choice of roller specifications:

·When the weight is different, the diameter and length of the Wuxi conveying roller and the length of the roller can be selected according to the user's requirements. Generally, the width of the cargo is +50mm. (Fig. 1) The company has a variety of rollers that can be used for the transport of materials of weight, length and different requirements.

· The type of roller should be selected for the non-moving environment. For example, the wet environment should be a stainless steel or plastic type roller.

· The radius of the turn should be considered when there is a turning roller to ensure the smooth conveyance of the material. (Figure II)

· In order to ensure the balanced delivery of the goods, three rolls must be kept in contact with the conveyed material at all times, and the soft bag packaging should be transported with a tray if necessary.

3, the classification of the roller

According to the presence or absence of power: no power roller and power roller, both types include straight roller and cone roller type.

According to the driving effect: the power roller can be divided into two types: the active type and the accumulated type.

According to the driving effect: the power roller can be divided into three types: circular belt drive (with groove) flat belt drive (friction belt) and chain drive (with chain theory).

According to bearing types: special precision bearings and special stamping bearings, the bearing housing number includes steel seats and engineering plastic seats.

According to the material of the cylinder: a variety of materials are used to achieve a variety of surface treatments to meet the needs of material transportation in various environments.

According to the installation method: axial spring loaded and fixed loading.

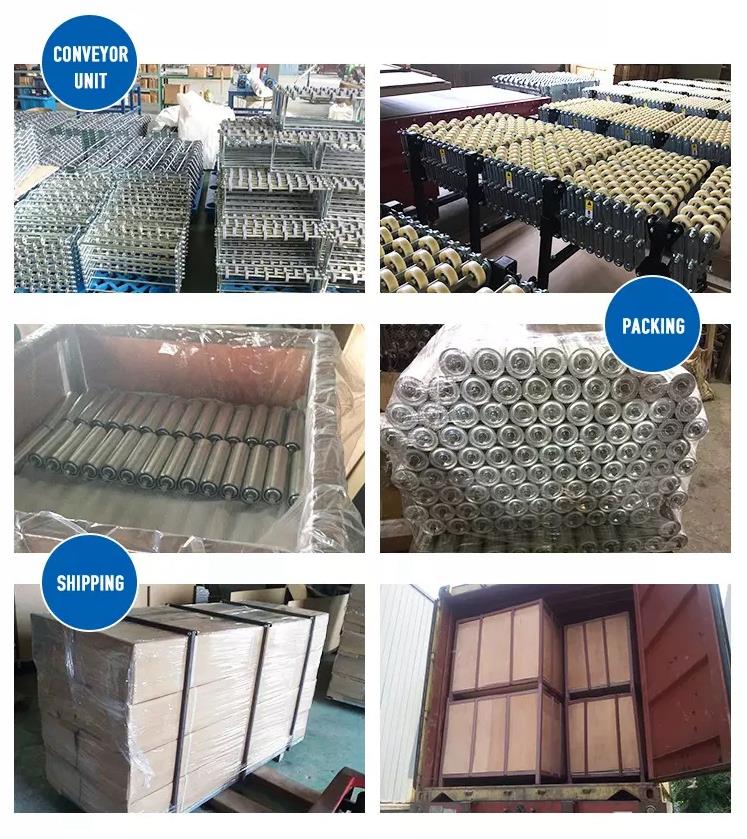

Packing
