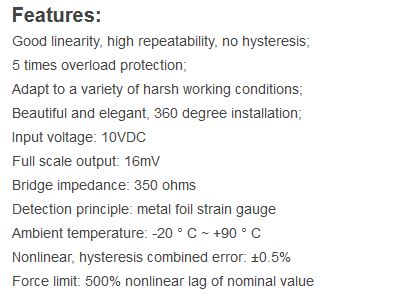

The shaft bench tension sensor adopts the Mitsubishi structure form, the tension and compression type design, high response frequency, and the output signal has the characteristics of good linearity and fast response, ensuring absolute return of zero point. The sensor is easy to install and is widely used in winding, control, and production lines for printing, compounding, coating, shearing, paper making, rubber, textile, wire and cable, and film.

Foot Mounted Tension Sensor

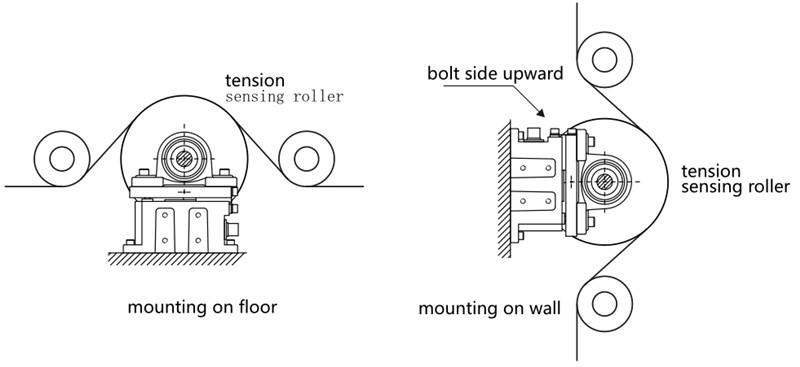

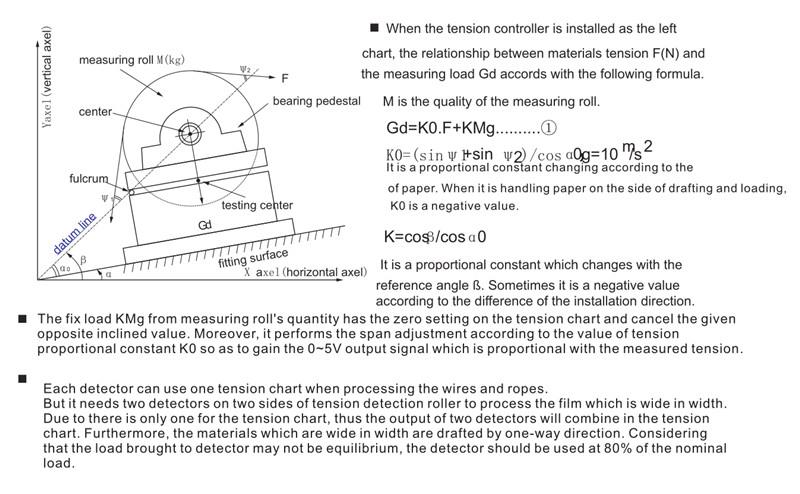

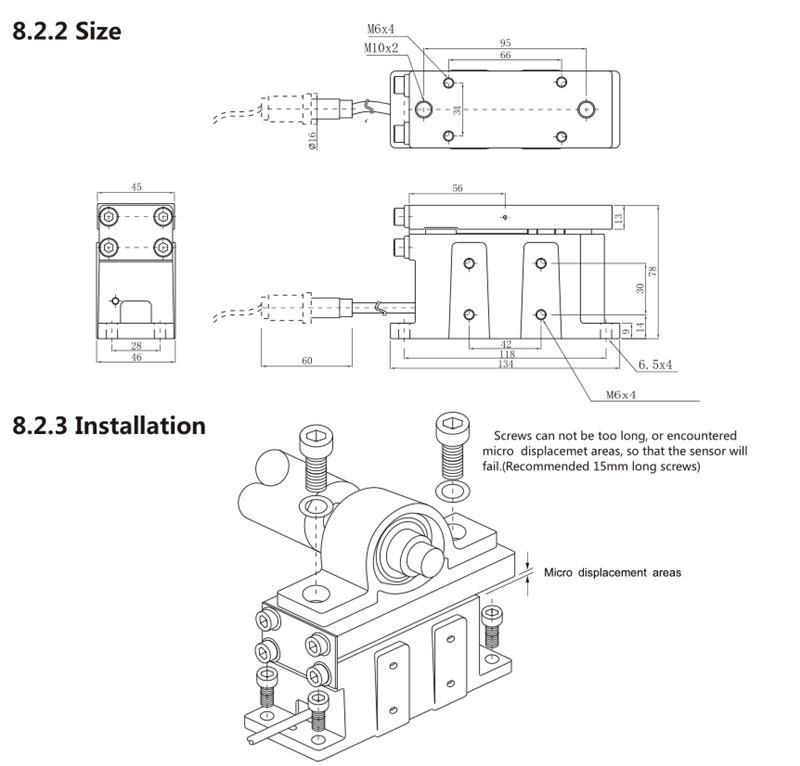

Mounting of Tension Sensors:

Our automatic tension control technology uses interactional many vanguard technologies, adopts the microprocessor, high speed 18A/D switch, antijamming self-recovery tech-nology, and PID non-over modulation algorithm, thus achieve the permanent tension control. Widely applies in printing, the packing, the papermaking, the spinning and also also the weaving, the line cable and so on. According to the difference of signal, it divides into completely automatic and Semiau-tomatic.

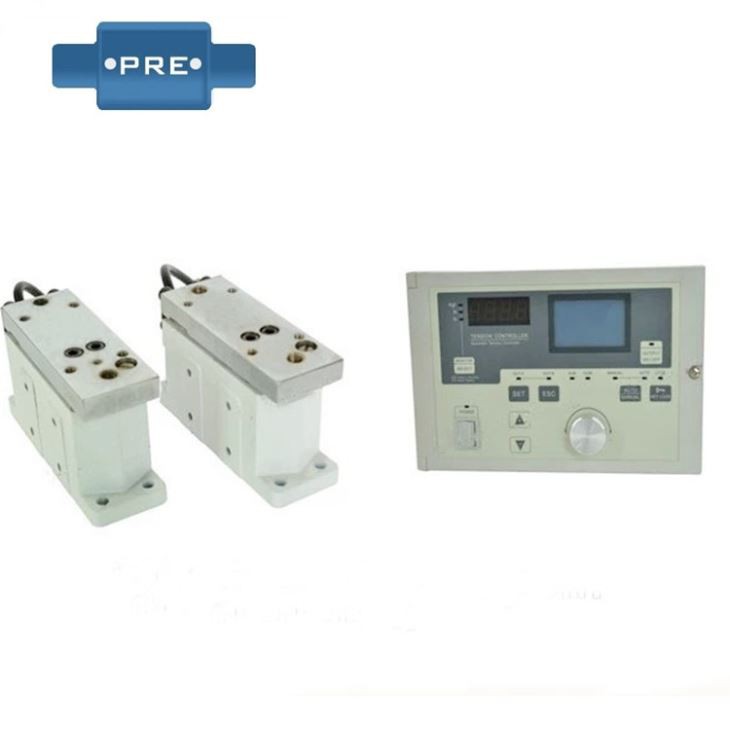

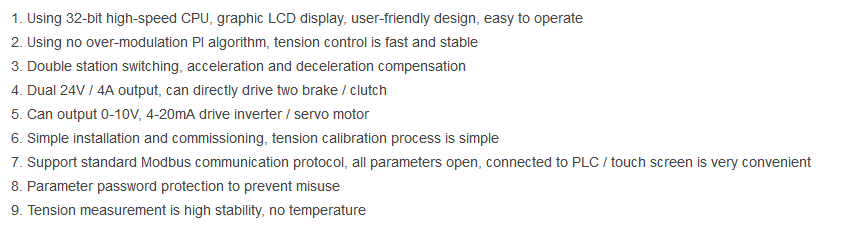

Automatic Tension Controller KTC-828A

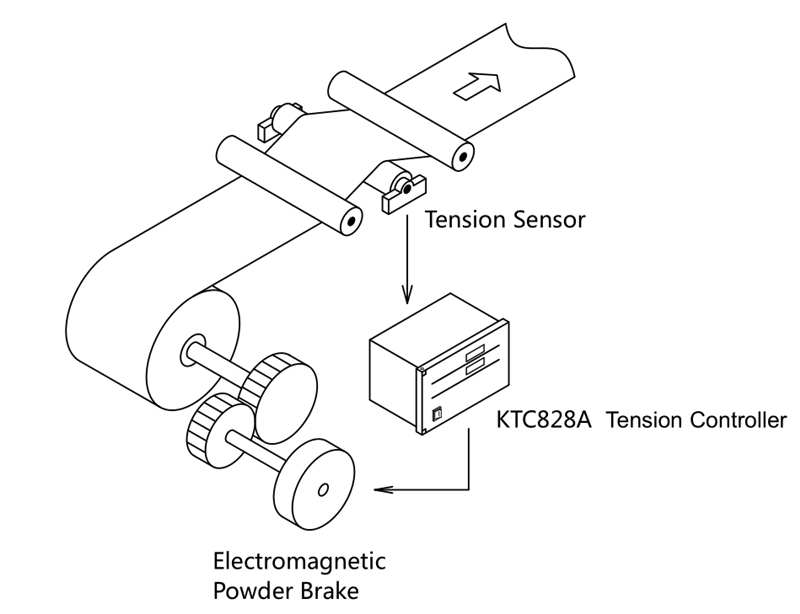

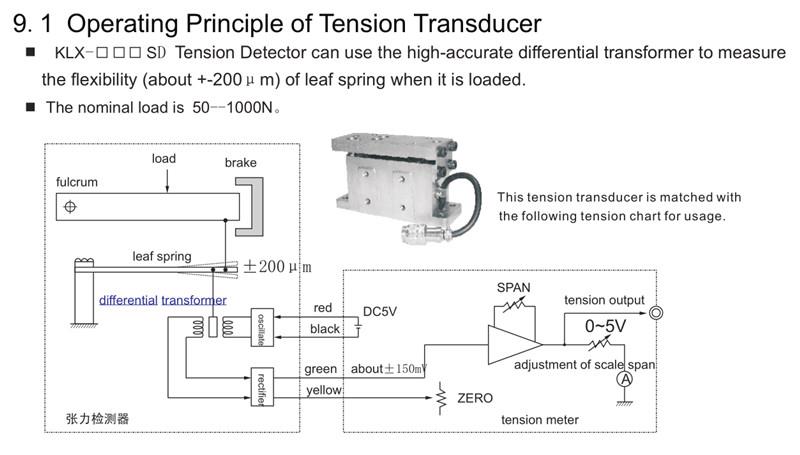

Working Principle:

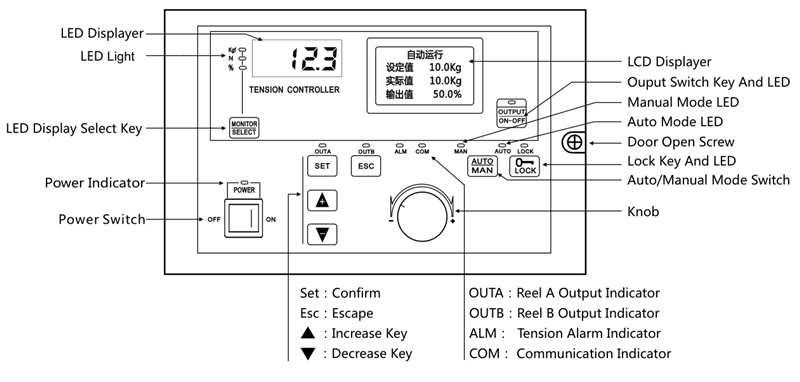

Operating Panel:

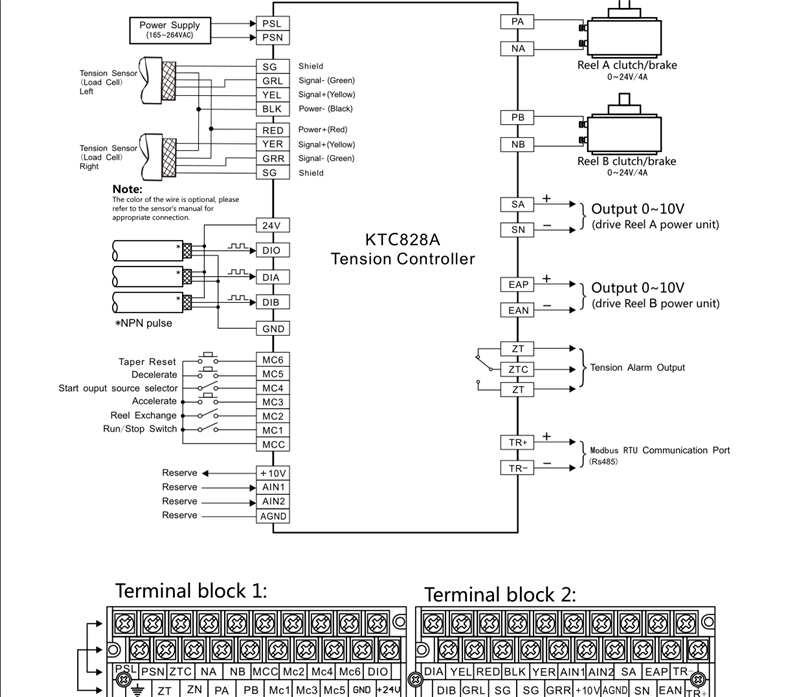

Wiring Diagram:

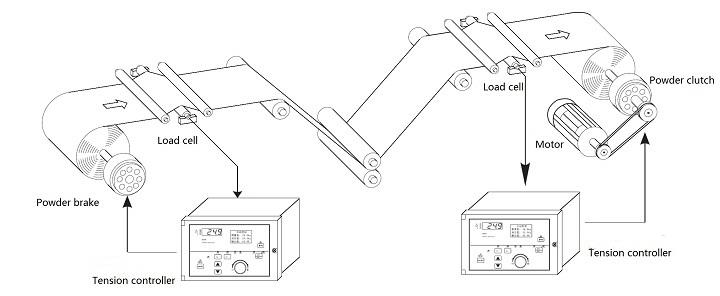

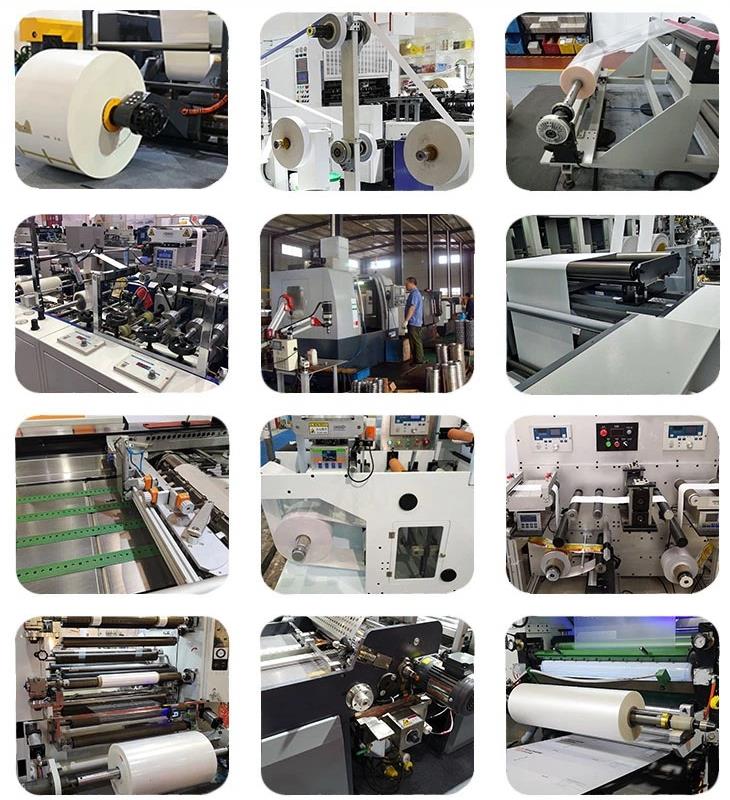

Application

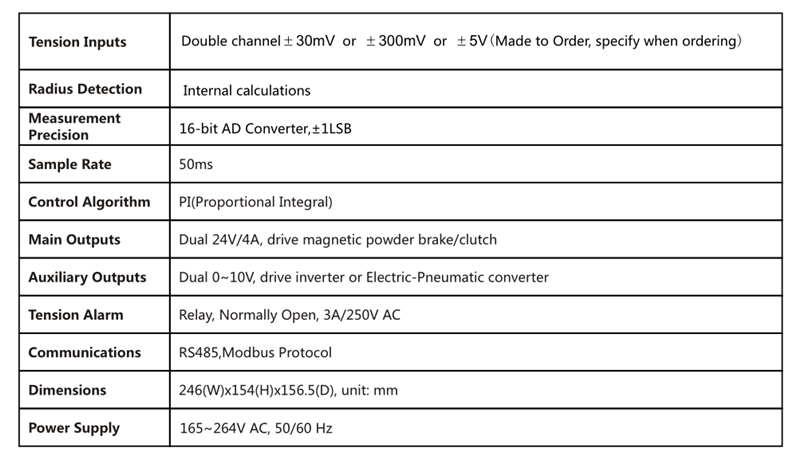

Order Details
