Features:

1.LCD display can be displayed in Chinese or English
2.Automatic and manual switching is simple and convenient
3.Tension detector wiring is simple and convenient
4.Convenient parameter settings
5.With double station axis output function
6.With dual station pre-start output function
7.Easy multi-machine management through Modbus protocol communication

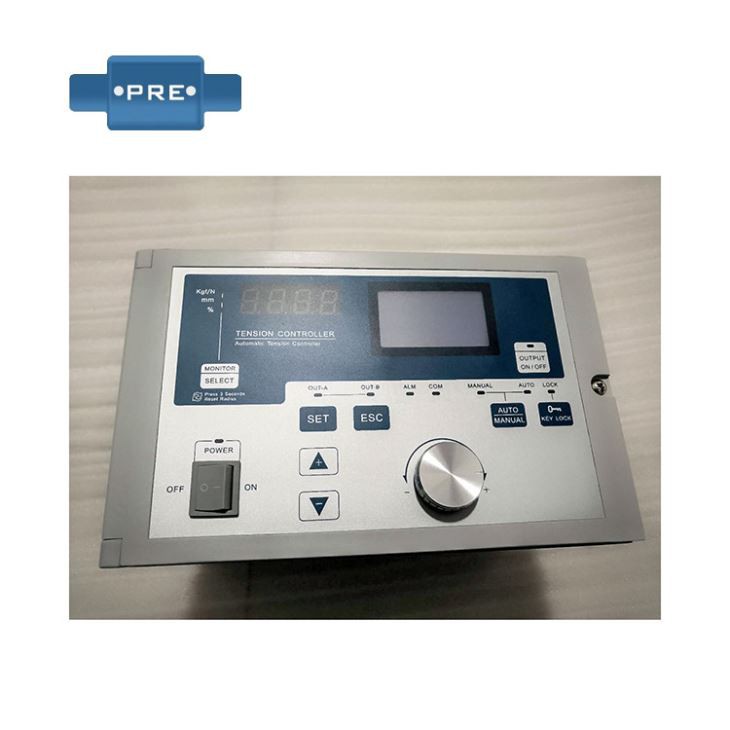

Automatic Tension Controller

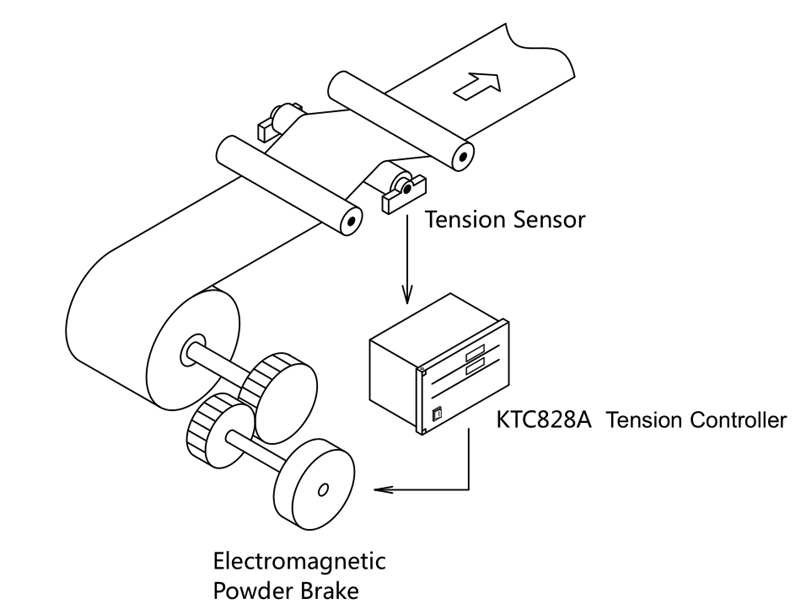

Working Principle:

Automatic Tension controller Features

1. adopts the 32-bit fast CPU, sketches liquid crystal display, humanized design and easy operation
2. adopts the overshot PI arithmetic, fast and stable tension control

3. double-position switch, acceleration and deceleration compensation

4. 24V/4A two-output, can drive the two-way brake/clutch directly

5.can output the 0-10V,4-20mA servo drive/ servo motor

6.easy installation and trial run, the process of tension calibrating is simple

7.supports the Standard Modbus Communication Protocol, opens up all the parameters, easy connecting to PLC/touch screen

8.protects the password parameters, avoids misoperation

9. tension measurement is high and stable, without temperature drift

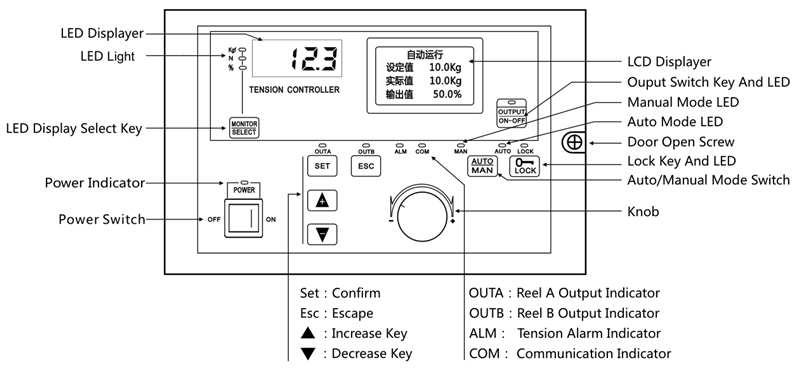

Operating Panel:

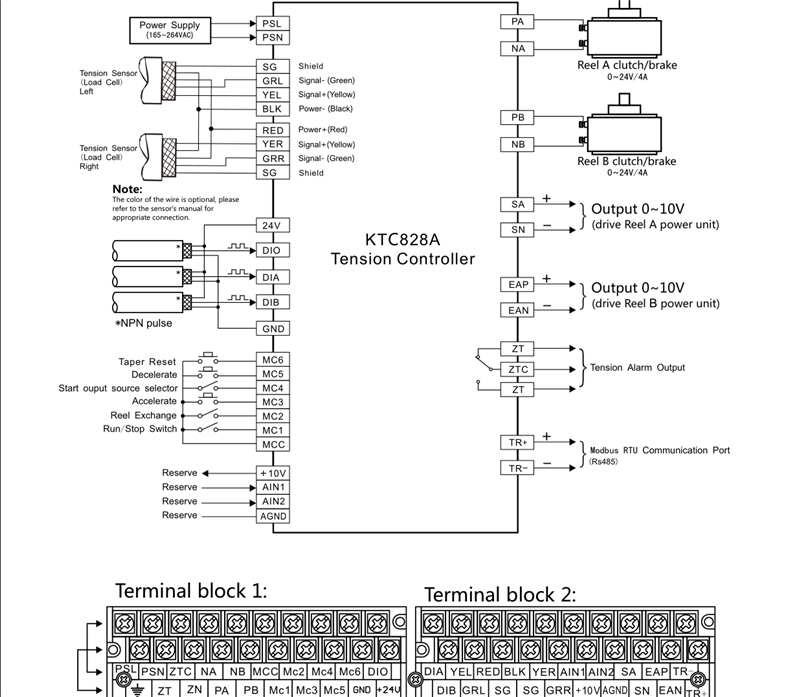

Wiring Diagram:

use

1. It can be used for the disengagement and torque braking in the torque transmission process.

2. Suitable for constant tension control systems, such as: printing presses, slitting machines, laminating machines, coating machines, paper machines, wire drawing machines and cable winders, as well as processing equipment and textile machinery for sheet metal, strip, film, etc. Wait.

3. Can replace ordinary clutch, used for rapid separation of machine tools, numerical control devices, computers, wide-line printers and various precision machinery.

4. As an overload device, it can be applied to mine lifting machinery, lifting machinery, cement, steel and other mechanical equipment, which can make the prime mover start at no load, gradually load, and improve equipment load capacity.

5. Stepless speed regulation, with sensor and control circuit can realize stepless speed regulation, especially for fine adjustment of speed at high speed and medium and small power speed control system.

6. In the overload protection, when the working system is accidental and the torque is overloaded, the clutch will automatically slip, thus protecting the mechanical equipment and the motive power.

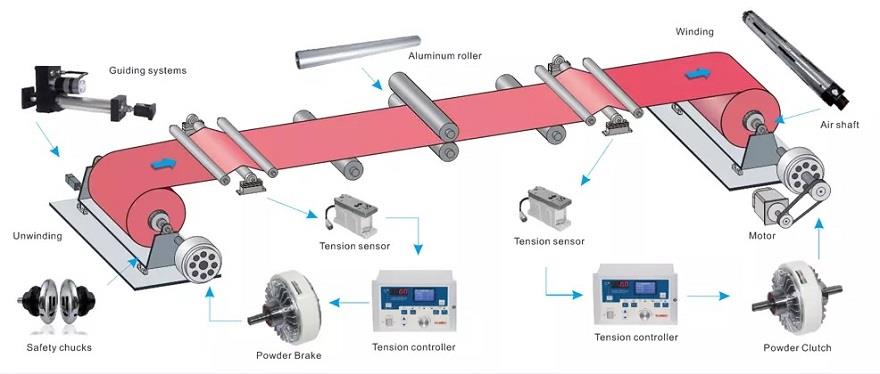

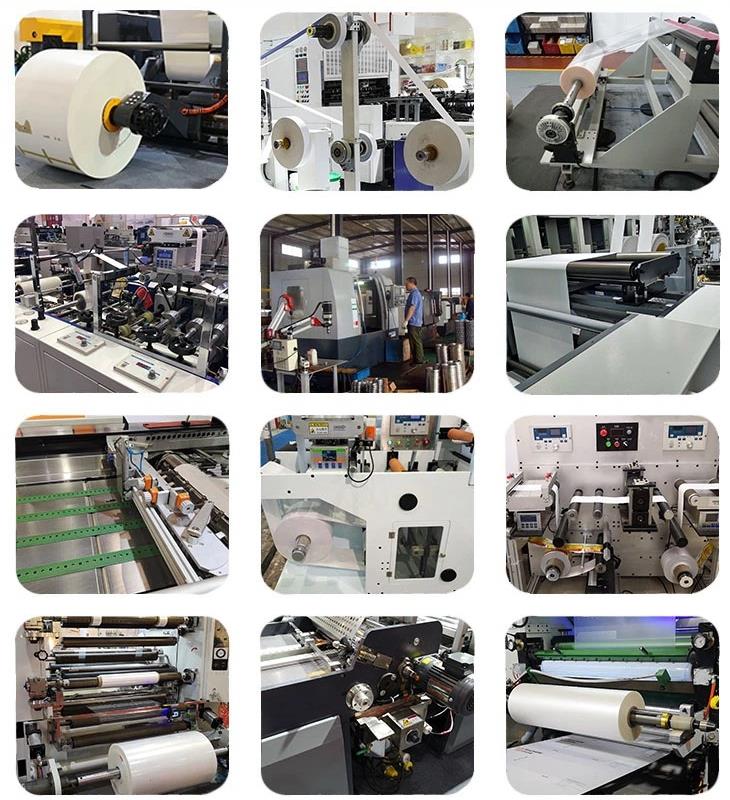

Application

Order Details

Item Name	KTC-828A Automatic Tension Controller
MOQ(Minimum Order Quantity)	1pc
Lead time	2 days after receiving the deposit
Calculated Packing Size	20cm*15cm*15cm,2kg/pc
Package	Carton
Price Term	EXW,FOB, CIF, etc
Payment term	TT,L/C,Western Union
Country of Origin	China
